Полностью пластиковый CPC быстроразъемный Соединительный 3/8 для шланга
275,53 ₽ - 330,63 ₽
Информация о продавце
*Внимание! Точную цену на данный товар Вы можете узнать непосредственно у продавца! На 20.10.2025 стоимость указанная на данной странице уже могла измениться! * Узнать цену *
Product Description
Usage | Standard flow quick-disconnect couplings require a body and an insert in the same flow size. Plug insert into body to connect fitting and easily disconnect the fitting by simply press the thumb latch. |
Application | medical devices, laboratory, life science, biopharmaceutical, biochemical analysis, bioengineering, circulating water cooling pipe system, water treatment and disinfection, food&beverage, packaging machinery, industrial and hundreds of other applications; |
Material | White/Black POM Acetal Plastic, customization is welcomed; |
Barbed Hose ID | 1/4" Flow All Plastic Series: 1/8"=3.2mmID Rigid Tube(430); 1/8"= 3.2mmID Soft Tube(02); 1/4"=6.4mmID Tube(04); 5/16"=8mmID Tube (05); 3/8"=9.6mmID Tube (06); 1/4" Flow Large Series: 1/8"= 3.2mm (02); 1/4"=6.4mm (04); 5/16"=8mm (05); 3/8"=9.6mm (06); 1/4"NPT(04); 1/8" Flow Medium Series: 1/16"=1.6mm (01); 1/8"=3.2mm (02); 3/16"=4.8mm (03); 1/4"=6.4mm(04); 1/8"NPT(02); 1/4"NPT(04); 1/16" Flow Small Series: 1/16" =1.6mmID Tube (01); 1/8"= 3.2mmID Tube (02); |
Seal Ring Material | Standard Buna-N O-ring; FKM/EPDM/Silicone rubber can be customized; |
Spring/Pin/Thumb latch | 316 Stainless Steel |
Temperature Range | 32°F - 160°F (0°C - 71°C) |
Pressure Range | Vacuum to 120 psi, 8.3 bar |
Valve Option | Valved (shut off) or Non-Valved(open flow) |
Termination Option | Panel Mount/In-Line/Elbow/NPT Threaded; |
1/4” Flow All Plastic Series In-Line Male Insert

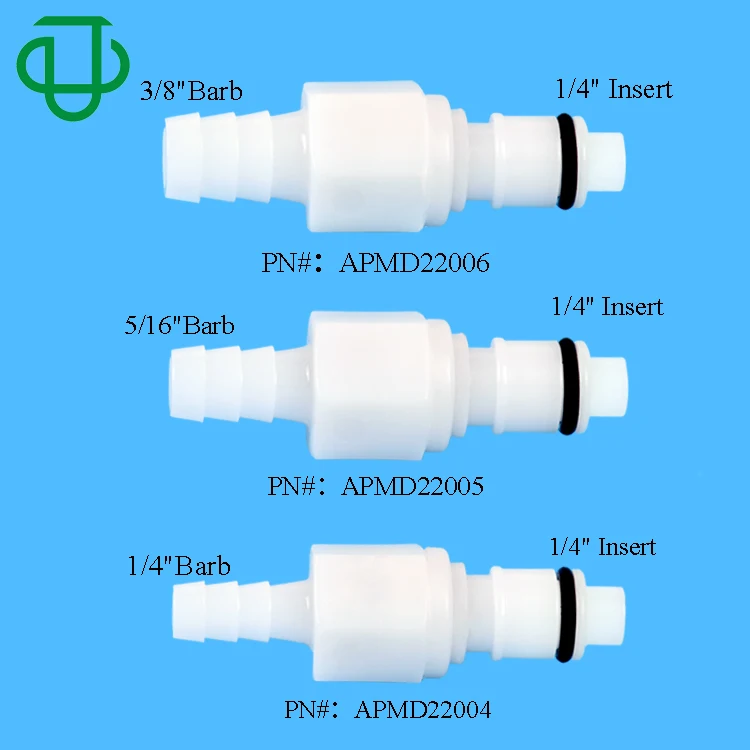

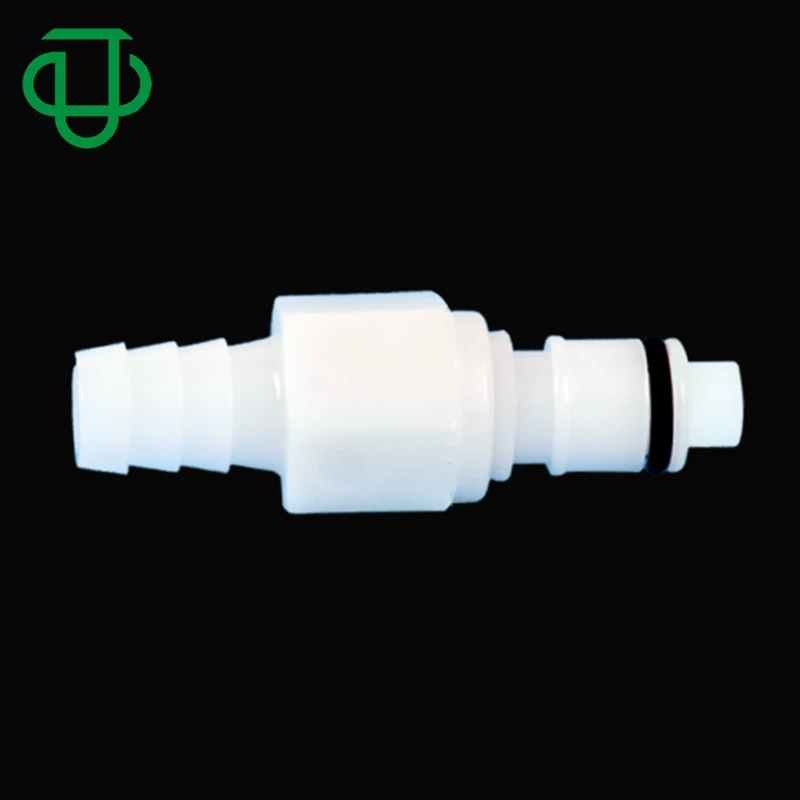

1/4" Flow All Plastic Valved Straight Male Insert:
APMD22004=1/4"(6.4mm) Hose Barb;
APMD22005=5/16"(7.9mm) Hose Barb;

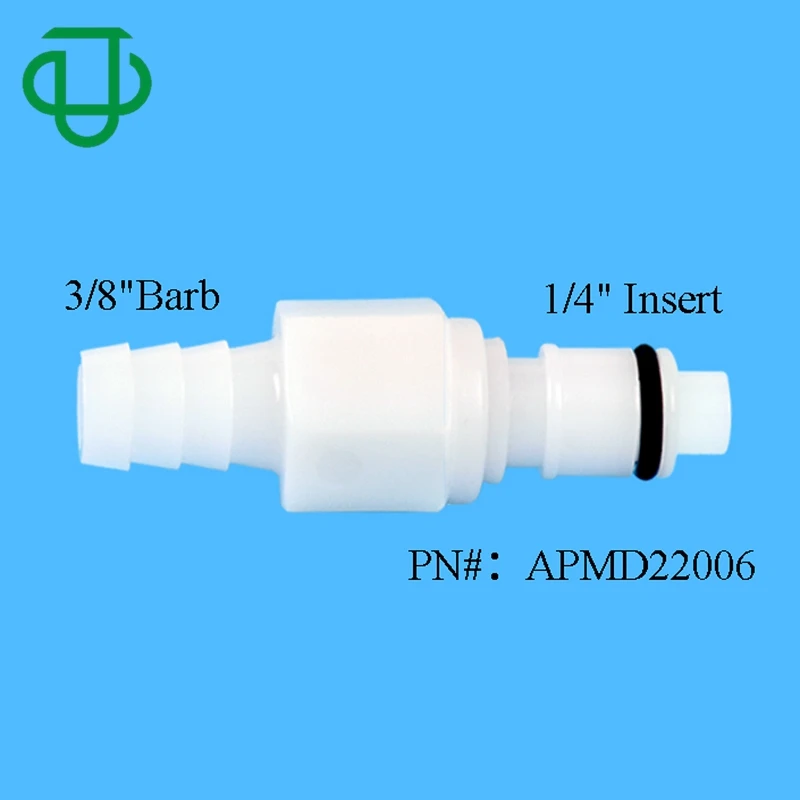

APMD22006=3/8"(9.5mm) Hose Barb;
1/4" Flow All Plastic Non-valved Straight Male Insert:
APM22004=1/4"(6.4mm) Hose Barb;
APM22005=5/16"(7.9mm) Hose Barb;
APM22006=3/8"(9.5mm) Hose Barb;
APM22005=5/16"(7.9mm) Hose Barb;
APM22006=3/8"(9.5mm) Hose Barb;

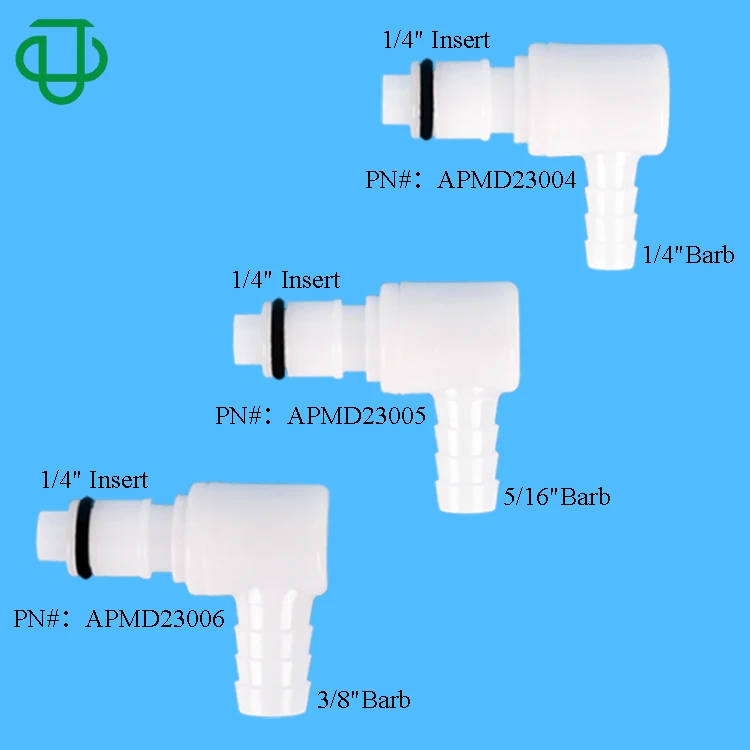

1/4" Flow All Plastic Valved Elbow Male Insert:
APMD23004=1/4"(6.4mm) Hose Barb;
APMD23005=5/16"(7.9mm) Hose Barb;
APMD23006=3/8"(9.5mm) Hose Barb;
1/4" Flow All Plastic Non-valved Elbow Male Insert:
APM23004=1/4"(6.4mm) Hose Barb;
APM23005=5/16"(7.9mm) Hose Barb;
APM23006=3/8"(9.5mm) Hose Barb;
APM23005=5/16"(7.9mm) Hose Barb;
APM23006=3/8"(9.5mm) Hose Barb;
1/4" Flow All Plastic Non-valved In-Line Female Body:
APF1700430=1/8"(3.2mm) Hose Barb;
APF17004=1/4"(6.4mm) Hose Barb;
APF17005=5/16"(7.9mm) Hose Barb;
APF17006=3/8"(9.5mm) Hose Barb;

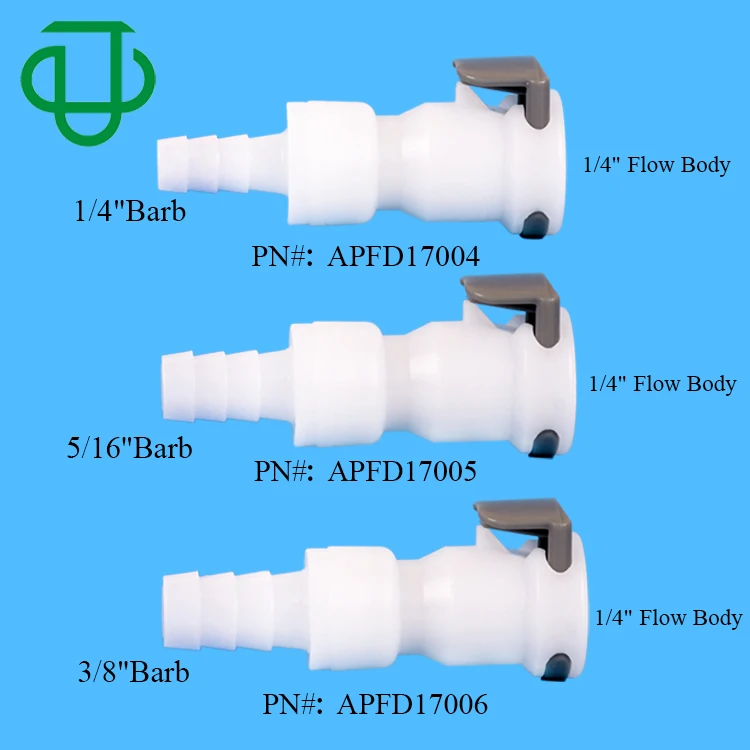

1/4" Flow All Plastic Valved In-Line Female Body:
APFD17002=1/8"(3.2mm) Hose Barb;
APFD17004=1/4"(6.4mm) Hose Barb;
APFD17005=5/16"(7.9mm) Hose Barb;
APFD17006=3/8"(9.5mm) Hose Barb;
1/4" Flow All Plastic Valved Panel Mount Female Body:
APFD16004=1/4"(6.4mm) Hose Barb;
APFD16005=5/16"(7.9mm) Hose Barb;
APFD16006=3/8"(9.5mm) Hose Barb;
1/4" Flow All Plastic Valved Threaded Male Insert:
APMD24004=1/4"-18NPT Male Thread;
1/4" Flow All Plastic Non-valved Threaded Male Insert:
APM24004=1/4"-18NPT Male Thread;
Company Profile
FAQ
Q1: Are you trading company or manufacturer ?
A1: We are 15-years-experience factory. Welcome to visit our factory.
Q2: What is your sample policy?
A2: 1. Only for terminal manufacturer;
A1: We are 15-years-experience factory. Welcome to visit our factory.
Q2: What is your sample policy?
A2: 1. Only for terminal manufacturer;
2. Please kindly provide detail information of company for sample application process.Sample is available after confirmed and approved by management;
3.The international freight cost should be paid by the applicant;
Q3: What is your terms of payment?
A3: Usually T/T 100% advance payment； T/T 50% as deposit when mass customization, the balance before shipment.
Q4: How about your delivery time?
A4: Generally, it will take 7-15 days after receiving advance payment.
The specific delivery time depend on the available inventory or actual production schedule.
Q5: What's the shipping way?
A5: Usually by DHL, UPS, TNT, FedEx express or as your request.
Q6: Can you produce according to the samples?
A6: Yes, we are good at doing all kind of customized plastic fittings and we can produce by your samples or technical drawings. We accept ODM & OEM.
Q3: What is your terms of payment?
A3: Usually T/T 100% advance payment； T/T 50% as deposit when mass customization, the balance before shipment.
Q4: How about your delivery time?
A4: Generally, it will take 7-15 days after receiving advance payment.
The specific delivery time depend on the available inventory or actual production schedule.
Q5: What's the shipping way?
A5: Usually by DHL, UPS, TNT, FedEx express or as your request.
Q6: Can you produce according to the samples?
A6: Yes, we are good at doing all kind of customized plastic fittings and we can produce by your samples or technical drawings. We accept ODM & OEM.
