Product Description
Female/Male Quick Coupler Disconnect Pipe Fitting Shut Off Barbed Quick Coupling Male Insert CPC Quick Hose Connector
Usage | Standard flow quick-disconnect couplings require a body and an insert in the same flow size. Plug insert into body to connect fitting and easily disconnect the fitting by simply press the thumb latch. |
Application | medical devices, laboratory, life science, biopharmaceutical, biochemical analysis, bioengineering, circulating water cooling pipe system, water treatment and disinfection, food&beverage, packaging machinery, industrial and hundreds of other applications; |
Material | White/Black POM Acetal Plastic, customization is welcomed; |
Barbed Hose ID | 1/16" Flow Small Series: 1/16" =1.6mmID Tube (01); 1/8"= 3.2mmID Tube (02); 1/8" Flow Medium Series: 1/16"=1.6mm (01); 1/8"=3.2mm (02); 3/16"=4.8mm (03); 1/4"=6.4mm(04); 1/8"NPT(02); 1/4"NPT(04); 1/4" Flow Large Series: 1/8"= 3.2mm (02); 1/4"=6.4mm (04); 5/16"=8mm (05); 3/8"=9.6mm (06); 1/4"NPT(04); 1/4" Flow All Plastic Series: 1/4"=6.4mmID Tube(04); 5/16"=8mmID Tube (05); 3/8"=9.6mmID Tube (06); |
Seal Ring Material | Standard Buna-N O-ring; FKM/EPDM/Silicone rubber can be customized; |
Spring/Pin/Thumb latch | 316 Stainless Steel |
Temperature Range | 32°F - 160°F (0°C - 71°C) |
Pressure Range | Vacuum to 120 psi, 8.3 bar |
Valve Option | Valved (shut off) or Non-Valved(open flow) |
Termination Option | Panel Mount/In-line/Elbow/NPT Threaded; |
Large 1/4” Flow Size Quick Disconnect Coupling Body&Insert

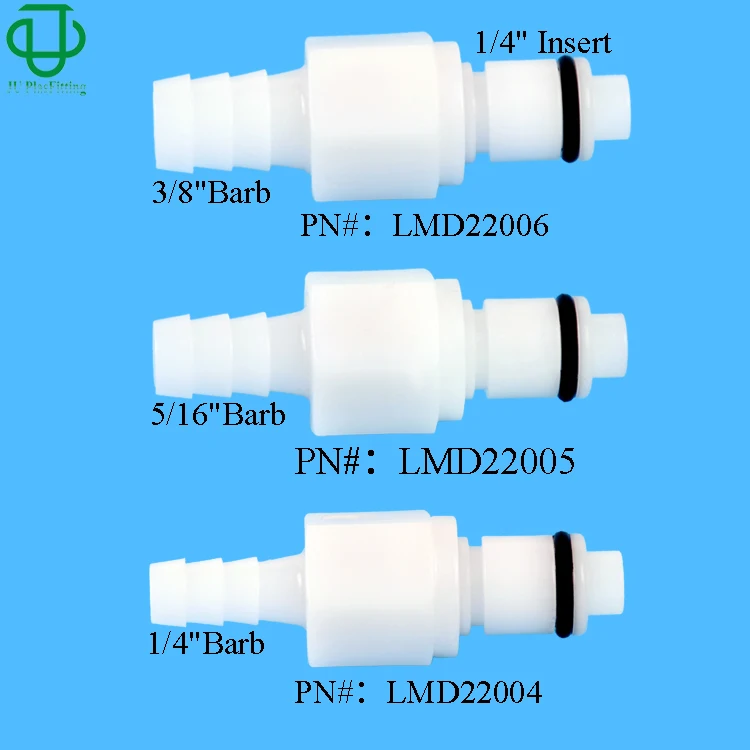

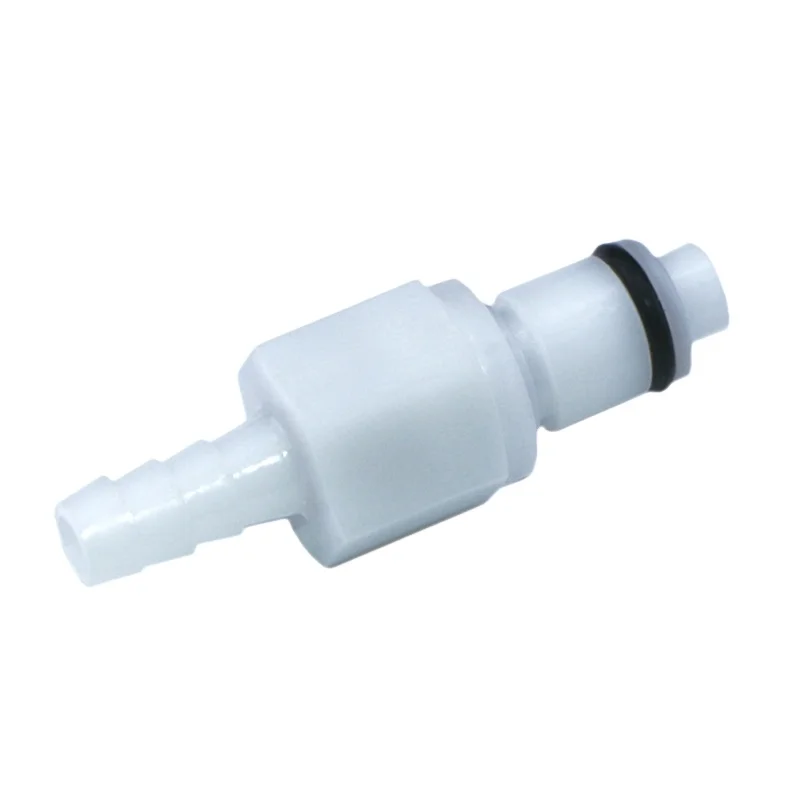

1/4" Flow Valved Straight Male Insert:
LMD22002=1/8"(3.2mm) Hose Barb;
LMD22004=1/4"(6.4mm) Hose Barb;
LMD22005=5/16"(7.9mm) Hose Barb;
LMD22006=3/8"(9.5mm) Hose Barb;

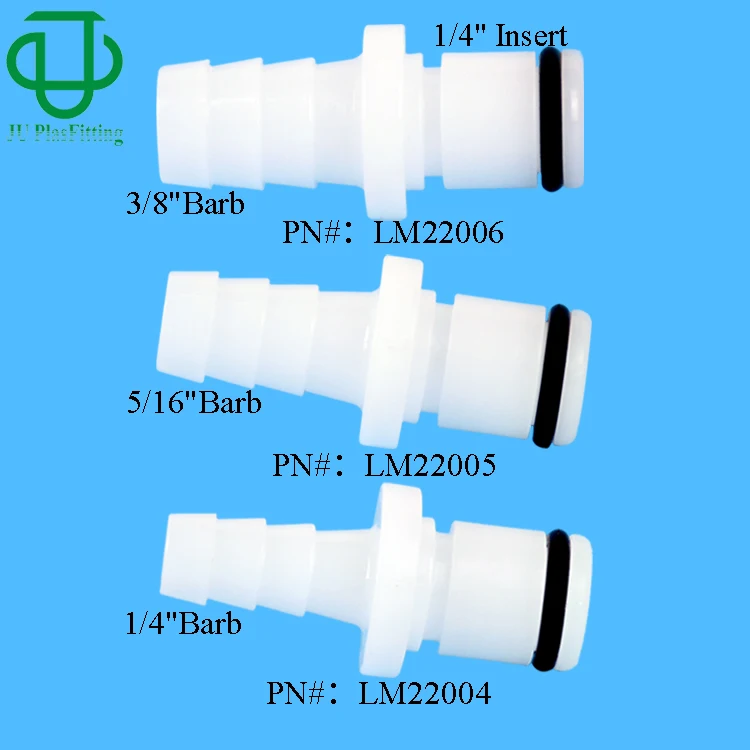

1/4" Flow Non-valved Straight Male Insert:
LM22004=1/4"(6.4mm) Hose Barb;
LM22005=5/16"(7.9mm) Hose Barb;
LM22006=3/8"(9.5mm) Hose Barb;
1/4" Flow Valved In-Line Female Body:
LFD17002=1/8"(3.2mm) Hose Barb;
LFD17004=1/4"(6.4mm) Hose Barb;
LFD17005=5/16"(7.9mm) Hose Barb;
LFD17006=3/8"(9.5mm) Hose Barb;
1/4" Flow Non-Valved In-Line Female Body:
LFO17004=1/4"(6.4mm) Hose Barb;
LFO17005=5/16"(7.9mm) Hose Barb;
LFO17006=3/8"(9.5mm) Hose Barb;
1/4" Flow Valved Panel Mount Female Body:
LFD16002=1/8"(3.2mm) Hose Barb;
LFD16004=1/4"(6.4mm) Hose Barb;
LFD16005=5/16"(7.9mm) Hose Barb;
LFD16006=3/8"(9.5mm) Hose Barb;
1/4" Flow Non-Valved Panel Mount Female Body:
LFO16004=1/4"(6.4mm) Hose Barb;
LFO16005=5/16"(7.9mm) Hose Barb;
LFO16006=3/8"(9.5mm) Hose Barb;
1/4" Flow Valved Threaded Female Body:
LFD10004=1/4"-18NPT Male Thread;
1/4" Flow Non-valved Threaded Female Body:
LF10004=1/4"-18NPT Male Thread;
1/4" Flow Valved Threaded Male Insert:
LMD24002=1/8"-27NPT Male Thread;
LMD24004=1/4"-18NPT Male Thread;
1/4" Flow Non-valved Threaded Male Insert:
LM24002=1/8"-27NPT Male Thread;
LM24004=1/4"-18NPT Male Thread;
1/4" Flow Valved Panel Mount 1 O-ring Male Insert:
LMD42002=1/8"(3.2mm) Hose Barb;
LMD42004=1/4"(6.4mm) Hose Barb;
LMD42005=5/16"(7.9mm) Hose Barb;
LMD42006=3/8"(9.5mm) Hose Barb;
1/4" Flow Non-Valved Panel Mount 1 O-ring Male Insert:
LM42004=1/4"(6.4mm) Hose Barb;
LM42005=5/16"(7.9mm) Hose Barb;
LM42006=3/8"(9.5mm) Hose Barb;
1/4" Flow Valved Panel Mount 2 O-rings Male Insert:
LMD42204=1/4"(6.4mm) Hose Barb;
LMD42205=5/16"(7.9mm) Hose Barb;
LMD42206=3/8"(9.5mm) Hose Barb;
1/4" Flow Non-Valved Panel Mount 2 O-rings Male Insert:
LM42204=1/4"(6.4mm) Hose Barb;
LM42205=5/16"(7.9mm) Hose Barb;
LM42206=3/8"(9.5mm) Hose Barb;
1/4" Flow Valved Elbow Male Insert:
LMD23004=1/4"(6.4mm) Hose Barb;
LMD23005=5/16"(7.9mm) Hose Barb;
LMD23006=3/8"(9.5mm) Hose Barb;
1/4" Flow Non-valved Elbow Male Insert:
LM23004=1/4"(6.4mm) Hose Barb;
LM23005=5/16"(7.9mm) Hose Barb;
LM23006=3/8"(9.5mm) Hose Barb;
1/4" Flow Valved In-Line Female Body:
LFD14004=1/4"(6.4mm)OD Tube Push-In;
1/4" Flow Non-valved In-LineFemale Body:
LF14004=1/4"(6.4mm)OD Tube Push-In;
1/4" Flow Valved In-Line Female Body:
LFD14005=5/16"(7.9mm)OD Tube Push-In;
1/4" Flow Non-valved In-LineFemale Body:
LF14005=5/16"(7.9mm)OD Tube Push-In;
1/4" Flow Valved Panel Mount Female Body:
LFD11004=1/4"(6.4mm)OD Tube Push-In;
1/4" Flow Non-valved Panel Mount Female Body:
LF11004=1/4"(6.4mm)OD Tube Push-In;
1/4" Flow Valved Panel Mount Female Body:
LFD11005=5/16"(7.9mm)OD Tube Push-In;
1/4" Flow Non-valved Panel Mount Female Body:
LF11005=5/16"(7.9mm)OD Tube Push-In;
1/4" Flow Valved Panel Mount Male Insert:
LMD41004=1/4"(6.4mm)OD Tube Push-In;
1/4" Flow Non-valved Panel Mount Male Insert:
LM41004=1/4"(6.4mm)OD Tube Push-In;
1/4" Flow Valved Panel Mount Male Insert:
LMD41005=5/16"(7.9mm)OD Tube Push-In;
1/4" Flow Non-valved Panel Mount Male Insert:
LM41005=5/16"(7.9mm)OD Tube Push-In;
1/4" Flow Valved Elbow Male Insert:
LMD29004=1/4"(6.4mm)OD Tube Push-In;
1/4" Flow Non-valved Elbow Male Insert:
LM29004=1/4"(6.4mm)OD Tube Push-In;
1/4" Flow Valved Elbow Male Insert:
LMD29005=5/16"(7.9mm)OD Tube Push-In;
1/4" Flow Non-valved Elbow Male Insert:
LM29005=5/16"(7.9mm)OD Tube Push-In;
Company Profile
FAQ
Q1: Are you trading company or manufacturer ?
A1: We are 15-years-experience factory. Welcome to visit our factory.
Q2: What is your sample policy?
A2: 1. Only for terminal manufacturer;
A1: We are 15-years-experience factory. Welcome to visit our factory.
Q2: What is your sample policy?
A2: 1. Only for terminal manufacturer;
2. Please kindly provide detail information of company for sample application process.Sample is available after confirmed and approved by management;
3.The international freight cost should be paid by the applicant;
Q3: What is your terms of payment?
A3: Usually T/T 100% advance payment； T/T 50% as deposit when mass customization, the balance before shipment.
Q4: How about your delivery time?
A4: Generally, it will take 7-15 days after receiving advance payment.
The specific delivery time depend on the available inventory or actual production schedule.
Q5: What's the shipping way?
A5: Usually by DHL, UPS, TNT, FedEx express or as your request.
Q6: Can you produce according to the samples?
A6: Yes, we are good at doing all kind of customized plastic fittings and we can produce by your samples or technical drawings. We accept ODM & OEM.
Q3: What is your terms of payment?
A3: Usually T/T 100% advance payment； T/T 50% as deposit when mass customization, the balance before shipment.
Q4: How about your delivery time?
A4: Generally, it will take 7-15 days after receiving advance payment.
The specific delivery time depend on the available inventory or actual production schedule.
Q5: What's the shipping way?
A5: Usually by DHL, UPS, TNT, FedEx express or as your request.
Q6: Can you produce according to the samples?
A6: Yes, we are good at doing all kind of customized plastic fittings and we can produce by your samples or technical drawings. We accept ODM & OEM.
Related Products You May Like
Large 1/4” Flow All Plastic Quick Disconnect Coupling Body&Insert
1/4" Flow All Plastic Non-valved In-Line Female Body:
APF1700430=1/8"(3.2mm) Hose Barb;
APF17004=1/4"(6.4mm) Hose Barb;
APF17005=5/16"(7.9mm) Hose Barb;
APF17006=3/8"(9.5mm) Hose Barb;
1/4" Flow All Plastic Valved In-Line Female Body:
APFD17002=1/8"(3.2mm) Hose Barb;
APFD17004=1/4"(6.4mm) Hose Barb;
APFD17005=5/16"(7.9mm) Hose Barb;
APFD17006=3/8"(9.5mm) Hose Barb;
1/4" Flow All Plastic Valved Panel Mount Female Body:
APFD16004=1/4"(6.4mm) Hose Barb;
APFD16005=5/16"(7.9mm) Hose Barb;
APFD16006=3/8"(9.5mm) Hose Barb;
1/4" Flow All Plastic Valved Threaded Male Insert:
APMD24004=1/4"-18NPT Male Thread;
1/4" Flow All Plastic Non-valved Threaded Male Insert:
APM24004=1/4"-18NPT Male Thread;
1/4" Flow All Plastic Valved Straight Male Insert:
APMD22004=1/4"(6.4mm) Hose Barb;
APMD22005=5/16"(7.9mm) Hose Barb;
APMD22006=3/8"(9.5mm) Hose Barb;
1/4" Flow All Plastic Non-valved Straight Male Insert:
APM22004=1/4"(6.4mm) Hose Barb;
APM22005=5/16"(7.9mm) Hose Barb;
APM22006=3/8"(9.5mm) Hose Barb;
APM22005=5/16"(7.9mm) Hose Barb;
APM22006=3/8"(9.5mm) Hose Barb;
1/4" Flow All Plastic Valved Elbow Male Insert:
APMD23004=1/4"(6.4mm) Hose Barb;
APMD23005=5/16"(7.9mm) Hose Barb;
APMD23006=3/8"(9.5mm) Hose Barb;
1/4" Flow All Plastic Non-valved Elbow Male Insert:
APM23004=1/4"(6.4mm) Hose Barb;
APM23005=5/16"(7.9mm) Hose Barb;
APM23006=3/8"(9.5mm) Hose Barb;
APM23005=5/16"(7.9mm) Hose Barb;
APM23006=3/8"(9.5mm) Hose Barb;
Medium 1/8” Flow Quick Disconnect Coupling Body&Insert
1/8" Flow Valved In-Line Female Body:
MFD1702=1/8"(3.2mm) Hose Barb;
MFD1703=3/16"(4.8mm) Hose Barb;
MFD1704=1/4"(6.4mm) Hose Barb;
1/8" Flow Non-Valved In-Line Female Body:
MFO1702=1/8"(3.2mm) Hose Barb;
MFO1703=3/16"(4.8mm) Hose Barb;
MFO1704=1/4"(6.4mm) Hose Barb;
1/8" Flow Valved Panel Mount Female Body:
MFD1602=1/8"(3.2mm) Hose Barb;
MFD1603=3/16"(4.8mm) Hose Barb;
MFD1604=1/4"(6.4mm) Hose Barb;
1/8" Flow Non-Valved Panel Mount Female Body:
MFO1601=1/16"(1.6mm) Hose Barb;
MFO1602=1/8"(3.2mm) Hose Barb;
MFO1603=3/16"(4.8mm) Hose Barb;
MFO1604=1/4"(6.4mm) Hose Barb;
1/8" Flow Valved Threaded Female Body:
MFD1002=1/8"-27NPT Male Thread;
MFD1004=1/4"-18NPT Male Thread;
1/8" Flow Non-valved Threaded Female Body:
MF1002=1/8"-27NPT Male Thread;
MF1004=1/4"-18NPT Male Thread;
1/8" Flow Valved Threaded Male Insert:
MMD2402=1/8"-27NPT Male Thread;
MFD2404=1/4"-18NPT Male Thread;
1/8" Flow Non-valved Threaded Male Insert:
MM2402=1/8"-27NPT Male Thread;
MM2404=1/4"-18NPT Male Thread;
1/8" Flow Valved Straight Male Insert:
MMD2202=1/8"(3.2mm) Hose Barb;
MMD2203=3/16"(4.8mm) Hose Barb;
MMD2204=1/4"(6.4mm) Hose Barb;
1/8" Flow Non-valved Straight Male Insert:
MM2202=1/8"(3.2mm) Hose Barb;
MM2203=3/16"(4.8mm) Hose Barb;
MM2204=1/4"(6.4mm) Hose Barb;
1/8" Flow Valved Elbow Male Insert:
MMD2302=1/8"(3.2mm) Hose Barb;
MMD2303=3/16"(4.8mm) Hose Barb;
MMD2304=1/4"(6.4mm) Hose Barb;
1/8" Flow Non-valved Elbow Male Insert:
MM2302=1/8"(3.2mm) Hose Barb;
MM2303=3/16"(4.8mm) Hose Barb;
MM2304=1/4"(6.4mm) Hose Barb;
1/8" Flow Valved Panel Mount Male Insert:
MMD4202=1/8"(3.2mm) Hose Barb;
MMD4203=3/16"(4.8mm) Hose Barb;
MMD4204=1/4"(6.4mm) Hose Barb;
1/8" Flow Non-valved Panel Mount Male Insert:
MM4202=1/8"(3.2mm) Hose Barb;
MM4203=3/16"(4.8mm) Hose Barb;
MM4204=1/4"(6.4mm) Hose Barb;
MM4203=3/16"(4.8mm) Hose Barb;
MM4204=1/4"(6.4mm) Hose Barb;
1/8" Flow 1/4"PTF Valved Panel Mount Female Body:
MFD2004=5/32"(4mm)IDx1/4"(6.4mm)OD Tube;
1/8" Flow 1/4"PTF Non-Valved Panel Mount Female Body:
MFO2004=5/32"(4mm)IDx1/4"(6.4mm)OD Tube;
MFO2004=5/32"(4mm)IDx1/4"(6.4mm)OD Tube;
1/8" Flow 1/4"PTF Valved In-Line Female Body:
MFD1304=5/32"(4mm)IDx1/4"(6.4mm)OD Tube;
1/8" Flow 1/4"PTF Non-Valved In-Line Female Body:
MFO1304=5/32"(4mm)IDx1/4"(6.4mm)OD Tube;
1/8" Flow 1/4"PTF Valved In-Line Male Insert:
MMD2004=5/32"(4mm)IDx1/4"(6.4mm)OD Tube;
1/8" Flow 1/4"PTF Non-Valved In-Line Male Insert:
MM2004=5/32"(4mm)IDx1/4"(6.4mm)OD Tube;
1/8" Flow 1/4"PTF Valved Panel Mount Male Insert:
MMD4004=5/32"(4mm)IDx1/4"(6.4mm)OD Tube;
1/8" Flow 1/4"PTF Non-Valved Panel Mount Male Insert:
MM4004=5/32"(4mm)IDx1/4"(6.4mm)OD Tube;
MM4004=5/32"(4mm)IDx1/4"(6.4mm)OD Tube;
Small 1/16” Flow Quick Twist On&Off Coupling Body&Insert
