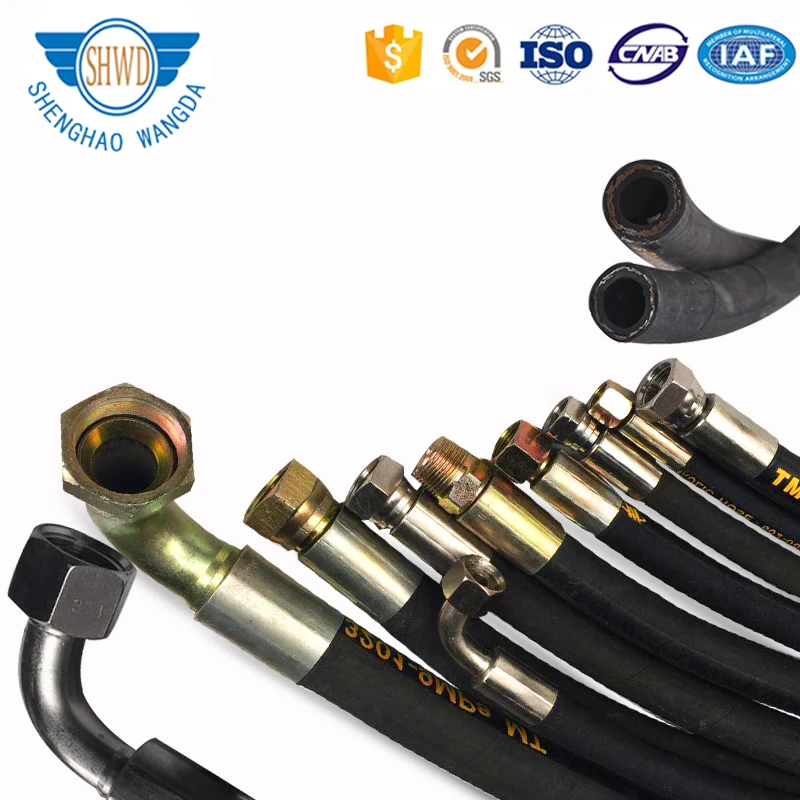

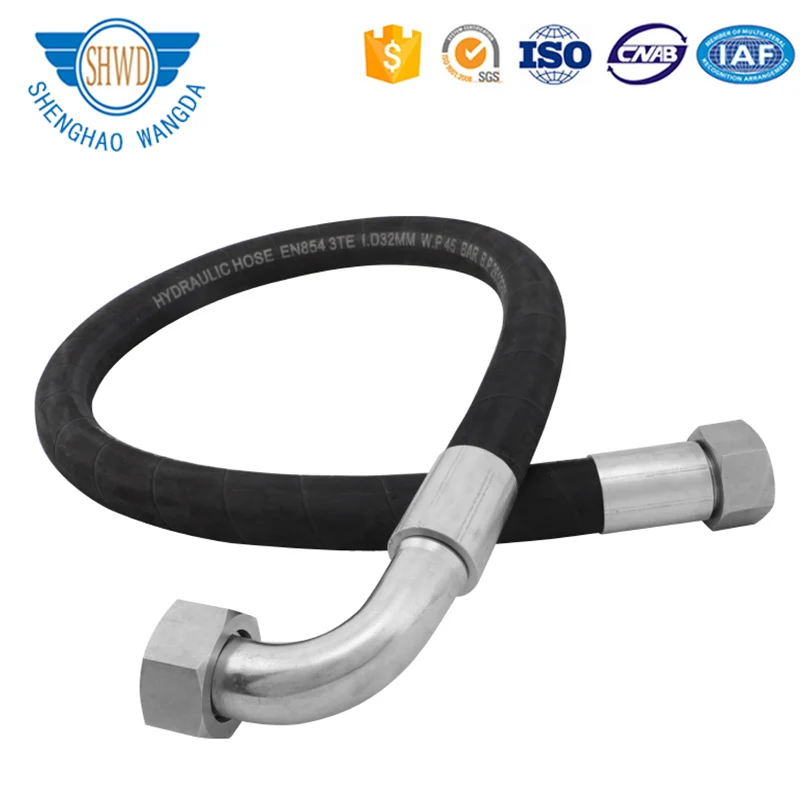

SAE R1 to R17 Super Flexible High Pressure Rubber Hose / Hydraulic Hose Assembly / Hydraulic Hose
| Product Description |
Our factory can customize various sizes of hose.
This Steel Wire Hose is mainly intended for diverse applications in the fields of forestry, agriculture, construction and others. It is integrated with a bend radius capability which allows an intuitive mounting and routing. This also enables a longer hose life in various curving applications and some of the bent tube fitting needs.
It is enclosed with a black and oil resistant cover which is also integrated with a synthetic rubber. Its cover also comes with a color-optional line of marking. Its tube is black in color and is built with an oil-resistant tube material which enables high pressure and high temperature functionality.
Product Description

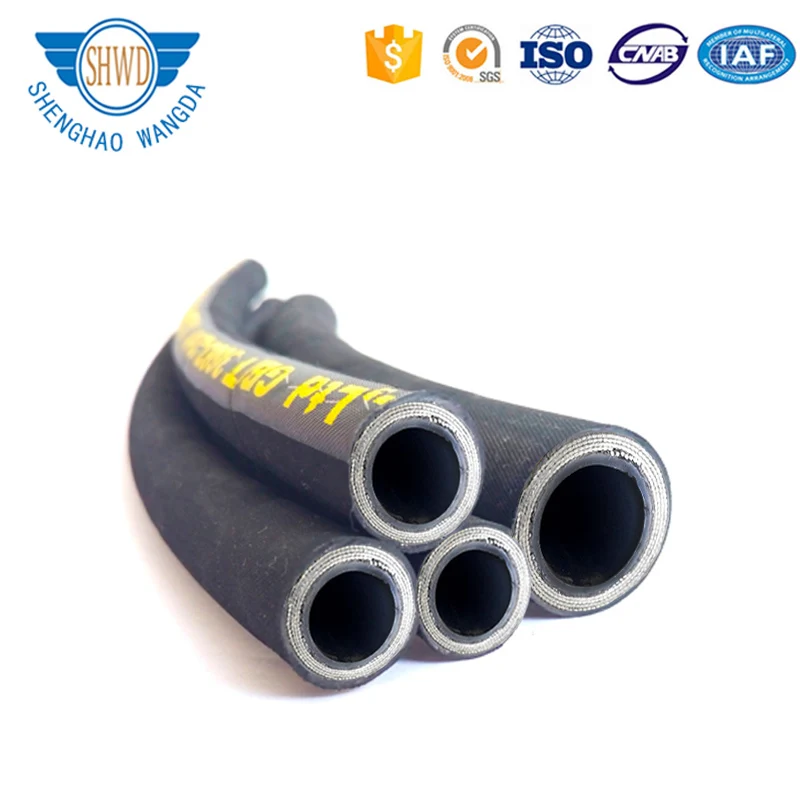

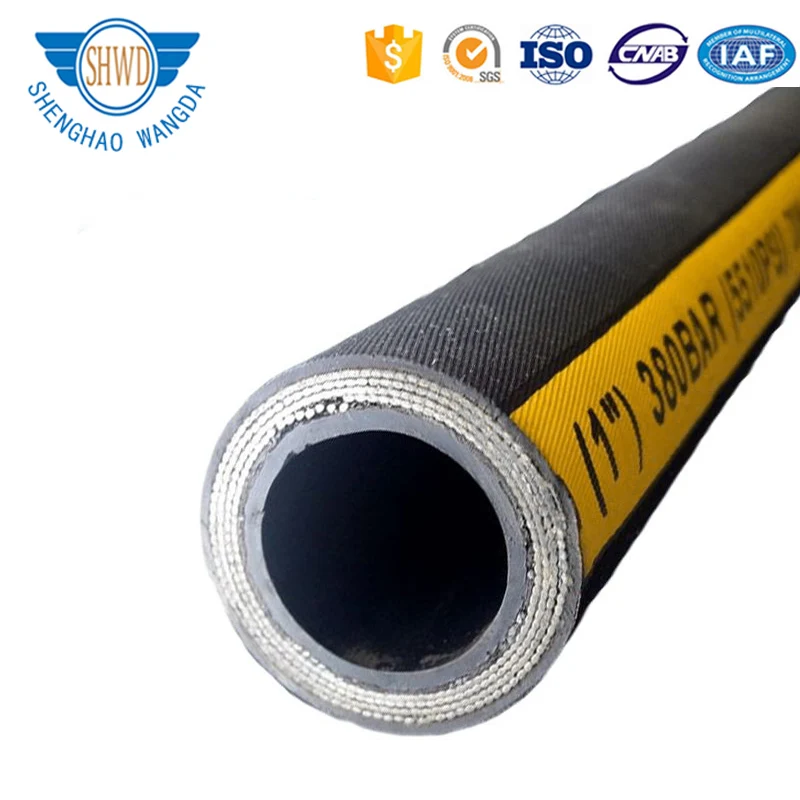

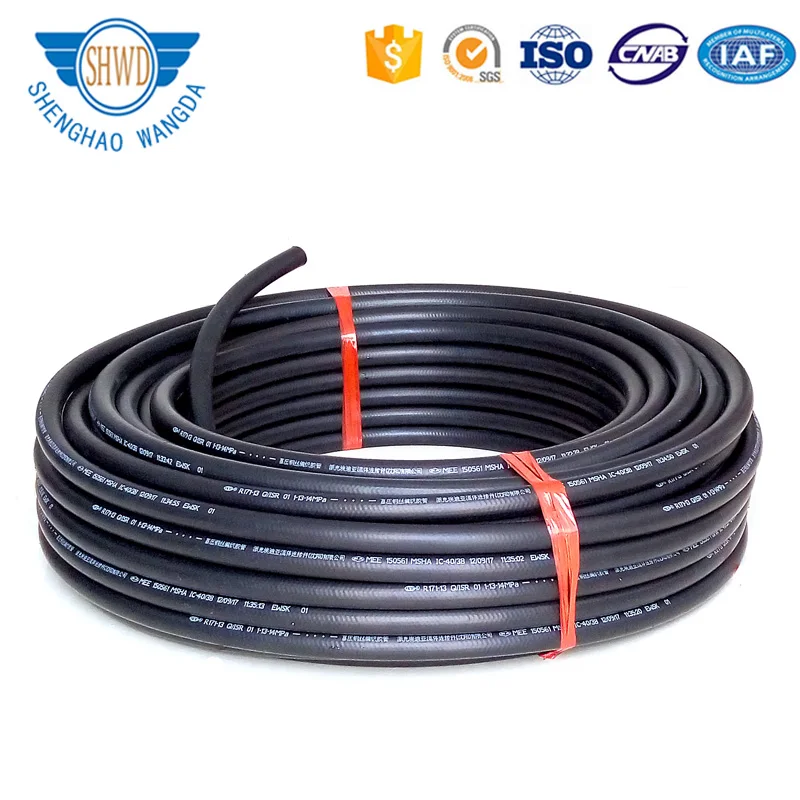

R1 to R17 Super Flexible High Pressure Hydraulic Rubber Oil Hose
SAE 100 R1AT / DIN EN 853 1SN STANDARD
Tube: Oil resistant synthetic rubber

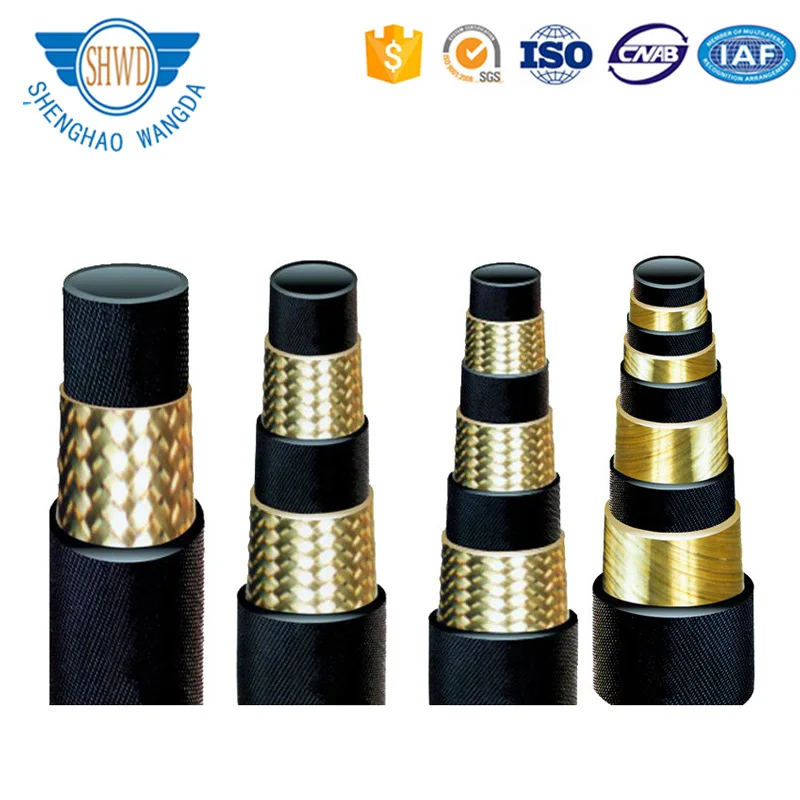

Reinforcement: One high tensile steel wire braid
Cover: Abrasion and weather resistant synthetic rubber
Temperature range: -40C to +100C
SAE-R2
SAE 100 R2 AT / DIN EN 853 2SN STANDARD
Tube: Oil resistant synthetic rubber
Reinforceent: Two high tensile steel wire layers 2 w
Cover Compound: Abrasion and weather resistant synthetic rubber
Temperature range: -40C to +100C
SAE-R3
SAE J517 TYPE 100 R3 STANDARD
Tube: Oil resistant synthetic rubber
Reinforcement: Two high tensile fibre braid (2T/B)
Cover Compound: Abrasion and weather resistant synthetic rubber
Temperature range: -40C to +100C
DIN-4SH
DIN EN856 4SH STANDARD
Tube: Oil resistant synthetic rubber
Reinforcement: Four high tensile steel wire spiral layers ( 4 W/S )
Cover: Abrasion and weather resistant synthetic rubber
Temperature range: -40C to +100C
DIN-4SP
DIN EN856 4SP STANDARD
Tube: Oil resistant synthetic rubber
Reinforcement: Four high tensile steel wire layers ( 4 W/S )
Cover: Abrasion and weather resistant synthetic rubber
Temperature range: -40C to +100C
SAE-R5
SAE J517 TYPE 100 R5 STANDARD
Tube: Oil resistant synthetic rubber
Reinforcement: A single wire braid and a fiber braided cover (1W/B X 1F/B)
Cover Compound: One Impregnated fibre braid ( 1 T/B )
Temperature range: -40C to +100C
SAE-R6
SAE J517 TYPE 100 R6 STANDARD
Tube: Oil resistant synthetic rubber
Reinforcement: One high tensile steel fibre braid (1T/B)
Cover Compound: Abrasion and weather resistant synthetic rubber
Temperature range: -40. To +100
SAE-R7/R8
SAE 100 R7/EN856 R7 SAE100 R8 /EN 855 R8
Structure and capability: This kind of hose is made of Inner Tube (Nylon), reinforcement (High Flexibility Nylon or Thetmoplastic). It is Lightweight, Flexibility, and the inner tube is vety smooth. With a few loss of Pressure, the hose resistance of the Medium flowing is small, and it also owns a fine performance of Anti-chemical and Impulse.
Application: Automobile, Engineering Machinery, Lathe, Agriculture Machine, Mining, Spurting the Oil Paint, Avigation&Spacefight, Cooling and other Hydraulic Control System.
SAE-R9
Construction: This hose consists of an inner tube of oil synthetic rubber, four spirals wire reinforcement, and an oil and weather resistant synthetic rubber cover.
Application: Hose range suitable to carry hydraulic fluids such as glycol, mineral oilsfuelslubricationemulsionhydrocarbons etc.
Working temperature: From-40 up to +100
SAE-R12
SAE J517 TYPE 100 R12 STANDARD
Tube: Oil resistant synthetic rubber
Reinforcement: Four high tensile steel wire spiral layers ( 4 W/S )
Cover: Abrasion and weather resistant synthetic rubber
Temperature range: -40 to +121
SAE-R13
SAE J517 TYPE 100 R13 STANDARD
Tube: Oil resistant synthetic rubber
Reinforcement: Four or six high tensile steel wire spiral layers ( 4 W/S 6 W/S )
Cover: Abrasion and weather resistant synthetic rubber
Temperature range: -40 to +121
SAE-R16
SAE J517 TYPE 100 R16 STANDARD
Application: Designed to replace 100R2 where higher pressures and more flexible hose is required
Tube: Oil resistant synthetic rubber
Reinforcement: One or two high tensile steel wire braid
Cover: Abrasion and weather resistant synthetic rubber
Temperature range: -40 to +100
SAE-R17
SAE J517 TYPE 100R17 STANDARD
Application: Designed to replace 100R1 where higher pressures and more flexible hose is required
Tube: Oil resistant synthetic rubber
Reinforcement: One or two high tensile steel wire braid
Cover: Abrasion and weather resistant synthetic rubber
Temperature range: -40 to +100C
| Related Products |
Our factory company production all kinds of hydraulic hose, Composite hose, rubber hose, carbon steel stainless steel quick connectors, hose fittings, machine, etc., high quality, cheap. Welcome to click the picture to our store to buy.
| Our Qualification |
Our service
♦ OEM Manufacturing welcome: Product, Package
♦ We provide sample orders
♦ We will reply you for your inquiry in 24 hours
♦ After sending, we will track the products for you once every two days, until you get the products
♦ When you get the goods, have any questions, we will provide the best quality service
| Company Information |
| Our Advantage |
| Packaging & Shipping |
Packaging
♦ Packages we are now using, high quality OPP bags+Carton. (OEM is welcomed )
Shipping
♦ Pre-order negotiation, including packages, pictures of products
♦ PI confirmation, including specifications, prices, payment account, shipping cost & agent etc
♦ Payment confirmation
♦ Shipping arrangement, packages will be under strict inspection
♦ Shippments will be made officially, and customers be informed
| FAQ |
1. What is your terms of packing?
— — Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
2. What is your terms of payment?
— — T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
3. What is your terms of delivery?
— — EXW, FOB, CFR, CIF, DDU.
4. How about your delivery time?
— — Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
5. Can you produce according to the samples?
— — Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
6. What is your sample policy?
— — We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
7: How do you make our business long-term and good relationship?
— — We keep good quality and competitive price to ensure our customers benefit ; We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
You are welcome to Send Mail to consult our products, we will be 24 hours for your dedicated service.
