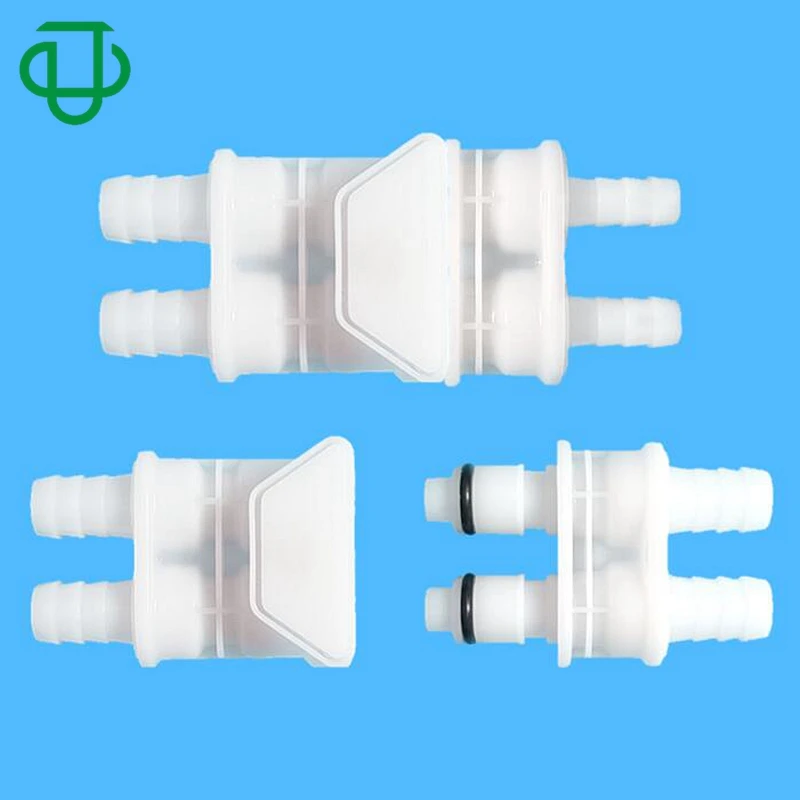

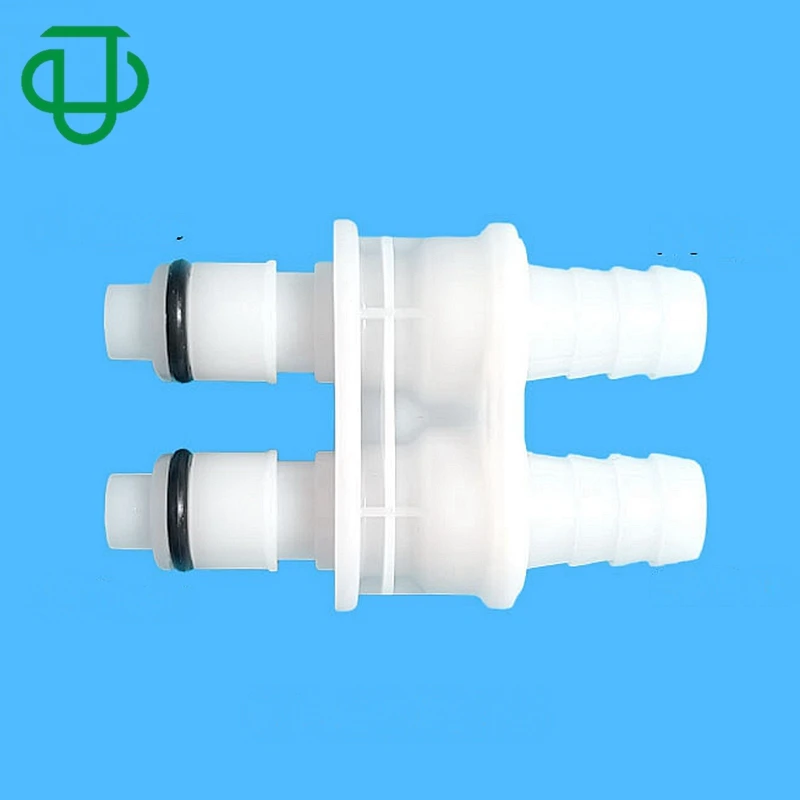

Быстросъемный соединитель «Два в одном» для шланга 3/8
3,60 $ - 4,30 $
Информация о продавце
*Внимание! Точную цену на данный товар Вы можете узнать непосредственно у продавца! На 20.10.2025 стоимость указанная на данной странице уже могла измениться! * Узнать цену *
Product Description

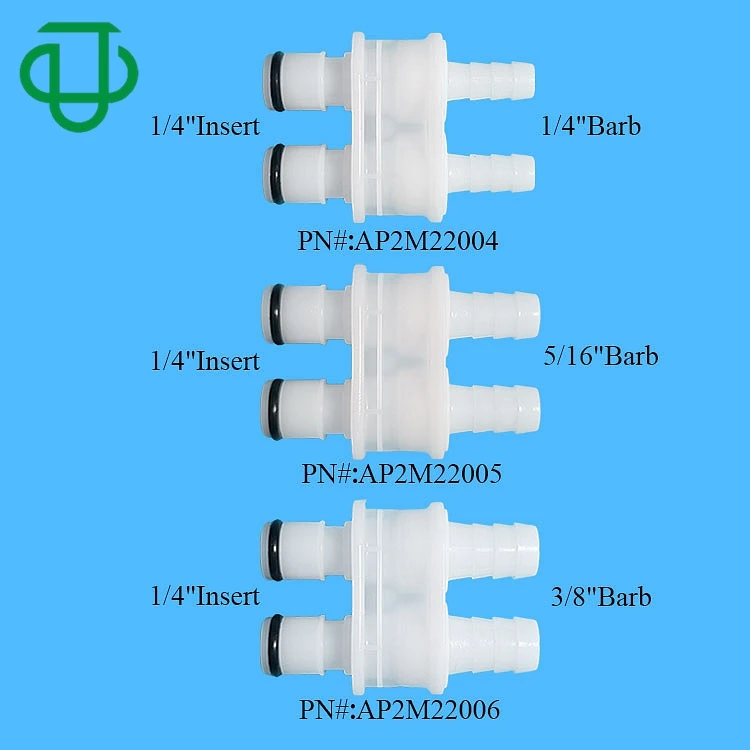

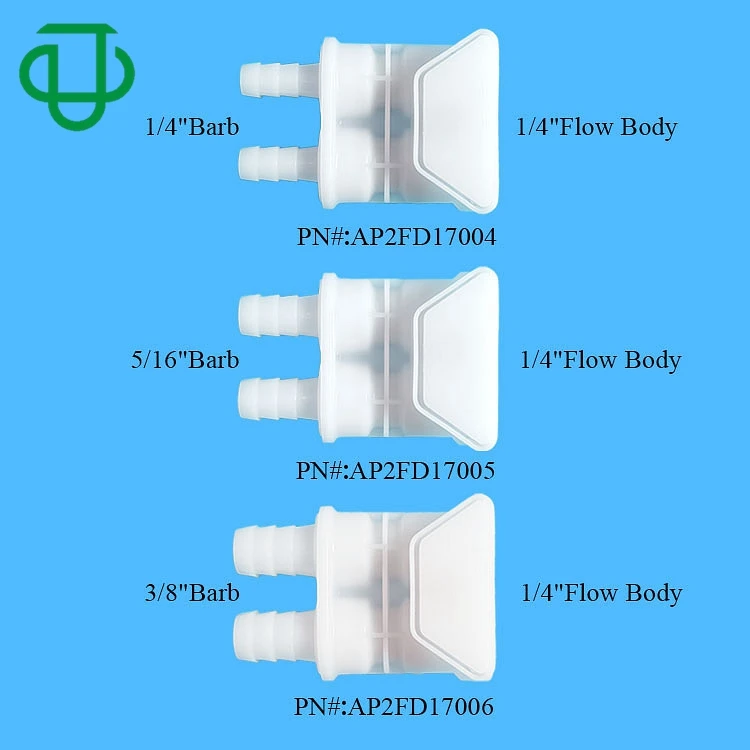

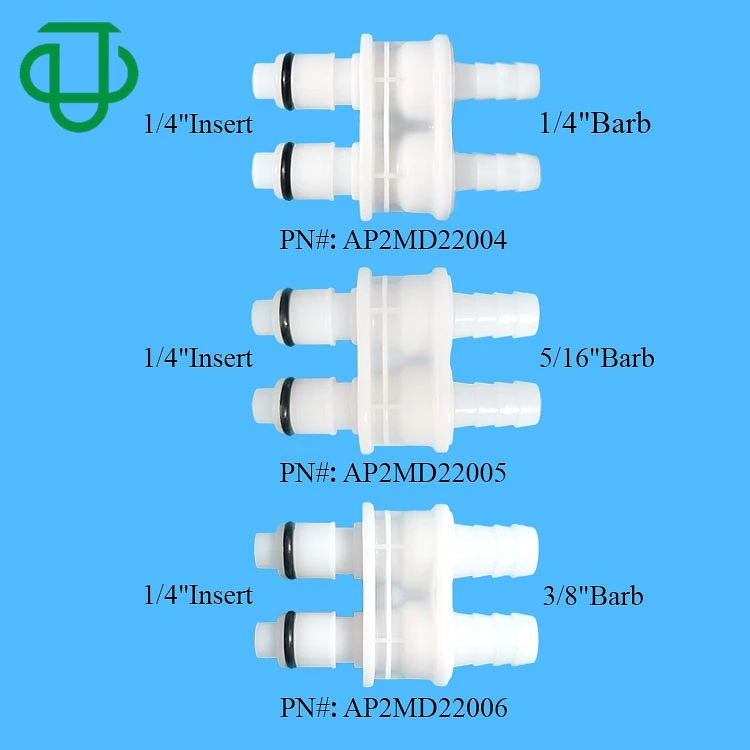

Two in One Adapter 3/8" Hose Barb Shut Off Open Flow Male Quick Connector Dual Flow Quick Disconnect Coupling
Usage | Standard flow quick-disconnect couplings require a body and an insert in the same flow size. Plug insert into body to connect fitting and easily disconnect the fitting by simply press the thumb latch. |
Application | medical devices, laboratory, life science, biopharmaceutical, biochemical analysis, bioengineering, circulating water cooling pipe system, water treatment and disinfection, food&beverage, packaging machinery, industrial and hundreds of other applications; |
Material | Natural/Black POM Acetal Plastic, customization is welcomed; |
Barbed Hose ID | 1/16" Flow Small Series: 1/16" =1.6mm (01); 1/8"= 3.2mm (02); 1/8" Flow Medium Series: 1/16"=1.6mm (01); 1/8"=3.2mm (02); 3/16"=4.8mm (03); 1/4"=6.4mm(04); 1/4" Flow Large Series: 1/8"= 3.2mm (02); 1/4"=6.4mm (04); 5/16"=8mm (05); 3/8"=9.6mm (06); 1/4" Flow All Plastic Series: 1/4"=6.4mm(04); 5/16"=8mm (05); 3/8"=9.6mm (06); 1/4" Flow Push-In Series: 1/4"OD=6.4mm(04); 5/16"OD=8mm (05); |
Seal Ring Material | Standard Buna-N O-ring; FKM/EPDM/Silicone rubber can be customized; |
Spring/Pin/Thumb latch | Stainless Steel |
Temperature Range | 32°F - 160°F (0°C - 71°C) |
Pressure Range | Vacuum to 75 psi, 5 bar |
Valve Option | Valved(Shut-off) or Non-Valved(Straight Through) |
Termination Option | Panel Mount/In-Line/Elbow/NPT PipeThreaded; |

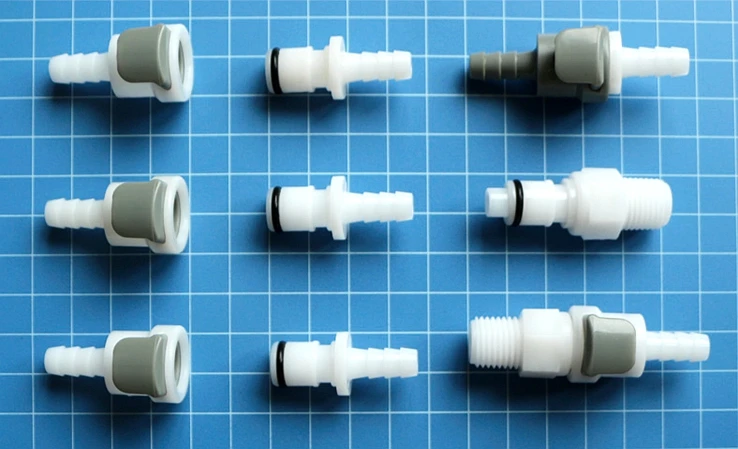

Large 1/4” Flow All Plastic Quick Disconnect Coupling Body&Insert
1/4" Flow All Plastic Non-valved In-Line Female Body:
APF1700430=1/8"(3.2mm) Hose Barb;
APF17004=1/4"(6.4mm) Hose Barb;
APF17005=5/16"(7.9mm) Hose Barb;
APF17006=3/8"(9.5mm) Hose Barb;
1/4" Flow All Plastic Valved In-Line Female Body:
APFD17002=1/8"(3.2mm) Hose Barb;
APFD17004=1/4"(6.4mm) Hose Barb;
APFD17005=5/16"(7.9mm) Hose Barb;
APFD17006=3/8"(9.5mm) Hose Barb;
1/4" Flow All Plastic Valved Panel Mount Female Body:
APFD16004=1/4"(6.4mm) Hose Barb;
APFD16005=5/16"(7.9mm) Hose Barb;
APFD16006=3/8"(9.5mm) Hose Barb;
1/4" Flow All Plastic Valved Threaded Male Insert:
APMD24004=1/4"-18NPT Male Thread;
1/4" Flow All Plastic Non-valved Threaded Male Insert:
APM24004=1/4"-18NPT Male Thread;
1/4" Flow All Plastic Non-Valved In-Line
1/4" PTF Female Body:
APF13004SH=5/32"(4mm)IDx1/4"(6.4mm)OD Tube;
1/4" Flow All Plastic Valved In-Line
1/4" PTF Female Body:
1/4" PTF Female Body:
APFD13004SH=5/32"(4mm)IDx1/4"(6.4mm)OD Tube;
1/4" Flow All Plastic Valved Panel Mount Male Insert:
APMD42004=1/4"(6.4mm) Hose Barb;
APMD42005=5/16"(7.9mm) Hose Barb;
APMD42006=3/8"(9.5mm) Hose Barb;
1/4" Flow All Plastic Non-Valved Panel Mount Male Insert:
APM42004=1/4"(6.4mm) Hose Barb;
APM42005=5/16"(7.9mm) Hose Barb;
APM42006=3/8"(9.5mm) Hose Barb;
1/4" Flow All Plastic Valved Straight Male Insert:
APMD22004=1/4"(6.4mm) Hose Barb;
APMD22005=5/16"(7.9mm) Hose Barb;
APMD22006=3/8"(9.5mm) Hose Barb;
1/4" Flow All Plastic Non-valved Straight Male Insert:
APM22004=1/4"(6.4mm) Hose Barb;
APM22005=5/16"(7.9mm) Hose Barb;
APM22006=3/8"(9.5mm) Hose Barb;
APM22005=5/16"(7.9mm) Hose Barb;
APM22006=3/8"(9.5mm) Hose Barb;
1/4" Flow All Plastic Valved Elbow Male Insert:
APMD23004=1/4"(6.4mm) Hose Barb;
APMD23005=5/16"(7.9mm) Hose Barb;
APMD23006=3/8"(9.5mm) Hose Barb;
1/4" Flow All Plastic Non-valved Elbow Male Insert:
APM23004=1/4"(6.4mm) Hose Barb;
APM23005=5/16"(7.9mm) Hose Barb;
APM23006=3/8"(9.5mm) Hose Barb;
APM23005=5/16"(7.9mm) Hose Barb;
APM23006=3/8"(9.5mm) Hose Barb;
Company Profile
FAQ
Q1: Are you trading company or manufacturer?
A1: We are 15-years-experience factory. Welcome to visit our factory.
Q2: What is your sample policy?
A2: 1. Only for terminal manufacturer;
A1: We are 15-years-experience factory. Welcome to visit our factory.
Q2: What is your sample policy?
A2: 1. Only for terminal manufacturer;
2. Please kindly provide detail information of company for sample application process.Sample is available after confirmed and approved by management;
3.The international freight cost should be paid by the applicant;
Q3: What is your terms of payment?
A3: Usually T/T 100% advance payment； T/T 50% as deposit when mass customization, the balance before shipment.
Q4: How about your delivery time?
A4: Generally, it will take 7-15 days after receiving advance payment.
The specific delivery time depend on the available inventory or actual production schedule.
Q5: What's the shipping way?
A5: Usually by DHL, UPS, TNT, FedEx express or as your request.
Q6: Can you produce according to the samples?
A6: Yes, we are good at doing all kind of customized plastic fittings and we can produce by your samples or technical drawings. We accept ODM & OEM.
Q3: What is your terms of payment?
A3: Usually T/T 100% advance payment； T/T 50% as deposit when mass customization, the balance before shipment.
Q4: How about your delivery time?
A4: Generally, it will take 7-15 days after receiving advance payment.
The specific delivery time depend on the available inventory or actual production schedule.
Q5: What's the shipping way?
A5: Usually by DHL, UPS, TNT, FedEx express or as your request.
Q6: Can you produce according to the samples?
A6: Yes, we are good at doing all kind of customized plastic fittings and we can produce by your samples or technical drawings. We accept ODM & OEM.
