China flexible solar panel 100w 18v photovoltaic 12v battery charger mono cell male and female connector | Электроника

---

China flexible solar panel 100w 18v photovoltaic panel,panel solar 12v battery charger , mono solar cellmale and female connector

Dear Buyer, pls kindly notice:

The Plastic Cover on Solar cell is not for use, it is protect the solar cell while transportation,

so when youuse the solar panel, pls remove it!

Product Description

1)This product is a multifunctional solar charger, which can charge for big battery,like boat,yacht,car;

2)Semi flexible design,Graceful appearance,delicate and cabinet;

3)Convenience to take , fashionable elegance. male and female connector can be suitable to connect controller.

4)Especially suitable foranywhere can obtain sunshine,realize high-efficient charging, use convenient and safe, environmental protection, energy saving.It is good for promotion, sales, gifts etc.

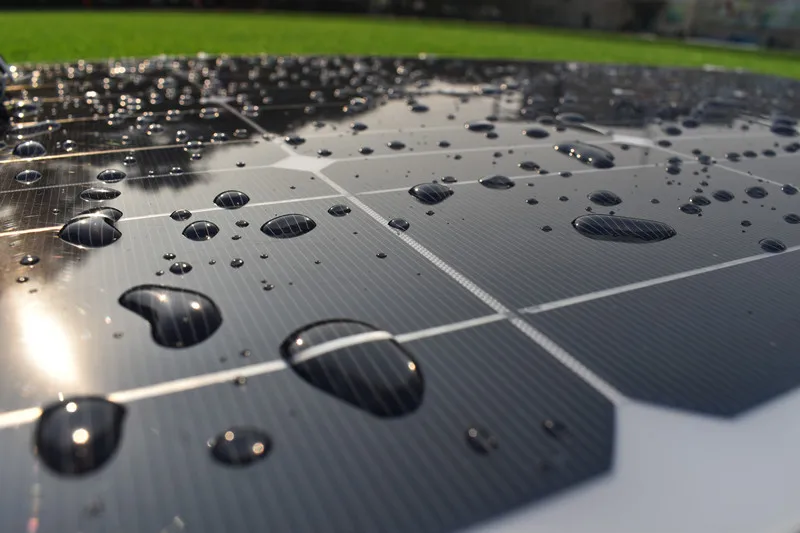

5)Waterproof for outside anywhere.

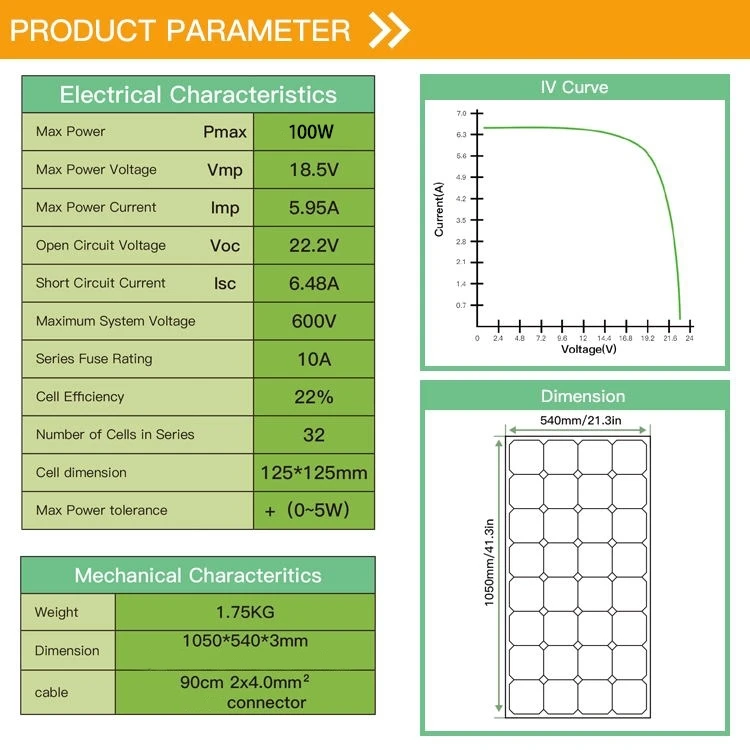

Parameter:

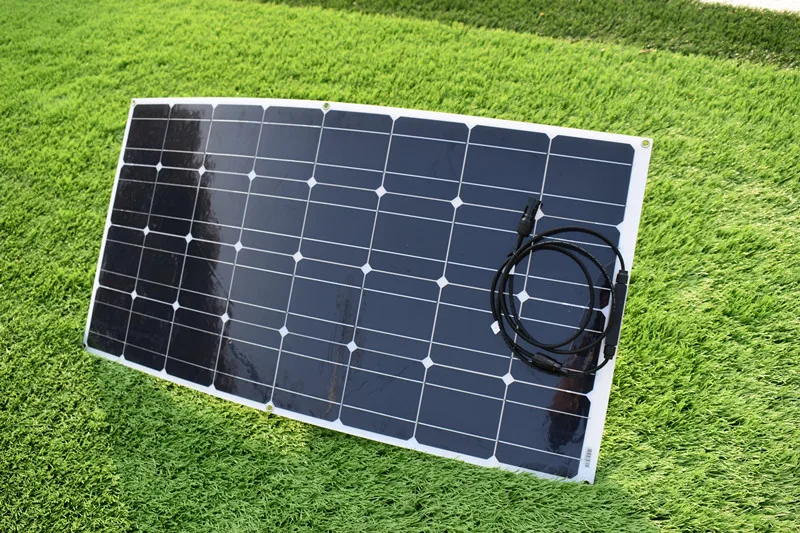

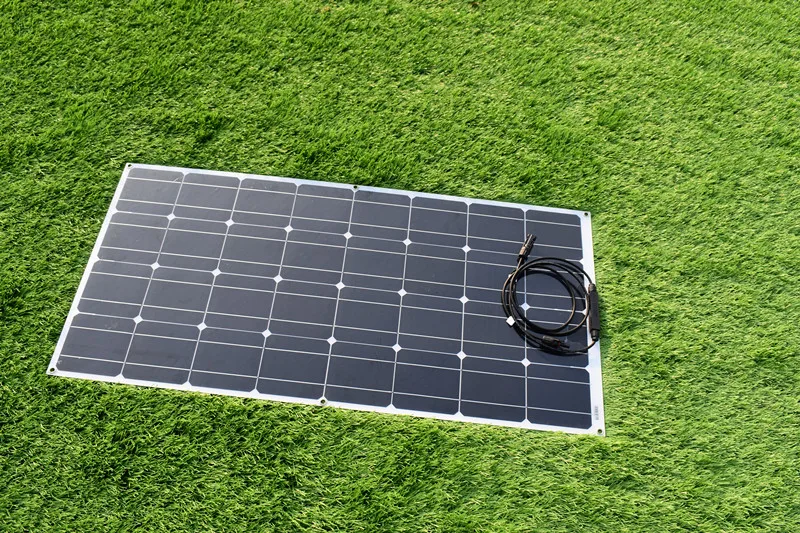

100W FLEXIBLE Solar Panel
Product		semi flexible Solar Panel	Model	BPS32-100
			Peak-power(W)	100W
			VPM(V)	18V
			Maximum current(A)	5.5A
			Voc(V)	20V
			Isc(A)	6.1A
			Maximum system voltage(V)	1000V
			Cellsconversion(%)	23.5%
			moduleConversion(%)	23.5%
			Cells  type	high efficiency solar cell
			CellsString number(PCS)	Not limited
			Cellsspecification       (mm)	125*125
			peak-power temperature coefficientPm(%/℃)	-0.45%/℃
			Voctemperature coefficient(%/℃)	-0.35%/℃
tolerance(%)	±5%		Isc temperature coefficient(%/℃)	+0.05%/℃
Working temperature	-20℃~65℃		Test standard	Am1.5   25℃1000W/m2
NET Weight	1.8KG/4.86Ibs/77.95oz		Specification: Extending Size	105*54*0.3CM

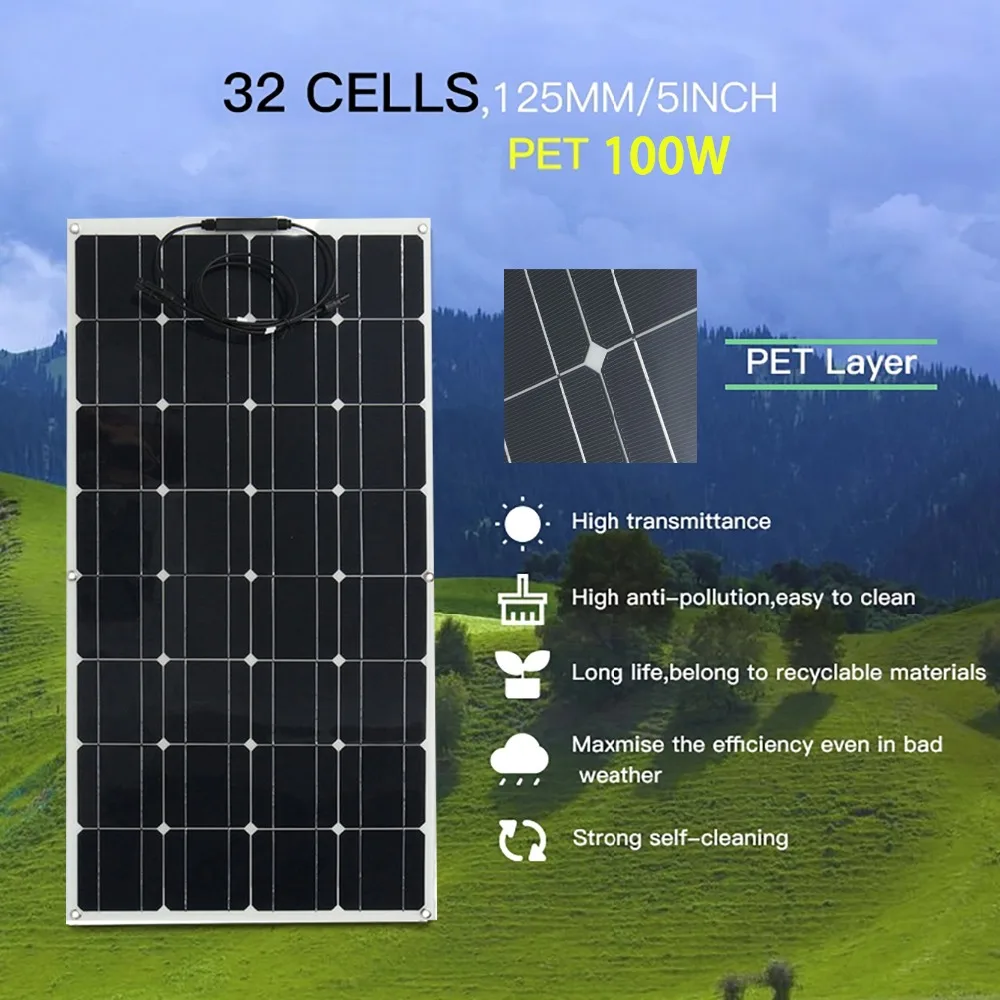

Thestructure of Solar cells	PET+ EVA +MONO solar cell+ EVA+TPT
accessories	Cable with crocodile clips(optional)

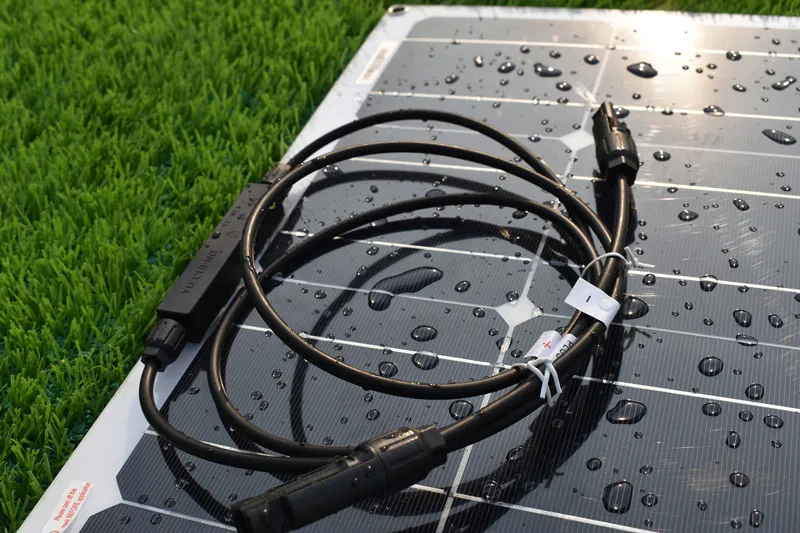

Output connector:male and female connector
Lead cable requirements:Resistance to high and low temperature, anti-sunshine exposure

One complete product includes :

1.100W  semi flexible solar panel

2. Special carton package

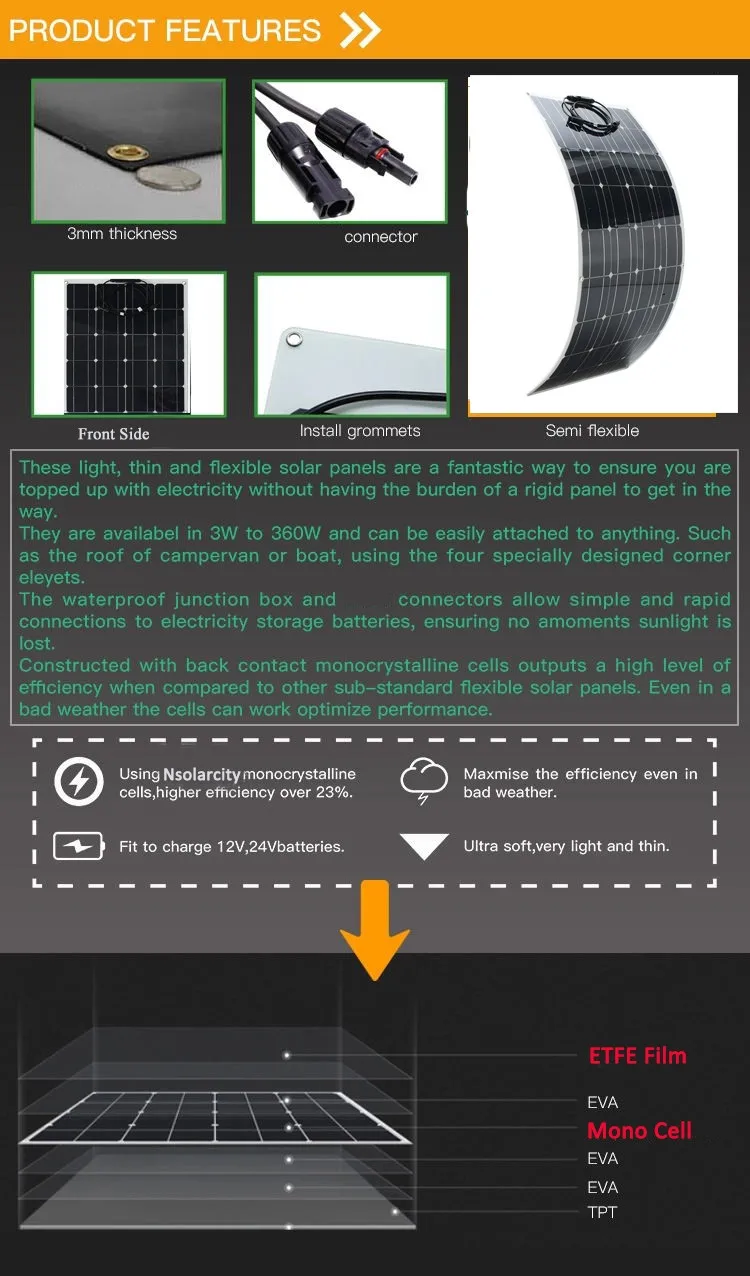

1)Wonderful details design:

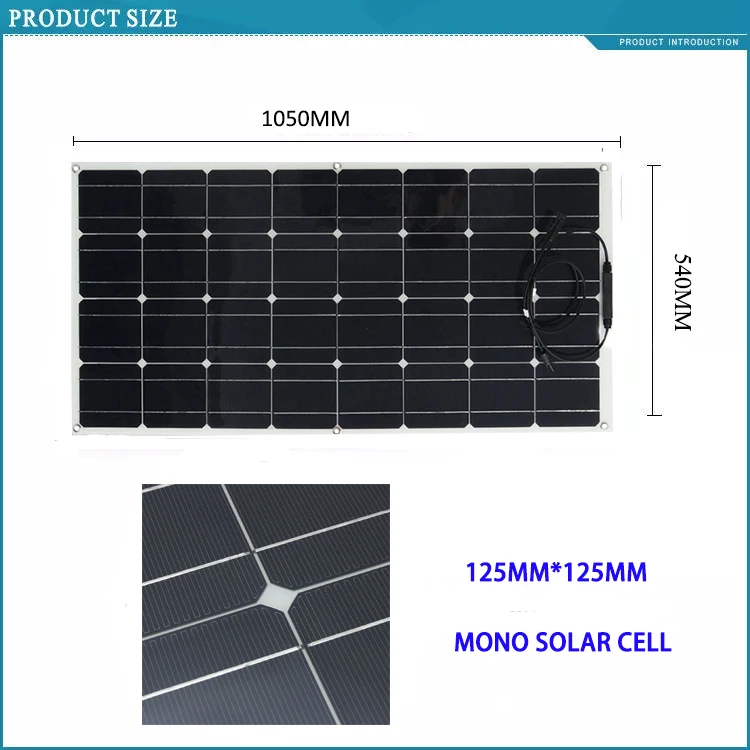

2)Accurated size shown:

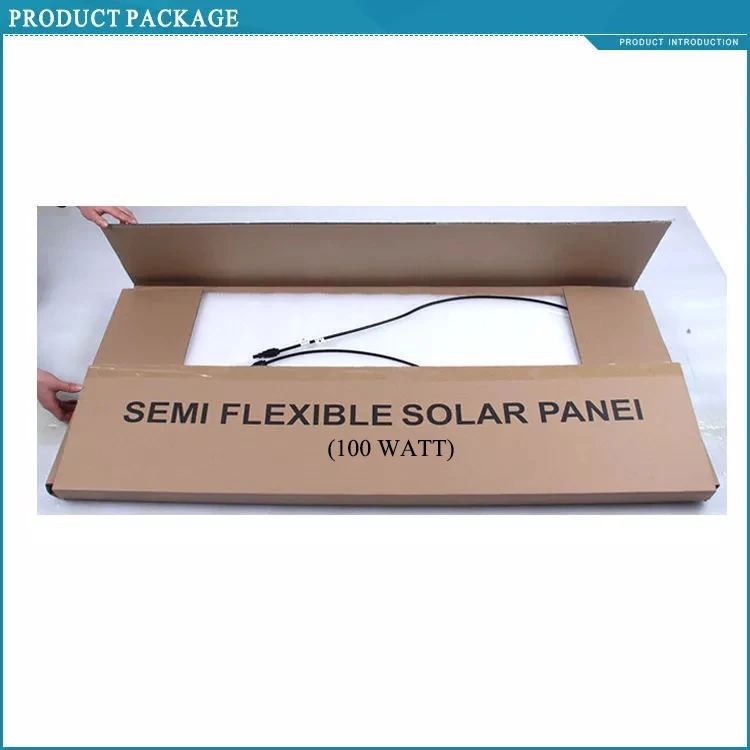

Package of portable solar panel  :

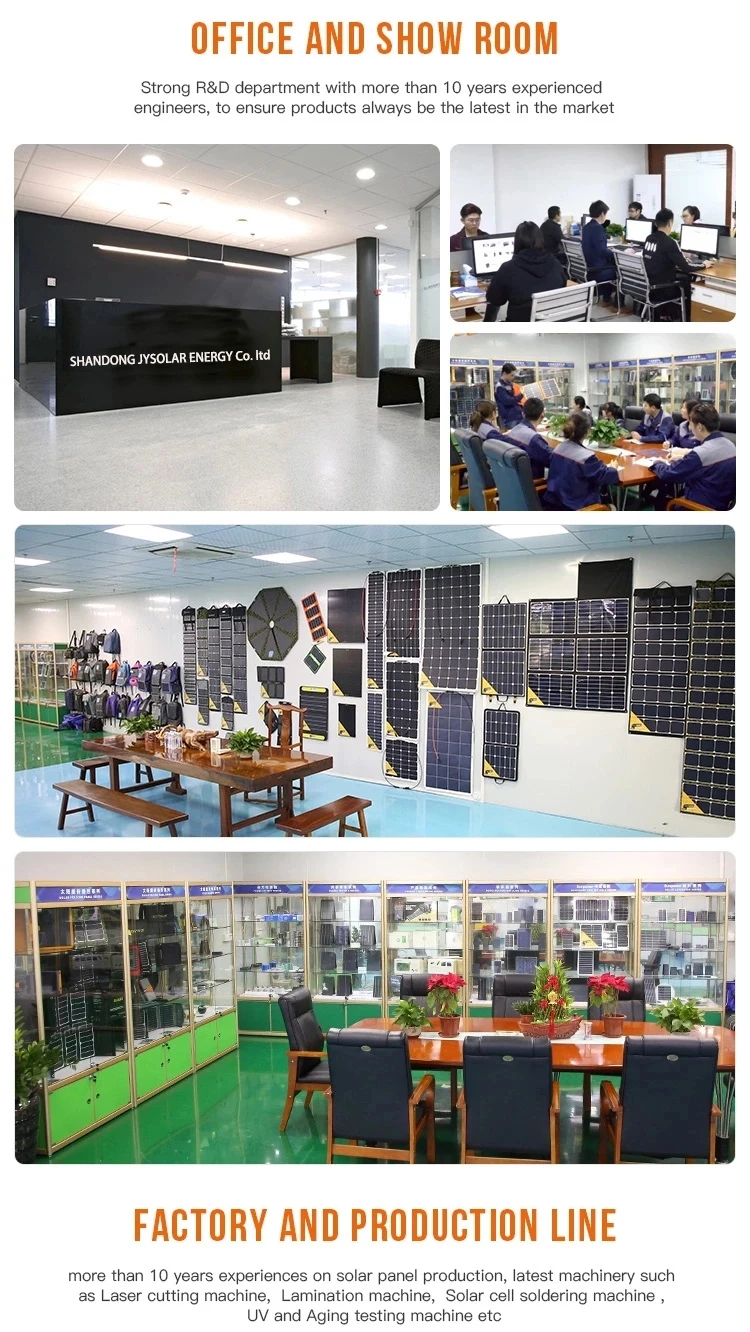

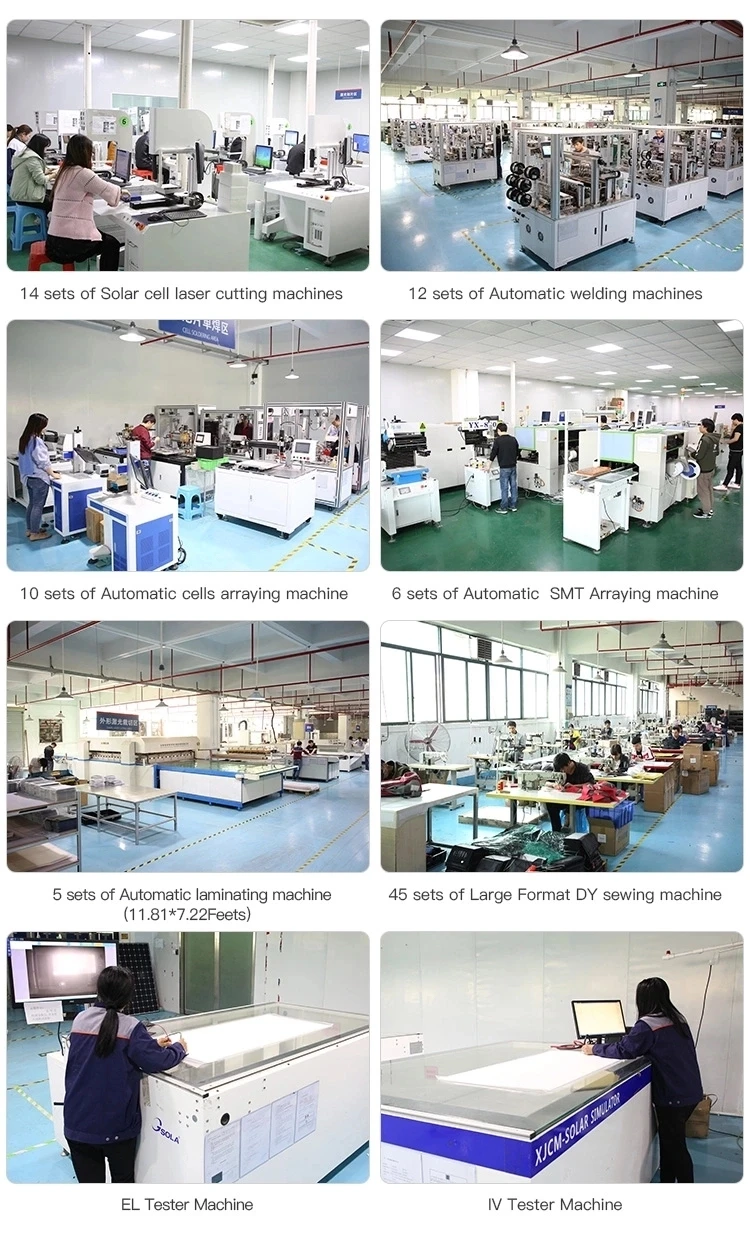

Company Information

Flexible solar panel from China factory directly

flexible solar panel

Flexible solar panel are designed to provide a powerful charging solution for batteries and conform to almost any surface.

Unlike other ‘flexible’ products, these use high-efficiency monocrystalline cells that produce more power per square foot than any other flexible panel on the market.

An impermeable lamination coats the entire module, allowing it to contour and flex against curved areas, eliminating any need for custom mounts.

The panel can be affixed by adhesive or screw mounting options and grommets are an added bonus for ease-of-installation.

The thin, lightweight module can also be sewn into canvas, making it a truly versatile solar module.

The Solar Flex panels are aerodynamic and DURABLE - a virtually unbreakable solar battery charger for RVs, boats and long-haul trucks.
