SRT-6200 Digital LCD Surface Roughness Tester Profilometer Profile Gauge Instruments Surftest | Инструменты

---

Product Description



Features:
* Manual or automatic shut down.
* Metric /Imperial Conversion.
* Use USB data output and RS-232 data output to connect with PC.
* Provide Bluetooth data output choice.
Display: 4 digits, 10 mm LCD, with blue backlight
Parameters: Ra, Rz
Measuring Range: Ra: 0.05~10.00 um / 1.000~400.0 uinch
Rz: 0.020~100.0 um / 0.780~4000 uinch
Accuracy: less than or equal to +- 10%
Fluctuation of display value: Not more than 6%
Sensor-Test Principle: Inductance type
Sensor-Radius of Probe Pin: 10 um
Sensor-Material of Probe Pin: Diamond
Sensor-Dynamo-measurement of Probe: 16 Mn(1.6 gf)
Sensor-Probe Angle: 90 degree
Sensor-Vertical Radius of Guiding Head: 48 mm
Sensor-Maximum driving stroke: 17.5 mm / 0.7 inch
Sensor-Cutoff length: 0.25 mm / 0.8 mm / 2.5 mm optional
Driving speed-Sampling: When Length = 0.25 mm, Vt = 0.135 mm/s; When Length = 0.8 mm, Vt = 0.5 mm/s; When Length = 2.5 mm, Vt = 1 mm/s
Returning: Vt = 1 mm/s
Profile digital filter-Filtered Profile: RC, PC-RC, GAUSS
Non-Filtered Profile: D-P
Resolution: 0.001 um, if reading less than 10um; 0.01 um, if 10um less than or equal to reading less than or equal to 100um; 0.1 um, if reading great than or equal to 100um
Evaluation length: 1~5 L optional
Auto Power Off
Data Memorize: 7 Groups
Operating conditions: Temperature: 0~50 degree Humidity: less than 80%RH
Power Supply: Built-in rechargeable Li-ion battery
Dimensions: 140 x 52 x 48 mm
Weight: 420 g

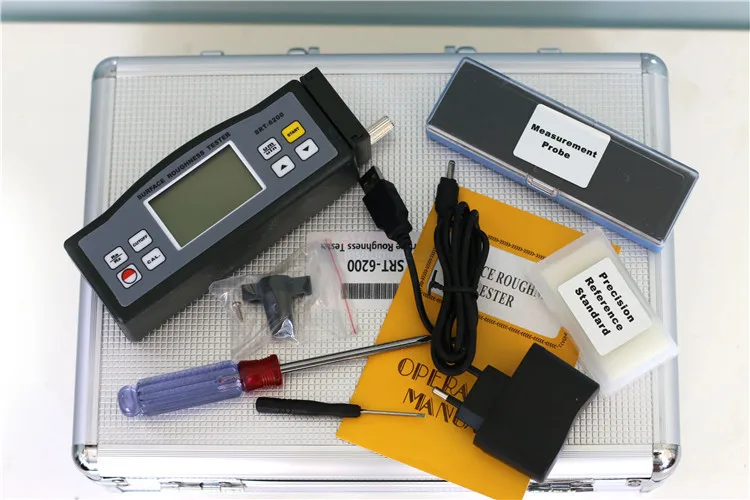

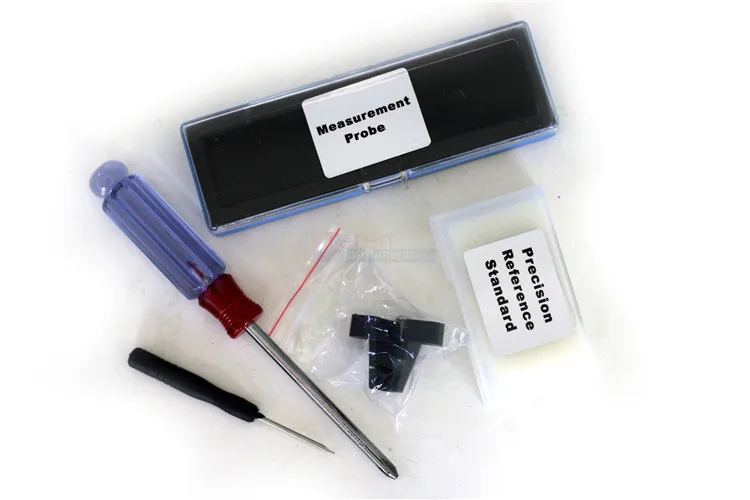

Package includes:
1. Main Unit
2. Small Screwdriver

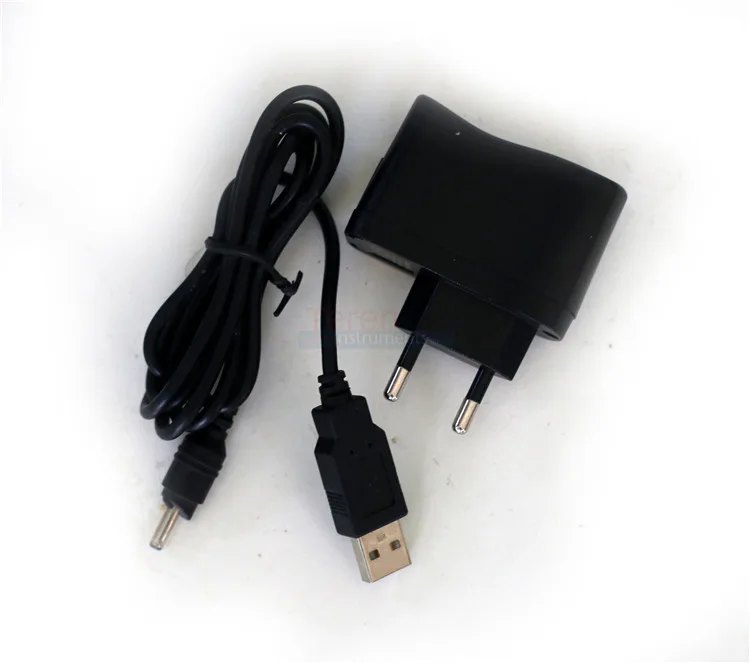

3. Power Adapter
4. Standard Sample Plate
5. Standard Sensor
6. Adjustable Leg
7. Sheath of Sensor
8. Carrying Case
9. Instruction Manual
