6V 1.5KG Feetech Servo FS90R 360 Degree Continuous Rotation Micro RC For Education Suite Car Drone 450 Helicopter on6В 1,5КГ Feetech Сервопривод FS90R 360 Градусов Непрерывного Вращения Микро RC для Образовательного Набора Автомобильного Дрона 450 Вертоле

Description

Specifications:

Model: FS90R
Item Name: FS90R 1.3KG Analog Continuous Servo

Mechanical:

Weight: 9g
Size: 22.5*12.1*27.7mm

Gear Type: Plastic Gear

Motor Type: Coreless Motor

Back Lash: ≦ 0.5°

Case: Nylon & Fiberglass

Plug and cable: 25cm with JR connector

Running angle: 360° Continuous rotation
CW(when 1500～700 µsec)

CCW(when 1500～2300 µsec)

Electrical:
Operating Voltage: 4.8V~6V

Current: 110mA-130mA without load

Stall Current: 700mA-800mA at locked

Operating Speed (4.8V): 80RPM / 60 ° without load
Operating Speed (6V): 100RPM / 60 ° without load

Stall Torque (4.8V): 1.3 kg/cm (18.09oz.in)
Stall Torque (6V): 1.5 kg/cm (20.86oz.in)
Working frequency: 700→ 2300 μsec

CE & ROHS Certification: Yes

Dead Band: 4
μsec Storage Temperature Range: -30°C~80°C
Operating Temperature Range: -15°C~70°C

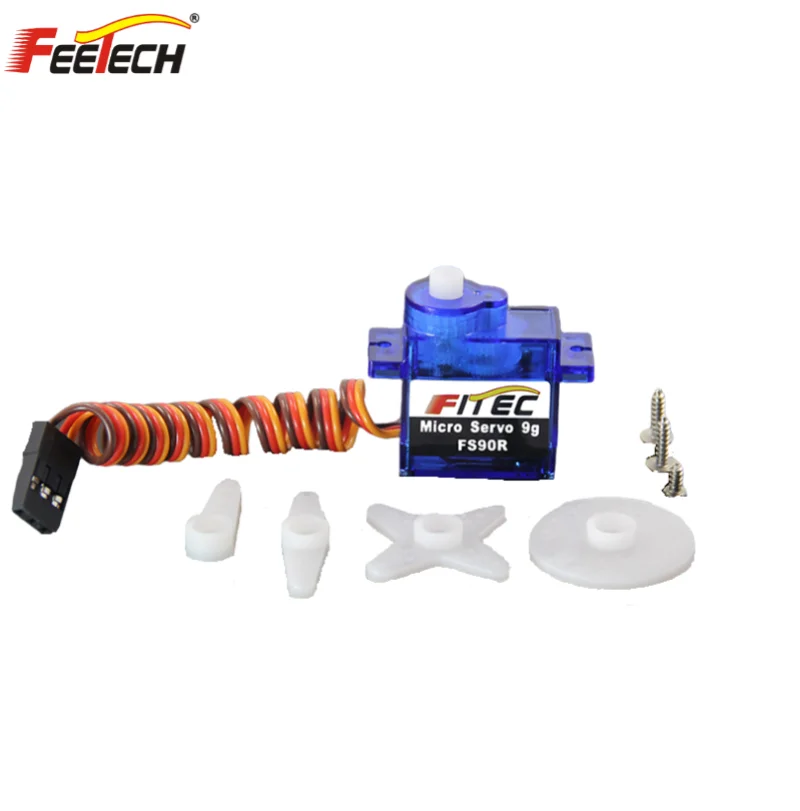

Package list:

PE Package

1x FS90R Servo

1x Accessories Bag

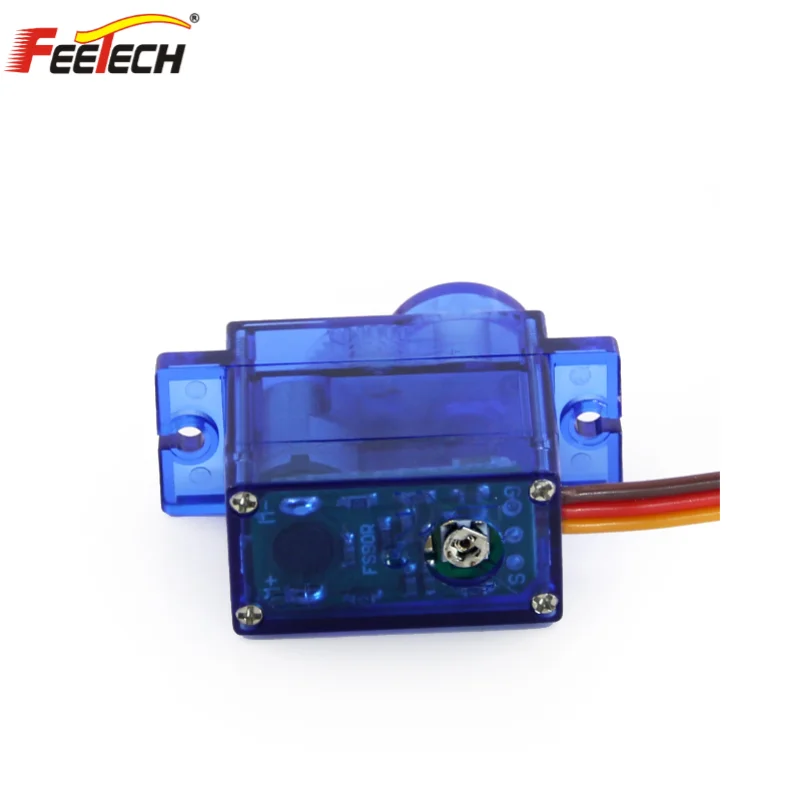

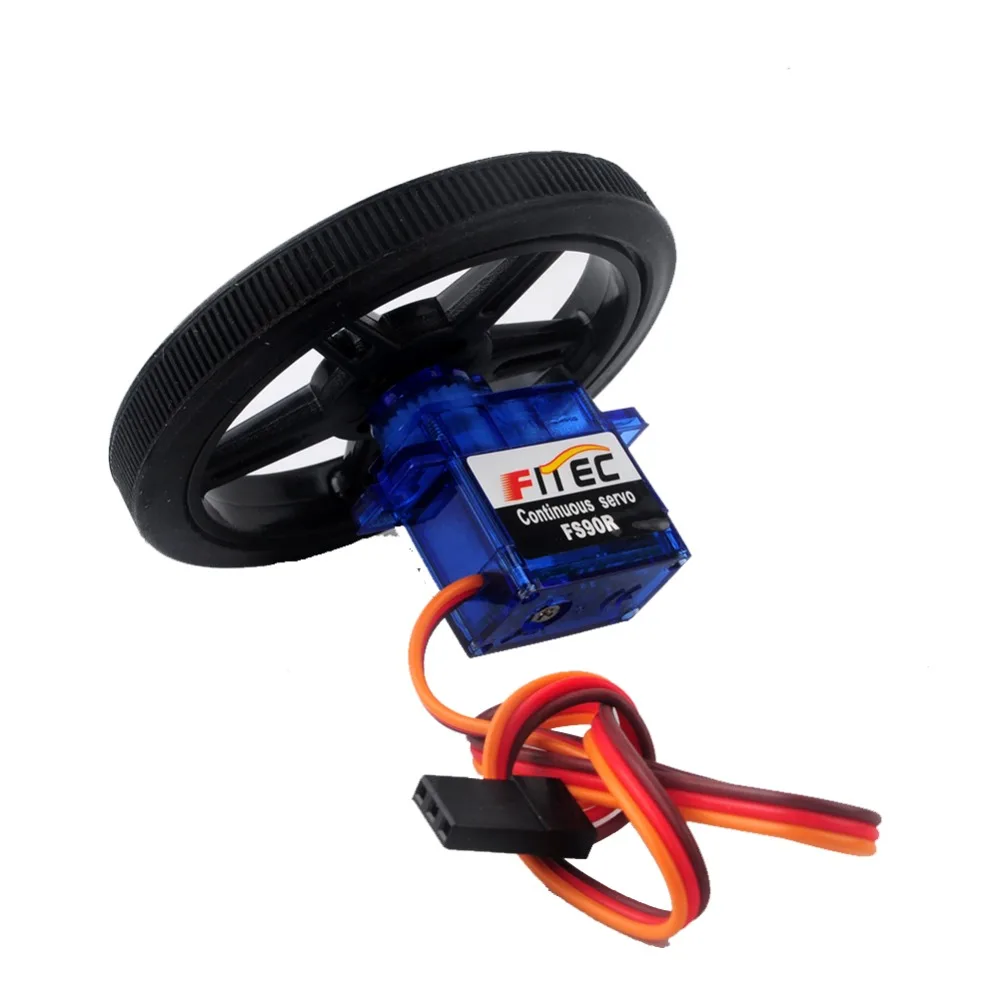

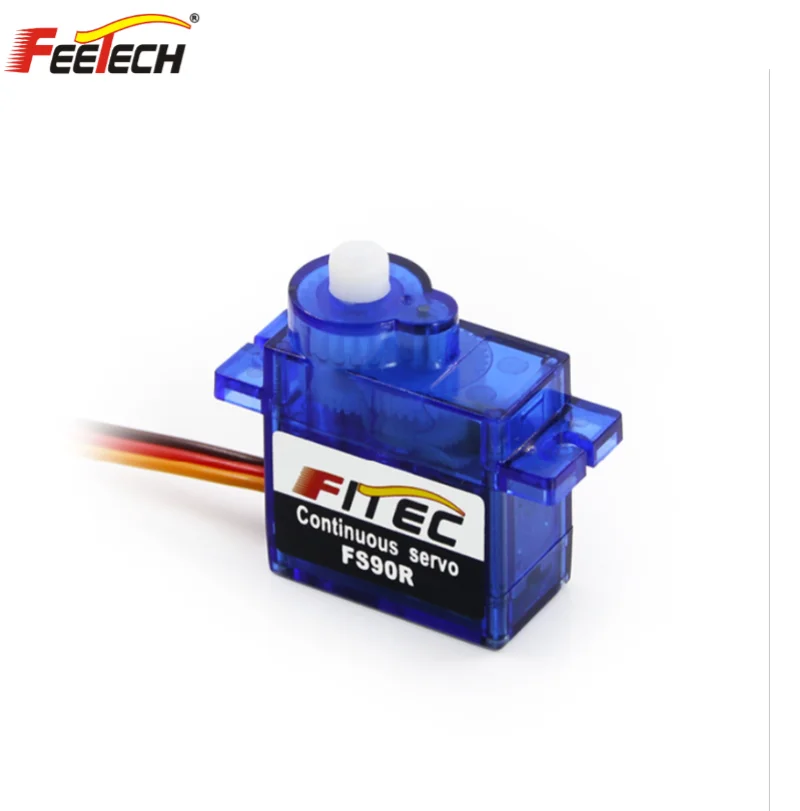

Product Display:

Servo applications in educational kits:

About US:

Shenzhen Feetech RC Model Co.,Ltd.was founded in 2011.

We are a professional manufacturer focusing on R&D and production

of servo. Servo integrate customized control unit, gearbox and motor in the new conception of power module. Our self-developed precise motion control technology and precision manufacturing plant can provide customized products and solutions for customers.

Our team is committed to offering the best servo that fits for each project. We provide complete operation for each process, covering request analysis, project planning, design, R&D, test, mold, production, packing and transportation. Our quality assurance system has been certified by ISO 9001: 2015, while all our products have been certified by CE, RoHS .

Our products can be used in various industries, Here are some of applications of our servos: RC model, education robot, desktop robot and service robot;Logistics system: shuttle car, sorting line, smart warehouse; Smart home: smart lock, switch controller; Safe-guard system: CCTV. Also agriculture, health care industry, military.
