GRBL1.1 V3.4 USB Port 3Axis Engraving Machine Control Board Offline Controller For 3018 Pro/Pro BM. |

GRBL1.1 V3.4 USB Port 3Axis Engraving Machine Control Board Offline Controller For Engraving Machine 3018 Pro/Pro BM. The Advantages of V3.4 Control Board:

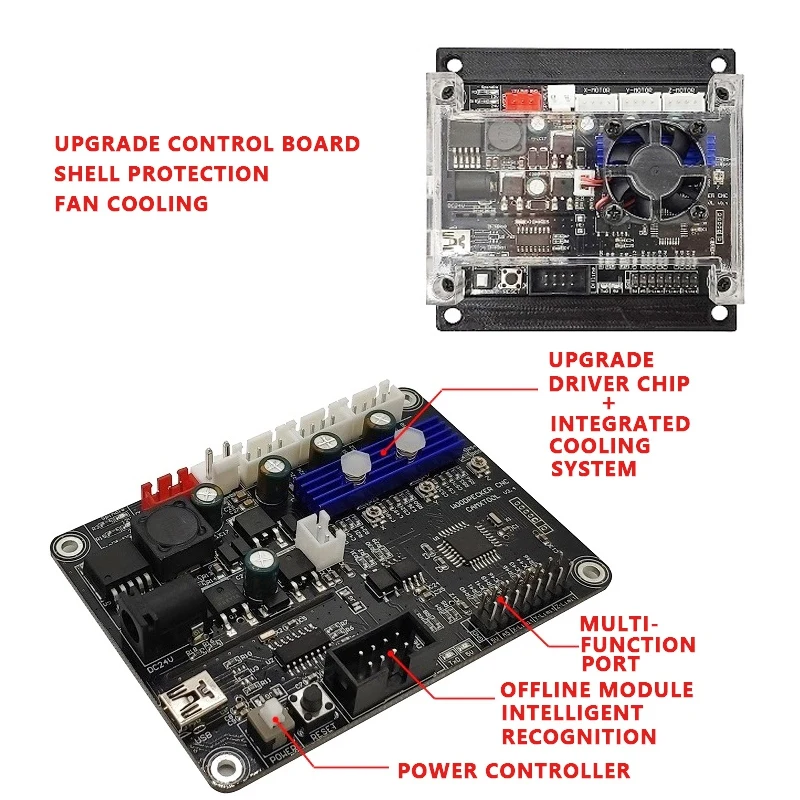

1.Upgrade control board with shell protection and fan cooling, better for cooling heat while working.
2.Upgrade driver chip with integrated cooling system, extend driver's service life and working time.

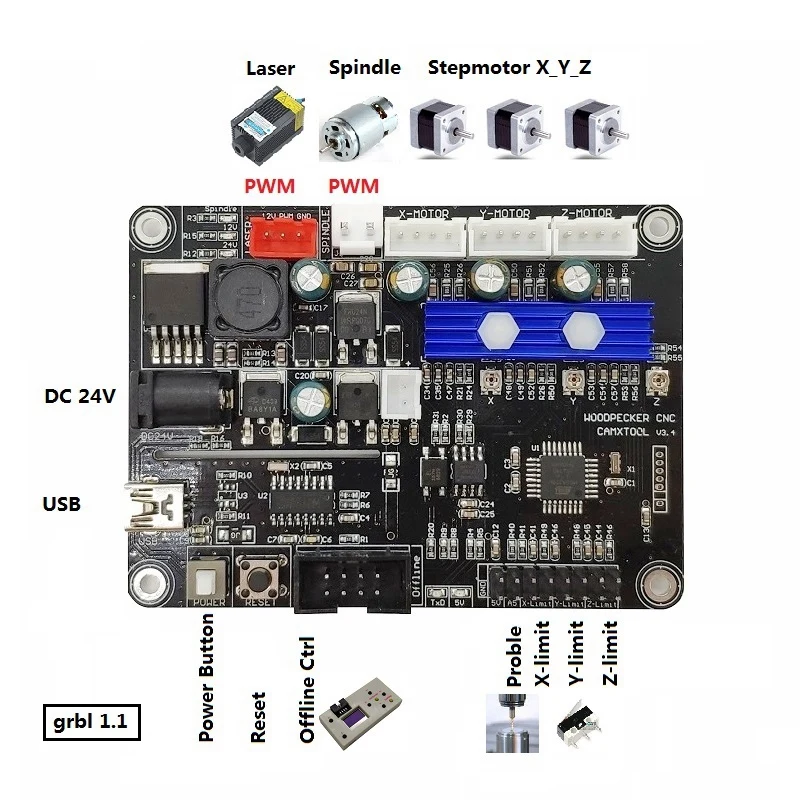

3.Multifunction port for limitation switch and probe.
4.Perfectly adapt to all types of engraving machines, such as (click the words for machine directly):1610 / 1610 Pro; 3018 Pro BM

Features:3 Axis Control Board
Model: V3.4
Control system: GRBL
Support software: grblcontrol/candle (3 axis)
System support: windows XP/Win 7/Win 8/Win 10
Stepper motor: 24V 2A
Spindle motor: 24V 10A (support PWM0%-100%)
Power input: 24V (12-24V)
Offline control: Support
colour: white
material: ABS

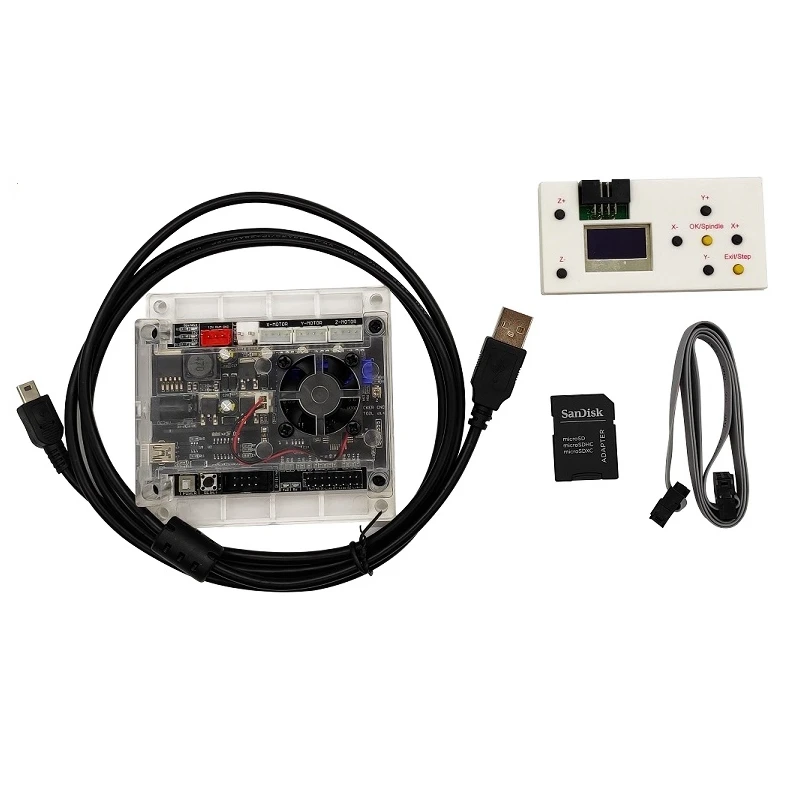

Package Contents:

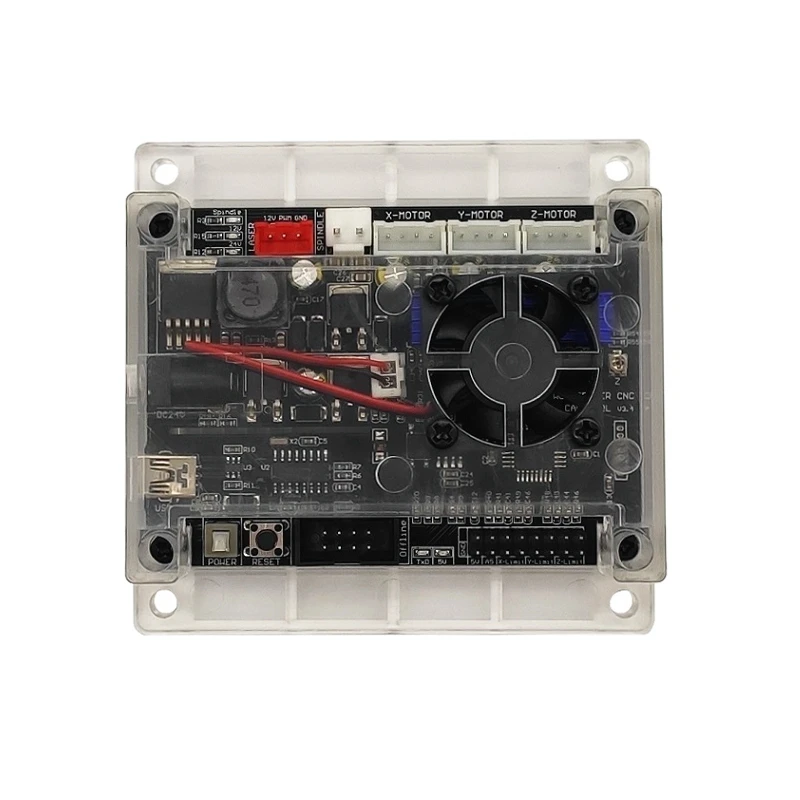

1 x GRBL1.1 3 Axis Control Board V3.4

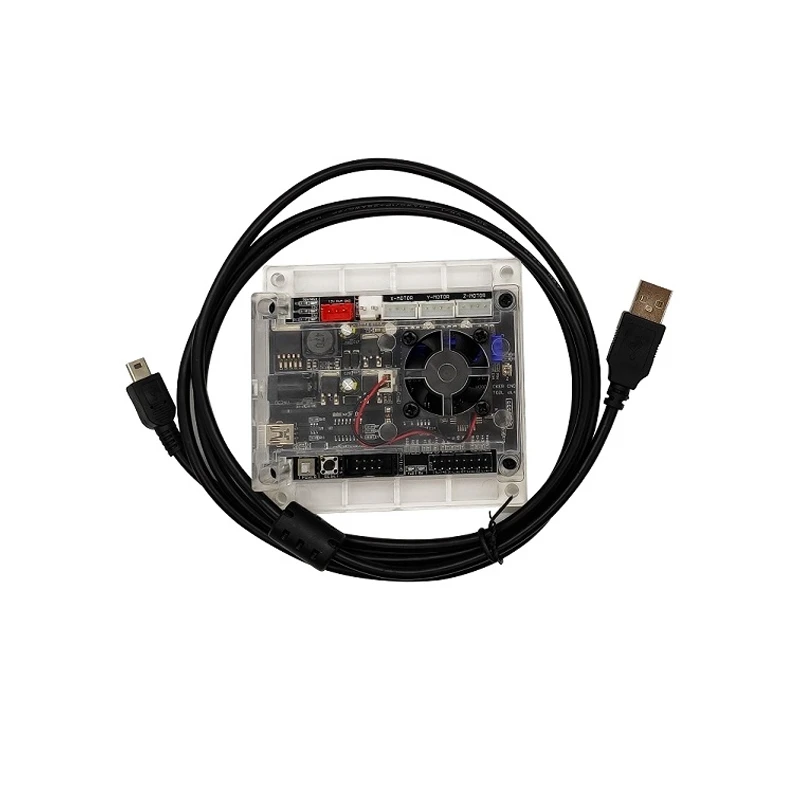

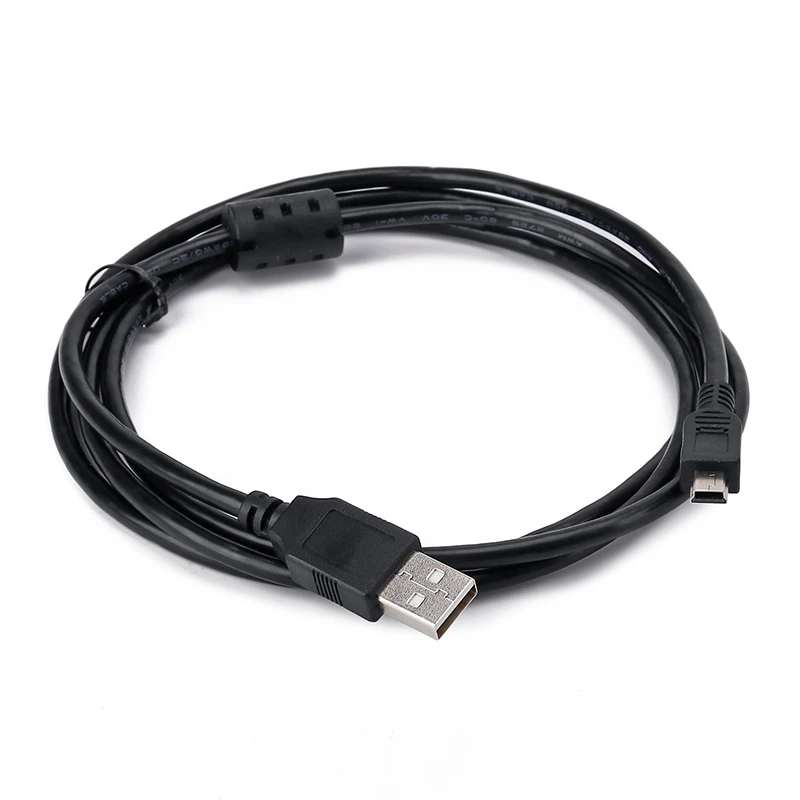

1 x 2.0 USB Cable

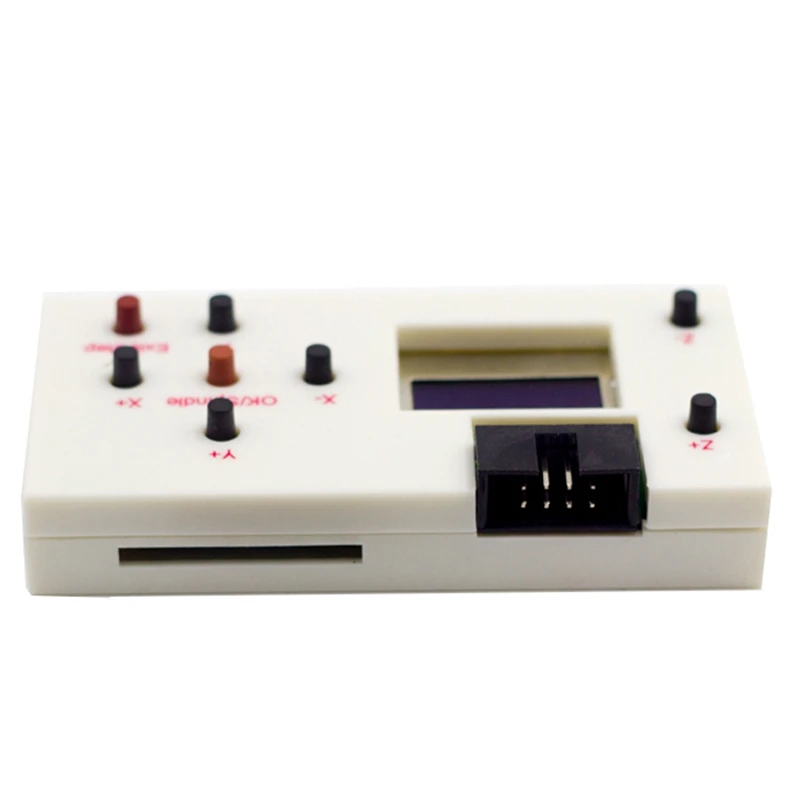

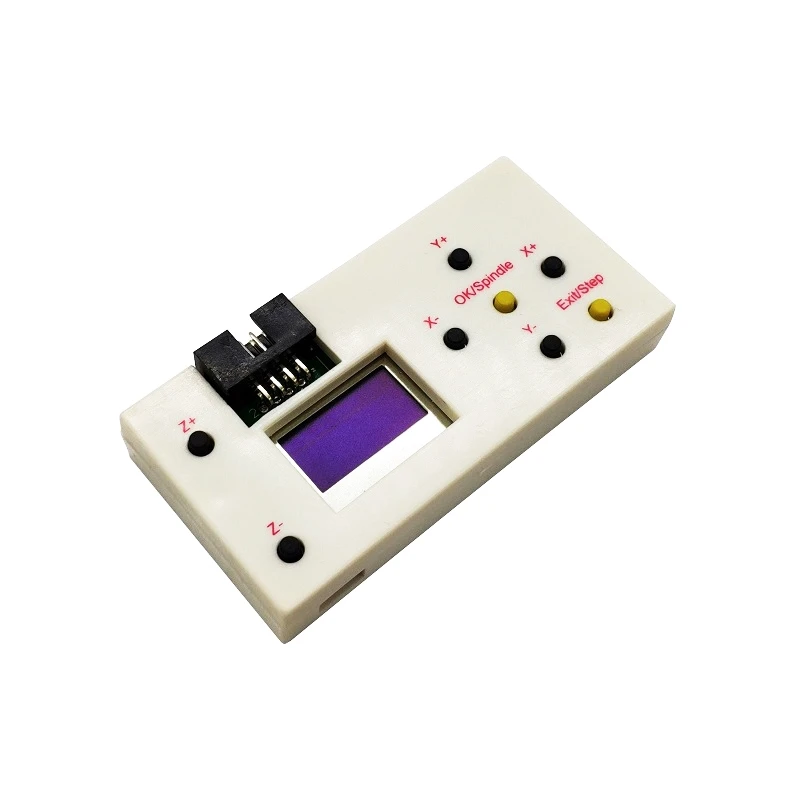

1 x New Version Offline Controller (with cable and 1GB SD with TF card)
Notice: Please do not connect offline controller and PC together, otherwise the PC can't work for the engraver. And the real capacity of the TF memory card is about 960MB.

Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
