QIACHIP RF 433Mhz Wireless Receiver Learning Code 1527 Decoding Module 4 CH Output Button |

Description:

This Product included two small gadgets, including a Remote Control Transmitter and Remote Control Relay Receiver Module, which is a entire transmitting and receiving remote control system. And comes with ultra-strong function and bring you much convenience in your daily life. It support remotely and wirelessly control your Garage Door, Electronic Gates, Electrical Appliances and other telecommand equipment within 50m (free space). Bringing you brand new experience of remote control, you can not miss it.

Features:

*The transmitter supports Learning Code(1527) Common Chip, such as, PT1527, EV1527, etc. Compatible with the most of 1527 Remote Control Relay Receiver Panel.
*Stable circuit, high accurate and high-effective, individuation and humanization design, bringing you much convenient.
*Adopts imported high-frequency triode, owning 10mW Transmitting Power.
*Easy to use: Easy to install and use, the 4 channel remote control system lets you take control of your gadgets, car and home or garage.
*Widely Use: Perfect Suitable for controlling electrically operated gate, retractable door, garage door, electric curtain automobile, motorcycle and other telecommand equipments.

Note:

1.This remote control transmitter only supports the learning code (1527) of the receiver
2.This remote can not be programmed.
3.We don't offer retail package, but we will pack it well before shipped out.

Specifications Of The Remote Control:

Model Number: KT06-117SC-4
Working voltage: DC3V
Working current: <25mA
Working frequency: 433MHZ
Transmitting power: +13dbm
Encoding format: 1527 encoding

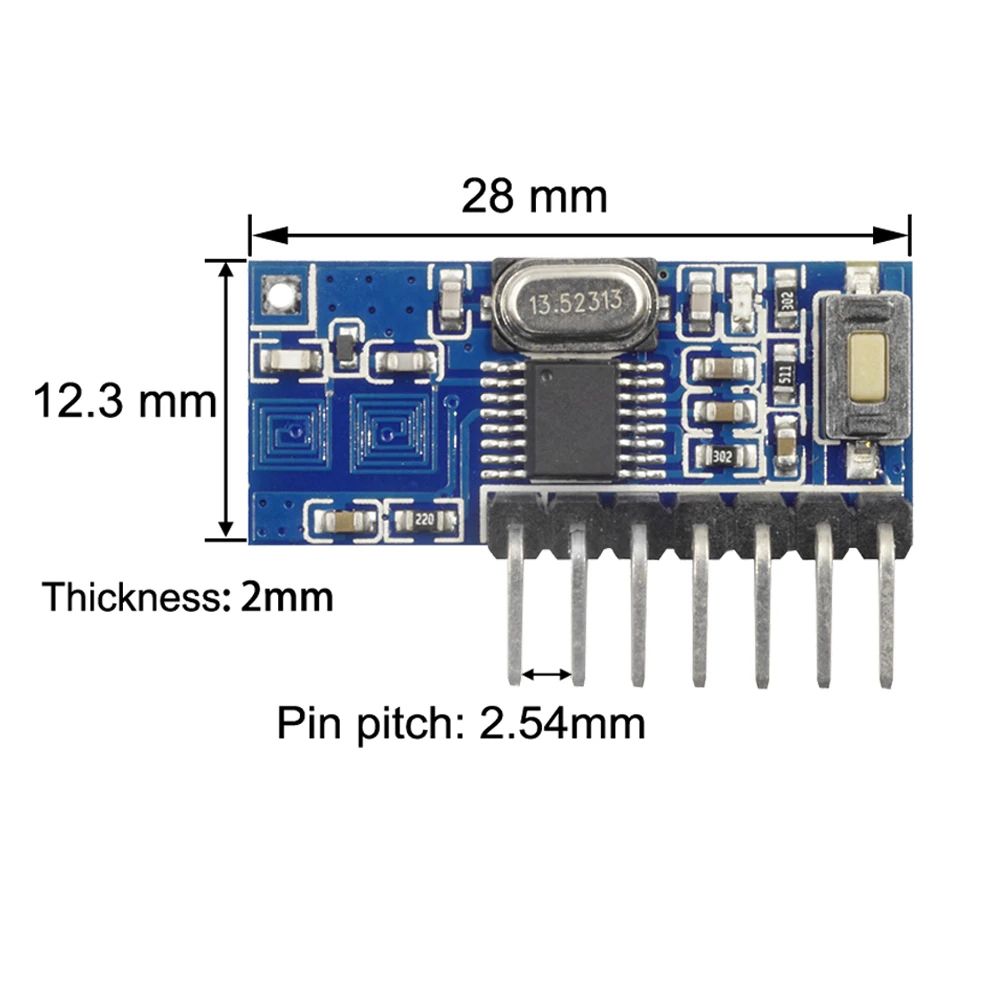

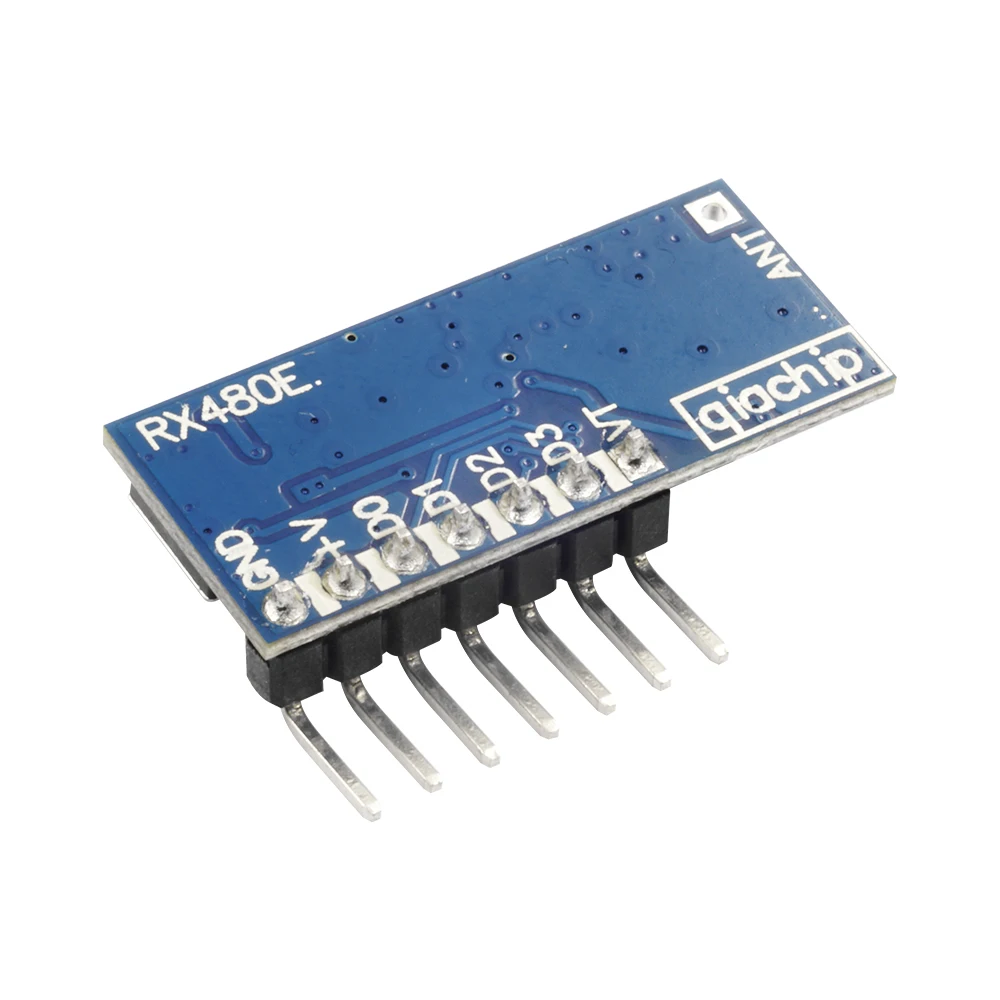

Description Of Receiver Module:

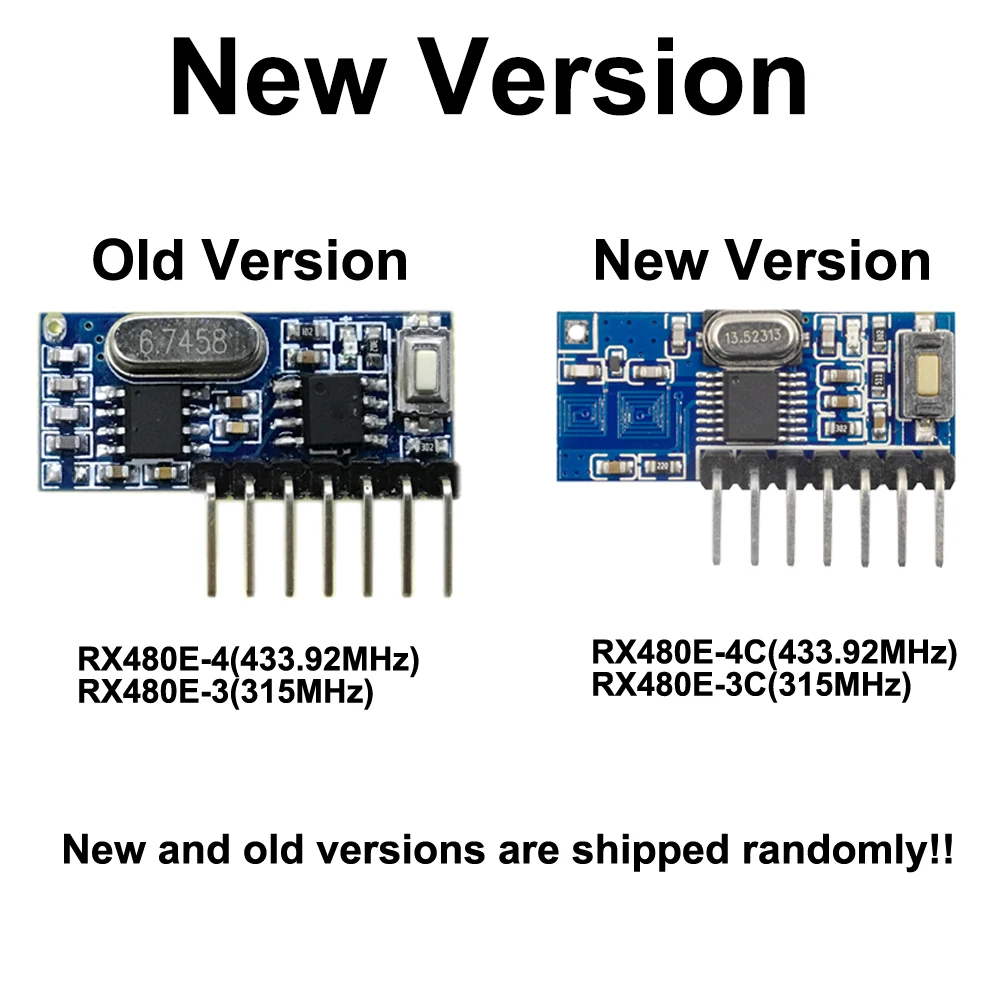

Product Model:RX480E-4C
Working Voltage: DC 3V-5V
Quiescent Current : ≤5mA
Output Current: 10 mA
Working Frequency: 433MHz
Receive Sensitivity: -108dB
Receive Distance: 15 meters above
Frequency Band: ±0.2MHz
Working Mode: inching, self-locking, interlocking

About Working mode:

Momentary: Press the remote button, the relay connects, release the remote button, the relay disconnects.
Toggle: Press once the remote button, the relay connects, press the remote button twice, the relay disconnects.
Latching: Press the remote button A, the relay connects, press the remote button B, the relay disconnect.

Learning the Code:(Momentary)

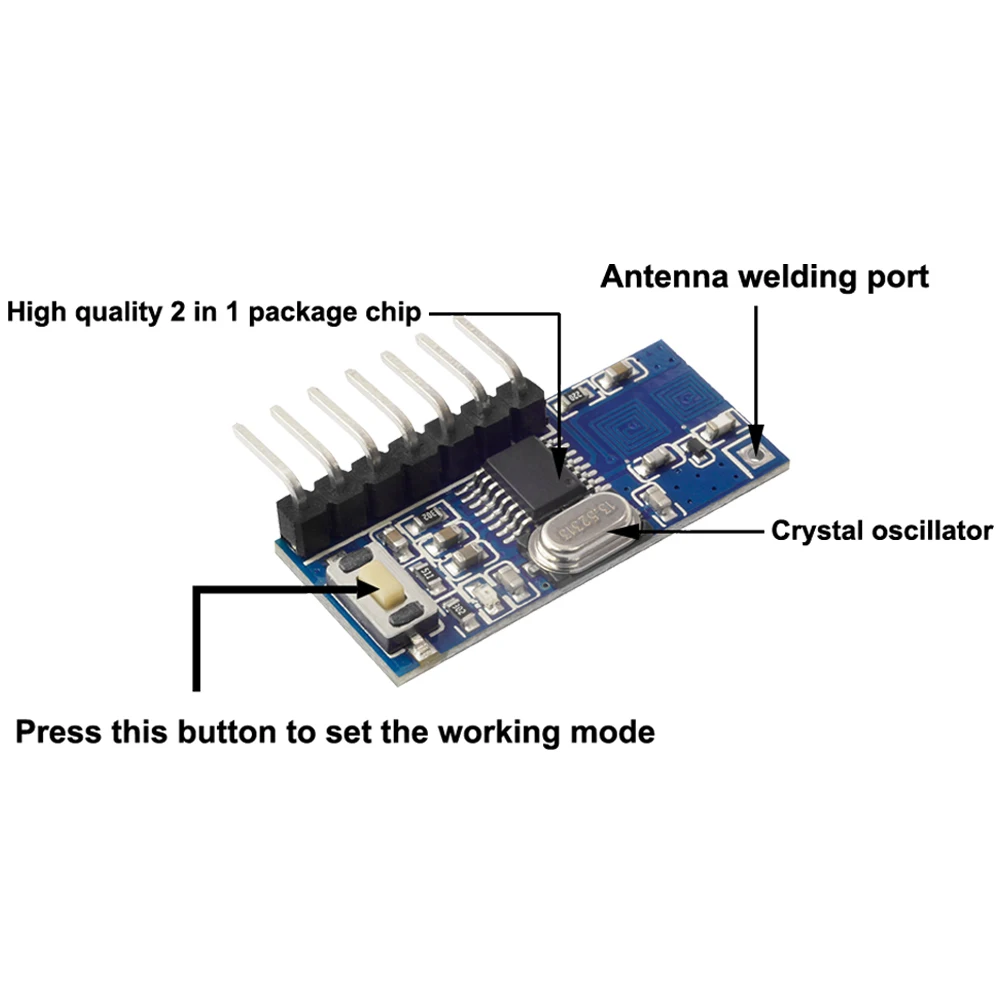

Press the learning key on the receiver once time, it comes into momentary setting mode.
Wait for a moment, the LED will be off , it comes into learning state.
Push the remote button, LED indicator on the receiver board will flash then come off.
After 3 seconds, the LED indicator will be on again, learning successfully.

Learning the Code: (Toggle)

Press the learning key on the receiver twice time, it comes into toggle setting mode.
Wait for a moment, the LED will be off , it comes into learning state.
Press the remote button, LED indicator on the receiver board will flash then come off.
After 3 seconds, the LED indicator will be on again, learning successfully.

Learning the Code:( Latching)

Note: When you choose for latching mode, in order to learn more remote control, you need to learn two different button, the first time learning is for ON, the second time learning for OFF.
For example: Button A = ON, Button B = OFF
Press the learning key on the receiver triple time, it comes into latching mode .
Wait for a moment, the LED indicator on the receiver board will flash then come off.
Press the remote button A. LED flash for 5 times.
Press the remote button B. LED flash for 5 times
After 3 seconds, the LED indicator will be on again, learning successfully.
A = ON, B = OFF.
