Senring Rotary joint slip ring 12.7mm gold contacts of 12 circuits 10A through bore | Электроника

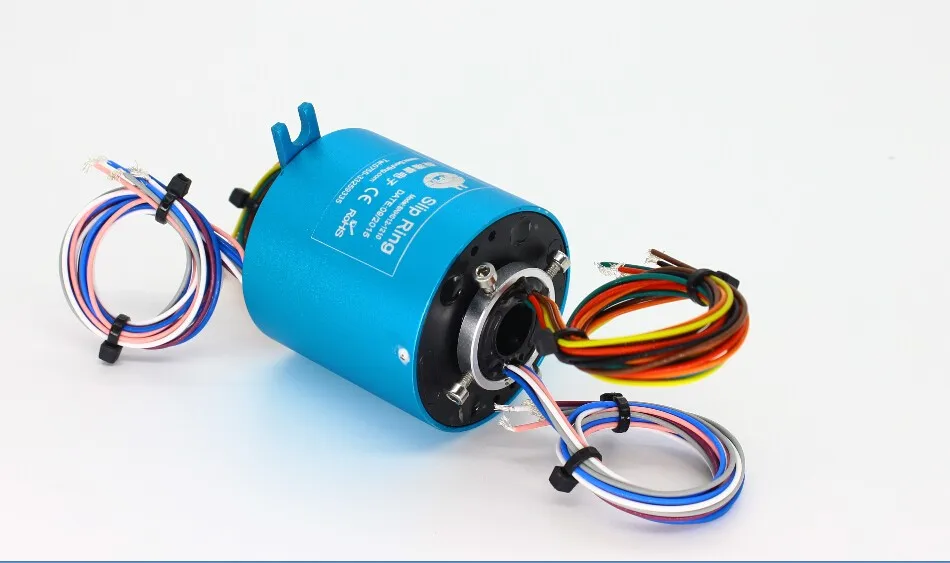

The SNH012, with 12.7mm through bore size and compact 56mm outside diameter, uses SenRing's fiber brush technology which offers several advantages over conventional slip ring contacts including multiple points of contact per brush bundle, low contact force per fiber and low contact wear rates.

SNH012(Standard) Dimensions

SNH012 Specifications(Standard)

• Contact Material

  Precious metal brush,Silver plated rings

• Current Rating

  10A/per circuit

• Number of Circuits

  12

• Operating Speed

  600 rpm* continuous

• Lead Wire

  UL Teflon® Awg28,Awg22,Awg16(200 mm)

• Voltage

  400 VAC

• Operating Temp.

  -40°C to 80°C

• Working Humidity

  60%RH

• Torque

  Approx. ≤8.25 g·m (for reference )

• Dielectric Strength

  ≥800V@50Hz between each circuit

• Insulation Resistance

  700MΩ@ 400VDC

• Noise

  Less than 50 mΩ @ 6 VDC, 50 mA, 5 rpm

• Housing Material

  Aluminum Alloy

• Protection

  IP54
