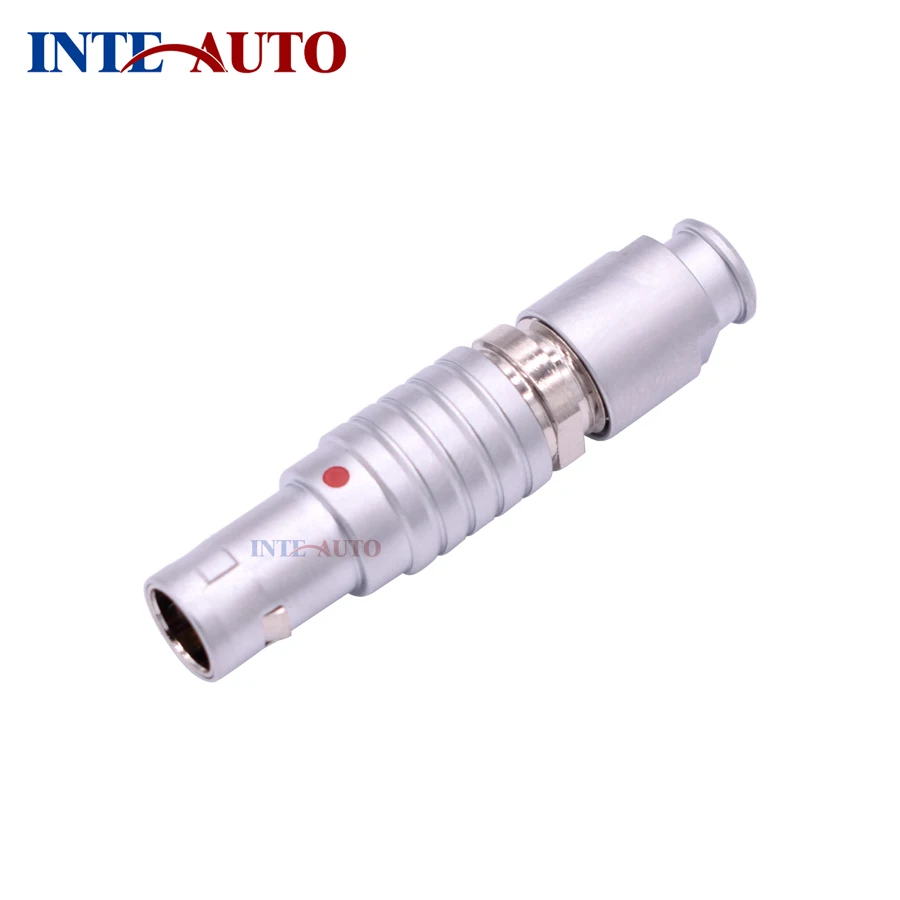

B series plug 0B 5 pins metal Circular push pull male connector M9 size Equivalent FTGG.0B.305 | Обустройство дома

---



Note:The square shape appearance is the priority for shipping. If you need a circular appearance, please contact us. Product Name:0B series Metal electrical push pull connector, 5 pins Plug

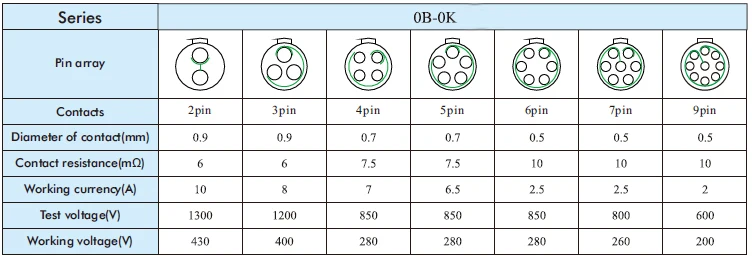

Insulator specs for B series:

Industry Application:  It is widely used on all kinds of medical equipment's, specially for the signal transmission, Medical Equipment ,Audio / Video, Test and Measurement, Communications product line.

Product Parameter:
1. The rapid push-pull locking system;
2. Welding, crimping and PCB-core-type connectors;
3.Straight, 90 ° corners of;
4. Multipin can choose to avoid the use of a machine similar to the connector between the mixed interpolation;
5. The right direction shielding effect, anti-electromagnetic interference;
6. Series of multi-core, high-density installation space-saving;
7. Pin system, G pin as the standard for on-connector.

Technical characteristics:
Mechanical and Climatically
1. Endurance: > 5000 mating cycles;
2. Humidity : up to 95% at 60 degree;
3. Temperature range: -45 , +125 ;
4. .Resistance to vibration : 15 g[10 HZ-2000HZ];
5. Shock resistance: 100 g ,6 MS;
6. Salt spray corrosion test : > 48h;
7. Protection index (mated) : IP50.

Product show:
