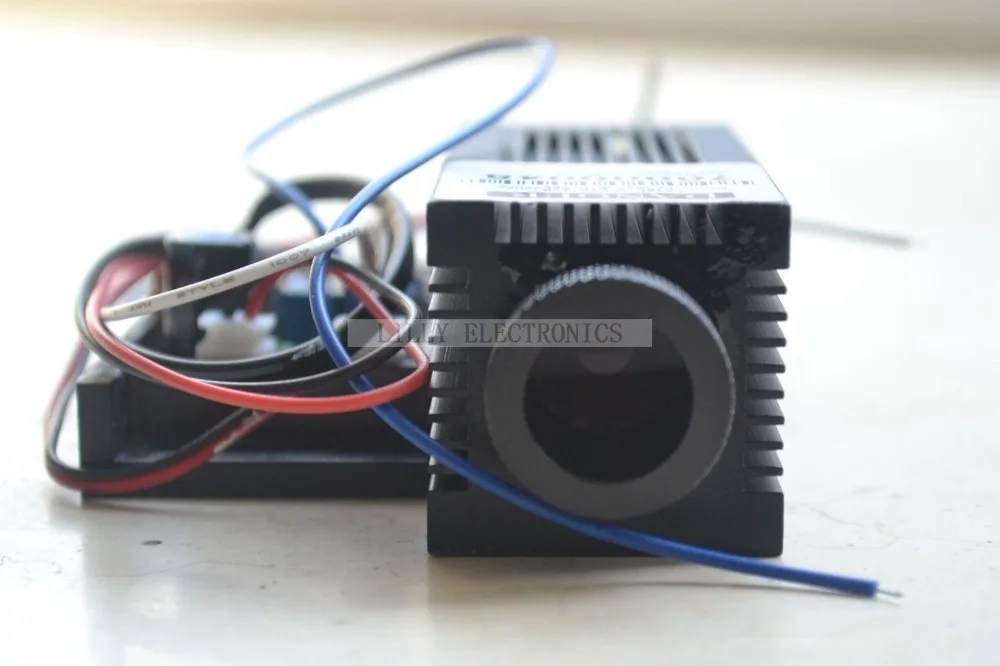

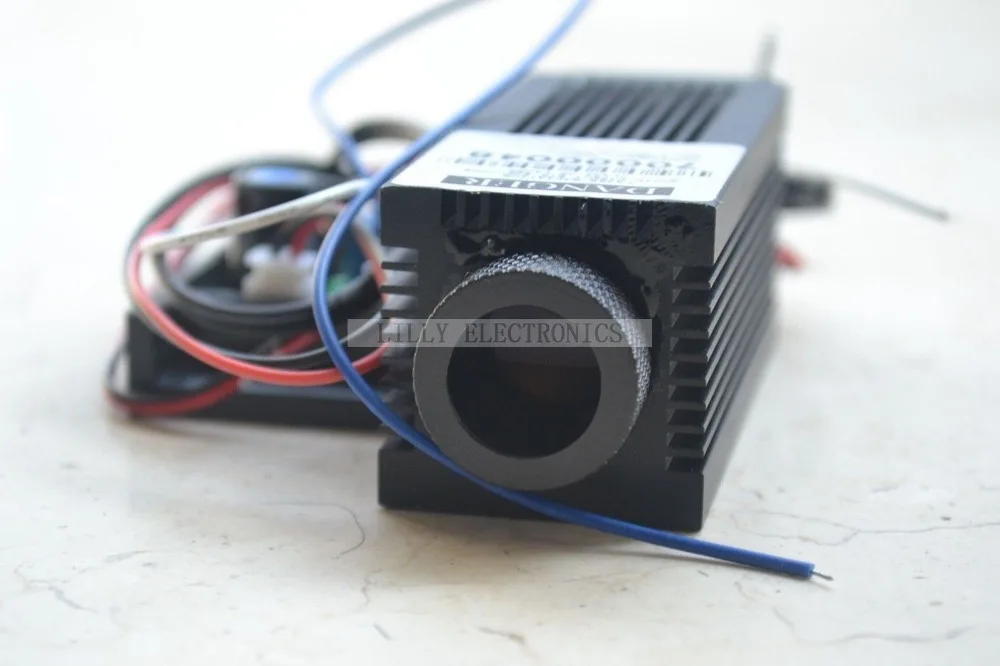

Focusable 2.0W 808nm Infrared Laser Diode Module

1.Output Power 1.6-2.0W
2.Wavelength 808nm
3.Working Voltage 12VDC
4.Working Current 1.35A +-15%
5.Working Temperature -10degree- 30degree
6.TTL >20KHz
7.Divergence 5mrad
8.Focusable YES
9.LD 808nm 2.0W
10.Lens Glass
11.Dimensions 33*33*80mm
12.Working Life >5000 Hours
13.Laser Shape DOT(The spot can be adjusted from rectangle to oval)

Detail:

1. This laser module can not work for a long time if there is no cooling device to keep the laser working under 30degree.
2. Please add a 12VDC power to this laser module. Red wire connects”+” pole; Black wire connects ”-” pole. TTL 3-5V on, 0V off. If you don't use TTL, please just leave the blue and white wire.
3. This is a focusable laser module. Please do not take off the lens adjustable part off to avoid dust.

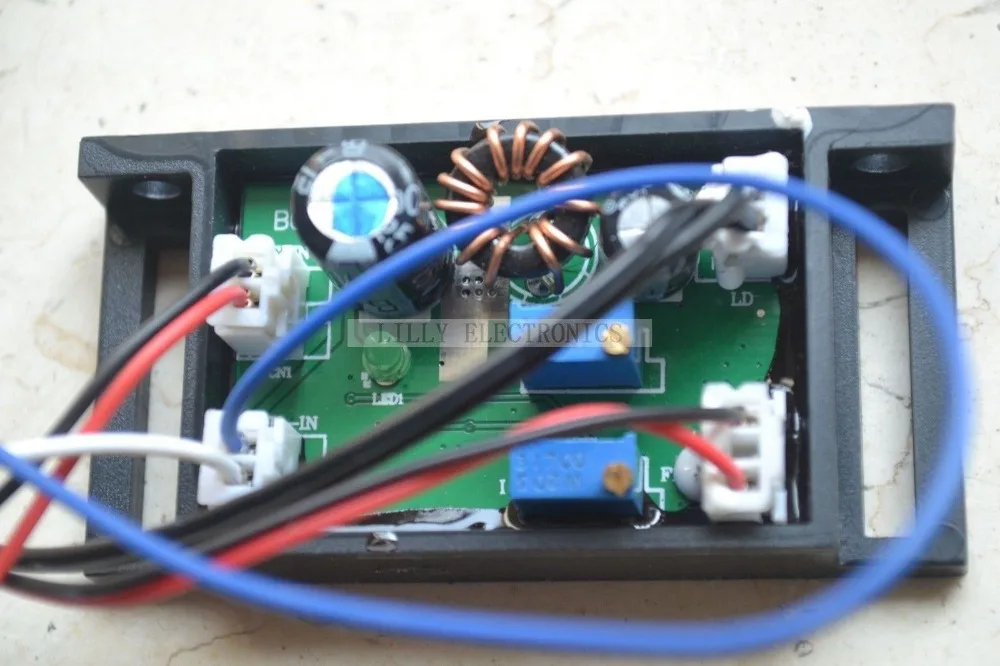

4. There is a potentiometer on the driver. You can turn it to adjust the power of the laser. Turn Clockwise to increase the laser power. Otherwise to decease the power. But the current can not surpass the current we have set up.
5. Please wear 808nm laser protection goggles to protect your eyes when working on this module.

Package

1x Focusable 1.6-2.0W 808nm Infrared Laser Diode Module
