High Quality Manufacturer AC Converter Modified Sine Wave DC 48V to 220V Sufficient 1000W Power Inverter with Charger | Обустройство

---

Meind 1000W Modified Sine Wave Power Inverter is very cost-effective. It can transfer input DC form battery to AC output, for your electric devices and home appliances when been outside or power failure.

It can offer sufficient continuous 1000W output, and peak 2000w. It also can charge your battery with its built-in charger. 1000W Modified Sine Wave Power Inverter can be used in off-grid solar system too. It could be a great helper for enjoying your life!

Note: Please make sure you if the voltage and plug fit for you country standard!

Six protection of Meind Inverter1. Over Load Protection:When connected load exceeds the inverter rated power watts (W), the inverter will automatically shut down to stop the output.2. Over Heat Protection:As the internal temperature of the inverter or the ambient temperature is too high, the inverter output will automatically stop to ensure the safety of electrical equipment.3. High-Voltage Protection:When the DC input voltage exceeds the normal range of the inverter will automatically shut down to stop the output voltage is too high note when there may be damage to the machine.4. Low-Voltage Protection:When the battery or power supply voltage is too low, the inverter will stop output automatic shutdown protection to protect the battery or power supply is not compromised.5. Reverse Protection:When the inverter link reverse to battery, inverter fuse will be blown, without damaging the product itself, you need to replace the fuse.6. Short Circuit Protection:When the load is connected severe short-circuit fault, the inverter will automatically shut down to stop the output.

Notice:

1. The default isEuropean Charger Plug. If you want American Plug, please leave a message when you buy.

2. All of our inverter are Sufficient Power.

This inverter is Modified Sine Wave, and not workable with inductive load. Please choose pure sine wave if your load is inductive.

1000W Power Inverter  DC   48V to AC 220V  Car Power Inverter AC Converter AC Adapter 12v inverter watt inverter voltage inverter dc power supply car inverters power converter seno pura senoidal sinusoide onda sinusoidal inversor carregador cargador Wechselrichter potencia del inversor

Different input and output voltage of this inverter are same in appearance, except voltage write on inverter. FYI.

Meind Power Inverter Features:

Something you have to know before purchasing a suitable power inverter:

1. What are the Peak Power and Continous Power?

The peak power means the power that inverter can withstand at the moment of starting up. Usually it relates to the load like motor. When the motor starts up, the starting current is very high and makes the instant starting power high.The continuous powermeans the power that inverter generates in normal working condition.We guarantee that our power inverter has the full power as rated. For example 2000w power inverter, its continuous power is 2000w and peak power is 4000w.

2. What are the Resistive Load and Inductive Load?

Resistive Load is a kind of electrical load which is characteristic of not having any significant inrush current. When a resistive load is energized, the current rises instantly to it's steady state value , without first rising to a higher value. An electrical load in which voltage and current are converted to energy in the form of heat, i.e., an electrical heater, candescent bulb. mobile,laptop, TV, LED light, toaster, oven, hot plates, curling irons, coffer makers, video player, small printer, water dispenser, electric cooker, etc.

Inductive Load is an electrical load which pulls a large amount of current ( an inrush current) when first energized. After a few cycles or seconds the current settles down to the full-load running current. The time required for the current to settle down depends on the frequency or/and the inductance value of the inductive load.

It means the large power electric appliance whose working principle is the electromagnetic induction. Like motor, compressor, relay, etc.For these products, the start-up power is much higher than the rated power (about 3~7 times).For example, the rated power of the fridge is 150w, but its start-up power is higher than 1000w.
3. What is the difference between Modified and Pure Sine Wave?Modified sine wave inverter use less elaborate switching and filtering circuitry. There would be electrical noises or interference which can prevent these inverter from properly powering certain loads. The frequency and voltage to their outputs may vary and contain some noise and distortion. It can run some resistive load like light bulb, etc. But it is not good for many appliance and affects use life your appliances. With today's technological advancements and rapid proliferation of sensitive electronics that require true sine wave power to operate correctly. Pure or True Sine Wave Inverters are designed to emulate this power. Some appliances which are likely to require pure sine wave, include computers, digital clock, battery charger, light dimmers, audio and visual equipment. variable speed motors, pump, air conditioner, and precision machines, induction cooker, microwave oven, compressor, water pump etc. Pure sine wave inverters have distinct advantage over modified sine wave inverters in term of performances. Choose pure sine wave inverter for the goodness and longevity of your appliances. 4. How to choose one Power Inverter? - For Resistive Load:If you need the inverter to run the resistive load (like laptop, TV, electric cooker, LED light), please choose the inverter with continuous power higher than the appliance's rated power.For example, for the power inverter with continuous power 2500w,it is suggested to run the appliance with rated power less than 2500w.It is best to use 80% of the rated power. - For Inductive Load:If you need the inverter to run the inductive load (for appliance such as compressor, motor, water pump), please calculate the power of inverter 3 to 7 times higher than the rated power of your appliance.

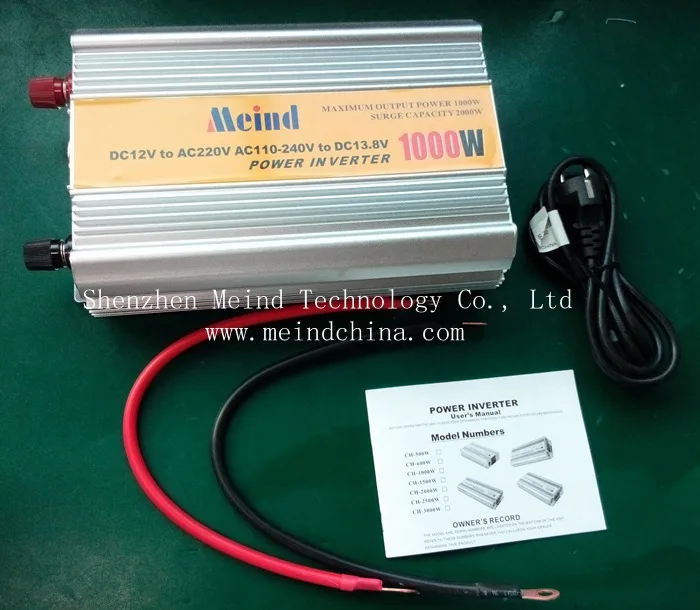

Physical Pictures  of Usage from Customers



Our pure sine wave inverter is approved by the EMC testing in AUSTRALIA and by EC EMC and EC LVD testing, getting the CE certificate.

---

---
