Vgate iCar3 Obd2 Scanner Bluetooth ELM327 Car Diagnostic-Scanner For Android Elm 327 iCar 3 OBD 2 Code Readers Diagnostic Tools |

Vgate iCar3 ELM327 Bluetooth Obd2 Obdii AdapterCode Readers
iCar 3 Elm 327 Supports All Obd 2 Car Diagnostic ScannertoolVgate iCar3 BluetoothELM327obd2 scannercolors:red,blue,white,black and green .

Note:This is a Multi-color for choice (5 kinds), when you place

the order please leave a message to us which color you need, if without saying, we will ship it in random.

Vgate iCar3 ELM327 Bluetooth v1.5 obdii diagnostic toolFeatures:

Supply voltage(VDD):12V

Work temperature range:-20 ~ +70

Storage temperature range:-40 ~ +125

RF sensitivity(Basic Rate):-85db

Modulation Mode:GFSK

Frequency Range:2402 ~ 2480MHZ

Transmission Range:10M

Bluetooth Profile:SPP

UART Params:38400,8,n,1

Small size, compact structure. Plug and never unplug

Stable wireless connection

No wires or batteries (adapter is powered by the diagnosis size sockets)

Stop communication, wait half an hour, auto sleep

Supports all OBDII protocols

The adapter uses the fastest and most reliable ARM chips

The device is a small adapter that plugged into the vehicle OBD-connector.

On Bluetooth, it connects to any computer, tablet or smartphone, With

associated diagnostic procedures .Doing these simple operations, you will be

able:

Read, erase and display code descriptions problems - both standard and

spetskodov manufacturers.

Measure the fuel consumption.

Display real-time operating performance of the car, such as momentum,

vehicle speed, oil pressure, coolant temperature, engine load, intake manifold

pressure, throttle position, the values of oxygen sensors, air intake

temperature, and more.

Turn off the MIL (signal Check Engine).

Download data to external media in a variety of formats for later printing.

Record various parameters, display graphics in real time, and more.

With iCar3 you will be able to perform a complete computer diagnostics car

and even to correct minor faults without resorting to service stations.

iCar 3 scantool is a high-quality automotive scanning tool, supports all OBD-II

Vgate iCar 3 ELM327 obd 2 BluetoothProtocols :

0.Automatic

1.SAE J1850 PWM(41.6Kbaud)

2.SAE J1850 VPW(10.4Kbaud)

3.ISO9141-2(5 baud init,10.4Kbaud)

4.ISO14230-4 KWP(5 baud init,10.4 Kbaud)

5.ISO14230-4 KWP(fast init,10.4 Kbaud)

6.ISO15765-4 CAN(11bit ID,500 Kbaud)

7.ISO15765-4 CAN(29bit ID,500 Kbaud)

8.ISO15765-4 CAN(11bit ID,250 Kbaud)

9.ISO15765-4 CAN(29bit ID,250 Kbaud)

A.SAE J1939 CAN(29bit ID,250*Kbaud)

B.USER1 CAN(11*bit ID,125*Kbaud)

C.USER2 CAN(11*bit ID,50*kbaud)

default settings(user adjustable)

Vgate iCar3 ELM327 Bluetooth obd2 adapterPacking List:

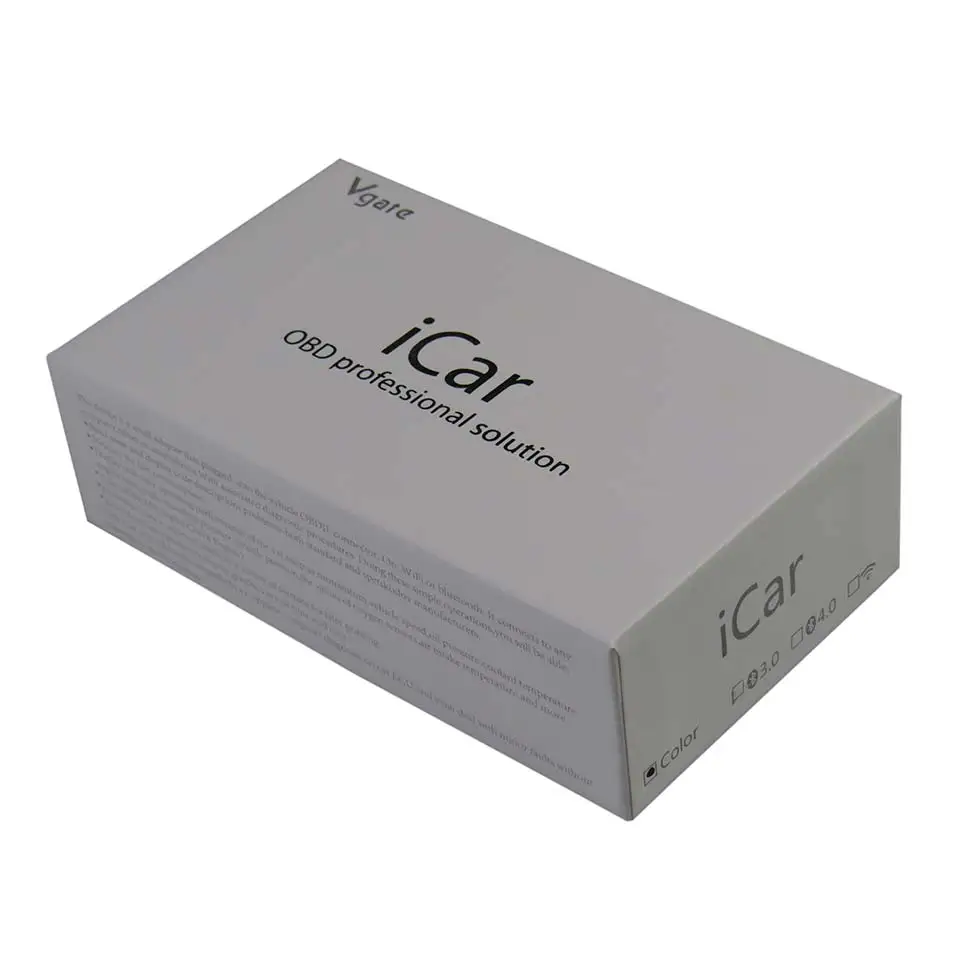

1 x Vgate iCar3 Bluetooth elm327 v1.5 obd2 car diagnostic scanner

1 x CD Drive
