100pcs/Lot Lipo Rechargeable Battery 3.7v 3200mah Li polymer with BMS for Tablet PC Lithium Polymer | Электроника

  Features:

• Model: 309098
• Nominal capacity: 3200MAh
• Rated voltage: 3.7V
• Charging voltage: 4.2V
• Size:3*90*98mm(T*W*L)(+/-3mm)
• Charging temperature: 0 ° C ~ 45 ° C
• Discharge Temperature: -20 ° C ~ + 60 ° C
• Storage temperature: -20 ° C ~ + 85 ° C
• Charging current: Standard charge: 0.5C, fast charging: 1.0C
• Standard charging method: 0.5C CC (constant current) charged to 4.25V, then CV (constant voltage 4.2V) Charge until the charge current ≤0.05C
• Maximum charge current: 1C
• Maximum discharge current: 1C
• Charging voltage : 4.2V;
• Maximum charge current : 1C = 3200mA;
• discharge cut-off voltage : 2.75V;
• Charging temperature : 0 - 45 ;
• Discharge temperature : -10 - 60 ;
• Storage temperature : -10 - 45 ;
• No memory effect: any time to charge and discharge ;
• Cycle life: up to 800 times charge-discharge ;
• no environmental pollution : does not contain cadmium , lead, mercury and other harmful substances ;
• safe : no explosion, no fire and so on.

---------------------------------------------------------------------------------------------

Feature Description:

1. All kinds of size: type and capacity to choose from, high applicability
2. Quality assurance: using A product batteries, high capacity, low internal resistance
3. The performance is stable, circulation service life is long: continuous charging and discharging after 1000 time, battery capacity of less than 80% of the rated capacity.
4. No memory effect, can be used to charge and discharge at any time
5. High safety: built-in seiko circuit protection board, has the short circuit, over charge and discharge, shock, vibration, acupuncture, high temperature, such as state, no fire, no explosion, etc.

---------------------------------------------------------------------------------------------

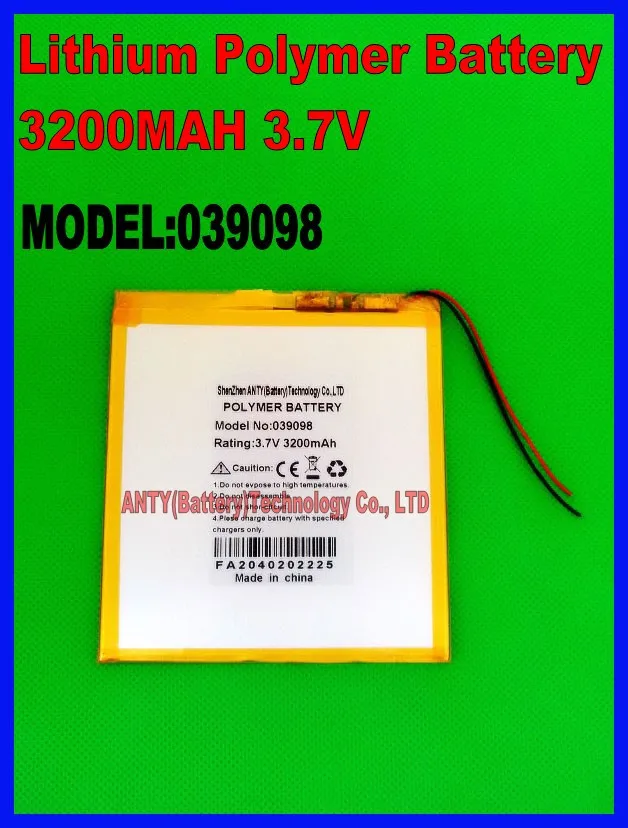

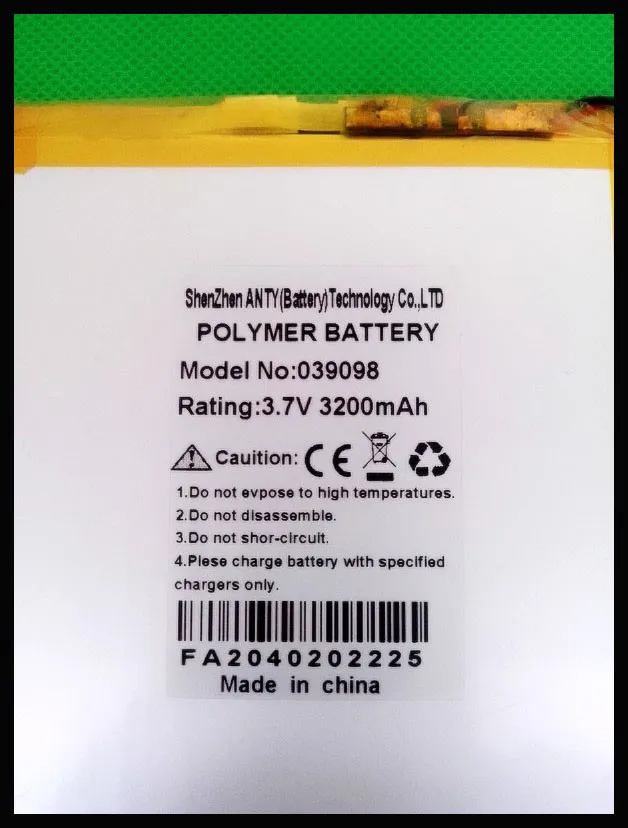

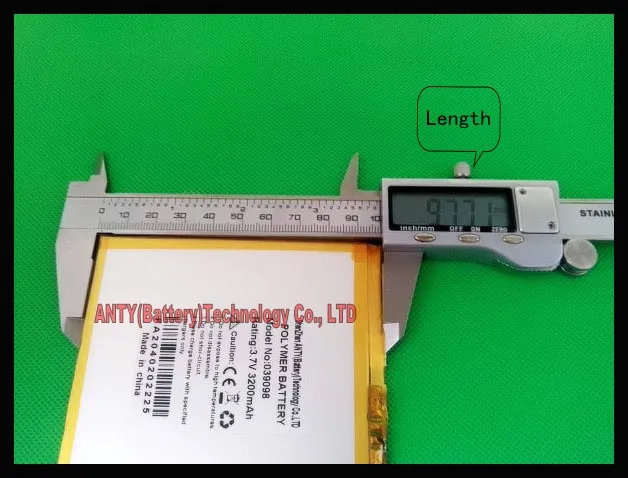

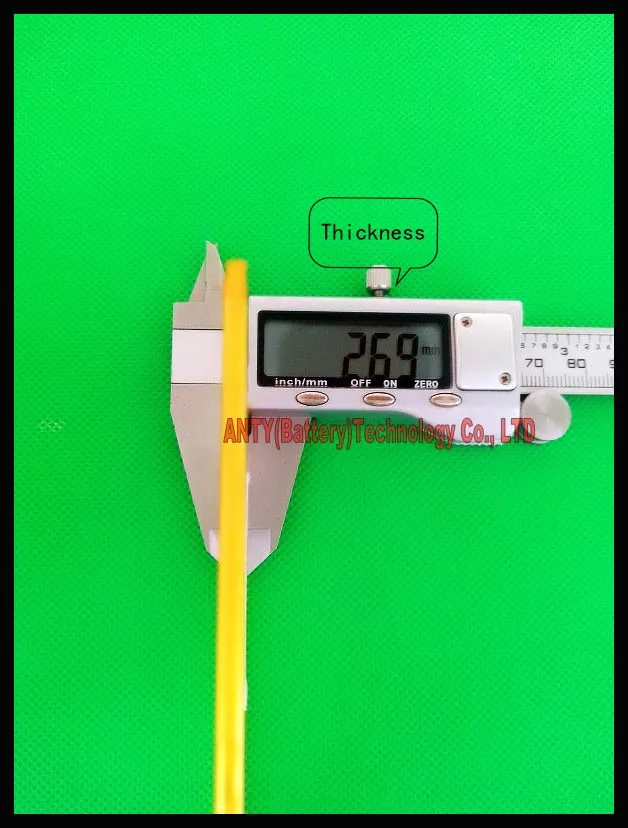

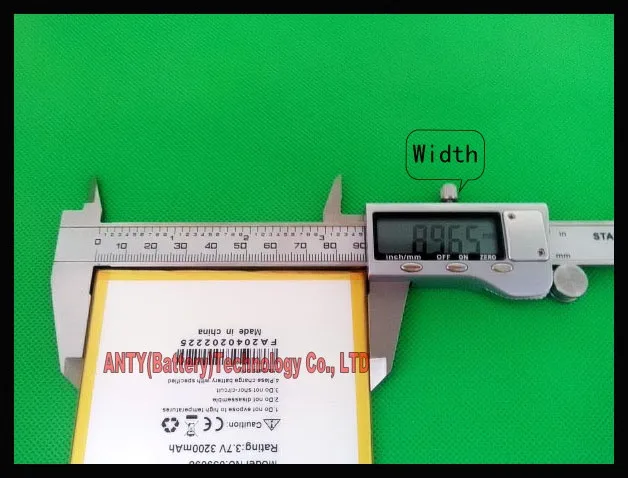

Battery Size Photo:

---------------------------------------------------------------------------------------------

Battery BMS PHOTO:

---------------------------------------------------------------------------------------------

Connector:
To facilitate the battery, we configure 8 kinds of conventional connector, and provide processing free when you buy, if you need to load connector, follow us provide images to choose, and let us know.
Connector Follow the serial number choices.

                   ( A B C D E F G H)

A: 2pin

B: 2pin

C: 2pin

D: 2pin

E: 3pin

F: 2pin

G: 2pin

H: 2pin

Storage:

• In order to ensure the battery capacity level, it is recommended that the battery and battery pack in - 20 ~ 35 degree centigrade, under the condition of low humidity, no corrosive gas storage
• Battery to avoid storage at high temperature or high humidity, otherwise will cause battery leakage, rust, and capacity is low.
• Long term storage could lead to battery and battery capacity is reduced, and need 1-3 charge/discharge cycle to achieve the highest discharge capacity.
• Battery once every three months after need circulation charge and discharge.

Warning:

• Do not allow the reverse charging, battery should be accurate according to the polarity connection, not the reverse.
• Don't allow short-circuit, otherwise will result in permanent damage.
• The battery cannot be used in extreme conditions, such as: the limit temperature, depth, circulation, extreme of charging and discharging.
• Please send batteries store in a cool and dry place, when a large number of battery storage or shipping must first put the battery.
• Do not directly solder the battery.
• If abnormal noise, high temperature, discharge the battery, please stop using immediately.
• Do not put into the fire or try to open it, the battery may burn or produce harmful substances.
• Old batteries or use half of the battery are not allowed to be mixed with new batteries, otherwise it will produce a discharge.
• Do not open the shell and remove the outer casing of the battery.
• Are not allowed to put battery into the water.
