Full HD 16CH NVR System P2P ONVIF 16Pcs 1.0MP IP Camera Outdoor Waterproof 720P Color Image Night Vision+H.264 HDMI Recorder |

---

Full HD 16CH NVR System P2P ONVIF 16Pcs 1.0MP IP Camera Outdoor Waterproof 720P Color Image Night Vision+H.264 HDMI NVR Recorder

Features

NVR:

1. Support multi languages.

2. Preview: 16ch 1080P/ 16ch 960P/ 16ch 720P ; Playback: 1 channel realtime (1ch 1080P/ 1ch 960P/ 1ch 720P).

3. Support Onvif, remote view via internet by IE browser, Iphone, Android phone.

4. Support P2P cloud function, free DDNS dynamic domain name.

5. Adopt H.264HP High efficiency Video Compression, lower stream, higher quality, longer recording time.

6. Support 2x 4TB 3.5’’ HDD, 2x USB2.0 interface, 1x HDMI (1920x1080), 1xVGA.

IP camera:

100% Brand New! Never Used Before, only test once(before shipping) !

1. High resolution 1.0 Megapixel 1/4’’ CMOS Sensor, 1280x720 resolution.

2. Support ONVIF, P2P, remote view via internet by IE browse, iphone, Android phone.

3. Function: Onvif, P2P, motion detection.

4. Lens: 3.6mm default lens, view angle 75 degree; 6mm lens for optional, view angle 60 degree.

5. Metallic shell, waterproof, can use indoor and outdoor. 4units Array Leds night vision, 24h day and night working.

6. Dual IR-Cut filter auto switching between day& night to offer optimized image quality.

Packaging:

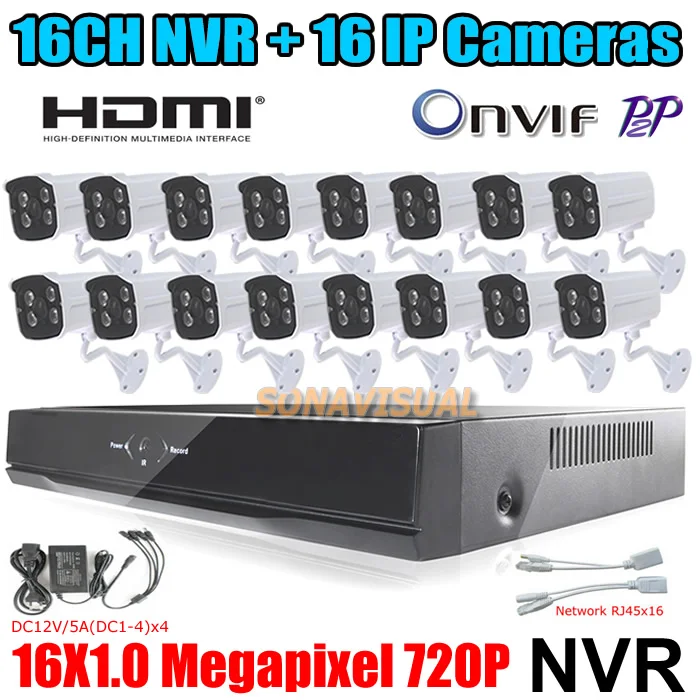

16Channel  NVR                                x1set(Not include HDD)

IP Camera                                        x16pcs

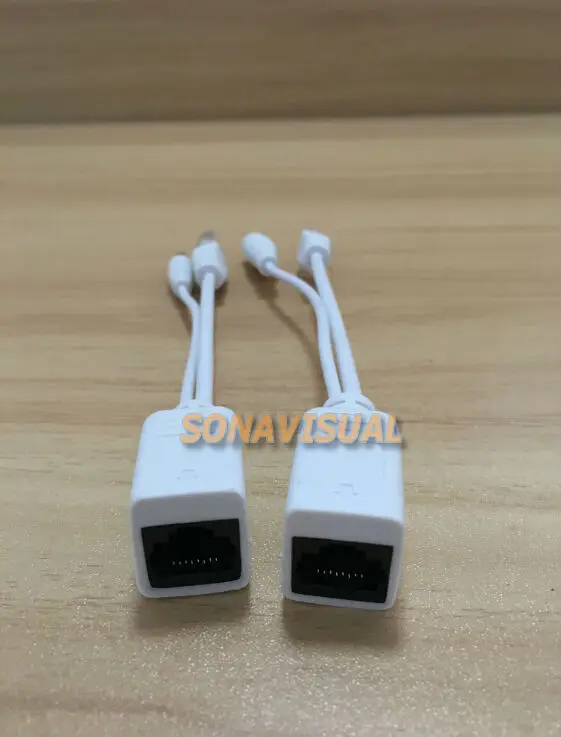

Network RJ45 Cable                          x16Pairs

DC12V/5A-DC1-4 Cable                     x4pcs

Notice: this package not include Hard Disk, if you need it, we recommand this:

Recommend:

Extra Infrared light for Camera, better effect at night:

Network cable For IP Camera, If you need please click the picture below:

Products Show:

he only one camera can be seen and managed by the software or Web IE brower in LAN or by remote visit through WAN. The video recorded by the camera can be stored on the PC in LAN.

Multiple cameras can be seen and managed by the software or Web IE brower in LAN or by remote visit through WAN. The video recorded by the cameras can be stored on the PC in LAN.

Multiple cameras can be seen and managed by NVR software or the software or Web IE brower in LAN or by remote visit through WAN. The video recorded by the cameras can be stored on the NVRs in LAN.

Parameters:

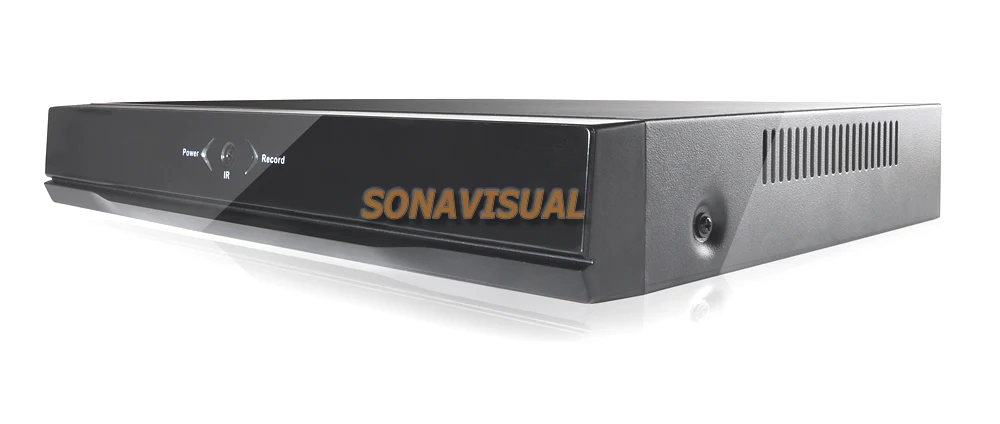

NVR

Model		NVR-5116S
System	CPU	Hisilicon HI3535 chip
	Screen display	1ch/ 4ch/ 16ch display
Video	Code capacity	1080P/ 960P/ 720P/ 960H/ D1/ HD1/ CIF/ QCIF
	Preview capability	16ch 1080P/ 16ch 960P/ 16ch 720P
	Motion Detect	Each screen can be set to 192 (16 × 12) of detection regions; support multi-level sensitivity
Video playback	Recording	Manual> Alarm> Motion Detection> Schedule
	Playback	4ch 1080P/ 4ch 960P/ 4ch 720P
	Video search	Time search, calendar search, event search, channel retrieval
Storage	Space	720P:40G/day/channel; 1080P:80G/day/channel
	Storage	Local HDD, Network
	Backup	Network playback, USB mobile HDD, USB CD-RW
Interface	Video in	RJ45
	Video out	1ch VGA, 1ch HDMI(1920x1080), 1ch BNC
	Audio in	NO
	Audio out	1x RCA
	Alarm in	NO
	Alarm out	NO
	Ethernet	RJ-45 interface,10M/100M/1000M
	PTZ	1x RS485
	USB	2x USB
	HDD	Support 2x SATA Hard Disk (max to 4000GB)
Other	Power	DC 12V/4A
	Size	310(L)x217(W)x47(D)mm
	Weight	2kg(not include HDD)

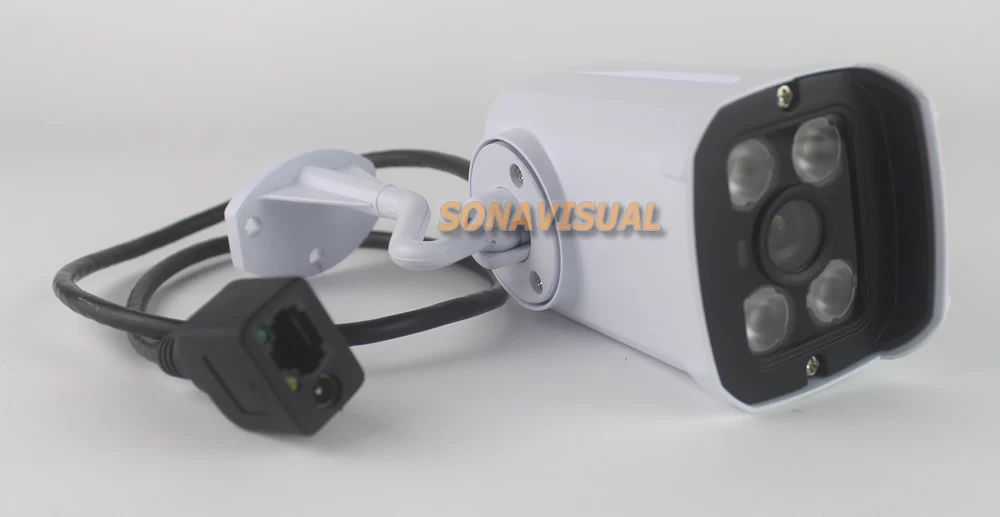

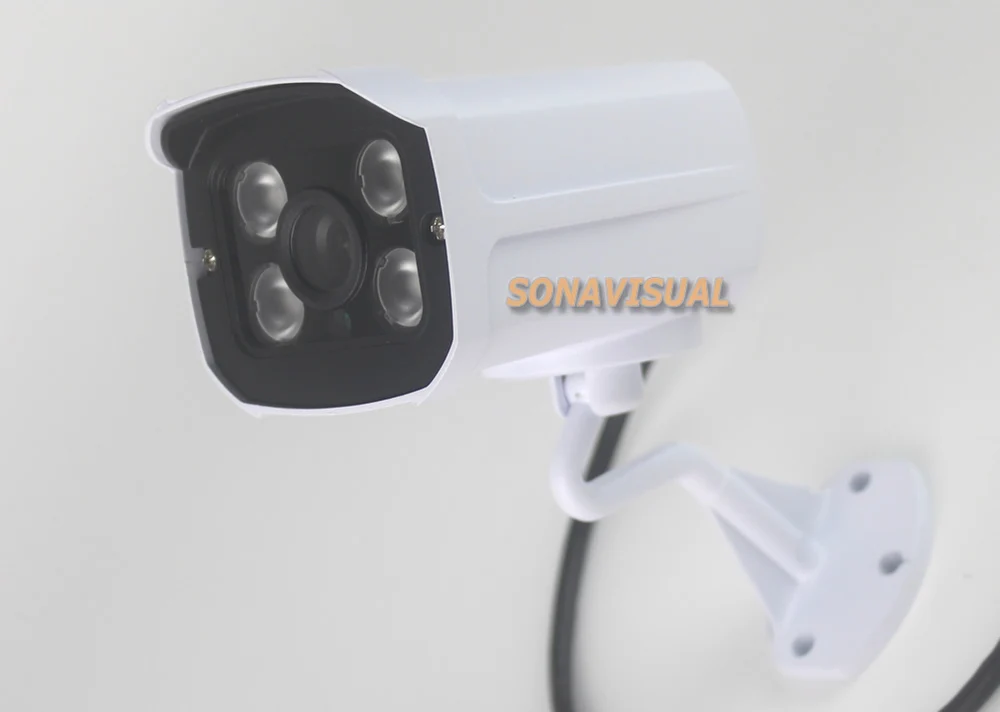

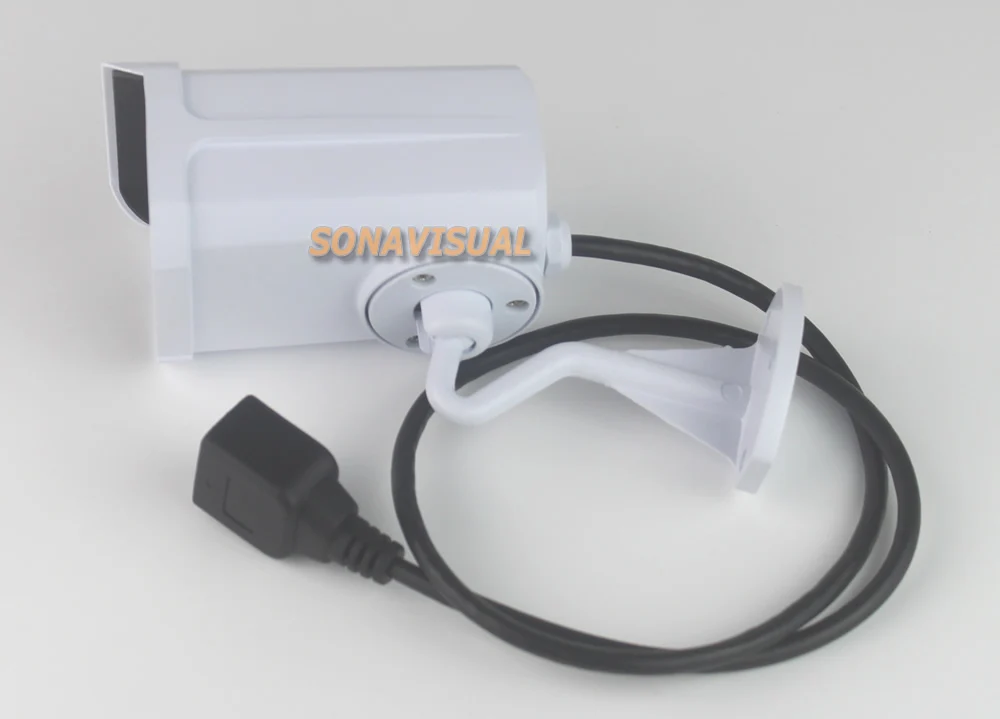

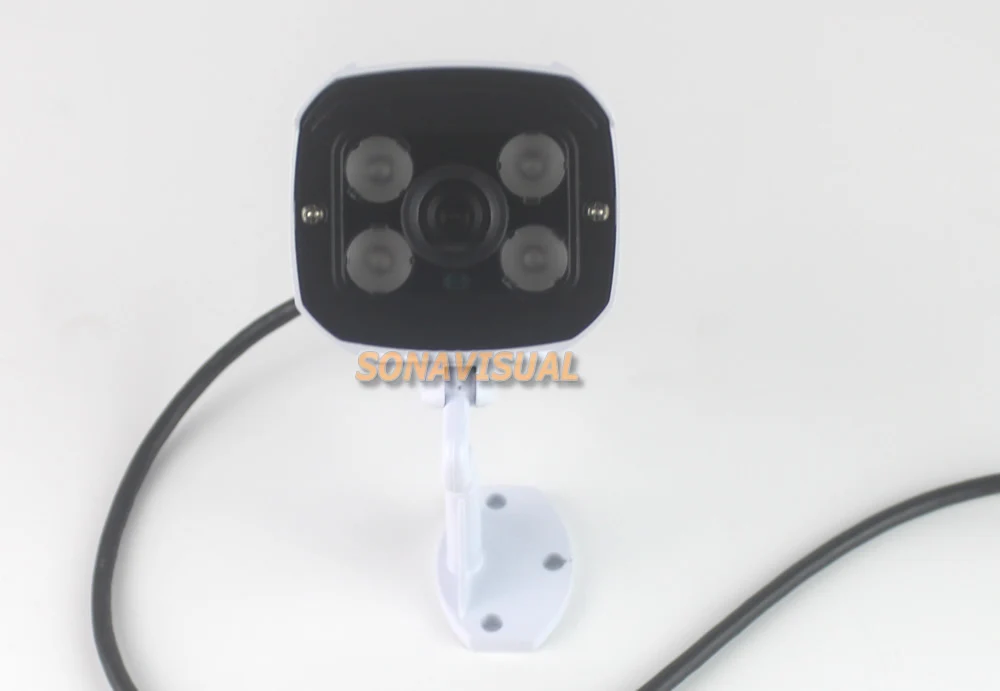

Camera:

Camera
Model	W513-IH10
Image Sensor	1.0Megapixel 1/4” CMOS Sensor
Effective Pixels	1280(H)x720(V)
Scanning System	Progressive
Min. Illumination	Color: 0. 1Lux/F1.2, B/W: 0.01Lux/F1.2; 0Lux/F1.2(IR on)
Lens	3.6mm(default) : view angle 75 degree 6mm (optional) : view angle 60 degree
IR light	4units Array leds
IR distance	6-8m
Video
Resolution	720P(1280×720) / D1(704×576) / CIF(352×288)
Main Stream	720P
Sub Stream	D1/CIF
S/N Ratio	>39dB
Compression	H.264
Day/Night	Auto Day&night Conversion
Network
Ethernet	RJ-45 connector (10Base-T/100Base-TX)
ONVIF	Standard ONVIF
Smart Phone	iPhone, Android phone
Browser	IE browser
Function	P2P, motion detect
General
Power Supply	DC12V/1A
Power Consumption	<6W
Working Environment	-5°C~+40°C, 10%~90%
Material	Metallic
Waterproof	Yes
Weight	0.3kg

Application:
