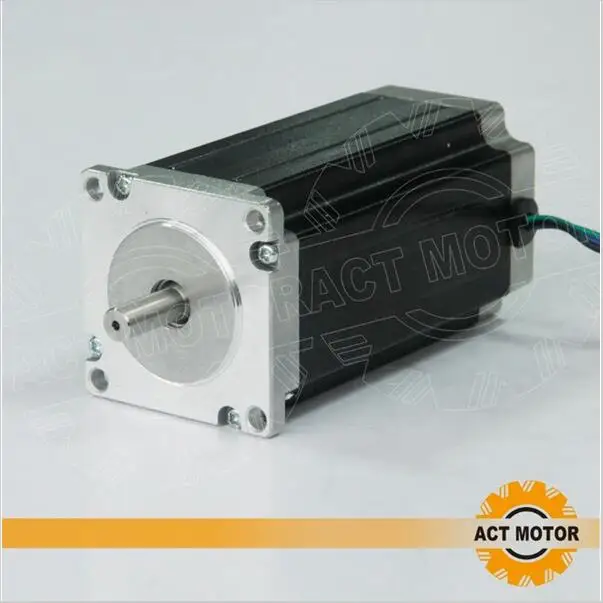

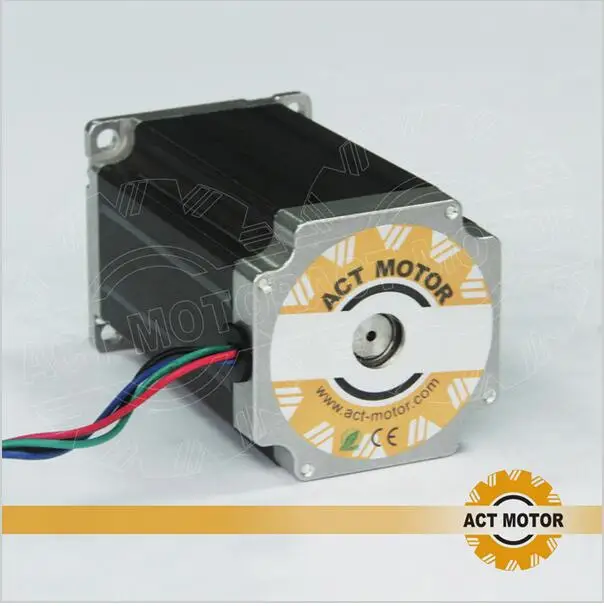

EU Free!ACT Motor Nema23 Stepper 23HS2430 Single Shaft 4-Lead 425oz-in 112mm 3.0A BipolarCNC router/engraving machine | Обустройство

This item inclouds:

1PC/3PCS/5PCS Nema23 Stepper Motor23HS2430Single Shaft:8mm

1.8degree, 3A,  3N.m(425oz-in), 2Phase, 4-Lead, 112mm motor length

Please check the specification carefully!

Please confirm the shipping cost and method before payment!

Any question, feel free to contact me!

About the motor :

Motor Specification:

- Model No: 23HS2430

- Motor Type: Nema 57 Hybrid Stepper Motor

- Step Angel: 1.8°

- Rate Voltage: 4.8(V)

- Rate Current: 3(A)

- Phase Resistance: 1.4±10%(ohms)

- Phase Inductance: 6.8±20%(mH)

- Holding Torque: 250(N.cm.Min)

- Detent Torque: 6.5(N.cm Max)

- Rotor Inertia: 800(g.cm2)

- Motor Weight: 1.67(kg)

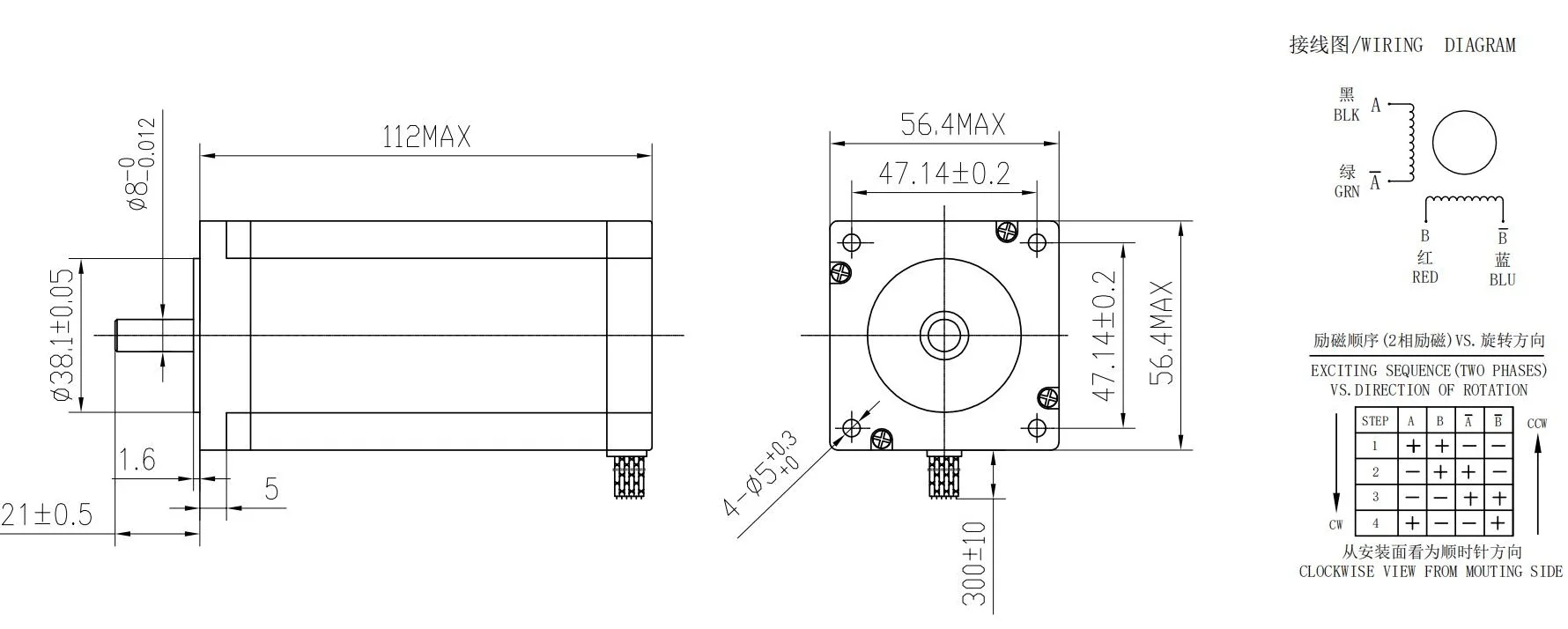

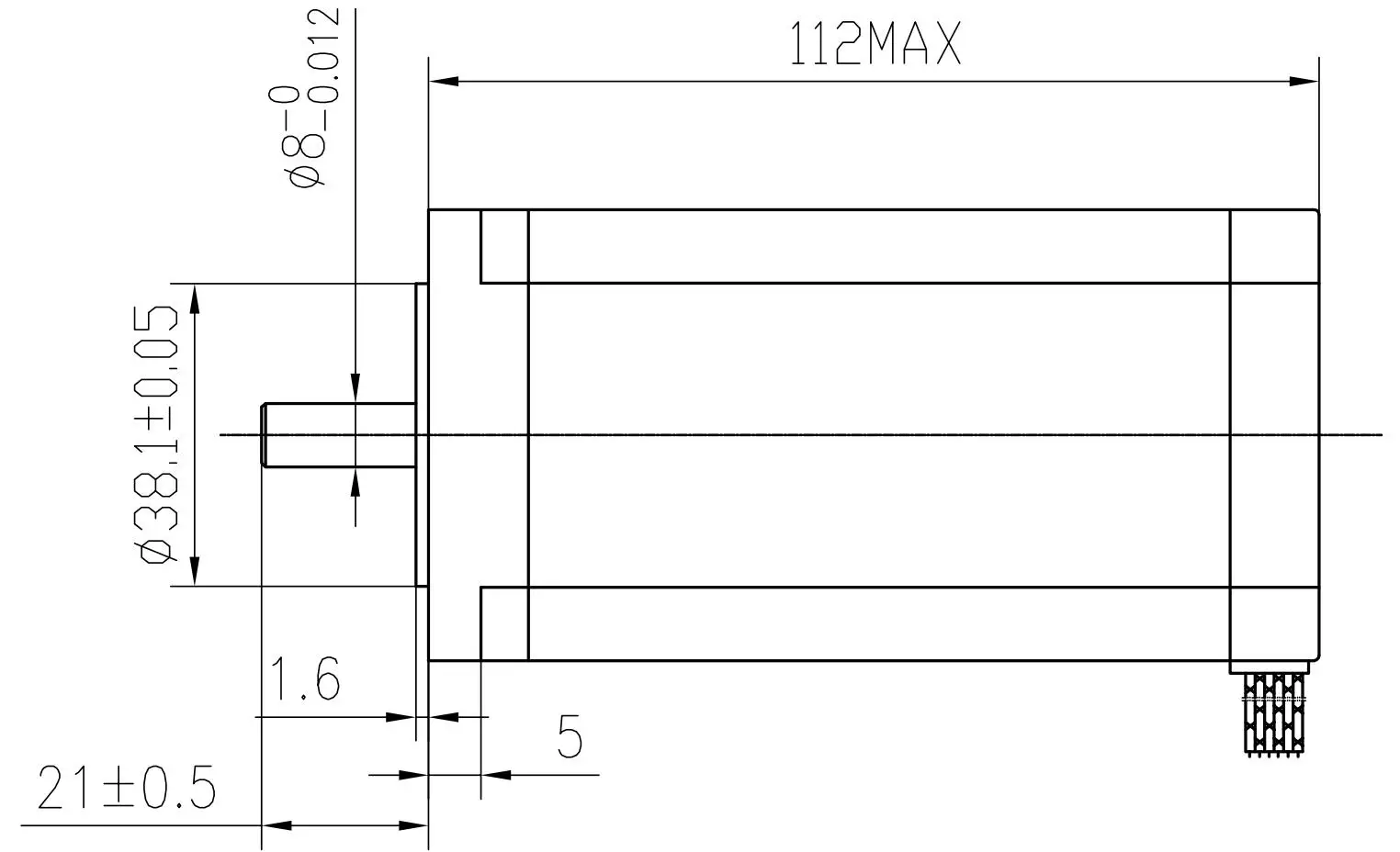

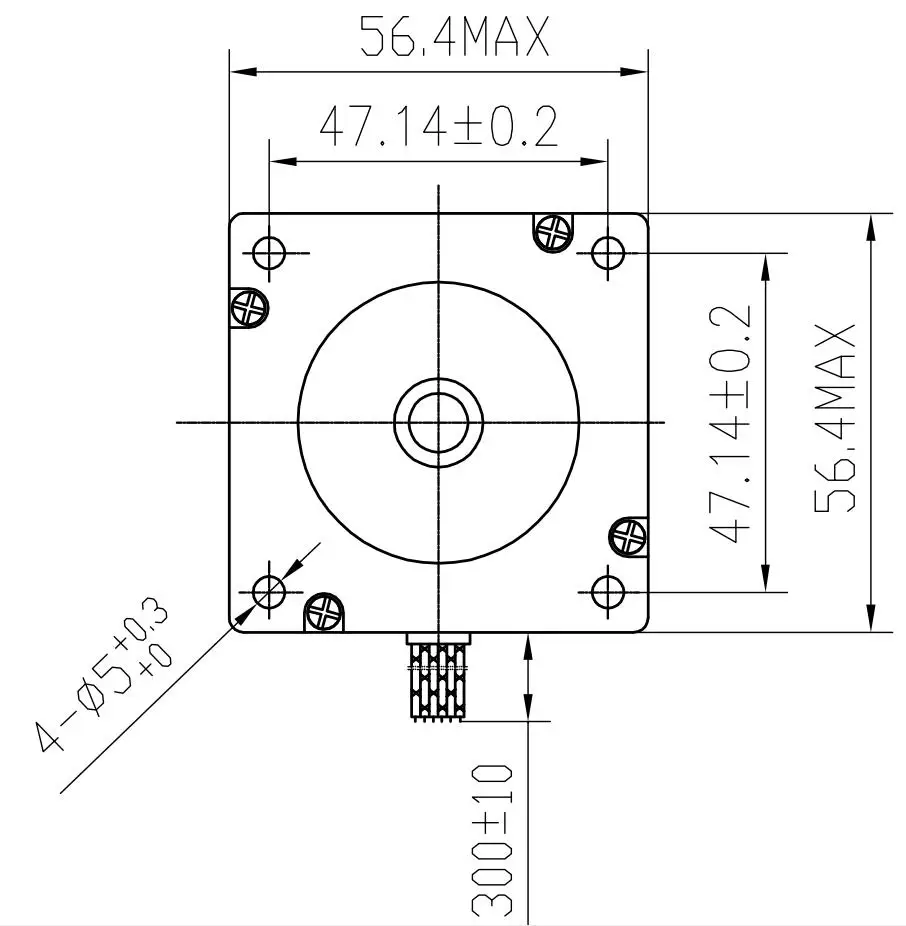

Mechanical Dimensions:

- Frame Size: 56.4mmX56.4 mm

- Body Length: 112 mm

- Shaft Diameter: 8 mm

- Shaft Length: 21 mm

- Lead: 4 wires

- Lead Length:300mm

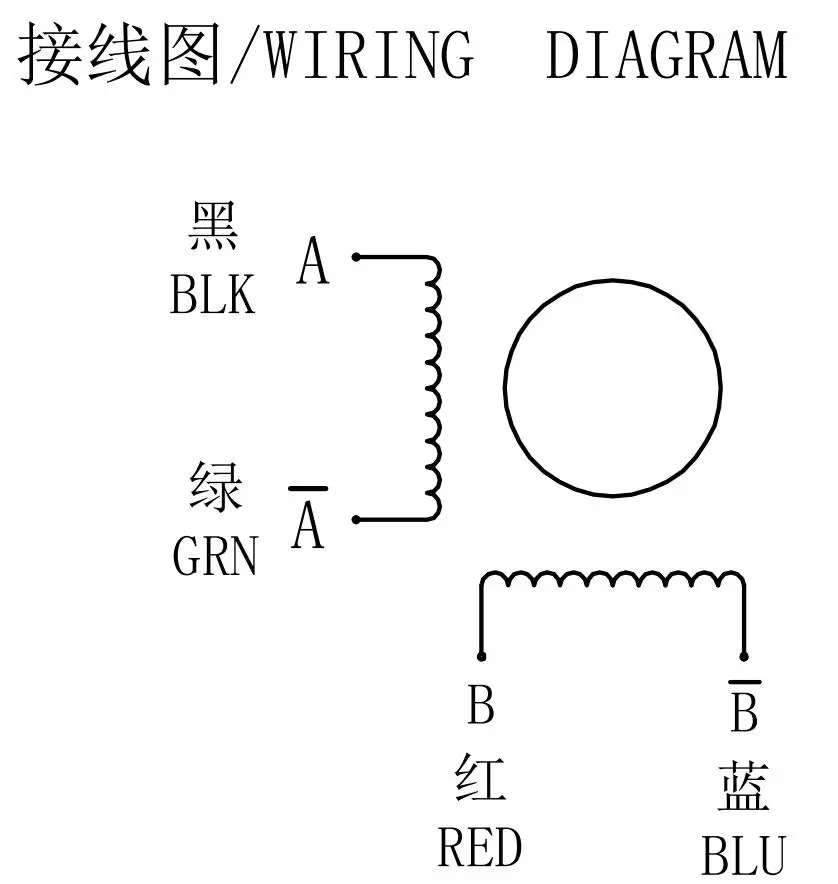

Connection:

- Black(A+), Green(A-), Red(B+), Blue(B-)

Promblem and feedback:

Please give us the opportunity to resolve any problem when you have ,provide pictures or video to e-mail:becky@act-motor.com

We have a strong technical team and after-sales team to help you.
Your satisfaction is very important for us,so please contact us before you want to leave a negative feedback.

Shipping:

We have our own warehouse in Germany, and the EU ships for free!

We ship to wordwide expect Iraq.

We ship by DHL,EMS ,Fedex,UPS or China Post Airmail.

There is online tracking number after the item shipped.

Return:

If you are not satisfied with the package,please tell us the reason.

Delivery cost needs to be paid by the buyer.

About the ACT MOTOR company:

Changzhou ACT Motor Co., Ltdis a high-tech enterprise that specializes in designing and producing stepper motors, brushless motors, servo motors and drivers.

ACT Motor always adhere to people-oriented, innovative driving force for development, adhering to the "credibility first, quality first " business philosophy, striving for market-leading brands.

ACT Motor has strong technical force, mature production technology, complete testing equipment and has obtained ISO9001: 2008 quality management system certification and CE certification, compliance with the EU RoHS standards.

ACT Motor team has high aspirations, forge ahead, and will continue to search, ready to work with all partners to move forward, the future success and build a cause under the opportunities and challenges!
