Brand NameNoneModel NumberDH48S-1Zis_customizedYesUsageGeneral PurposeTheoryTime RelayProtect FeatureSealedContact LoadHigh PowerMeasurement unitpiece/piecesEach pack1Place of Origin:China (Mainland)SizeMiniature

Unavailable in

Description

≡≡≡≡≡ Welcome to our Store ≡≡≡≡≡

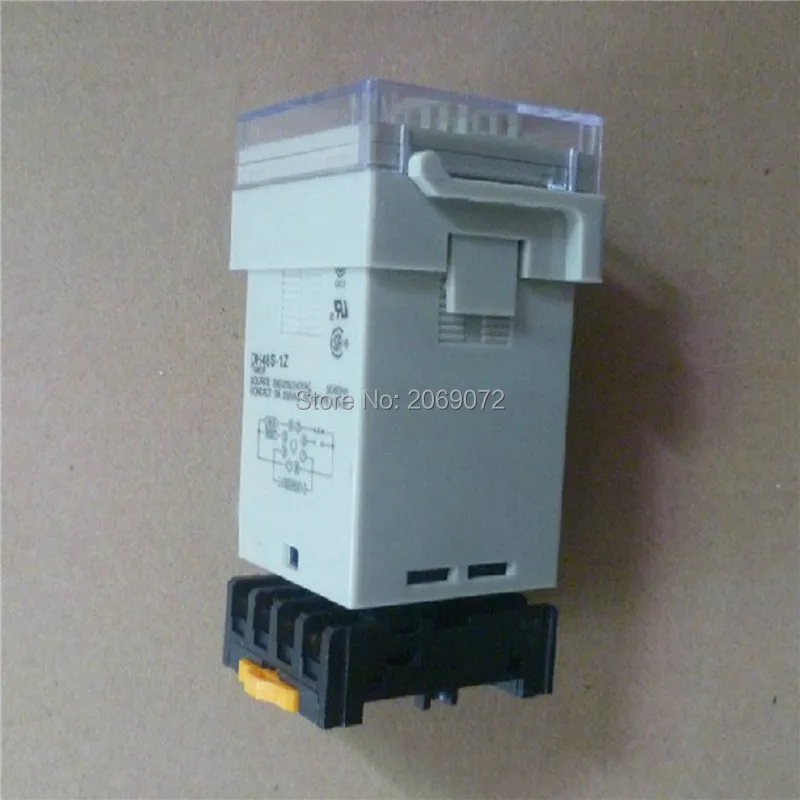

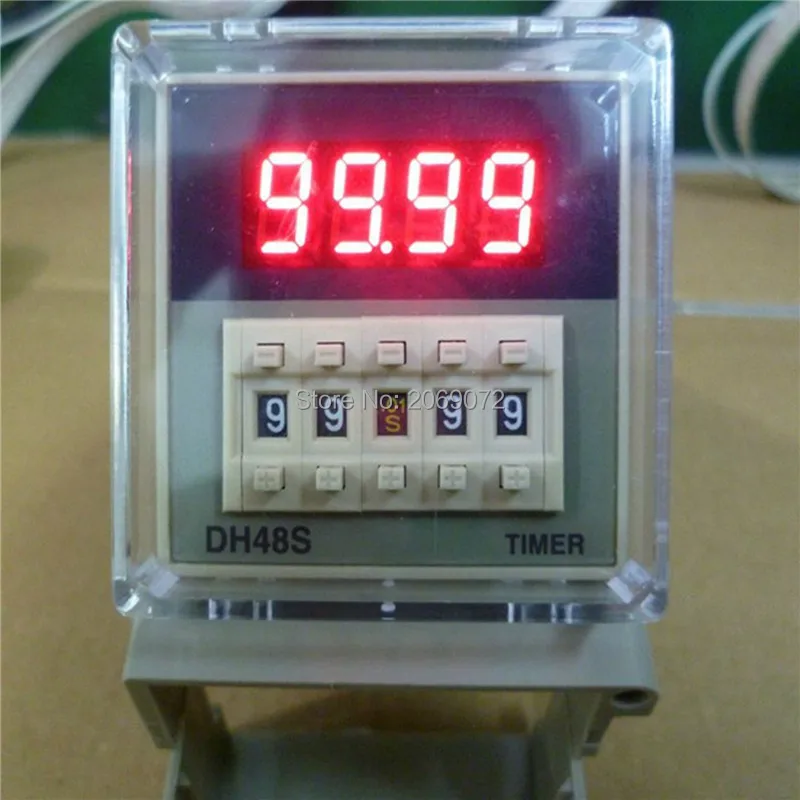

 Digital Timer Relay On Delay 8 Pins SPDT DH48S-1Z Reset/Pause Function



Technology Specification:



Power Source:85-110% Rated Voltage   AC: 110V 220V 380V   DC: 12V 24V   Dealy Range:0.01s~99.99s 1s~99m99s 1m~99h99m   Repeat accuracy: <0.3%±0.5sec   Contact Capacity: AC220V 5A   DC30V 5A(Resistive)   Mechanical life: »10000000   Electrical Life»100000 Operating ambient temperature:-10^oC-50^oC   Power consumption: ≤5W   Altitude:<2000m   Dimension:48*48mm   Hole Size:45*45mm

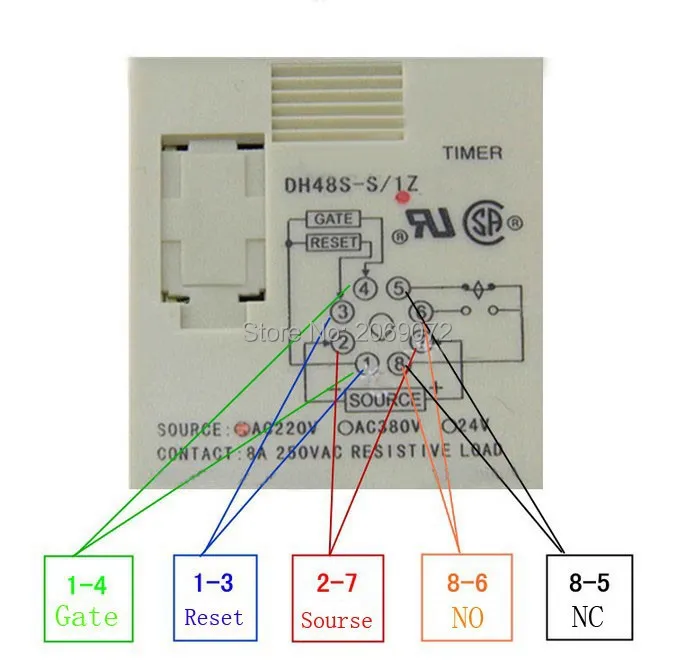

      Use instruction: 1.Reset function:the relay would return to initial state when processing reset terminal at any time. 2.Pause function:the timing would be paused and display.retain the time of this moment                               when processing pause terminal during timing process,and the timing would go on after cut-off. 3.Start function:the timing started/stopped when processing/cut off,and the figure of this moment                                would be retained.The accumulated timing would go on once switched on again. 4.Please using screening lead if the reset or pause connection lead are quite long when used under strong electric field condition. 5.The reset and pause terminals is banned from being inputted with voltage from outside or landing,which avoiding damaging product.





---

---

---
