V2 80mm dropout 1.4Kg Ultra-light small Max 24V/33V/36V 500W V brake front no-hall hub motor for electric bike&electric bicycle | Спорт и

---















   Front the drive integrated intelligent V brake motor 100mm diameter

1.Bicycle's models and wheel size:

Bicycle's models:mountain bike, city car, folding car ,and so on;

Wheel size:16 inch, 20 inch, 22 inch, 24 inch, 26 inch 700C, 29 inch,and so on.

2.Number of spoke holes:

Can be customized:20,24,28,32,36

3.Speed:

The motor's rated RPM is 160-260rpm, when you order it, please tell us the speed of the motor which you need, then we will make suitable speed for you.

4.Rim

If you don't need me to provide rim for you, you only need change your old spoke,then lace the motor into your old rim.

If you need the whole wheelwith motor, rim ,and spoke, we will lace the motor into rim for you(please contact with us, the price is only for the motor)

5.Spoke:

If you need spokes, plase tell us the length of spoke

6.Installation:

We will provide you a Installation Notes with the motor

7.Warranty:

Motor's warranty is two years, according to the size of the battery capacity, Batteri's warranty is a year and a half to 2 years, other accessories such as controllers, meters and other components are 1 year.

8.Motor free resistance:

The motor doesn't have part of clutch, but the motor has  clutch function. So turn off the power,there is no Magnetoresistance when  cycling. Because there is noMagnetoresistance, and we set the corresponding LED 0 stalls, the design is more humane. So that riders has more fun when riding.

Instruction:

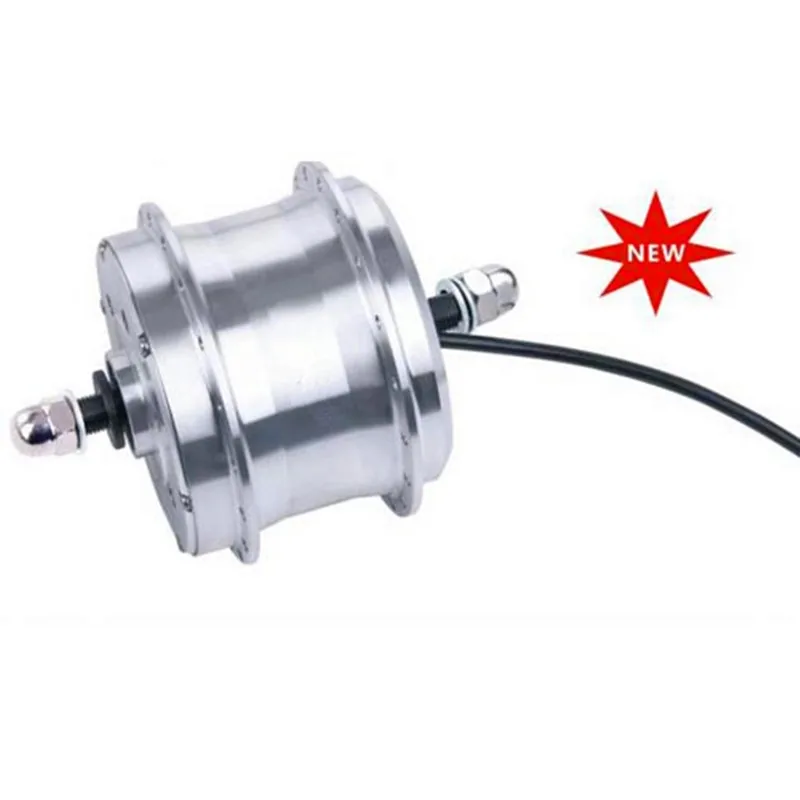

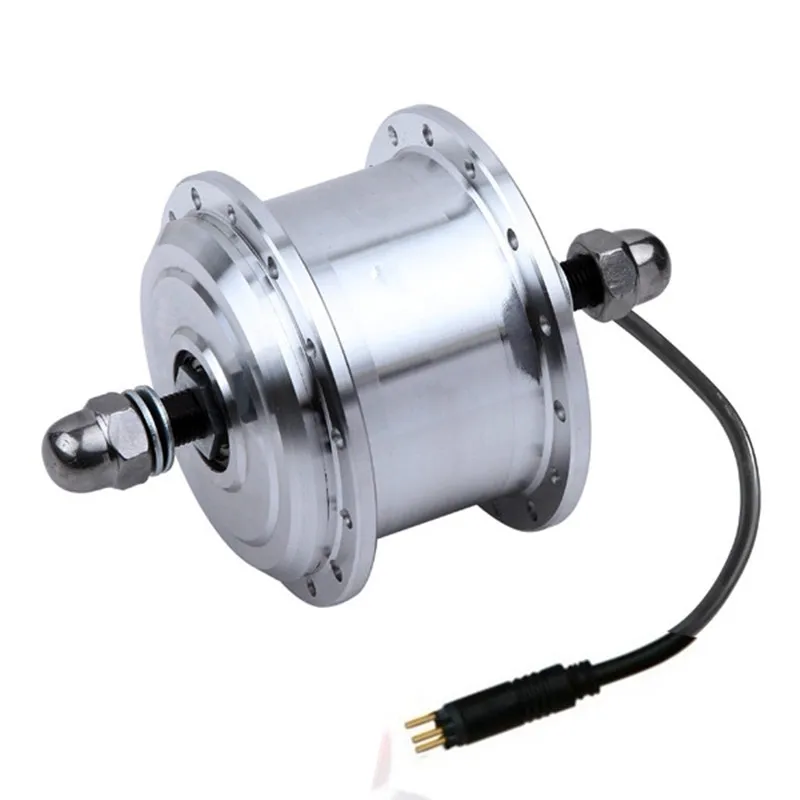

      80mm motor: Our newly developed super-mini motor for e-bike owns stronger power, smaller volume, lighter weight, less noise and more energy-efficient. It's peak efficiency has reached more than 85%.

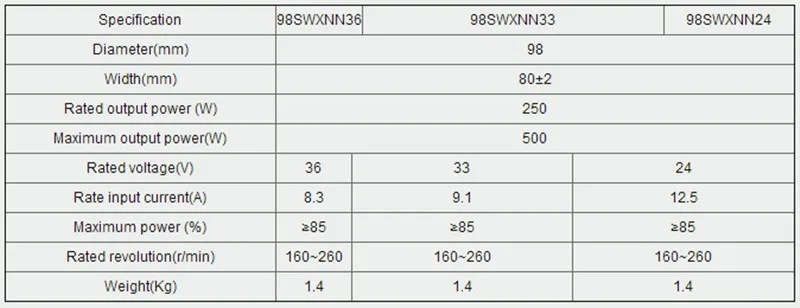

Parameters:

Drawing:



---

---
