XTOOL X-100 PAD 2 Special Functions Expert Update Via WIFI Version of X100 | Автомобили и мотоциклы

---

X-100 PAD 2 Features:

Key Programming
Oil Reset/Engine oil light reset
Odometer Adjustment
Tire Pressure Warning Light Reset
Timing belt light reset (Manual Operation)
EPB Electrical Parking Brake Adaptation
TPS Throttle Body Adaptation
Steering Angle Calibration
Battery Reset
DPF PIN Code Reading
Hexadcimal editor(Win Hex)
OBDII Diagnosis
Support the latest vehicles with CAN BUS and UDS protocol
Update Via WIFI (always equip your device with the latest software)





More details:

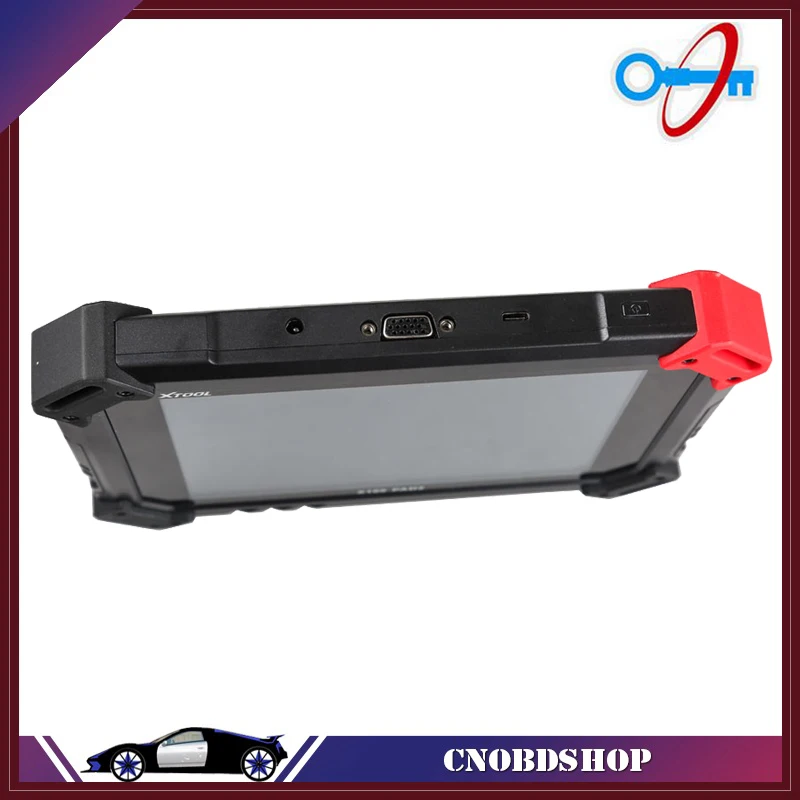

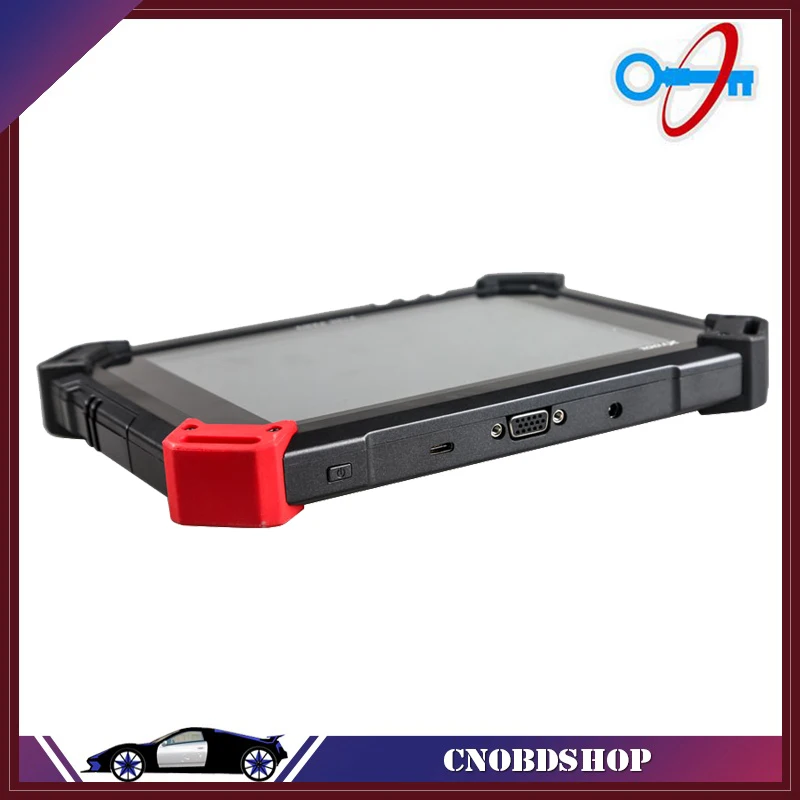

Layout of X-100 PAD 2

1.USB Type C Port: Compatible with HDMI TV port
2.Power Button: Power on or off
3.DC Charging port: Battery charging
4.DB15 Port: Supports wired connection with car by the cable

1.Earphone jacket
2.USB 2.0 Port: data synchronization with PC
3.Mini HDMI Port

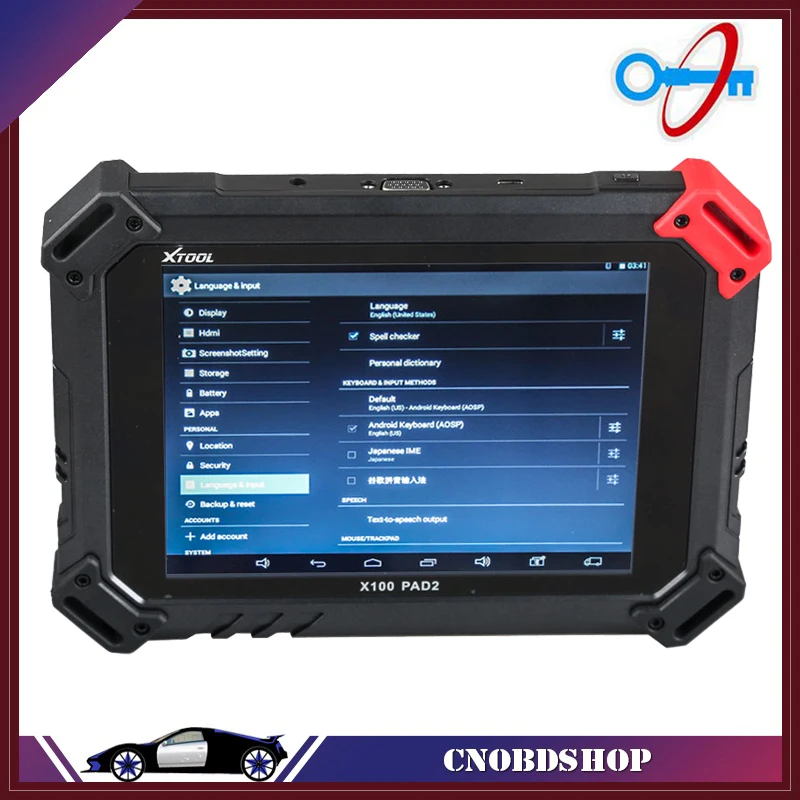

Front View of X-100 PAD 2

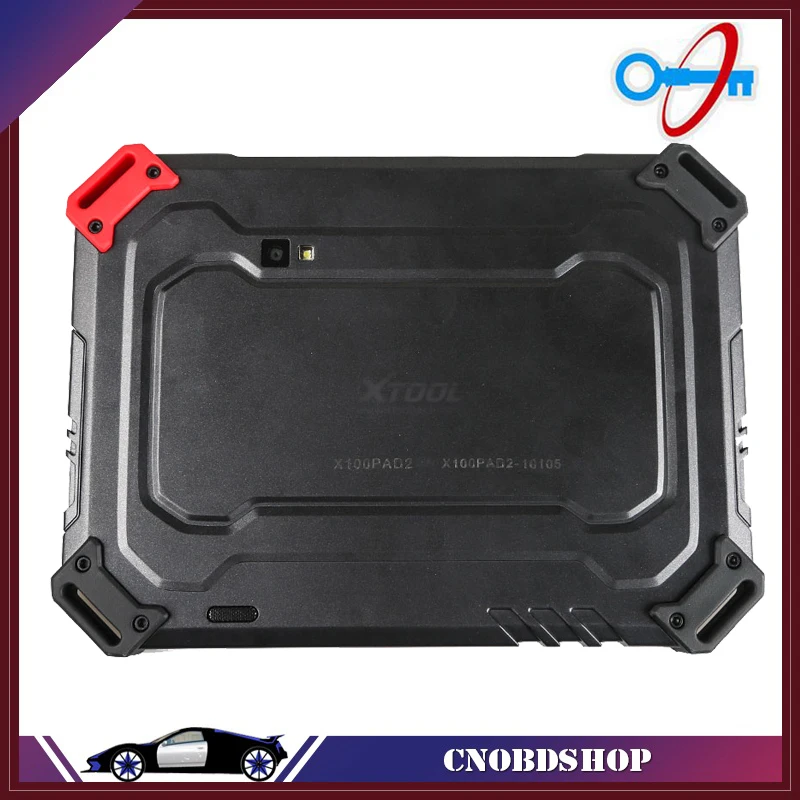

Back View of X-100 PAD 2





X-100 PAD2 Exploded Diagram



Easy registration with X-100 PAD 2 connected to WIFI. Don’t bother to use PC for registration.



Connect to vehicle directly with cable

Diagnosis interface for choosing vehicles’ model


You can choose your area before you start

Each area will contain the all the brand this device can do, here is thelist:
America: for Buick, for Cadillac, for Chevrolet, for Dodge, for GM, for GMC, for Hummer, for Pontiac, for Saturn, for Ford

Asia: for Acura, for Honda, for Hyundai, for Infiniti, for Isuzu, for KIA, for Lexus, for Mazda, for Mitsubishi, for Nissan, for Ssangyong, for Subaru, for Suzuki, for Toyota

China: for BYD, for Great Wall Motor, for Brilliance, for JAC, for Geely Cars, for Lifan Cars, for Chery

Europe: for Audi, for Benz, for Citroen, for Ford, for Fiat, for Jaguar, for Lancia, for Land Rover, for Opel, for Peugeot, for Porsche, for Renault, for Romeo, for Seat, for Skoda, for Smart, for VW

One-click update via WIFI. Get the latest software whenever you want! Never miss the update with pop-up update reminder!


Remote access, which is perfect for training, demonstration and even remote diagnosis.



Diagnosis reports in PDF file. Print out the diagnosis report and show it to car owners when they come and fetch their cars.
They will be really happy knowing what kinds of problems have been fixed for their cars.



Key Programming Features:

1.New keys programming
2. PIN Code reading with EEPROM
3.Hexadcimal editor(Win Hex)
2.Reads keys from immobilizer's memory
3.New immobilizer programming
4.Vehicle Identification Number programming
5.Reset ECM & reset immobilizer
6.New remote controller programming
7.With full and strong database for the most important vehicle makes




Oil Reset Functions Features:

Innovative one-click oil reset for VW, for Audi, for BMW, for Mercedes,for Seat, for Skoda, for Volvo, etc.

Support engine oil, spark plugs, front brake pads, back brake pads, air conditioner, brake liquid, coolant liquid, vehicle checking , etc. resetting for BMW. And the supported for BMW models are F01/F02/F03/F04/F07/F10/F11/F12/F13/F18/F20/F30, etc.

Support for Mercedes Benz new C Class, E Class models and for Mercedes Benz VITO/VIANO/SPINTER.

Support the lifespan percentage resetting of engine oil for Buick, for Cadillac etc.

 Support for Porsche Cayenne, for Panamera till 2012

Support maintenance light reset for Volvo, for Land Rover.

Odometer Adjustment


TPS Throttle Body Adaptation:


BMS Reset (Battery Reset):



EPB Electrical Parking Brake Adaptation:




DPF:




Steering Angle Calibration:




Tire Pressure Warning Light Reset (Manual Operation)



EEPROM Adapter Features:　
1.PIN Code Reading
2.ECU Initializing
3.Chip Programming



Four System Diagnosis:

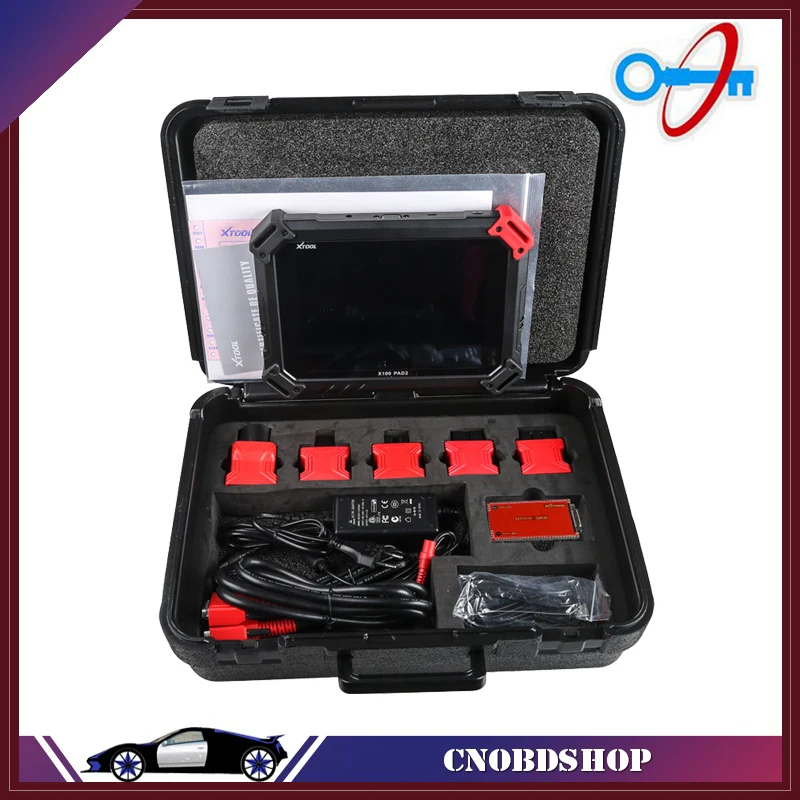

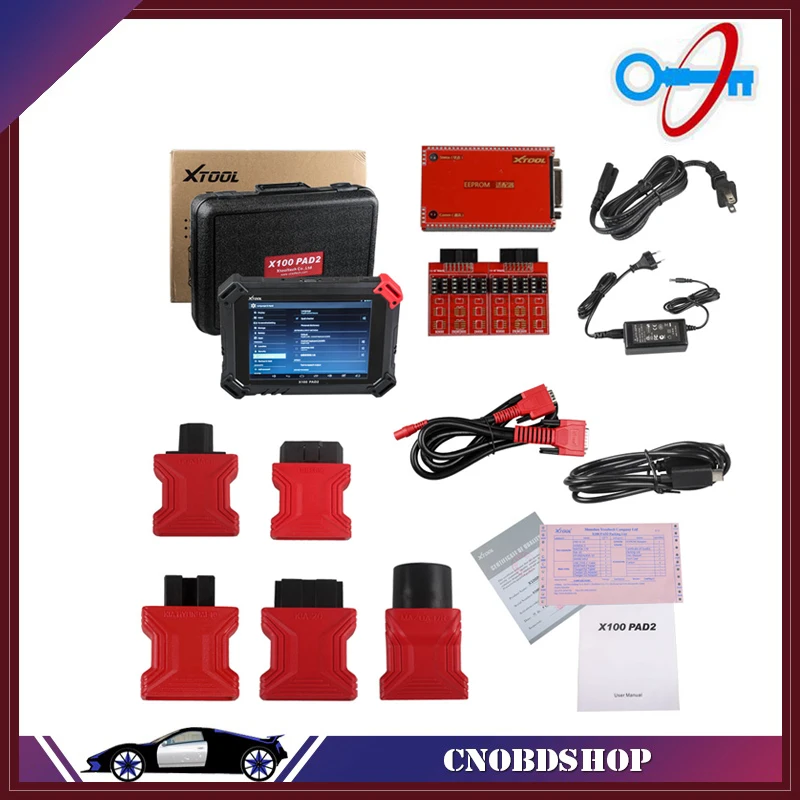

Package including:

1pc x OBD II-16
1pc x for HONDA-3
1pc x for KIA-20
1pc x for MAZDA-17R
1pc x for HYUNDAI/for KIA-10
1pc x Main Cable (DB15_Male To for VGA_Male)
1pc x X-100 PAD 2
1pc x DC12V(AC100~240V) 3ACharger
1pc x US Power Adapter
1pc x EU Power Adapter
1pc x EEPROM
1pc x USB Type-C to Mini USB cable
1pc x Type-C cable
1pc x Certificate of Quality
1pc x Packing List
1pc x User Manual



---

---
