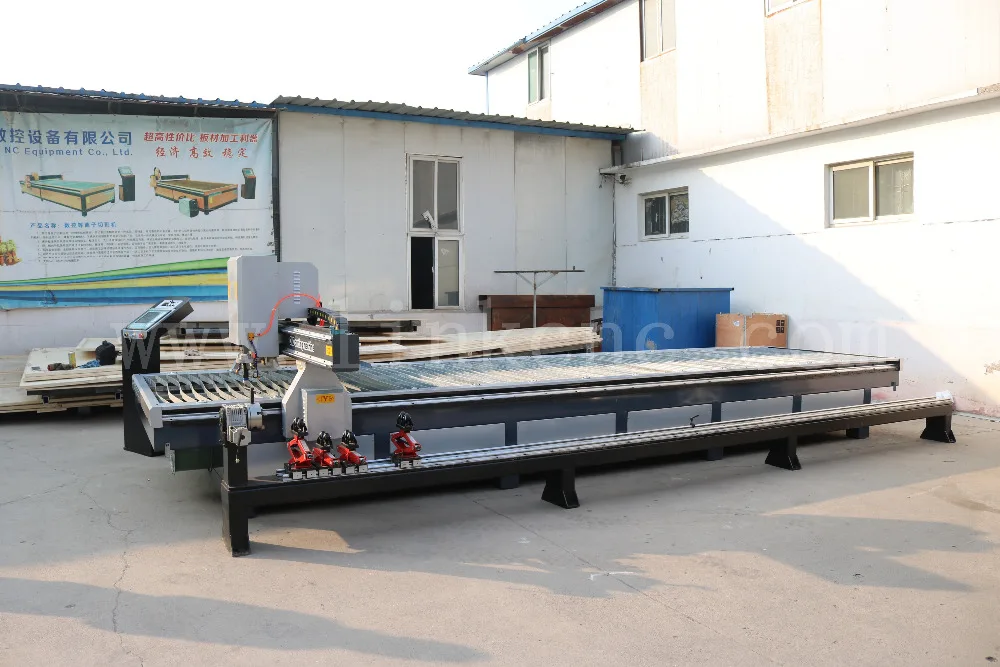

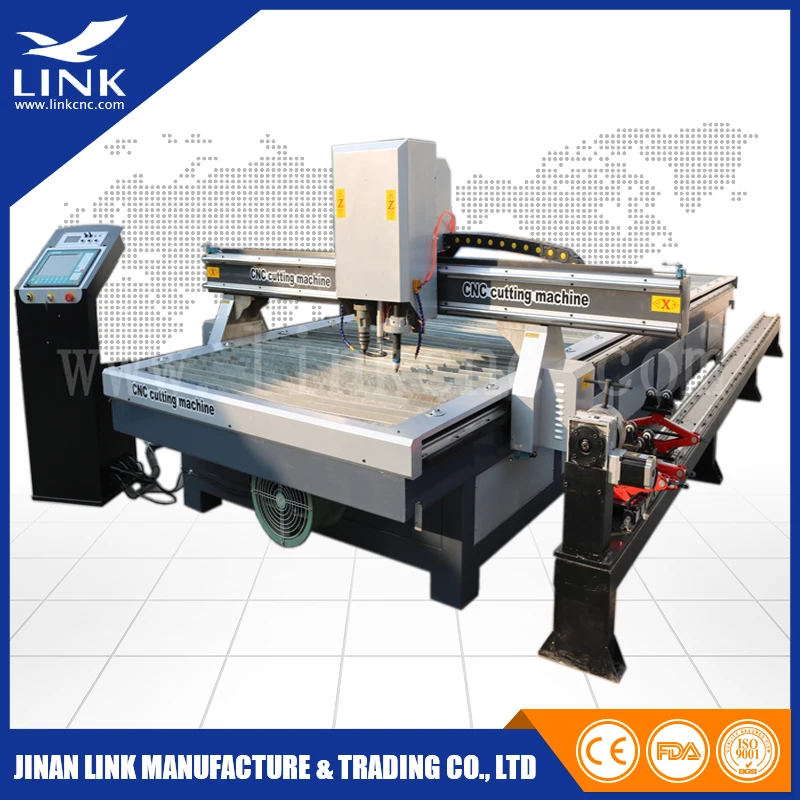

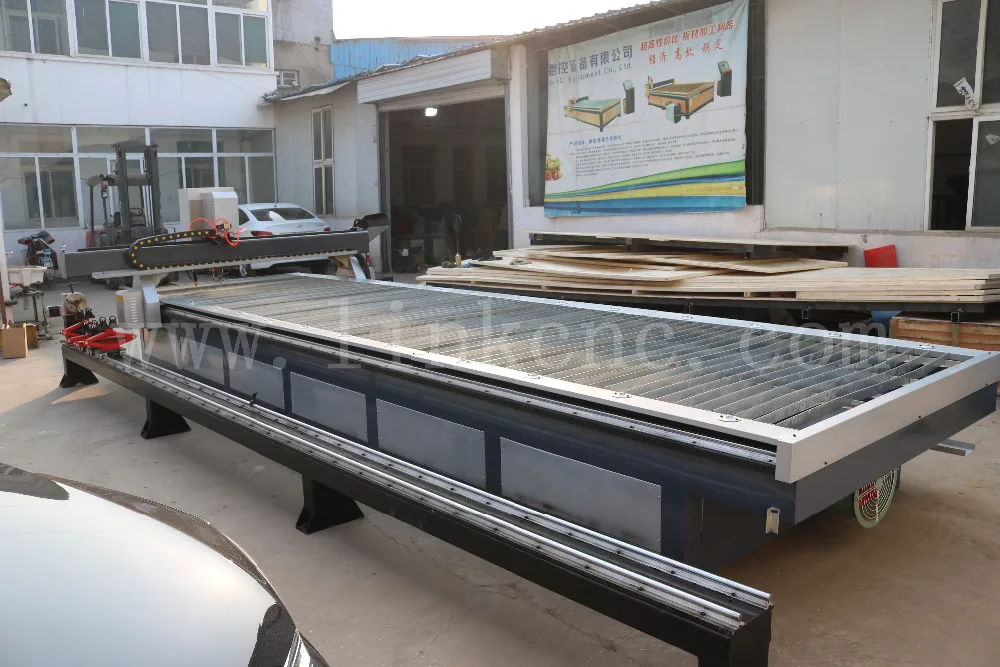

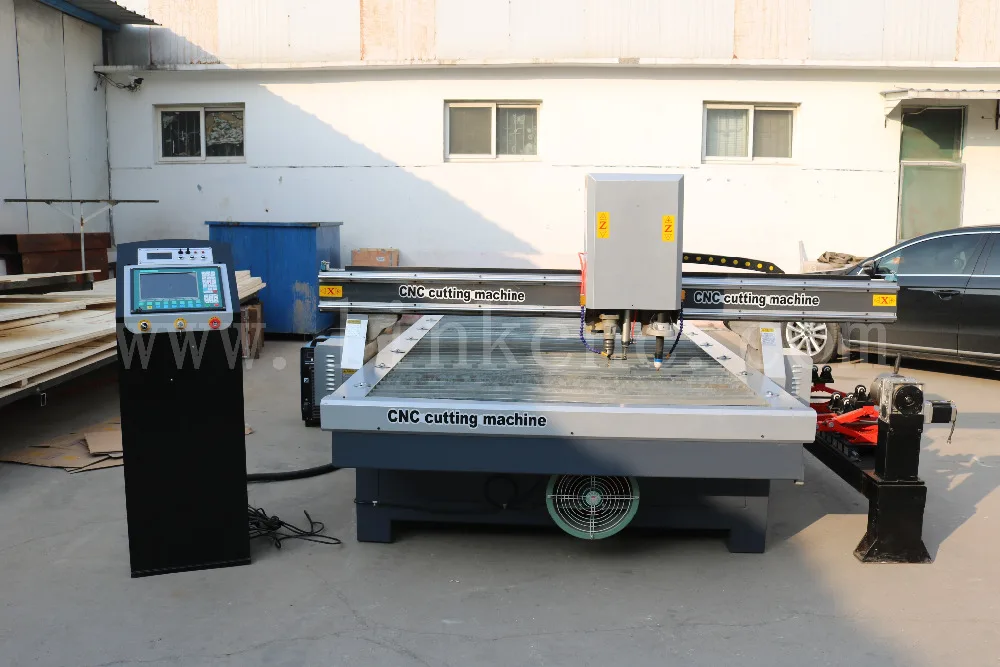

1500*6000mm size large cnc plasma cutting machine for sheet metal / cutter machinery | Инструменты

1) Using highly-precise linear guides, dual drive. The machine works noiselessly with high speed and high precision.

2) Human-computer interface design makes the machine easy to learn and operate, and have

complete functions.

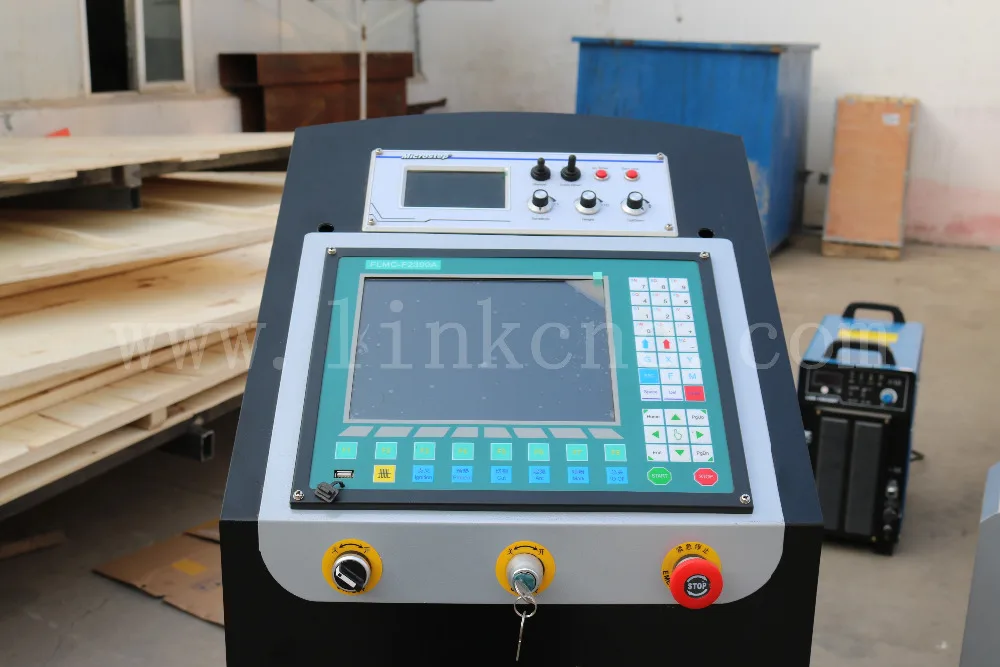

3) Have 7 inch color LCD display and operate panel, and read program and software upgrade by

USB flash driver.

4) Have Chinese, English languages.

5) Have the function of automatically memorizing and restoring when power off.

6) Have the function of wireless remote control which can control cutting at any place around

the control desk.

7) Have many devices designed for fixing plate. It makes thin plate cutting more precision.

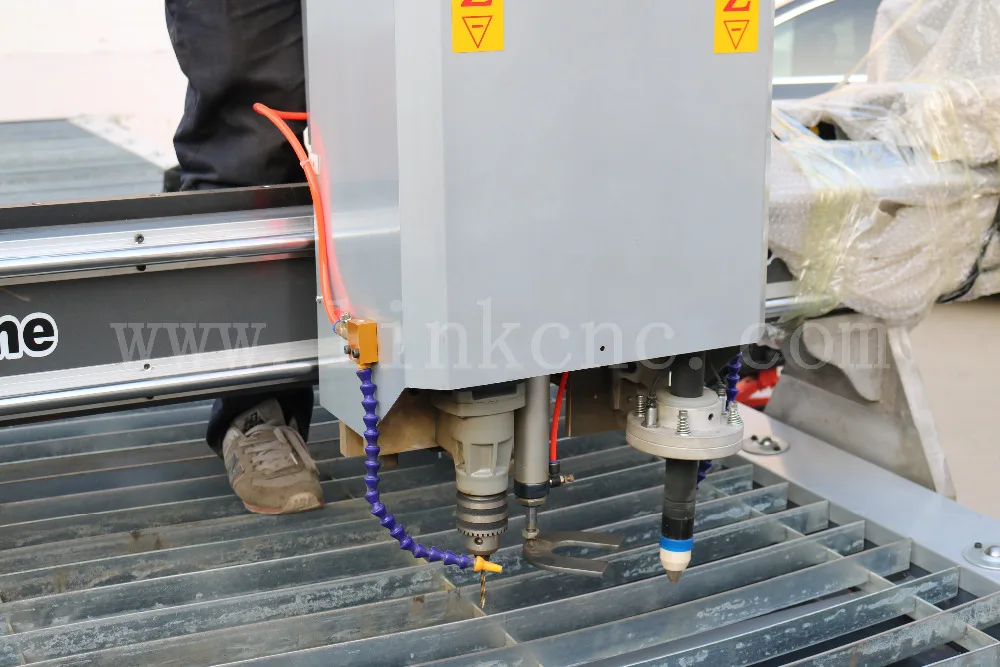

8) Can choose automatic arc voltage torch height control or automatic mechanical floating

torch height device.

9) Can effectively avoid high frequency interference and make cutting stable and safe.

model

LXP1560

LXP1325

LXP1530

Working area (X-Y)

1500mmx6000mm

1300mmx2500mm

1500mmx3000mm

Working material

Iron, Steel, Aluminum sheets, Galvanized sheets, Titanium Plates

Working Thickness

0.5-30 mm

Cutting Speed

0-6000mm/min

Power

8.5kw

Input Voltage

380V 50HZ (or according to your need)

Plasma Current

63A or 100A 160A 200A

Control system

Fangling control 3 axis

Connecting Way

USB

Working Mode

Untouched arc striking

Cooling method

With water pump and tank provide circulating water cooling

Z axis travel

0-70mm

The automatic elastic raise

0-5mm

Rail guide

Precision work round

Transmit way

Taiwan imported ball screw

Operation language

Chinese or English

Command

G code, *uoo, *mmg, *plt

Optional power source

America Hypertherm

Spare parts

Electrode ,Electricity nozzle and Water jacket

Applicable industry:

It be widely applied in industries such as machinery, automobile, shipbuilding, petro-chemical, war industry, metallurgy, aerospace, boiler and pressure vessel, locomotive etc.

Applicable material:

Iron, aluminum, titanium plate, stainless steel plate, galvanized steel, white steel and other metal materials.

Notice: Different power supply decides different cutting thickness. Here is the cutting thickness list for your reference.

Power supply

Cutting thickness

Power supply

Cutting thickness

China Huayuan

USA Hypertherm

63A

8mm

45A

8mm

100A

15mm

65A

10mm

160A

20mm

85A

15mm

200A

30mm

105A

17mm

Jinan Link Manufacture and Trading Co.,Ltd is a modern enterprise integrating reach and development, manufacturing, sale and after sale service, located in Jinan , Shandong Province, China.

Our main products: large-scale (automatic tool change) cnc routers, cnc laser machine and cnc plasma machine. Also, our machine can be specially customized according to your requirement.

We offer the best quality machines and timely perfect after-sale service, please contact us.

1.Have you exported to our country?

We have been in this field for 13years,we have CE,CO,ISO,FDA,SGS certificates,have exported

to Europe,SouthAmerica,Arab,Asia,Russia,Spain,Australia and many other countries.

2.How about the documents after shipment?

A.If you need original bill of lading we will send original bill of lading and all information for

customs clearance including Packing List, Commercial Invoice, Bill of Landing, and other

certificates as required by clients to you by DHL.

B.If you need electric bill of lading,I will send electric bill of lading and all information for

customs clearance including Packing List, Commercial Invoice, Bill of Landing, and other

certificates as required by clients to your Email.

3. How can I buy this machine from you? ( Very easy and flexible !)

A. Consult us about this product on line or by e-mail.

B. Negotiate and confirm the final price , shipping , payment methods and other terms.

C. Send you the proforma invoice and confirm your order.

D.About the payment:

There are 5 ways to pay money.

1) T/T, means international bank transfer. 30% deposit, we produce the machine for you. 70% before shipping. It is convenient and fast.

2) Alibaba Secure payment. Reliable and safe, Alibaba will charge a little handling fee.

3) Paypal, pay 100% to Paypal, Paypal will protect your right and charge 4% handling fee.

4) L/C.

5) Western union.
