HZPK Semi-Automatic Horizontal Single Nozzle Paste Cream Puree Filling Machine All Connect Food Grade Stainless Steel 300-2500ml

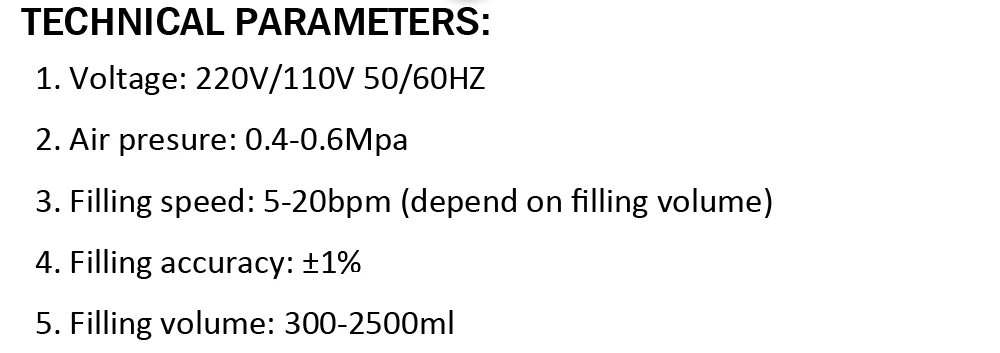

Specification

1. Voltage: 220V / 110V 50/60Hz
2. Air pressure: 0.4-0.6Mpa
3. Filling speed: 5-20bpm (depend on filling volume)
4. Filling capacity: ±1%
5. Filling volume: 300-2500ml
6. Optional filling volume: 10-100/30-300/50-500/100-1000/300-2500/1000-5000ml
(find others model in my shop)

Product description

Applications:
The paste filling machine is used of Tomato sauce, peanut butter, salad dressing, chili sauce, bean paste, sesame, jam, sauces, pasta sauce and special industry paste filling.

Filling principle:
The machine is a semi-automatic piston filling machine, which is driven by a cylinder to extract and eject material. The material flow is controlled by a three-way rotary valve. The stroke of the cylinder can be controlled by the reed switch. The filling volume can be adjusted, You can adjust the intake air cylinder to achieve rapid or slow filling.

Product advantage:
1,the machine is made of 304 stainless steel, meeting food grade.
2,Filling capacity and filling speed can be adjusted;
3,Filling system quick release design, easy to washable after used;
4,Pneumatic components are adoped top-brand pneumatic components;
5,Using PTFE seals and silicone seals (endure high temperature, acid and alkali resistant, and non-toxic environmental protection);
6,Filling mouth anti-drawing, anti-drip design;
7,Quick filling speed,high filling accuracy;
8,Can be used with a variety of equipment, such as plastic cup sealing machine, plastic box sealing machine, plastic bag sealing machine, vacuum packaging machine;
9,Special specifications can be customized
