MEGA ProtoShield V3 Prototyping Board Multipurpose board (with bread board) module | Электронные компоненты и

BreadboardIs designed for the electronic circuit without the design and manufacture of welding experiments. As a result of a variety of electronic components can be inserted or pulled as needed, eliminating the need for welding, saving the circuit assembly time, and components can be reused, it is very suitable for electronic circuit assembly, commissioning and training.

Factory direct more specifications please click on the following link:

1.ZY25 MINI bread board	2. SYB-170 buckle	3.SYB-170 without buckle	4. White 50-hole bread board	5. White 100-hole bread board
6. White 400-hole bread board	7. Transparent 400-hole bread board	8. Transparent 630-hole breadboard	9. White 630-hole bread board	10. Transparent 730 hole bread board
11. White 730 hole bread board	12. White SYB-46 Breadboard	13. White SYB-120 Breadboard	14White SYB-10 Breadboard	15. White 750-hole bread board
16. White 830 hole bread board	17Transparent 830	18GL-12 840	19. high quality	20. Combination of breadboard 1080 holes
twenty oneCombination of breadboard holes	22. Combination of breadboard 1380 holes	23. Combination of breadboard 1660 holes	24. Combination of breadboard 1680 holes	25Combination breadboardhole
26Combination Breadboard 239hole	27. Assemble the breadboard 3220 holes	28. Combine Breadboard SYB-500	29. Combination Breadboard SYB-800

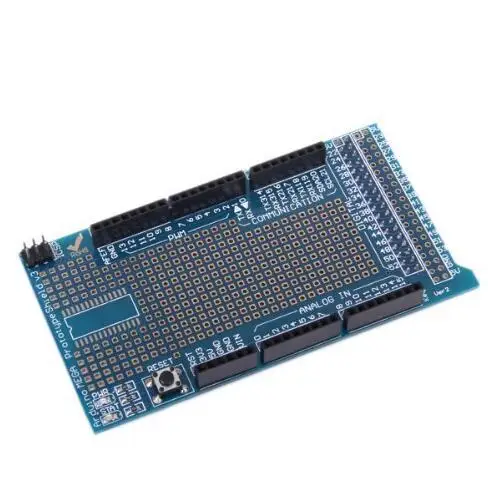

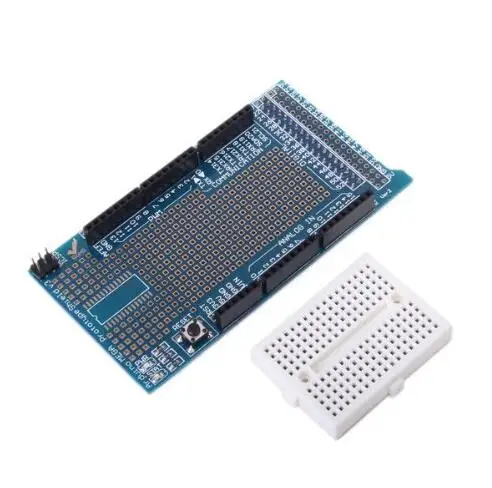

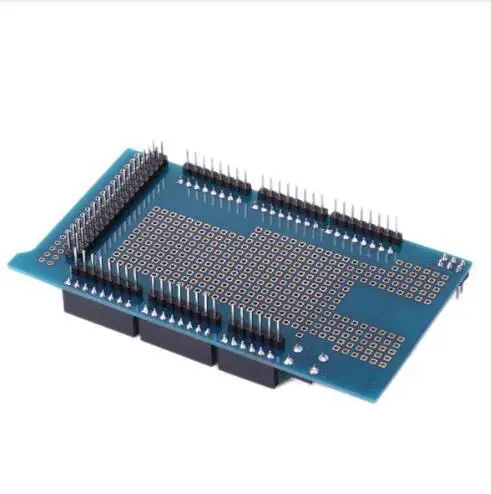

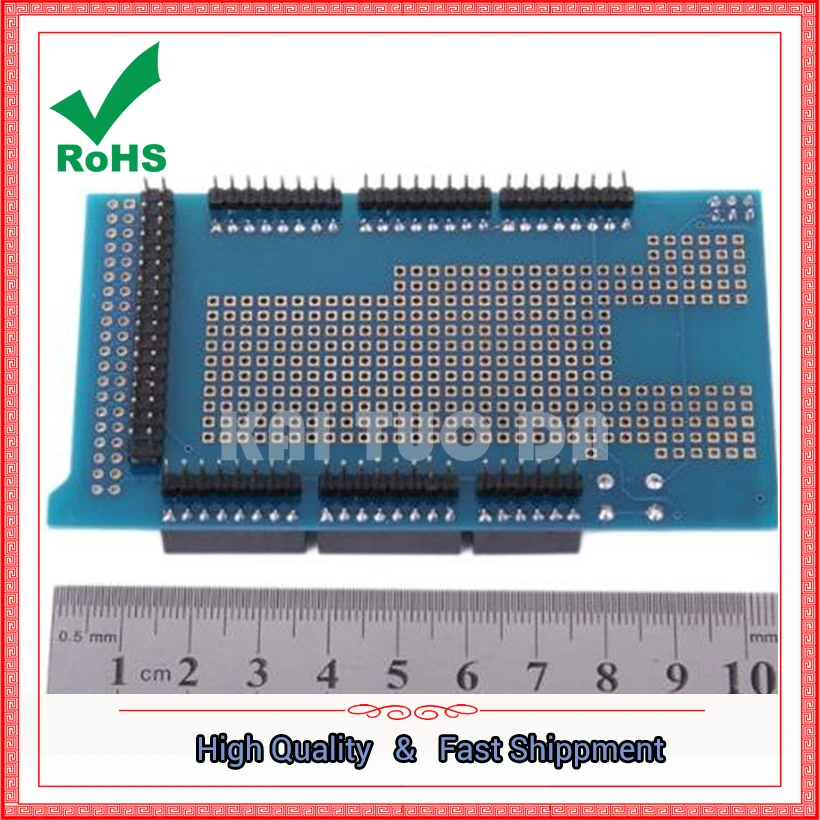

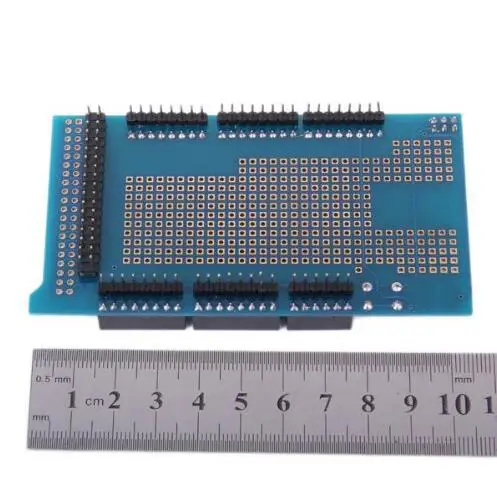

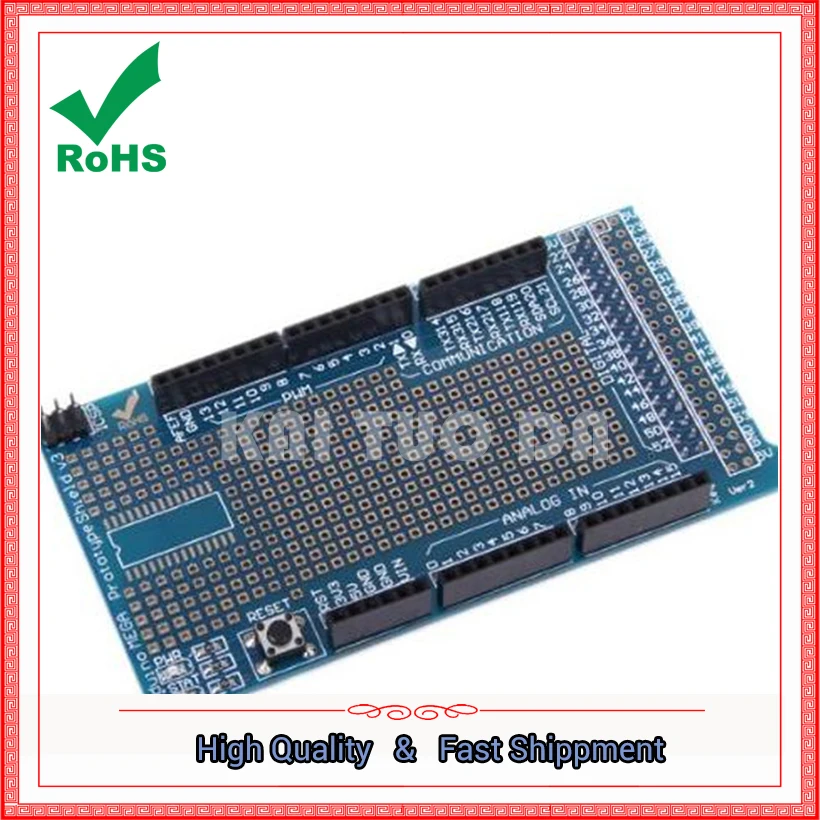

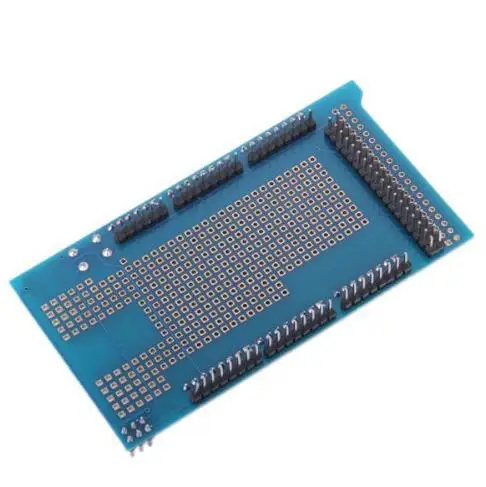

MEGA ProtoShield V3 Prototype expansion board (with bread board)

The latest MEGA ProtoShield V3 prototype expansion board with PCB immersion process, the motherboard gold square pad spacing, welding components more convenient; SOP28 patch components package, so that electronic enthusiasts more handy, will not be bound by the components ; This board can not only be seamlessly connected to the Arduino MEGA controller, the components directly welded to the above, complete a variety of prototype circuit, you can also paste the Mini Breadboard, through the 7 color jumper to complete a variety of circuit experiments, board integrated power Indicators and status indicators, as well as reset buttons, easy to learn MEGA controller preferred prototype expansion board.

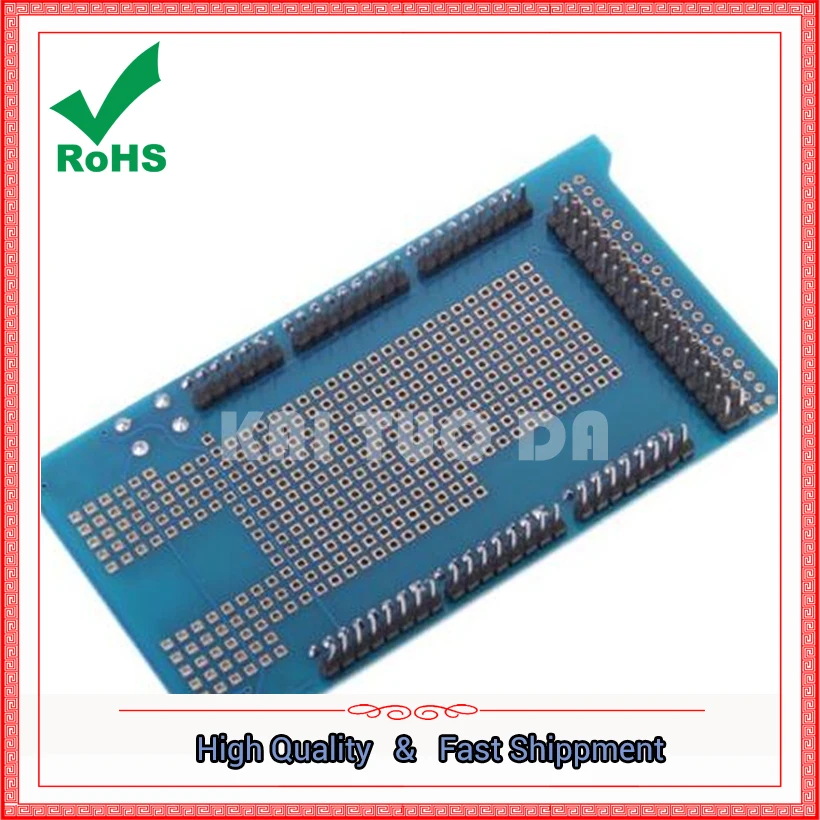

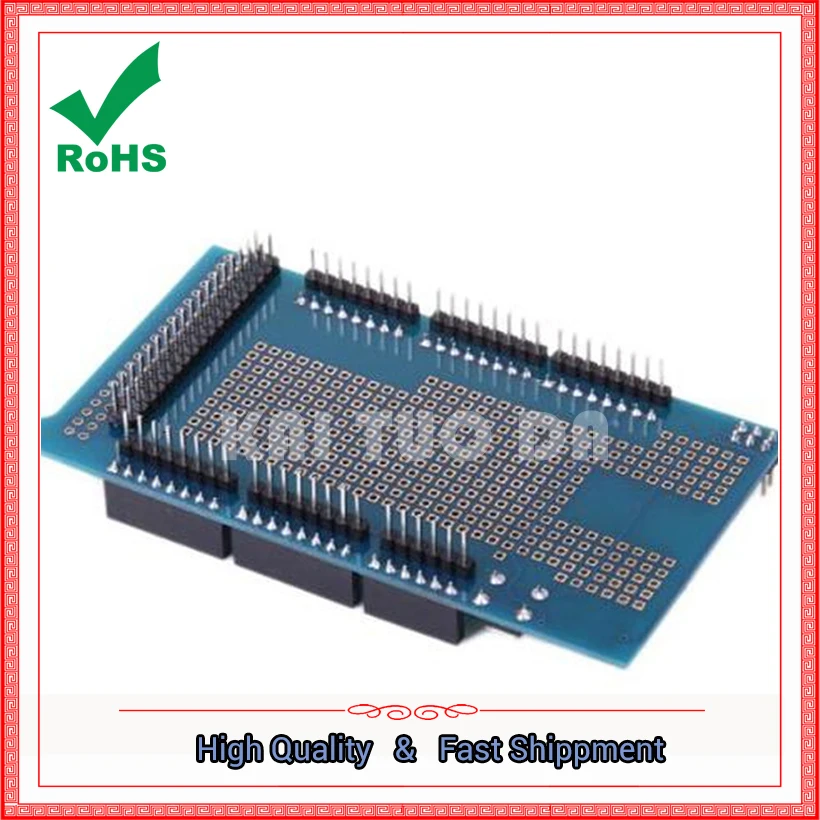

PCB used fine gold processing

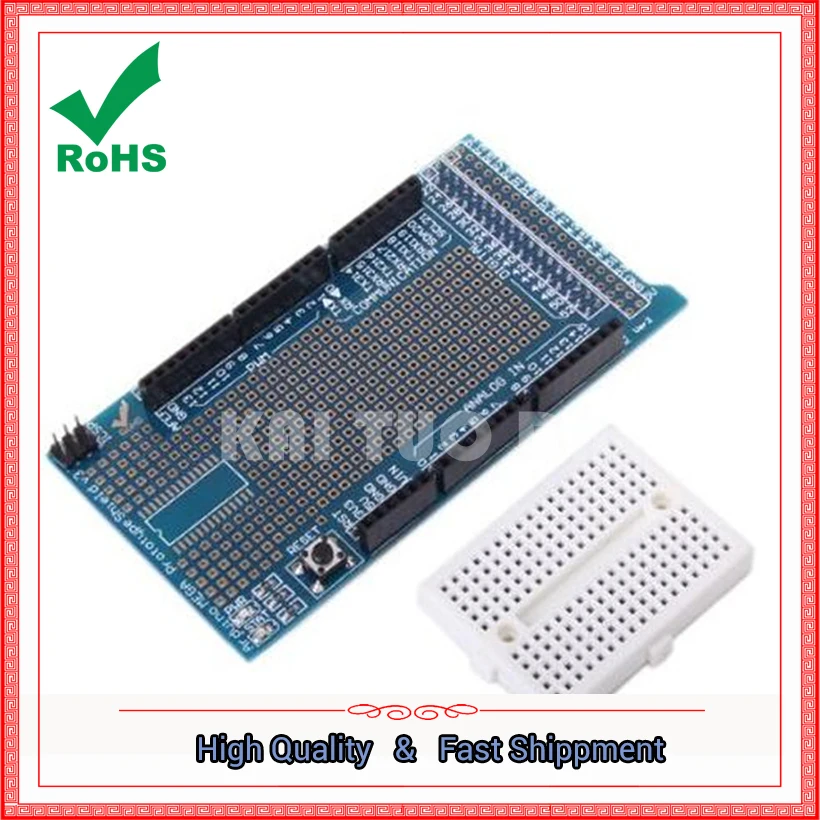

Distribution of pure white bread board, allowing you to easily do experiments
