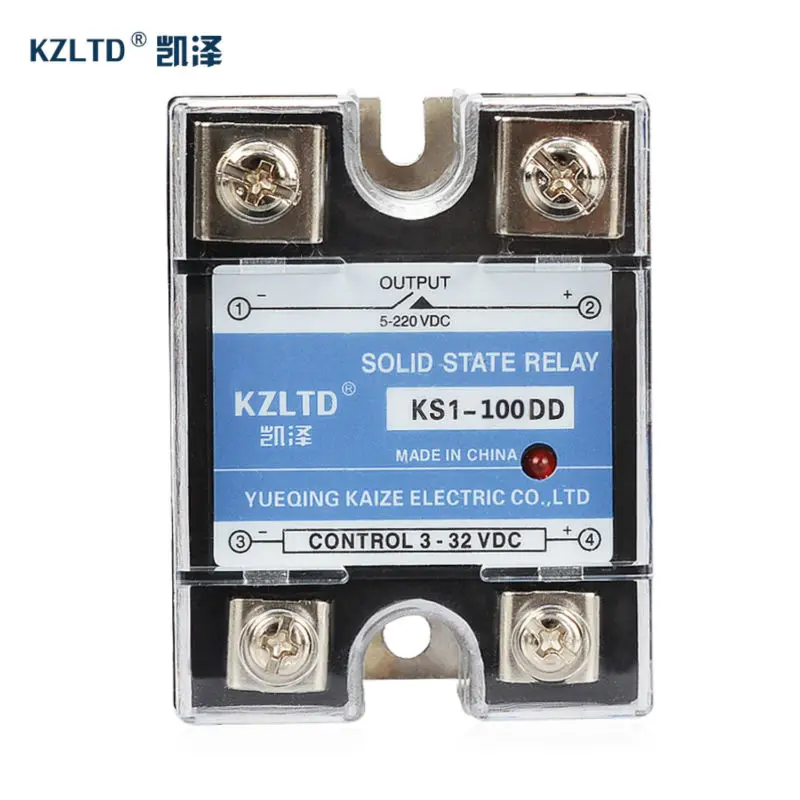

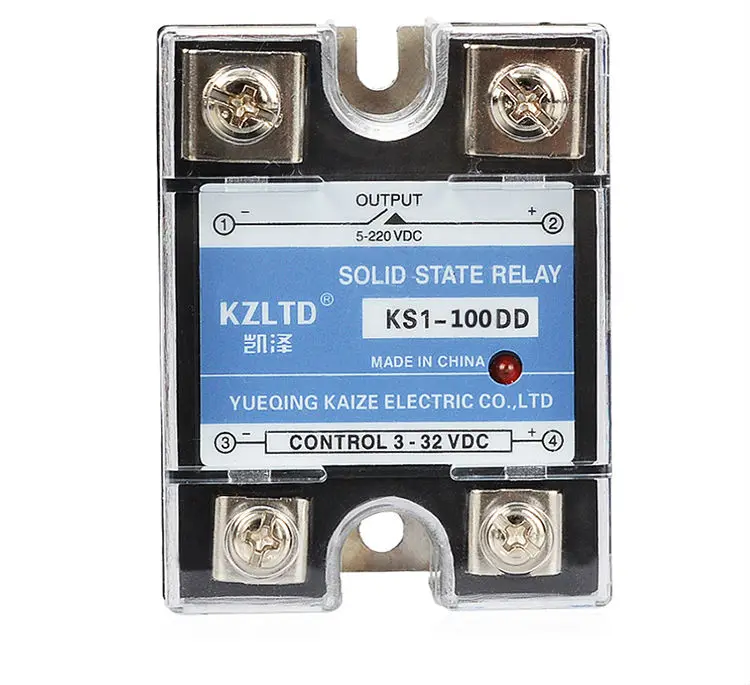

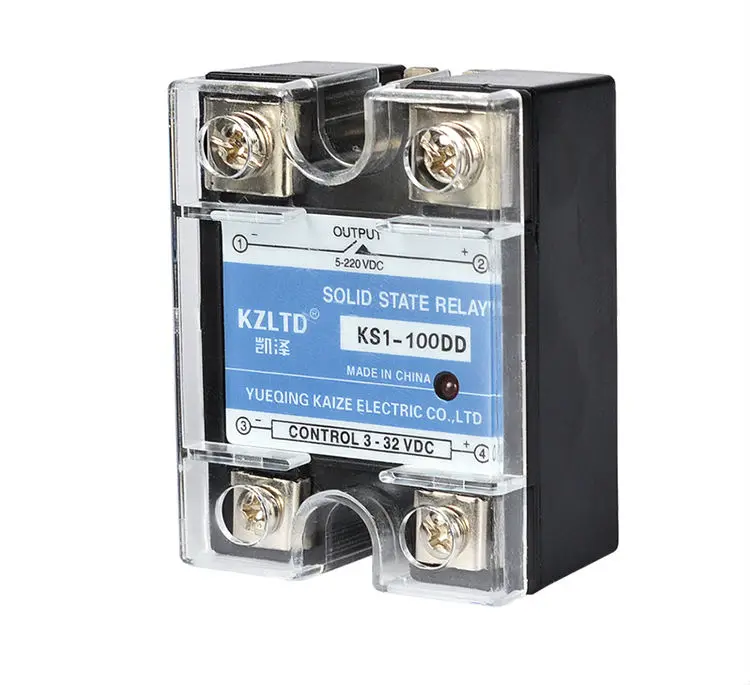

ITEM	PARAMETER
Brand Name	KZLTD
Product Name	Single - phase Solid State Relay
Model Number	KS1-100DD
Control Mode	DC to DC ( Zero-crossing )
Input/Control Voltage	3-32VDC
Output/Load Voltage	5-220VDC
Output Current	100A
Ambient Environment	-20~85 Degrees Celsius
Work Indicator	LED
One-off Time	<10MS
Service Times	>1 Million

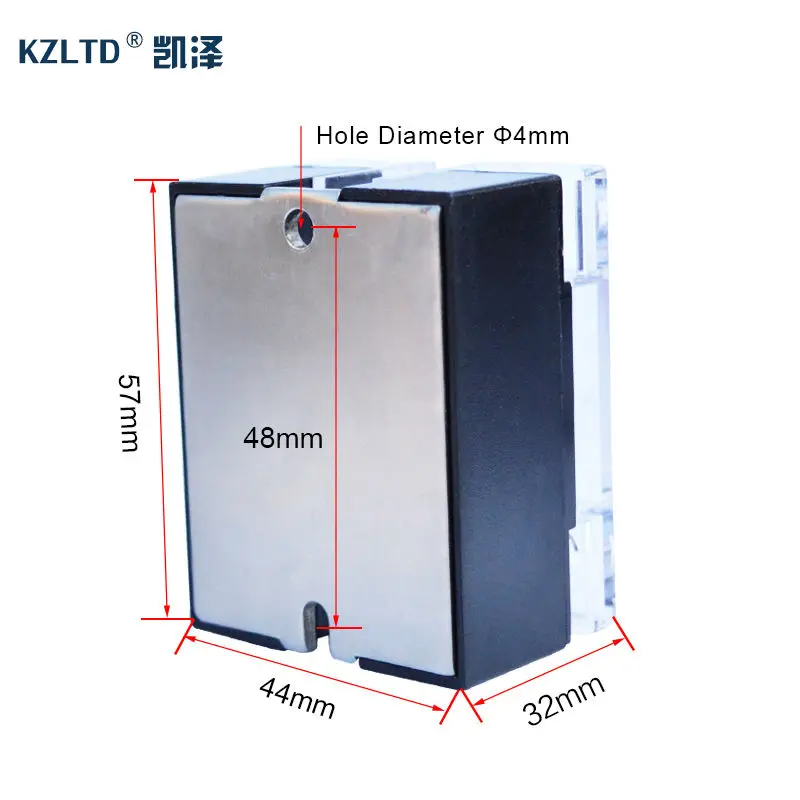

External Size	57x44x32 MM
Net Weight	100g

Product Features:

No contact, no noise, no spark; wide work voltage range, quick and stable reaction, high electromagnetic compatibility, excellent heat-sink, anti-vibration, explosion-proof, long lasting usage.

Single-phase-dc-drive Relays SSR 3-32V DC to 5-220V DC Solid State Module 24V 100A for Temperature Controlling KS1-100DD

PS: The excellent quality give us the confidence to provide you 2-year warranty for all of our solid state relays!!!





Notices:

•This SSR control resistive loads, inductive loads and LED lights only.

•The output current of the relay should be at least 3 times of the resistive loads and 7 times inductive loads.

• For loads whose current are 5A or larger, we suggest to use with heatsinks.



PS: Need the matching heatsink ? Please click here   "SR-E"

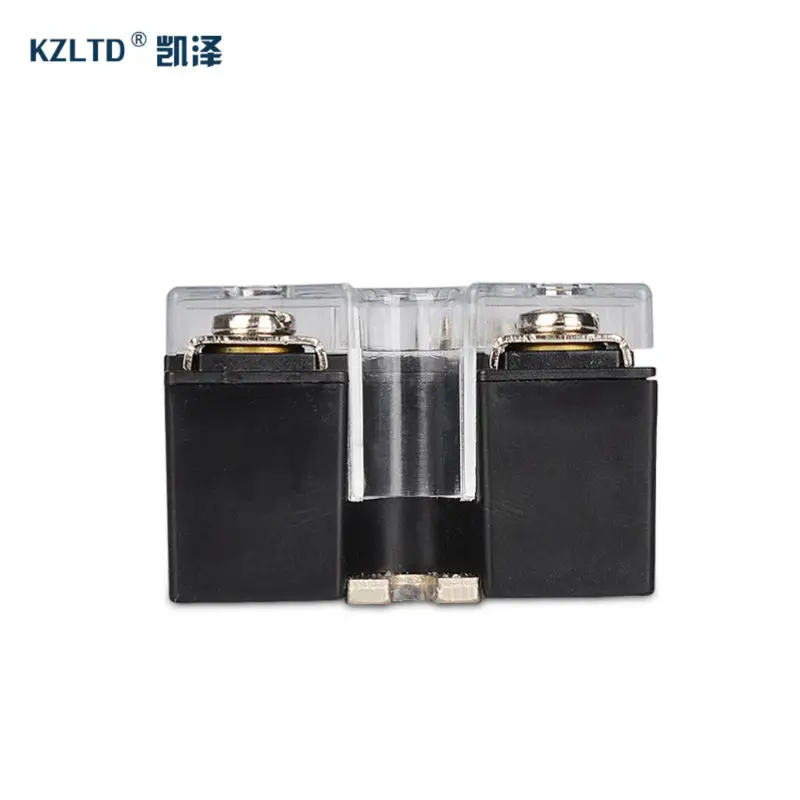

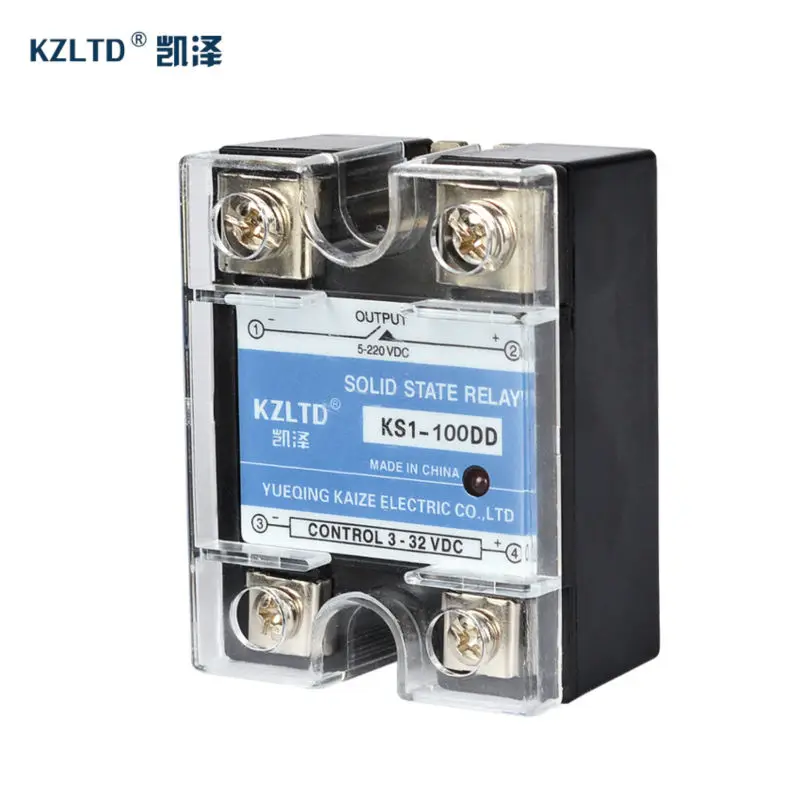

PRODUCT SHOW

Why should you choose our solid state relays?



HIGH PERFORMANCE EQUIPMENTS TWO-YEAR WARRANTY!!!

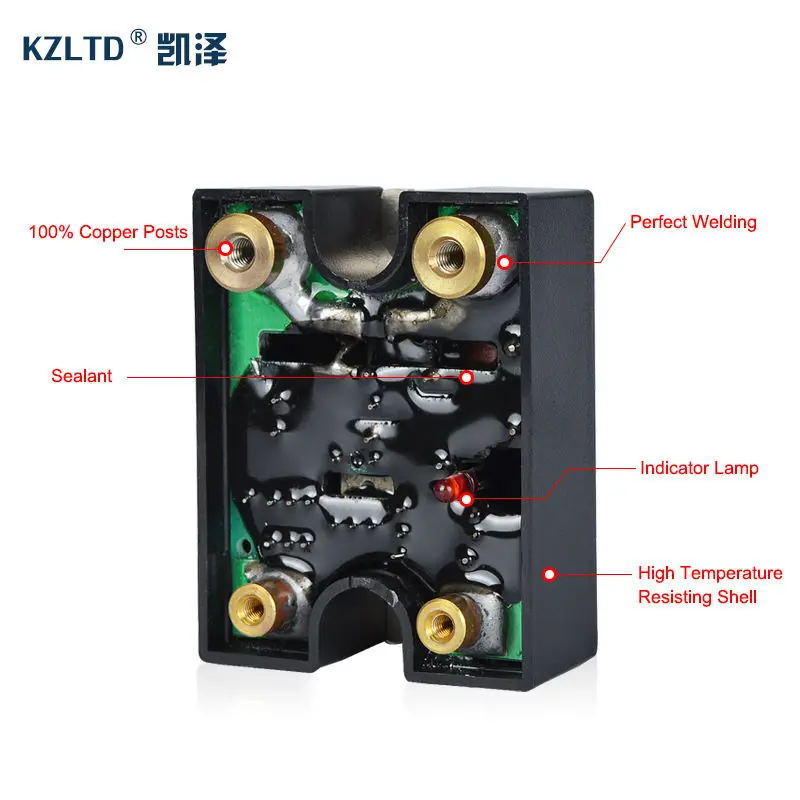

	High Reliability Transformer with Pure Copper Wires
Inner core of the relay, with pure copper wires, brings wide voltage range, sensitive and stable reaction. Other cheap ones, cutting corners is quite common in them, which absolutely can not compare with ours.

	Advanced Welding Technology
Silicon controlled rectifier and aluminum plate are soldered systematically. Non-hole Setting brings excellent firmness and heat sink.

	100% Copper Terminals
Copper terminals and full welds avoid poor contact which may make machine go hot and even incur fire. We strongly suggest to choose the relay with 100% copper terminals for the security of people and machines.

  PROFILE MAP   DIMENSION   Line-connecting Illustration

PS: Take KS1-10DD as an example. The wiring of all our single-phase DC-DC SSR are the same. Test results of its performance without loads are incorrect. Please check this SSR with multimeters only when it connect with loads.

Other Available Items

PS: More spec not listed, please feel free to contact us if you need.



Phase	Control Mode	Output Current	Model No
Single Phase	DC-AC	10A	KS1-10DA
		16A	KS1-16DA
		25A	KS1-25DA
		40A	KS1-40DA
		60A	KS1-60DA
		80A	KS1-80DA
		100A	KS1-100DA
		120A	KS1-120DA
	DC-DC	10A	KS1-10DD
		25A	KS1-25DD
		40A	KS1-40DD
		60A	KS1-60DD
		80A	KS1-80DD
		100A	KS1-100DD
		120A	KS1-120DD
	AC-AC	10A	KS1-10AA
		25A	KS1-25AA
		40A	KS1-40AA
		60A	KS1-60AA
		80A	KS1-80AA
		100A	KS1-100AA
		120A	KS1-120AA





Important Note •This solid state relay control resistive loads, inductive loads and LED lights only. For others, we are able to make it based on your requirements. •The output current of the relay should be at least 3 times the size of resistive loads and 7 times inductive loads. (In other words, if the output current is 40A, it can only control resistive loads whose current are no larger than 13A). • For loads whose current are 5A or larger, we suggest to use with radiators. For the over-50A, fan coolers are recommended.
Common Resistive Loads
Carbon-fiber Heating Tube Heating Bar Talfon Heating Tube Silicone Rubber Heaters Ceramic Heater
Common Inductive Loads
Solenoid Valve Fan Transformer Motor Air Conditioner
