Hightlight:

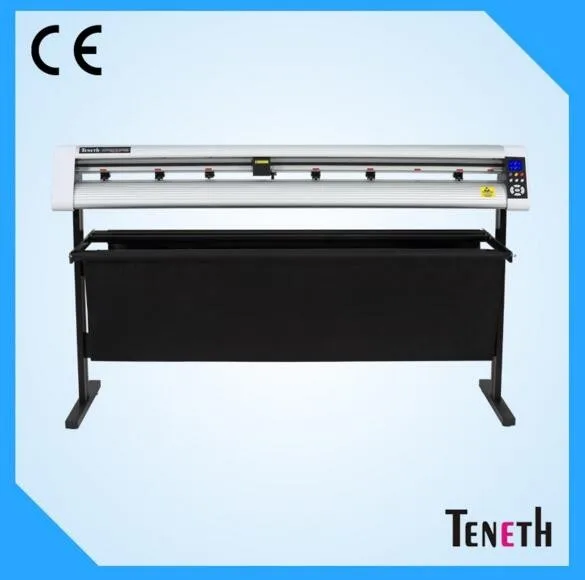

T48XL:

cutting width :1205mm

cutting force:1000G

cutting speed:800mm/s



1.High-precision,can cut 2mm words.
2.Automatic/manul contour cut.
3.32-bit ARM7 CUP,4MB,High-speed CACHE memory,avaliable for offline cutting,Date will be saved in the memory even the power is off.
4.Supper pressure 0-1000g,can cut super thick material.
5.Convenience repeat function,up to 500 times.
6.Completely support by flexi sign 10.0, sign cut ,and CDR,CAD,Adobe illustrator support direct output.
7.Interface :USB/U disk/serial port,Can work independently without PC.Bluetooth or WIFI for optional .
8High quality pinch rollers ensure smooth paper feeding and running .
9CE Certification,ISO9001 Quality Certification.
10.We can deliver soon after comfirming your payment.

specification parameters

Model	T48XL
Media way	Optional
Mainbord	32-bit ARM7 CPU.128MB.High-speed CACHE memory

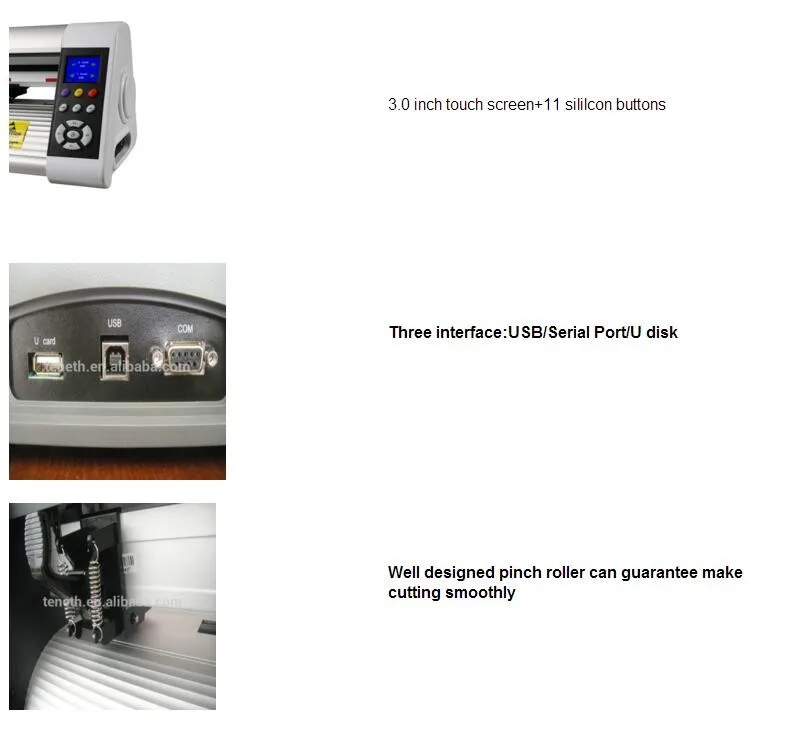

Control Panel	11 sililcome buttons+3.0 touch screen
Driver	High speed,big power stepper motor
Maximum paper feed width	1300mm
Maximum cutting width	1205mm
Maximum cutting speed	800mm/s
Cutting force	1000G
Mechanical precision	0.025mm
Type of plotter pen	All types diameter 11.4mm plotter pen
Plotter instruction	Compatible DMPL/HPGL
Interface	USB/U disk/serial port/WIFI
Power supply	AC220V/110V,50HZ
Power consumption	<80w
Knife(blade)	TENETH imported blade
Operating environment	Temperature:5-35ºC.Relative Humidity :30%-70%
Package size	1590*330*395*mm
Gross weight	40KG



products detail description



High precision steel axes:gurantee the accuracy



Strong pinch roller,guarantee vinyl no offset.

Teneth cutting plotter has 1000G cutting force,it can cut rigid materials,such as reflective film.sticker.vinyl  etc











Features
1.TENETH cutting plotter has three pinch rollers and the more pragmatic connection
methods shown as below,The alloy structure for Teneth cutting plotte is more
consolidated and cool

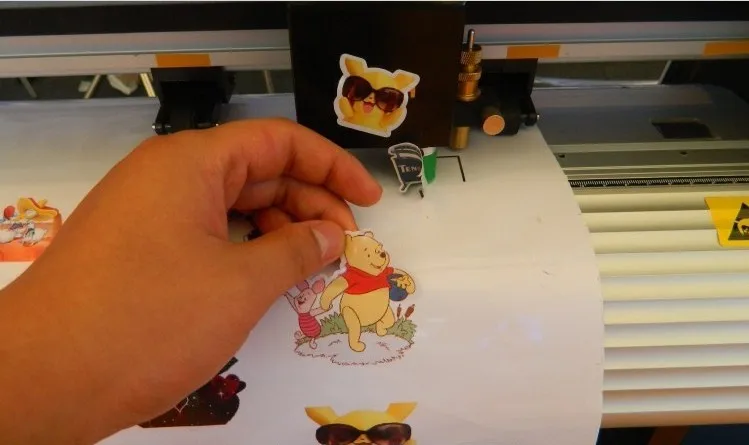

2.TENETH cutting plotter cuts adhesive vinyl letter/graphics neatly and sharply and
kiss-cut stickers/decals can be cut easily too
3.T-48lx vinyl sign cutting plotter contour cutting function too ,say there is professional
software.Flexi for the contour cutting function.CD can be offered to shouw each steps
for contour cut and solutions can be found in CD too.
4.TENETH cutting plotter has quality alloy structure and fashionable appearance
shown as below
5.if you like TENETH cutting plotters,or like any assistance .please feel free to contaceus

Product Description

product application
1.Make stickers for car deco,window sign,indoor deco
2.Cut shirt vinyl,such as football jersey numbers,names, etc to print on shirts.
3.Cut template out for sandblasting ,etc
4.Plotting for architectural design, etc
5.Think of your own or ask us to see if it works for your purposes.









---

---
