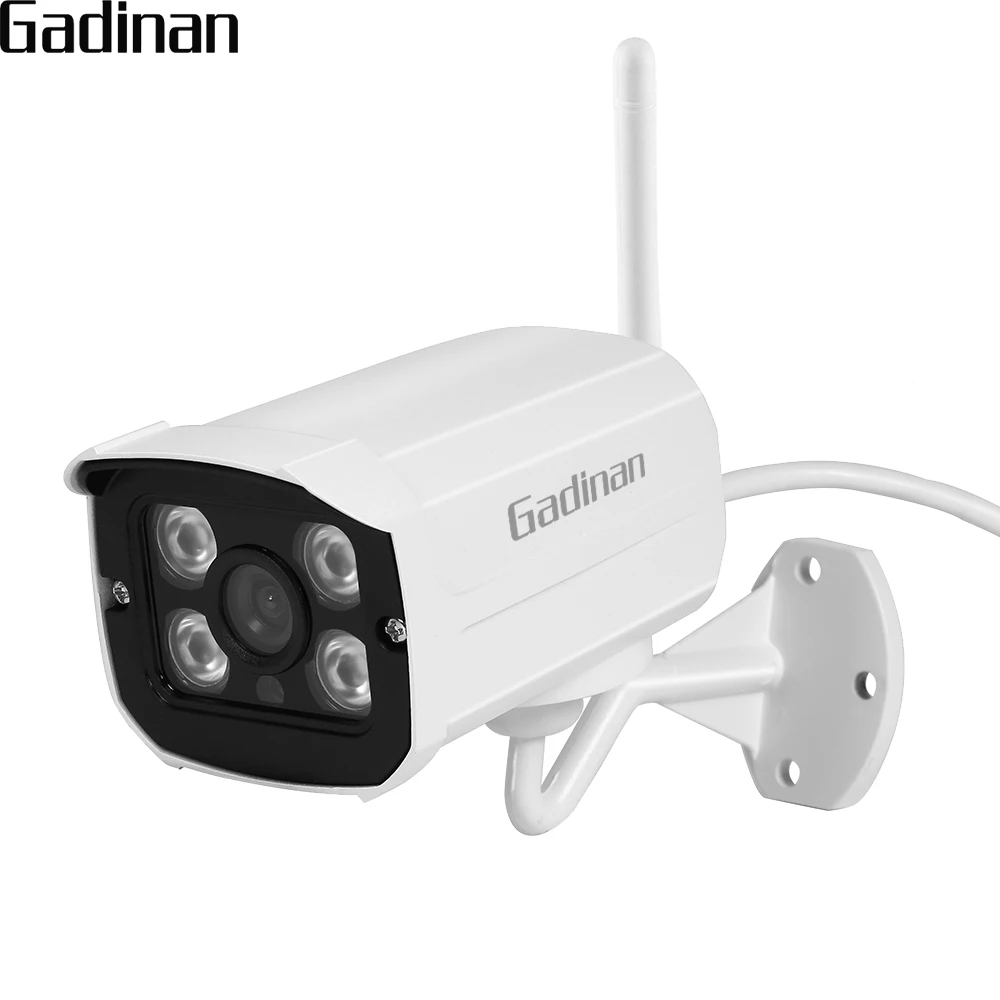

GADINAN WIFI IP Camera Wireless IEEE802.11n Support SD Card Optional 720P 960P H.264+ Waterproof ONVIF XMeye Motion Detection |

---

Keyword:

720P/960P wifi:just have wifi function,it can't support SD card;

720P/960P wifi support SD:wifi function,and support built-in micro SD card storage (not included micro SD card).



Description:

1. 720P:DSP Hi3518EV200+1/4'' H62 cmos sensor;960P:DSP Hi3518EV200+1/3'' H65 cmos sensor;

2. H.264 video encoding, support dual stream, AVI formats;Support for stream 0.1M~6Mpbs adjustable;

3. 720P:Color 0.1Lux;  B/W 0.01 Lux;960P:Color 0.01Lux;  B/W 0.001 Lux;

4. 1 RJ45 Ethernet interface, 10/100M automatically adapting;

5. Support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc network protocol

6. Lens: 3.6mm/6mm optional

7. High quality 4pcs array IR led light

8. Support ONVIF 2.0, and mobile monitoring

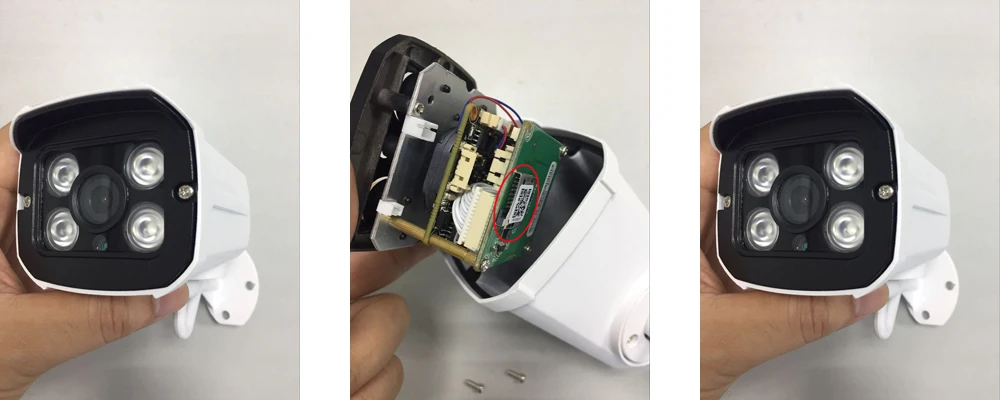

9. WIFI function (optional:support built-in micro SD card storage (not included micro SD card))



Specification:

Model	720P(H.264)	960P(H.264)
System structure	Embedded RTOS,dual-core 32bit DSP( Hi3518EV200 ),pure hard compression ,watch dog
Sensor	1.0M 1/4" H62 CMOS sensor ,color 0.1Lux'F1.2,black/white 0.01Lux'F1.2	1.3M 1/3" H65 low illumination CMOS sensor ,color 0.01Lux'F1.2,black/white 0.001Lux'F1.2
Video compression	H.264,support dual stream,AVI;0.1M~6Mpbs variable;1~30f/s variable
Image output	Main stream: 1280*720-25fps; sub-stream: 704*576-25fps;	Main stream: 1280*960-25fps,1280*720-25fps;sub-stream: 704*576-25fps;
Noise reduction	Support 2D/3D
lens	3.6mm/6mm optional
Storage	Via PC/Mobile Phone/NVR With HDD
Infrared light	4pcs array IR leds
Wide dynamic	Support digital
Network interface	1*RJ45 10/100M adaptive Ethernet port;support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc
Singal interface	One photo resistance interface,one IR-CUT interface ,support photo resistance signal and IR-CUT links to IR
Auto iris	No
SD Card	optional support  (Not included)
Reliability	Comprehensive lightning protection, in line with national and international standards; 7 * 24 hours 65’C  high temperature stable and reliable testing (including mounted machine testing)
Other function	outdoor waterproof
ONVIF	Support
Mobile monitoring	Support multiple mobile monitoring(iOS,Android)
Power	DC12V/2A input, power consumption:≤3W
Dimension	10.1*6.8*6cm(body)
Housing material	Metal



Package including:

1* Wifi Wireless IP Camera

1* antenna

(Does not include the power adapter,you can buy:12V 1A ,12V 2A)

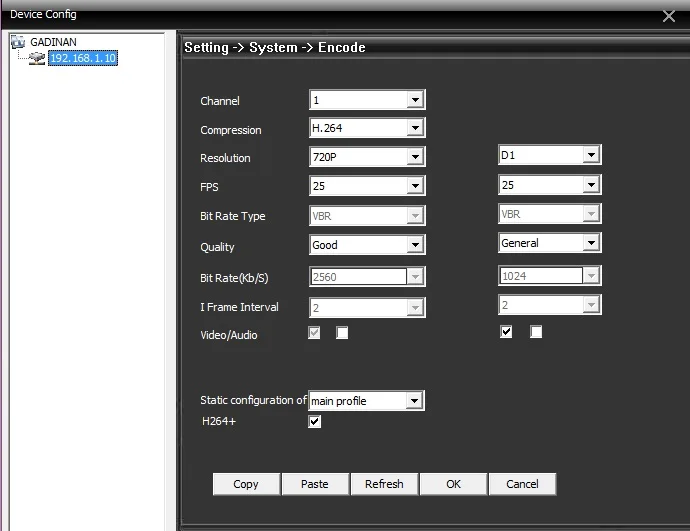

You can open "H.264+" via CMS or Web,"Device Config" -"System"-"Encode"

    ​  Q & A 1, IP camera default IP address:192.168.1.10 User name:admin,password:empty(null) If there is a problem with "Can not find the Device", it is the default ip address is not in the same network segment as your router. Please click "Edit Device" to change the camera's ip address, For example, if your router's ip address is 192.168.0.1, then you need to change the camera's ip address to 192.168.0.XX. "DeviceManage" It can find and change the IP address, upgrade the firmware. 2, P2P website: "www.xmeye.net" ,please use IE and install ActiveX,only IE supports Multi Language.Chrome,Safari just support Chinese . then please input your P2P ID,user name and password to login and preview. Access to the IPC through the web, only one screen can be displayed.  There are multiple IPC, please use client software to manage(such as: CMS VMS SNVR)  APP:XMEye or iCSee 3,The camera's port information. ONVIF 2.0 Port 8899 ;RTSP Port 554 ;HTTP Port 80;Media Port 34567;E-mail default port  25; SLL protocol Port 465. 4,Does the cameras can be compatible with other manufacturers NVR? Please confirm whether other manufacturers NVR support onvif protocol. Our camera's onvif protocol is onvif Profile S, does not support HTTPS protocol; Auto focus camera, other manufacturers NVR can only zoom, can not focus. 5, The camera all supports Motion Detect,FTP,Email alarm, RTSP. A,How to set up motion detection? Access to IPC via IE (or CMS software), device configuration - alarm function - motion detection - on and save. B, About FTP FTP upload video and pictures, pictures will always upload, video files larger, after the alarm, the video file will be completed to upload. We suggest the Sever-U and FileZilla FTP Server to upload the video or image. C,For the Email alarm,please use Email server which supports SMTP ( Hotmail ,Yahoo not support SMTP ,it not supports Gmail temperately since the server problem ) . D, RTSP URL for VLC media Player : RTSP port: 554 rtsp: // (IP): (PORT) / user = (USER) & password = (PWD) & channel = (Channel) & stream = (Stream) .sdp? Real_stream Example: rtsp: //10.6.10.25: 554 / user = admin & password = & channel = 1 & stream = 0.sdp? Real_stream (stream = 0 primary stream 1 auxiliary stream) If it is through the public network need to RTSP port open (default is 554), the port in the network service-RTSP can be set 6, About DDNS Mapped media TCP port: 34567 and HTTP port: 80 (Note: mapping need to be changed to non-80) Note: The two ports in the network settings can be viewed, can be modified What domain names are supported? - CN99 / DynDns / Oray / NO-IP / MYQ-SEE

Pictures:











Instructions for use:

1,View via PC

Install the CMS(CMS for Windows,VMS for Mac)  ( Software in the CD ,or can download online,need contact us )

You can select the language(18 languages)

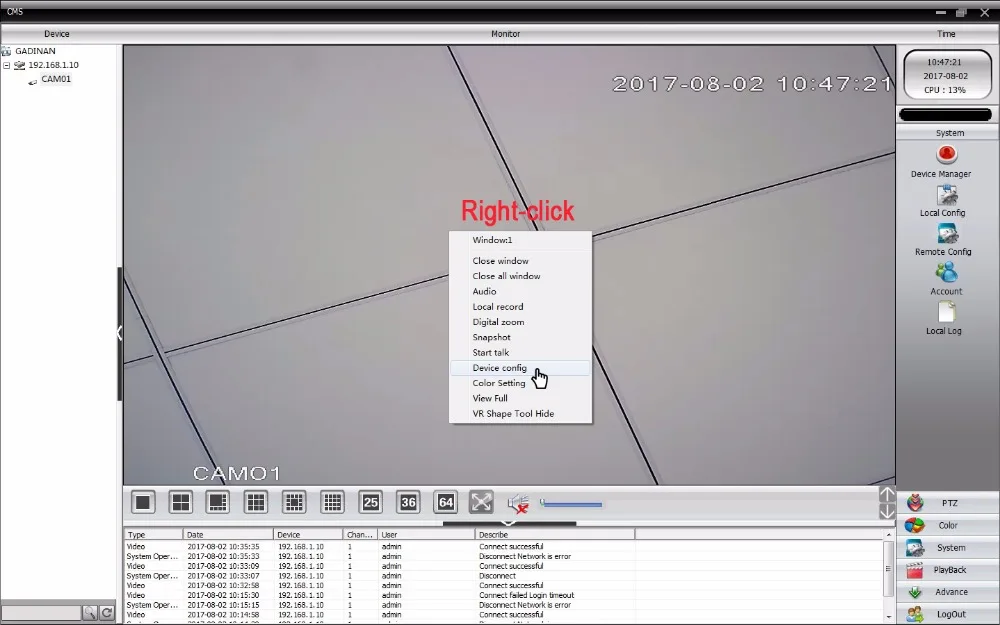

How to watch via CMS:

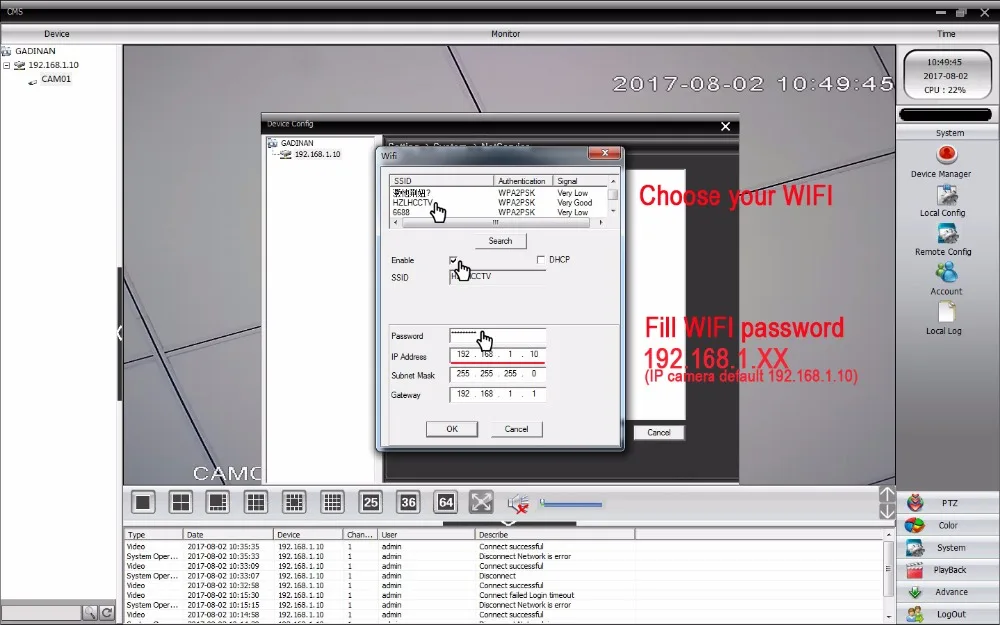

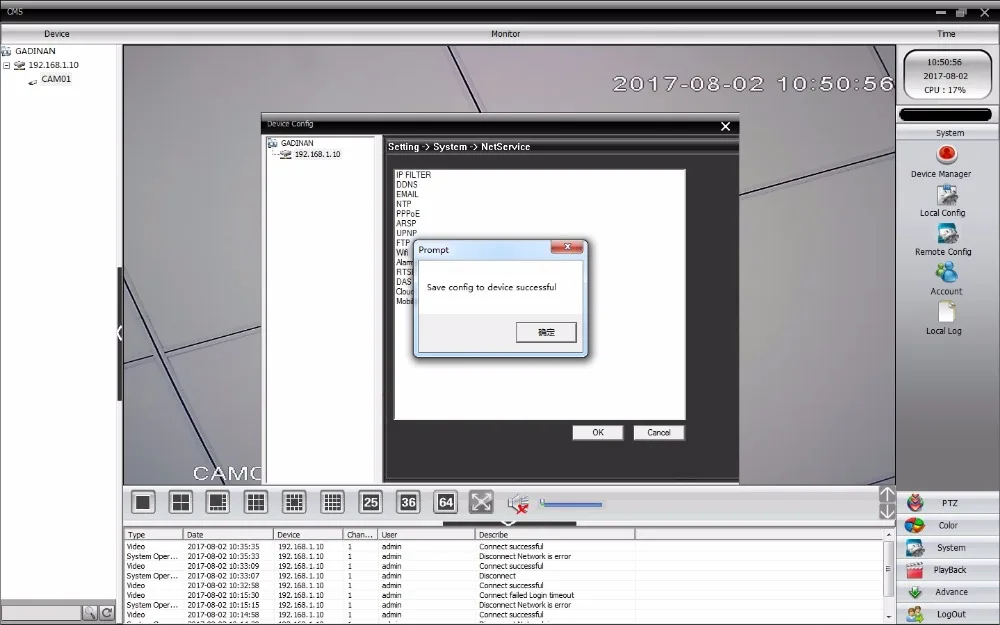

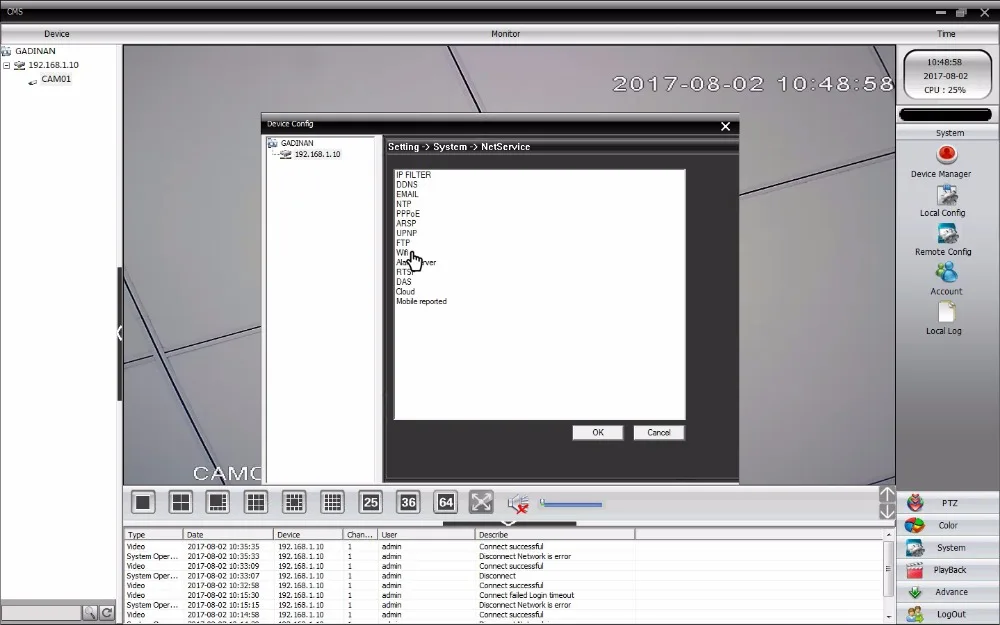

​How to connect WIFI?

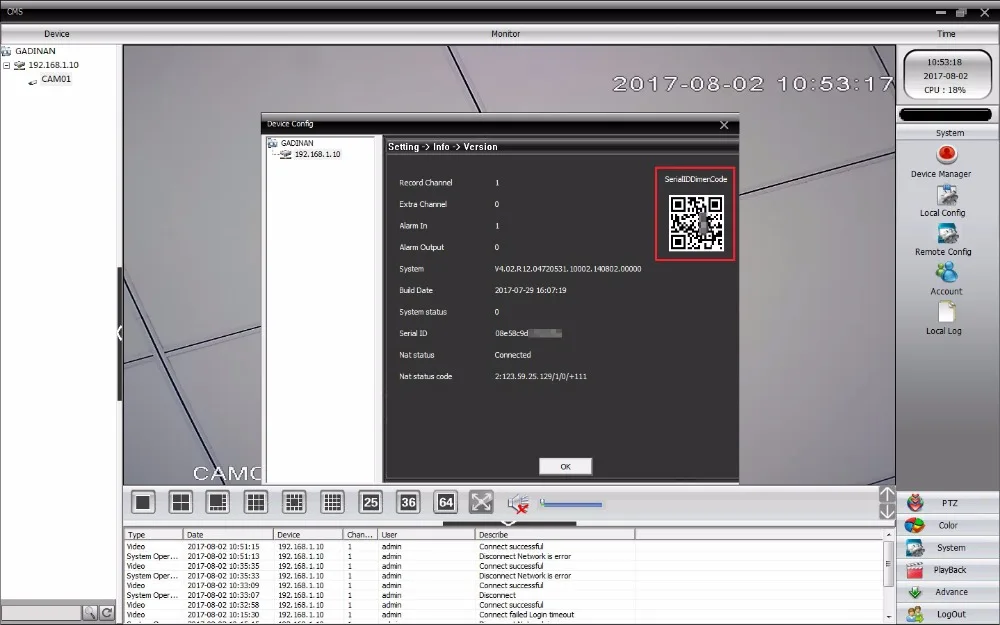

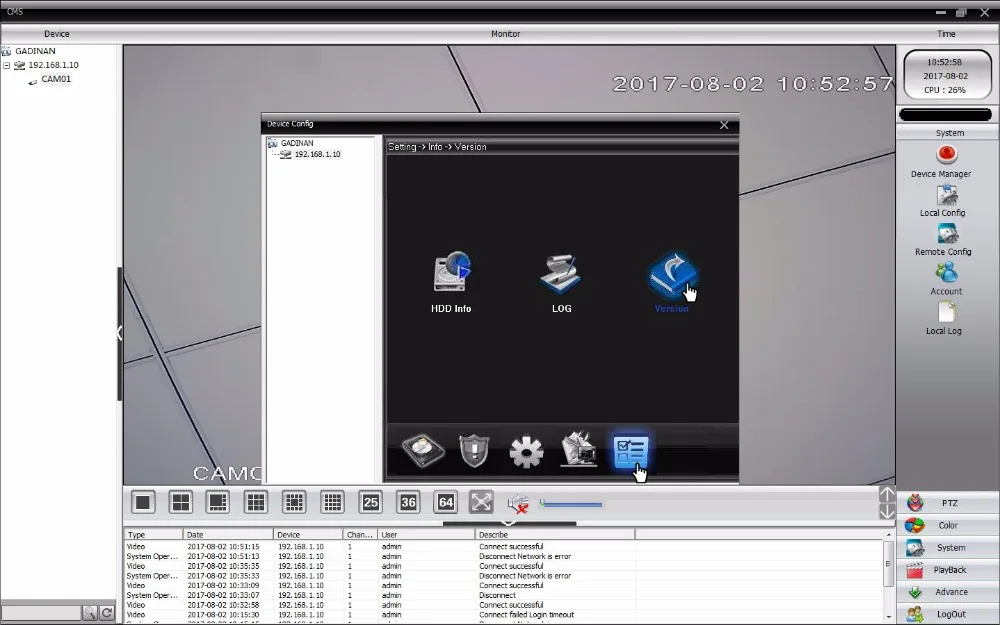

How to find "Serial ID" (very important)





2,View via web:

Local login, 192.168.1.10 (camera default IP address)(Cloud website:www.xmeye.net)







3,View via Phone(iOS and Android):

Install APP:"XMEye" on phone



 Horizontal screen:
