8 Port HDMI Splitter 1x8, SGEYR 1 Input 8 Output HDMI Powered Splitter/Signal Distributor 1 to 8 Switcher support 1080P 3D

Selling Points

1.The model SGEYR 1x8 HDMI Splitter HDMI 1.3 supports 480i/576i/480p/576p/720p/1080i/1080p + 3D; for 3D application, both of the connected displays must support 3D for 3D to work.
2.This model is for 1080p@60Hz or lower video. Please check our latest "HD108" model instead, the”1x8 HDMI 2.0 Splitter-HD108”model can completely replace this model and is compatible to HDMI v2.0 source and displays
3.HDMI 1x8 Splitter provides the same video and audio signals identical to HDMI input signal at eight outputs at the same time.
4.Durable and reliable full metal jacket construction; package includes: universal 100V - 240V AC to DC 5V1A Universal power adapter, user manual and 1x8 DHMI splitter
5.Edid duration 4 seconds. This model doesn't support CEC, CEC is not a suitable feature for HDMI splitter, it is good for HDMI switch.
6.For HDMI 2.0 4k@60 application, check our latest HDMI 2.0 Models: HD108(8 Port HDMI Splitter 4Kx2K@60Hz

Overview

1.3b HDMI splitter 1x8 supports all the mandatory and several optional 3D formats described in HDMI 1.3 specifications, maintains sharp HDTV resolution up to 1080p full HD and 3D. It offers HD video solutions for supper market, shopping mall; HDTV, STB, DVD and projector factory; data control center; conference rooms; education and training; luxurious house; home theaters etc.

FEATURES:

1)HDMI TM (1.3b with 3D & 1080p)

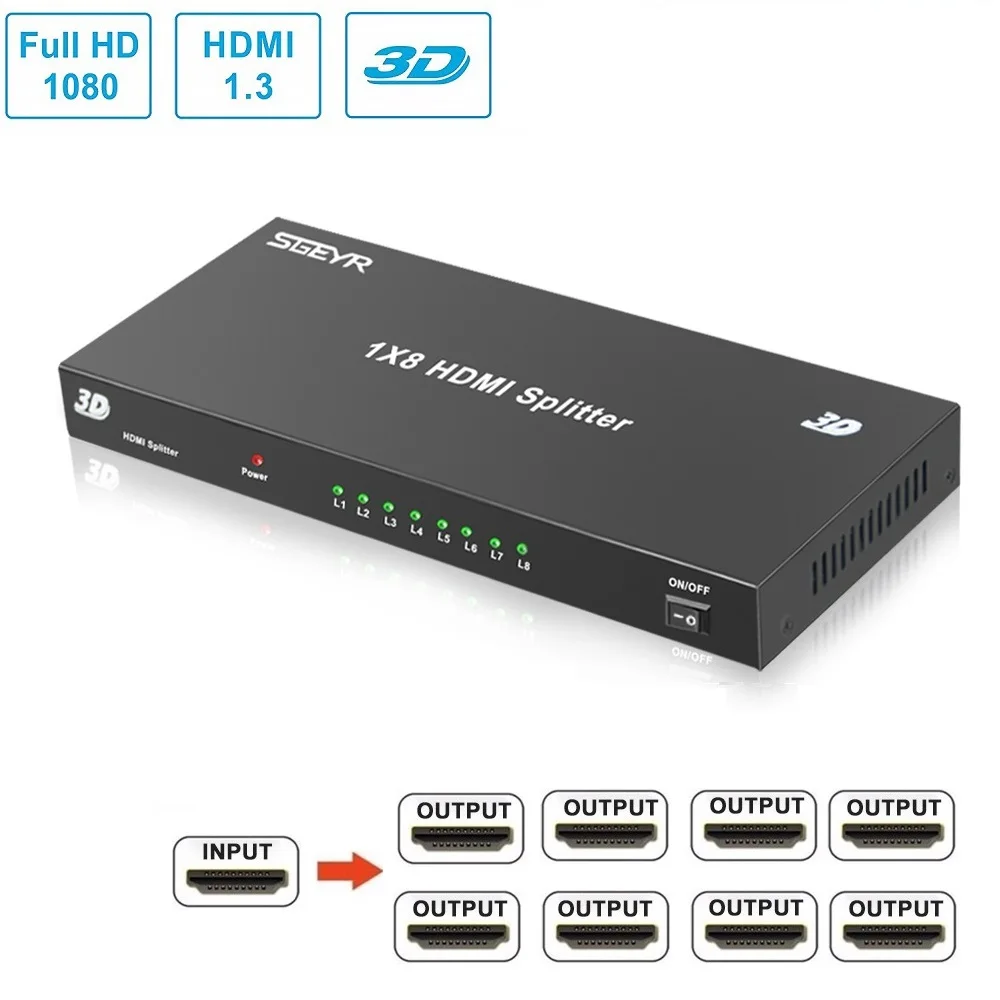

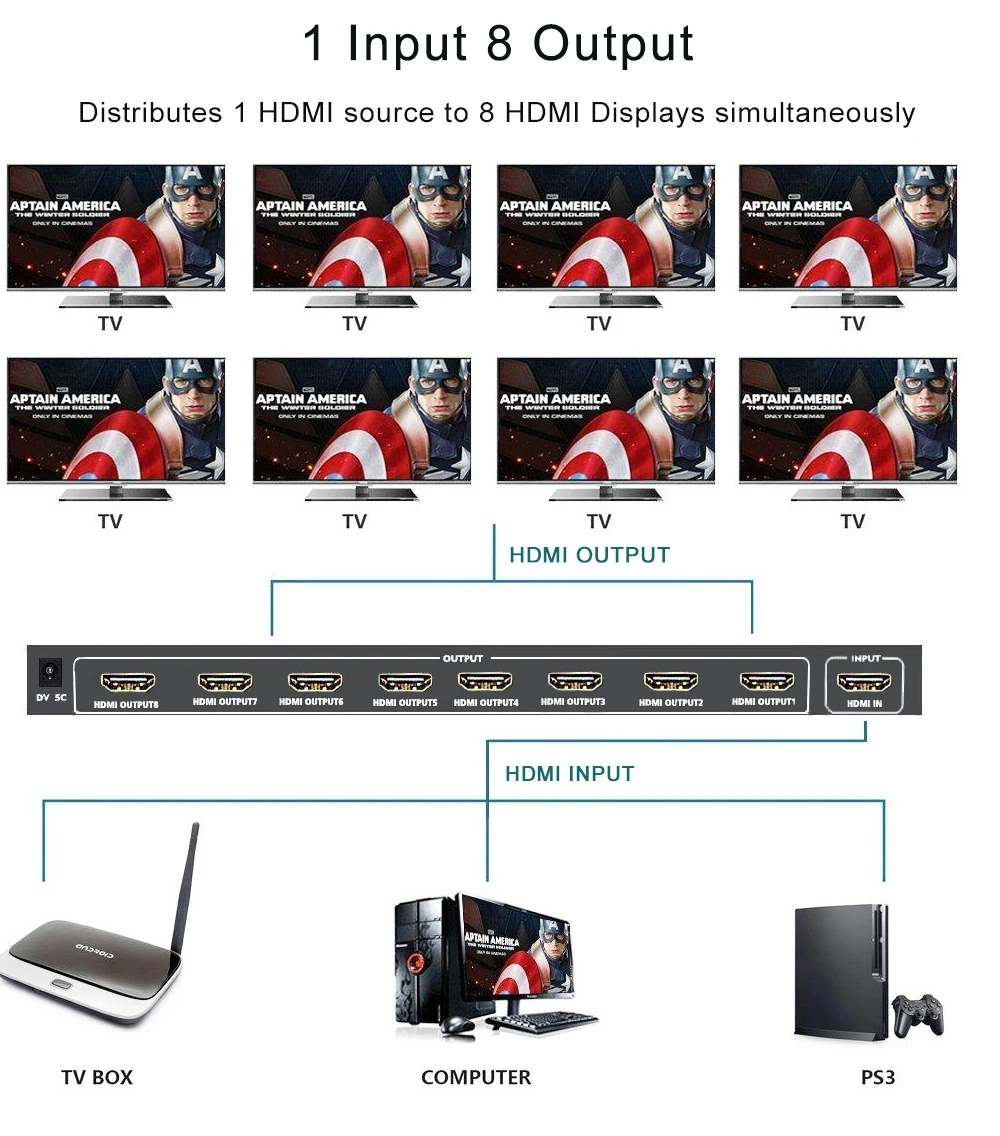

2)Distributes 1 HDMI source to 8 HDMI Displays simultaneously.
3)Supports all the mandatory and several optional 3D formats

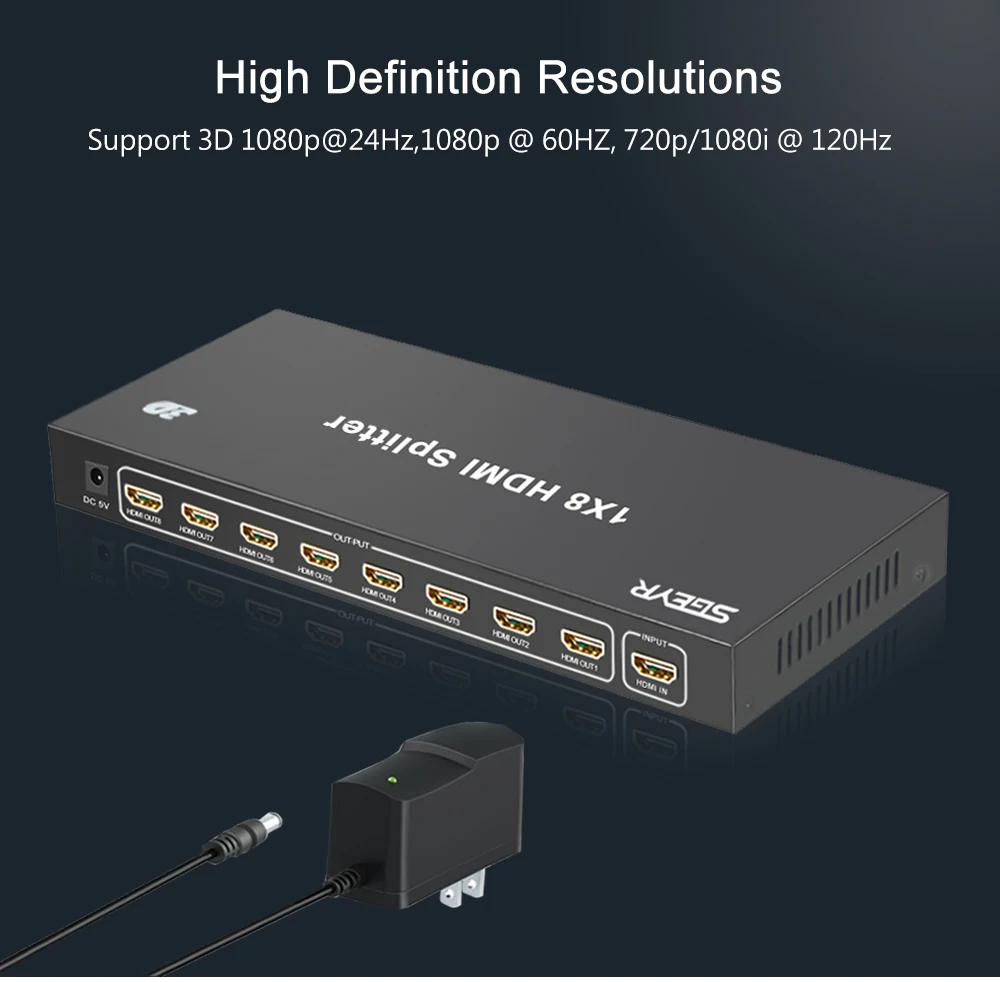

4)Supports High Definition Resolutions : 3D 1080p@24Hz,1080p @ 60HZ, 720p/1080i @ 120Hz

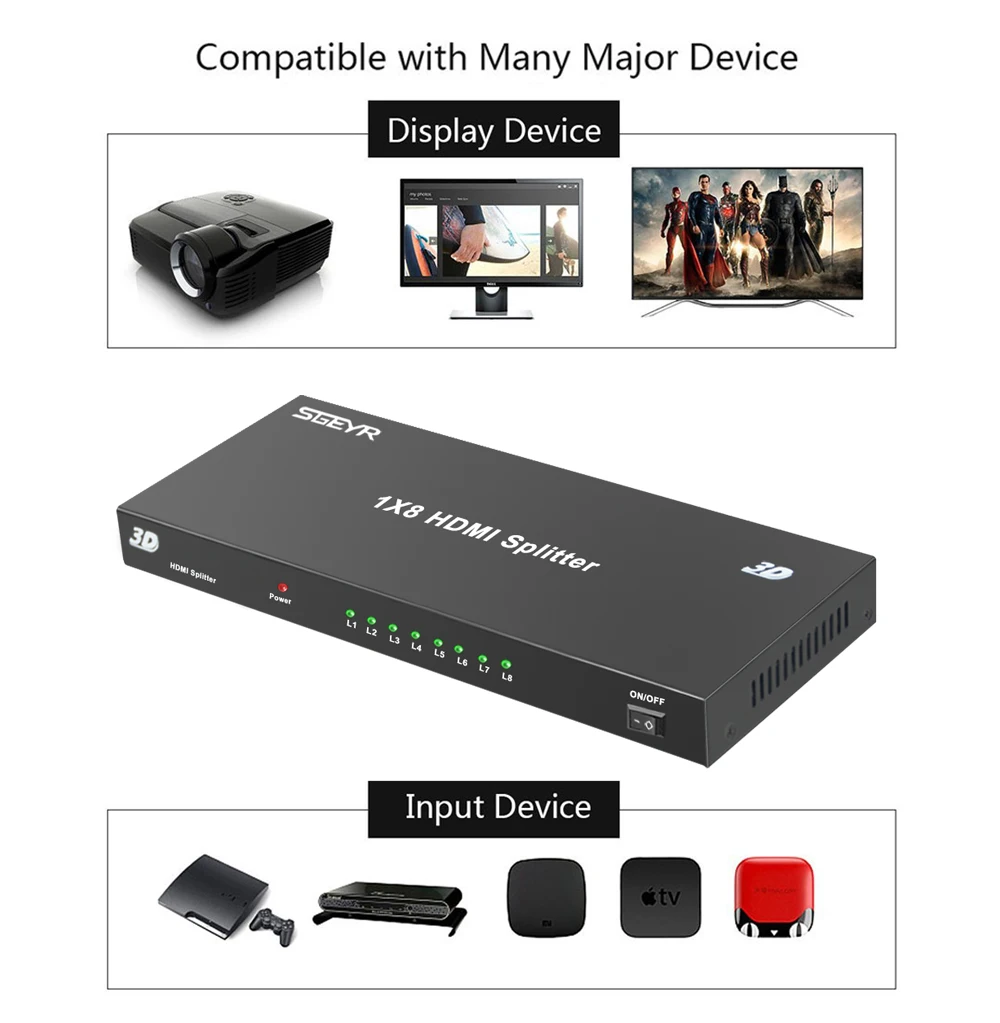

5) Compatible blue-ray,PS3 media format,fully support 3D display
6) EIDI Duration: 4 seconds

SPECIFICATION

Name of the product HDMI Splitter
Signal Inputs/ Output 1 input ...8 outputs
HDMI Connector Type A 19 pin female
HDMI Version HDMI 1.3b +HDCP1.2 (compatible HDCP1.1/1.0)
Support video format DTV/HDTV:480i/576i/480p/576p/720p/1080i/1080p/3D video
Support audio format DTS-HD Master Audio、Dolby true-HD etc.
Support video color format Xv-YCC/deep color 36bit
Max baud rate 6.75Gps
Operating Frequency Up to 225MHz
Max.cable extension 10 meters by 28AWG HDMI cable;15 meters by 26AWG HDMI cable
Power consumption 10 watts(Maximum)
Input/output DDC Signal 5 volts p-p (TTL)
Input/Output TMDS Signal 0.5~1.5 Volts p-p
Max working current 1.4A
Power adapter format... Input AC(5OHZ,60HZ) 100V-240V; Output: DC5V
Operating Temperature range (- 15 to + 55 Celsius degree)
Operating Humidity range 5 to 90% RH (No Condensation)

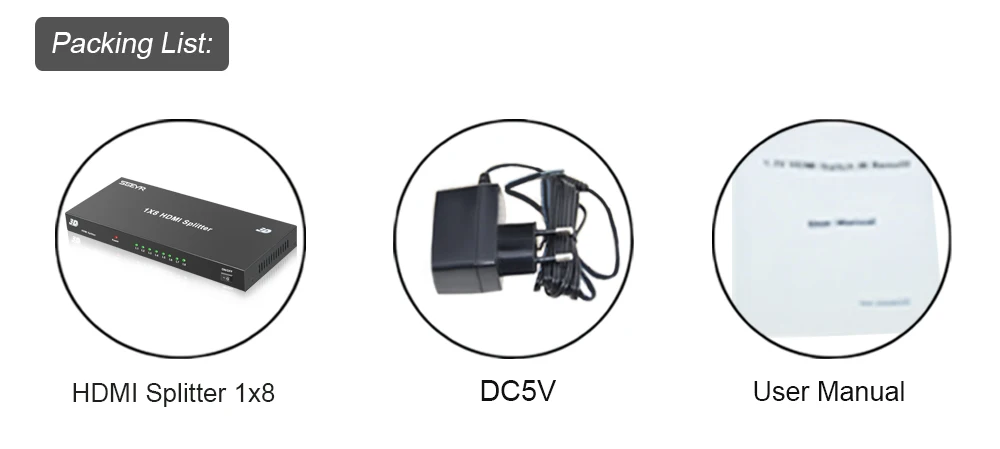

What You Can Get

1.Main Adapter-1x8 HDMI Splitter
2.DC5V Power Adapter(US EU UK AU Power Supply for your choice)
3. User Manual
