32W LED Optic Fiber Light Engine Driver Double Port Optical Source With Touch Panel RGBW Controller For Ceiling Star | Освещение

---



Westbay

Better Choice, Better Life



NEWEST Touching panel controller +32W RGBW Led optic fiber light engine+300pcs 0.75mm 3meter optic fiber, DIY light

Package included:

1pc 32W RGBW double ports led Engine

1pc Touching Glass panel controller

(Pls leave us message for the panel color(white or black),otherwise we will send radomly)

1pc Power adaptor

1pc User instruction



Real photo Showing:

Connection:

Controller Matching Code Instruction:

1.We finish matching code before delivery. You don't need to repeat if it is not out of matching.

2. Matching Steps:

Press the buttom   slightly by right hand, then power on the led engine by left hand. Take away your hands when you see the indicate lights of led engine flash 3 times,,it means that the matching code successful.

3. Cancel Matching steps:

Press the buttom  slightly 3 times by right hand, then power on the led engine by left hand. Take away your hands when you see the indicate lights flash 6 times, it means that the matching code was removed.

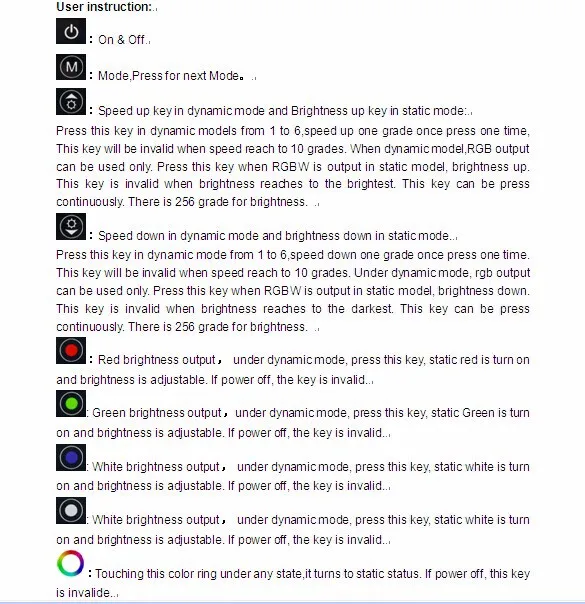

Effection Mode from Touching Panel :

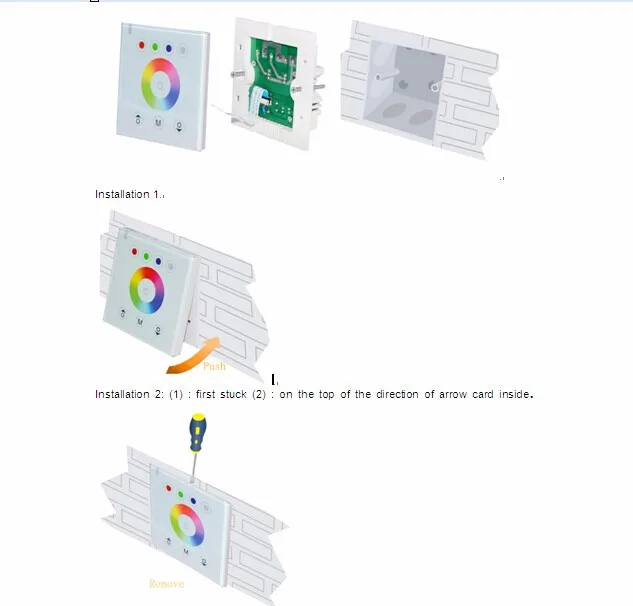

Installation Method:
