20pcs/lot RF LORA transceiver Lora1276F30 500mW 915mhz sx1276 27dBm 6Km to 8Km | Электроника

---

20pcs/lot Lora1276F30  27dBm 500mW sx1276 LORA Module small size 6Km to 8Km 915mhz  RF transceiver

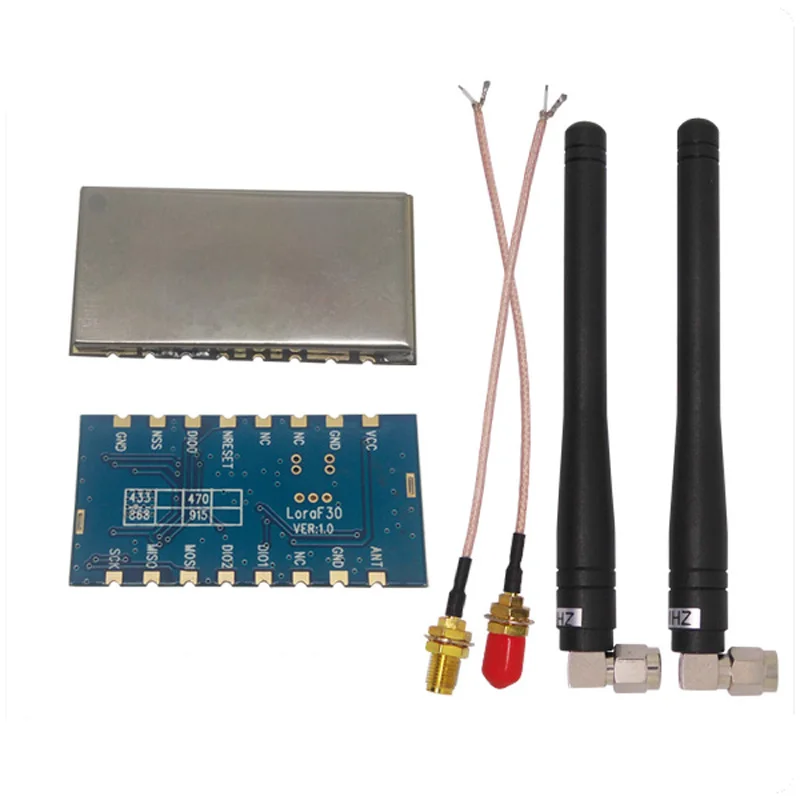

20pcs  Lora1276F30 (500mW915 MHz wireless RF Front end LoRa module)

20pcs SW915-WT100 antennas

20pcs SMA interface connecting cable

If you need 868mhz,please leave us massage.

Lora1276F30 is a 500W high power wireless transceiver module, which integrates SemtechRF transceiver chip SX1276. It adopts LoRa TM Spread Spectrum modulation frequencyhopping technique. The features of long distance and high sensitivity (-139 dBm) make thismodule perform better than FSK and GFSK module. Multi-signal won't affect each othereven in crowd frequency environment; it comes with strong anti-interference performance.



Feature:

• 868/915MHz

• Sensitivity up to -139 dBm

• Maximum output power: 27dBm

• 13mA@receiver mode

• Sleep current <10uA

• Data transfer rate：@FSK,1.2-300kbps, @Lora TM，0.018-37.5kbps

• Lora TM,MSK,GFSK and OOK Modulation mode

• 127 dB Dynamic Range RSSI

• Packet engine up to 256 bytes with FIFO and CRC

• Hopping frequency

• Operating Temperature Range：-40~ + 85 °C

• Built-in temperature sensor and low battery indicator

• 1.8-3.7 V Power supply

• Excellent blocking immunity



Application

• Remote control
• Remote meter reading
• Home security alarm and remote keyless entry
• Industrial control
• Home automation remote sensing
• Individual data records
• Toys control
• Sensor network
• Tire pressure monitoring
• Health monitoring
• Wireless PC peripherals
• Tag reading and writing

Block Diagram

Specification

Note:   Lora1276F30(868/915MHz) is 500mW power.

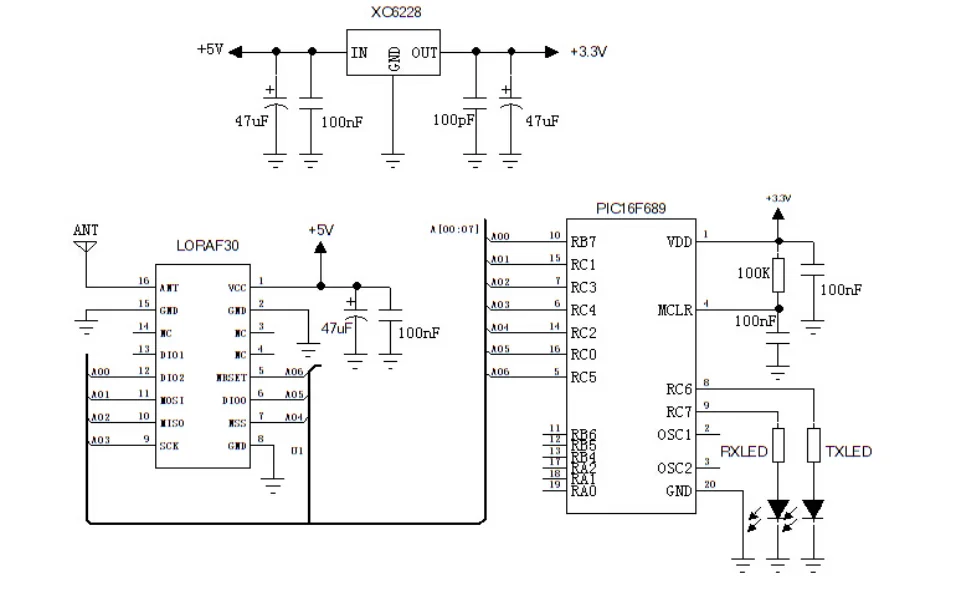

Schematic

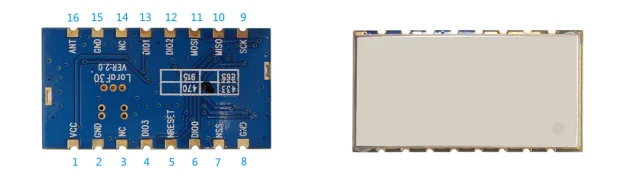

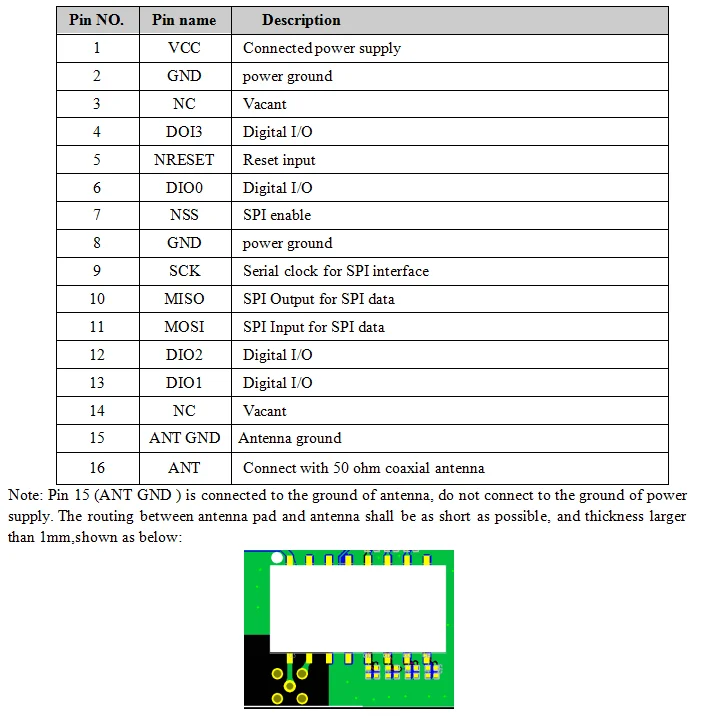

Pin definition







Mechanism Dimensions

Distance test

Accessories

1)Antenna Antenna is very important for RF communication, its performance will affect the communication directly. Module needs antenna in 50ohm. Common antenna has rubber straight/ elbow/ foldable rod and sucker antenna and etc. Users can order accordingly. To ensure module in the best performance, we suggest to use the our antenna

Appendix:
The module is possible to be equipped with a standard DEMO board for customer to debug the program and test distance. It shows as below:

Our company is engaged in researching, developing, producing and selling IOT(internet of things) products. We devoted ourselves on providing good RF modules, walkie talkie modules and integrated digital sensor modules. Meanwhile, ODM and OEM projects are welcomed. With more than 10 years experience of product design in RF and sensors, we have earned a good reputation among our customers.





Shipping

1.  Items will be shipped within 3~5 days after we receive the full payment.

2.  We do not guarantee delivery time on all international shipments due to differences in customs clearing times in individual countries, which may affect how quickly your product is inspected.

3.  If you do not receive item within 60 working days (10 weeks), please contact us to investigate the case.

4.  Please note that buyers are responsible for all additional customs fees, brokerage fees, duties, and taxes for importation into your country. These additional fees may be collected at time of delivery. We will not refund shipping charges for refused shipments.





We can provide EMS, DHL, Fedex, TNT China Register Post Air Mail and etc.

* All free shipping on our store are mostly China Registered Post Air Mail.

* If you need fast shipping like DHL or other, you will need extra payment, pls contact sales to evaluate the price.





With three protections

* Poly bag to cover

* Bubble bag to protect

* Finally, yellow carton for deliver



  Return Policy

1.  We appreciate your order and and we do our best to serve you.

2.  We offer an instant 7 days return policy (7 days after we receive the items).

3.  The returned item has to be in its original condition.

4.  We are able to refund your money without shipping cost.





1.  Your satisfaction and positive feedback are appreciated. Please leave positive feedback and 5 stars if you are satisfied with our items and services.

2.  If you have any problems with our items or services, please feel free to contact us first before you leave negative feedback. We will do our best to solve any problems and provide you with the best customer services.

3.  For any question, pls feel free to contact us by  emai l or via  TradeManager.

  Delivery time   1.Sample order:1-3 days 2.Normal order:3-7 days 3.OEM Order:7-15 days 4.ODM Project: development time is around 1 months after all details confirmed.   Warrenty   1.100% test low than 0.05% defective rate 2.Free technical support   MOQ   1.Sample Order: 2pcs/a pair 2.OEM Order: More Than 1000pcs   Aftersale Service   1.Give replacements if there is quality issue of the part in future order 2.Evaluate the customs risk and choose safest shipping company during different period 3.Fllow status from time to time till the goods arrive client's hand 4.NiceRF warranty does not apply to products purchased through third-party verdors       a) Why module can not communicate properly?   1) Check if the band, channel, rate, NET ID has set to the same; 2) Check if there is power connection error; 3) Check if the module is enabled (CS high); 4) Check if the antenna connection is not correct; 5) Check if the module is damaged.   b) Why transmission distance is not far as it should be?   1) Power supply ripple is too large; 2) The antenna types do not match, or not properly installed; 3) The surrounding environment is harsh, strong interference sources; 4) Surrounding co-channel interference;   c) Why receiving data incorrect?   1) Improper parameter settings; 2) Module data interface is bad.

d) Why should I use antennas?

The antenna is important in the communication. For this module, the match impedance is 50 Ohm. We have many kinds of antenna for customer to choose, please contact the corresponding sales engineer for help, or find the antenna in our website.

e) What kind of USB bridge board should I use?

The USB Bridge is useful for customers to configure the parameters and simply to do communication test with PC.









---

---
