 Product Description

	Specification
	Input Voltage :	110-240Vac
	Frequency/current:	47-63Hz / 6.5A
	Charge voltage:	116V
	Charge current:	7A
	Charge method:	CC/CV
	Working Temperature:	0°C to 45°C
	Storage Temperature:	-20°C to 50°C
	Charging voltage  rated :	116± 0.3 V
	Charging Current  rated :	7  ± 0.5 A
	Input pulg/Output pulg :	Refer to the following plug pictures



******Charge Voltage and Current can be customized by Customers requirement.



If you cannot find what you need,Please Leave Words of Input AC Plug And Output DC Plug,

Like: 'AC:Number 5,DC:G',Thank You!!!

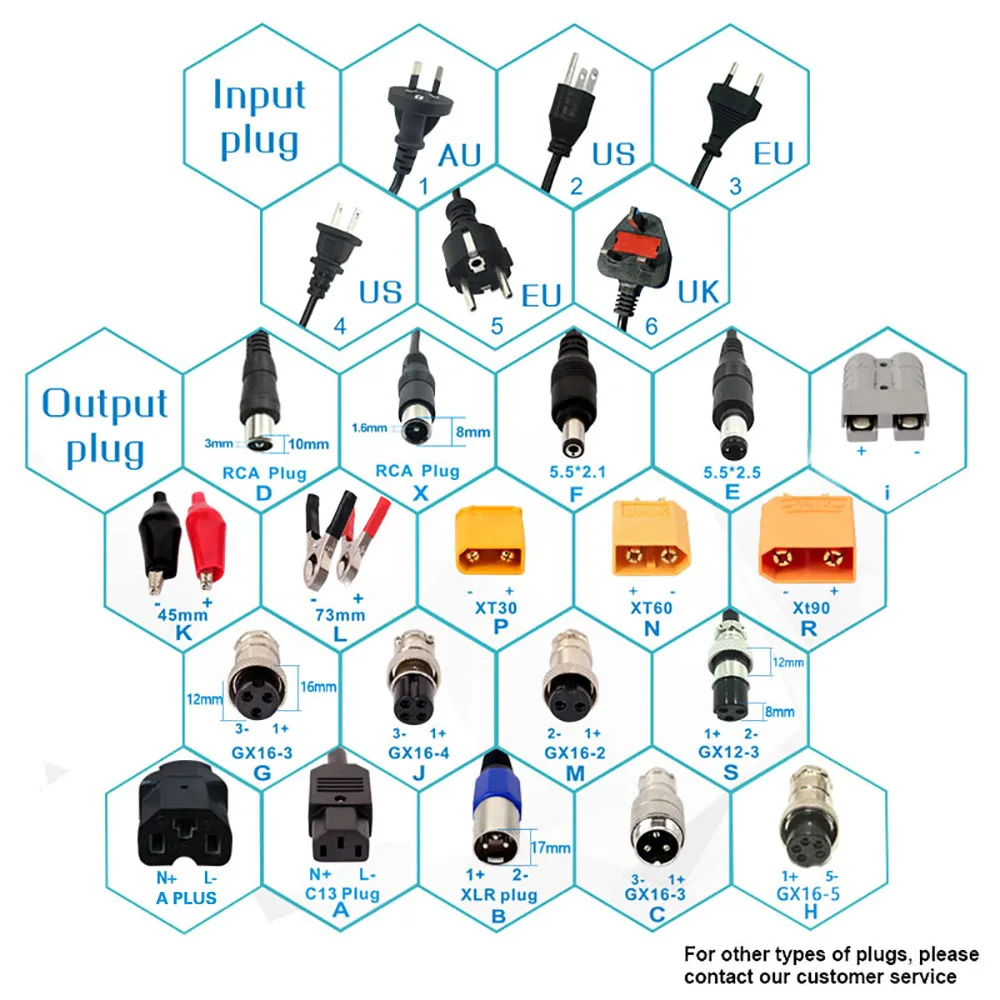

Input plug

 Output plug

 Applications type:

FOR Nominal Voltage 96 V battery pack,96V electric bike

UPS powers (8 series Lead Acid Battery pack), Rechargeable Battery, Lead acid,Electric Tools,

Garden Power Tools,Cleaning machine,Ebike,Golf cart ,Electric Scooter,ntelligent Balance Car Folding Bicycle ,UPS Power Supply etc.

 Feature:

YZPOWER



● Stable MTBF:> 30000 H

● Small Size: 205 * 121 * 100mm

● Light Weight: 2.3 kg

● Delivery Time: 2-5 working days

● Material:Metal Aluminium Case

● After-sales service: 36months Warranty

● Protection function: Over voltage / Over temperature / Over current / Short circuit and Polarity

● The indicator of LED: Red is charging, green is charge finished or prepare charging

● Light, Small, Stable, High-Efficiency, Safe, etc.Precise limit of voltage & current, qualified fully charged

and avoid over charge

  FIG charging curve

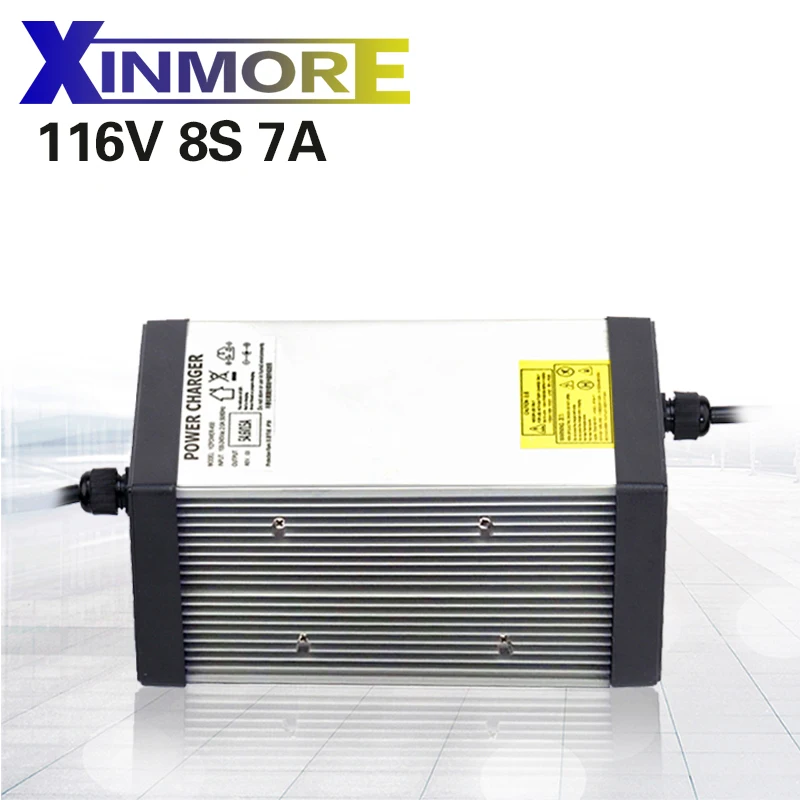

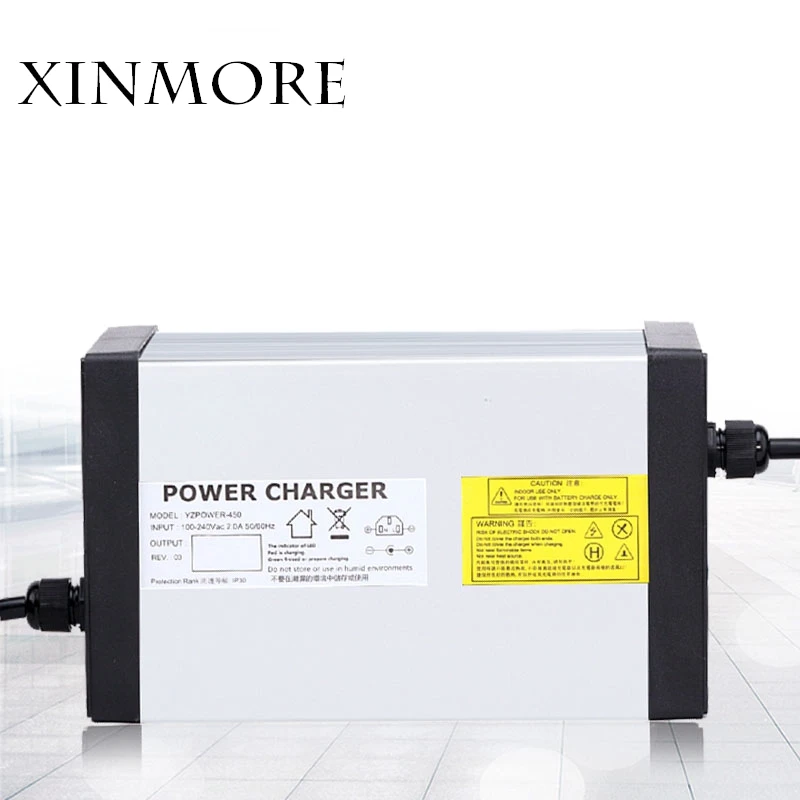

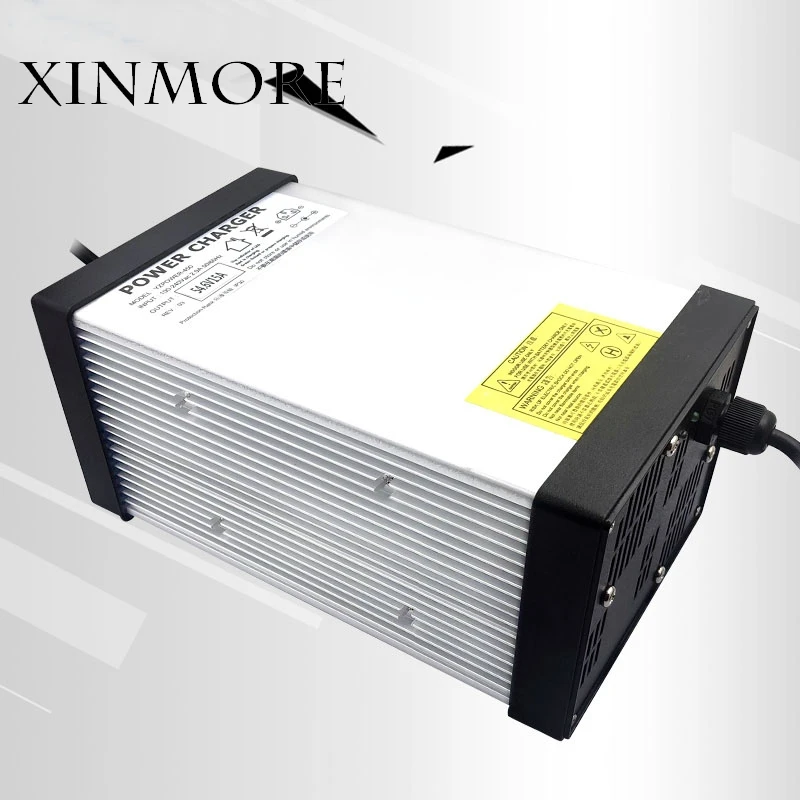

 Detailed Images                                                                                             YZPOWER

	Main Parts 1) Input and output filter electrolytic capacitor use withstand temperatures -40 to +105℃,with Low Impedance ,High reliability,Long useful life,High rip-ple  capability,etc features. 2)  Input Bridge KBP406 rectifiers Can withstand average Forward Rectified Current 4A,peak forward surge current 130A,Bl-ocking Voltage 600VDC

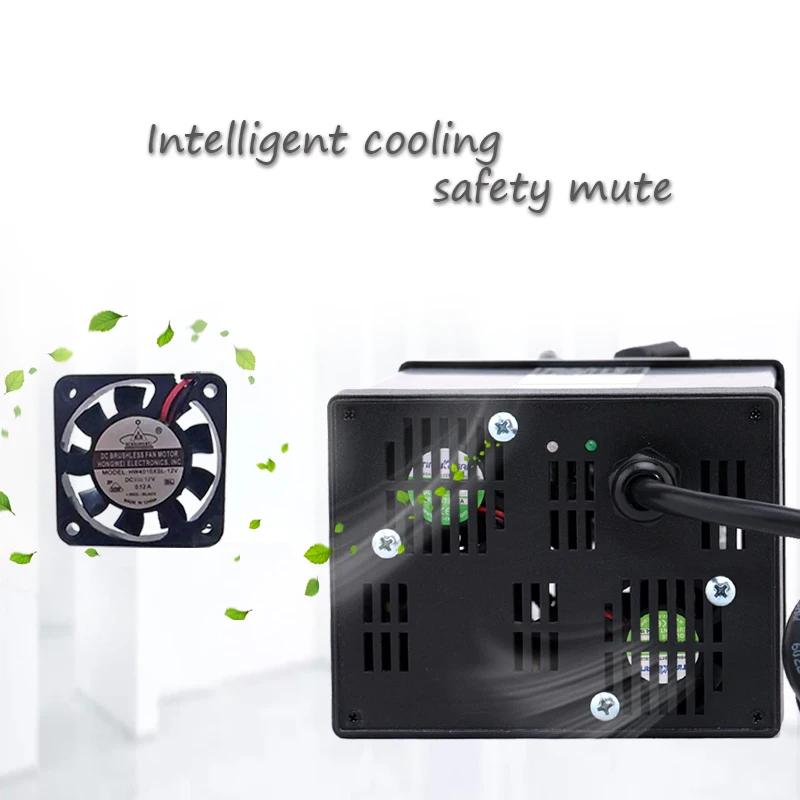

3) The main power transformer adopts EC40 core, PC40 material,High efficiency, low iron loss,Enough power capacity,Have sufficient power margin. 4) Using aluminum heat sink,Good thermal design,can better cool the power device, Consistent with the principle of hot air flow,extend the service life.

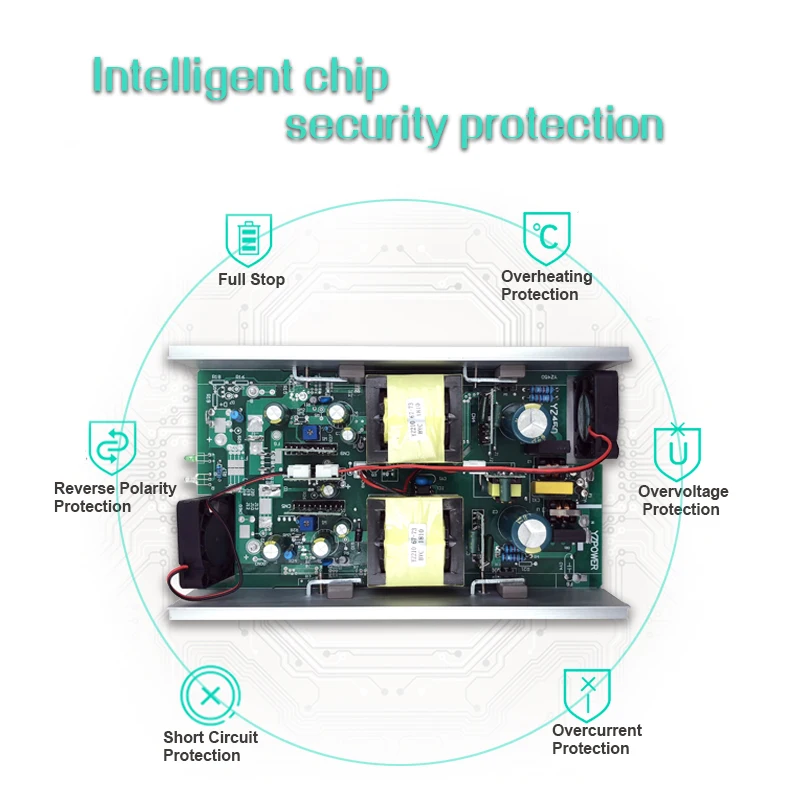

	PCB Parts Using SMD components,automated mass produ  ction by machine,Reduce manual errors, improve product quality.Voltage conversion parts, With Cycle-by-Cycle C  urrent Limiting, soft start function, with ESD Protection. Charge control circuit,Using precision voltage comparator,Precise control of the charging voltage and current,With overcharge protection, over current protection,as well as output short circuit protection.
