50hz/60hz 1hp Sanitary G type single screw pump High viscosity colloid |

---

Brand NameNoneModel NumberG15-0.75kwPowerElectricUsageWaterTheoryReciprocating PumpStandard or NonstandardStandardStructureScrew PumpPressureLow PressureFuelOtherMeasurement unitpiece/piecesEach pack1materialstainless steelmax. tem100 degree61 527,44 ₽61 527,44 ₽Add to CartBuy now61 527,44 ₽loader

Description

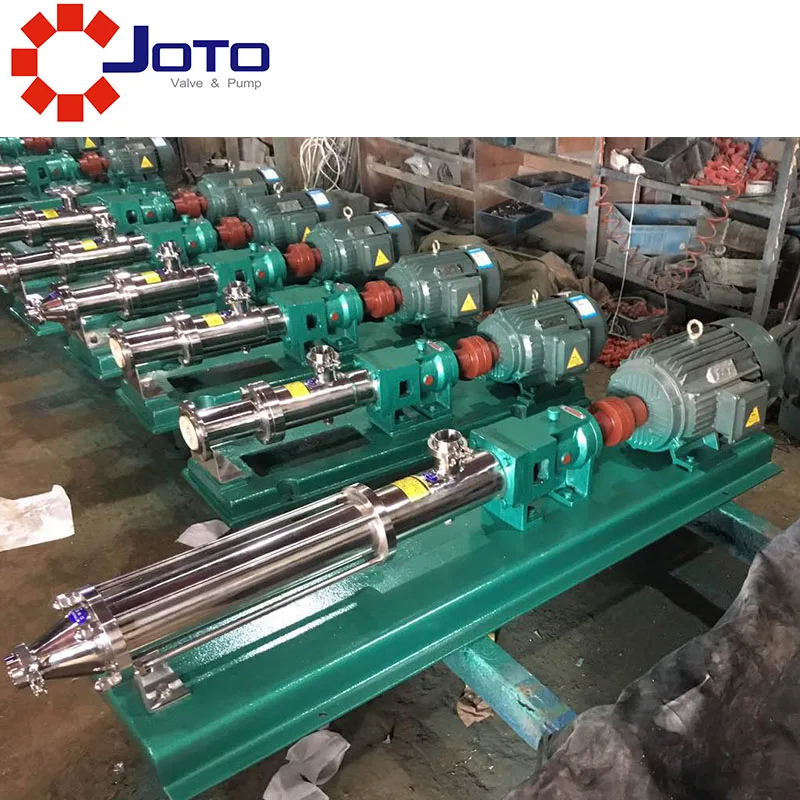

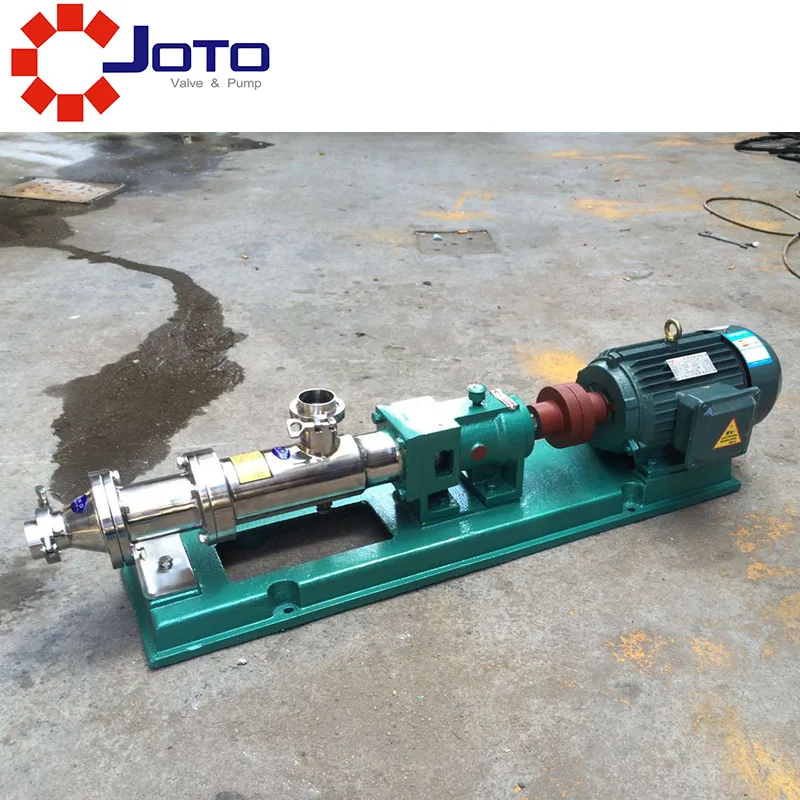

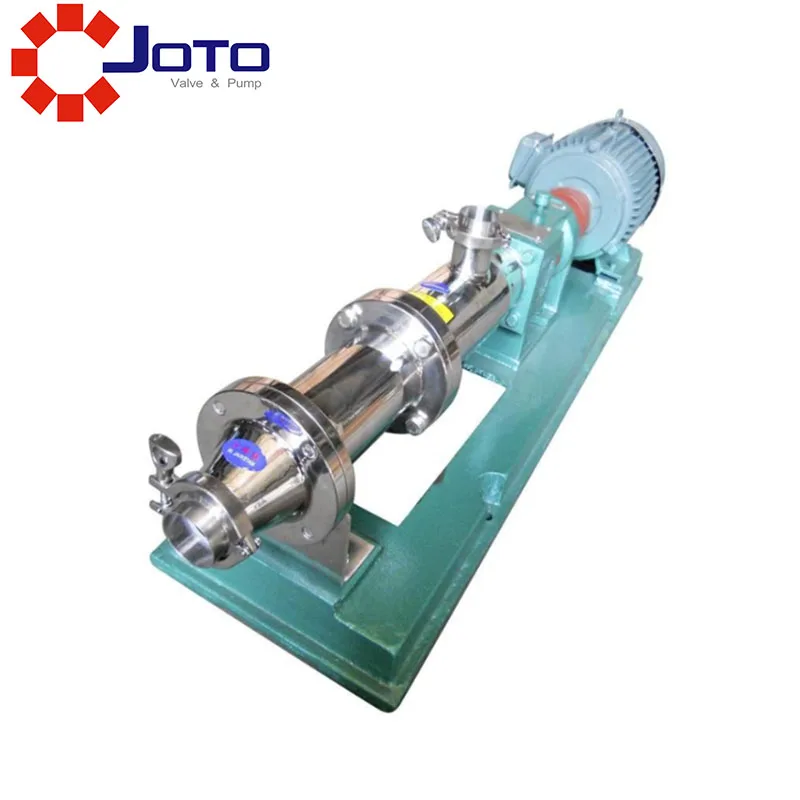

G Type Single Screw Pump Made In China

Introduction

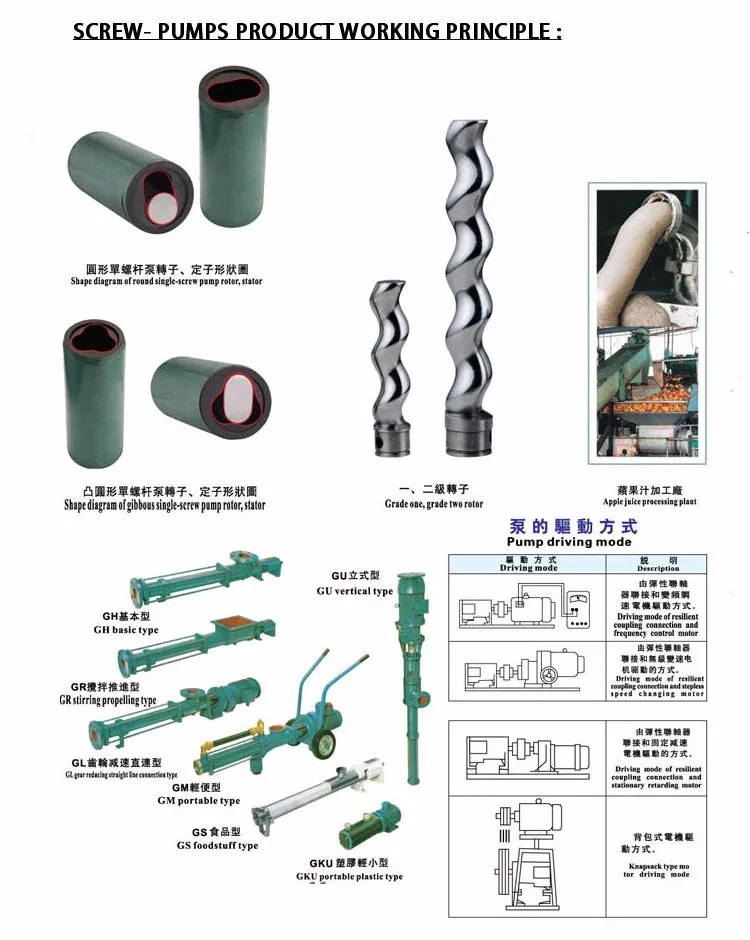

G type Single Screw pump is the new type of  pumps: the main working parts are eccentric screw(rotator) and the fixed muff ( stator). The stator is made of the elastomer that is innocuous and flavorless.

Because of the special geometrical form of these two parts, which form the seperated sealing room, the medium can flow through the axial evenly. With low internal flow rate and stable pressure, there is no backset and agitation. The output pressure for each stage pump is 0.6Mpa, the delivery lift is 60m (clear water), the self-priming is normally higher than 6m.

Since the stator is made of many kinds of elastic material, this kind of pump can transport the liquid with high viscosity, the medium with hard suspending solid grain and the medium with fiber. The flow capacity is in direct ratio with the rotor speed.

The structure of the pump is compact, and the maintenance is easy. It is applicable to all kinds of medium, the flow capacity is stable, the pressure artery is small, and the self-priming capacity is high. The working temperature can reach up to 120°C. its widely used to industrial departments such as foood, metallurgy,papermaking,printing and dyeing, chemistry, fertilizer and pharmaceuticals.



Transportational medium



1. liquid with different viscosity,especially the thick medium which is difficult to transfer.

2. Liquid with different concentration and dry material which is separated and dehydrated.

3. Liquid which contains solid particle,fibre and suspended matter.

4. Mixture of liquid,gas and solid.

5. Sensibility liquid which could not be mixed, cut and rob.

6. Corrosive liquid.

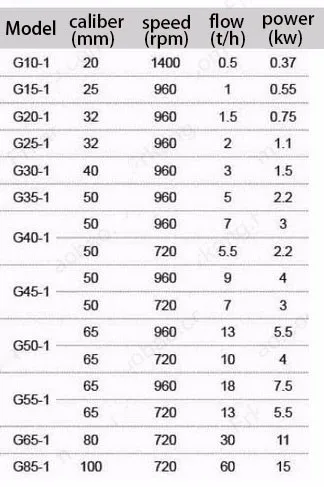

performance parameter

Note:tell us what volatge you will need,110v/220v/380v/415v and 50hz or 60hz you need.





---

---

---
