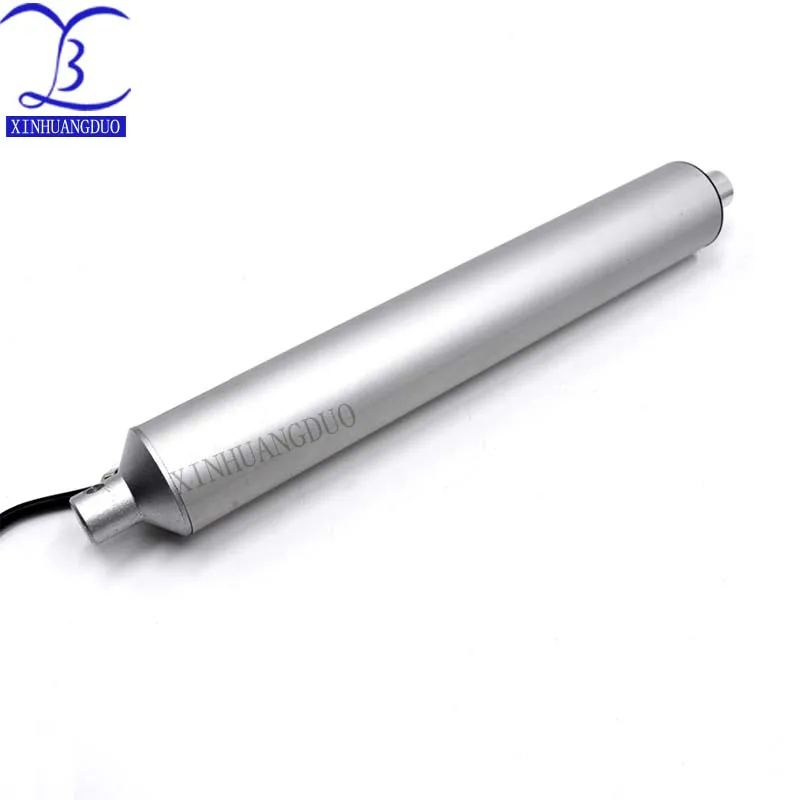

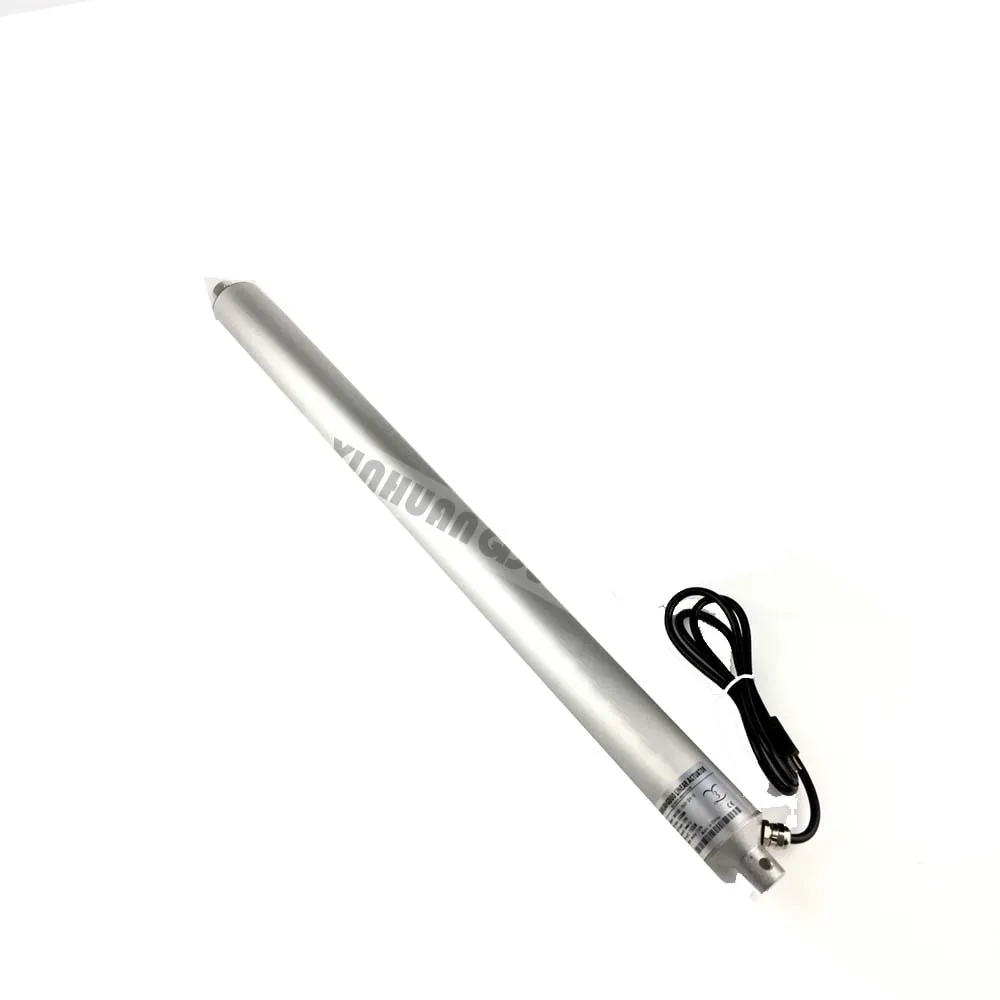

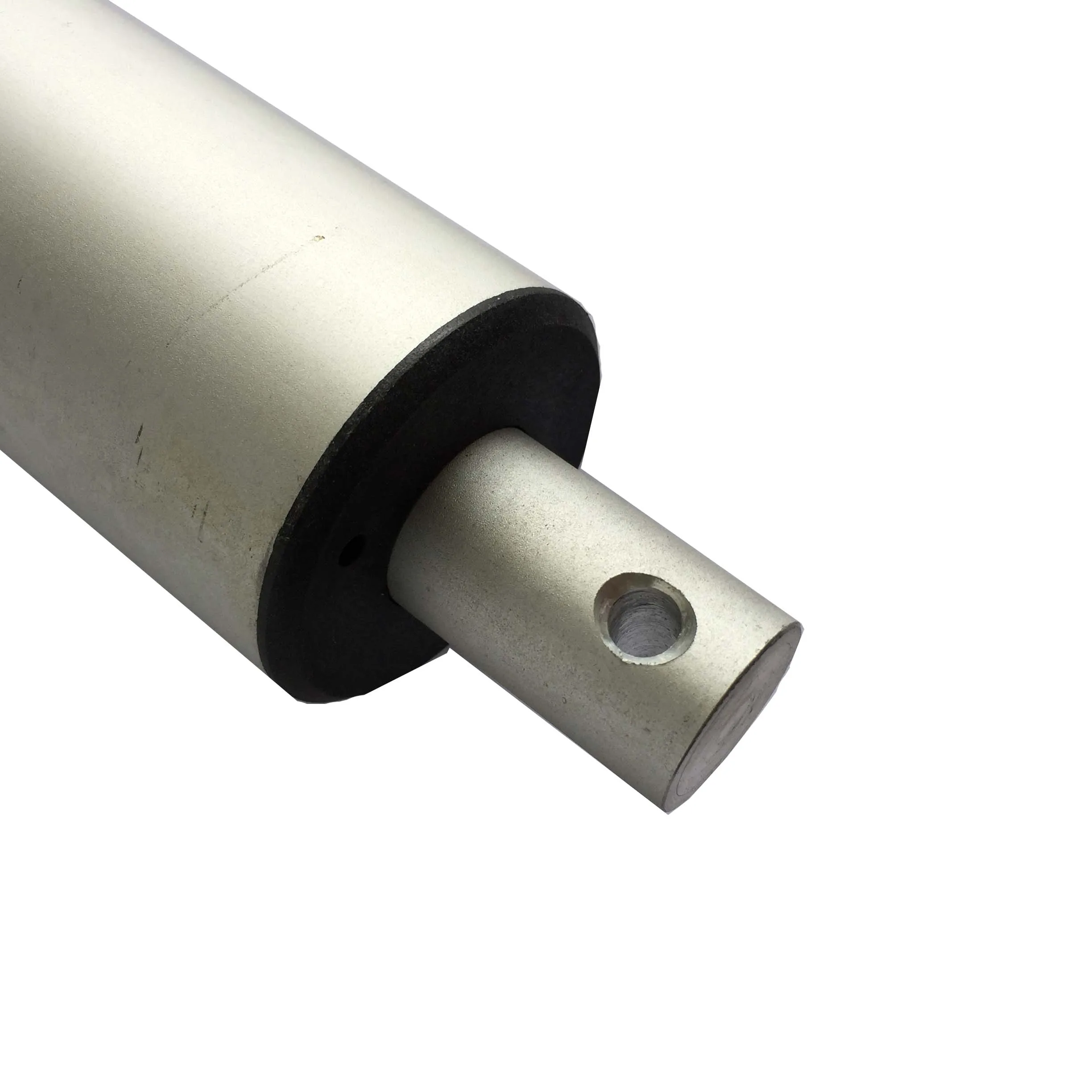

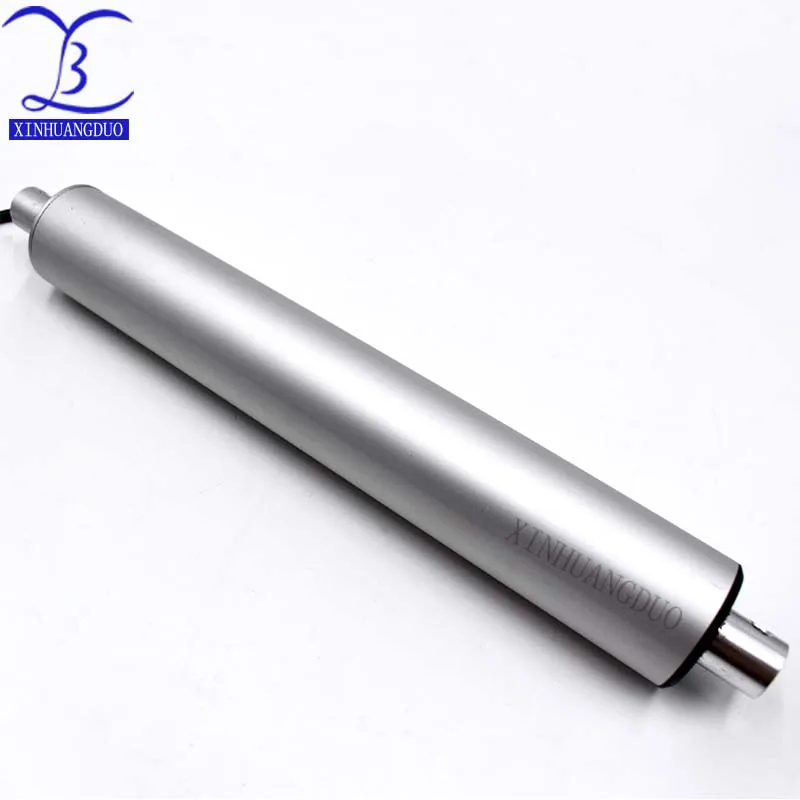

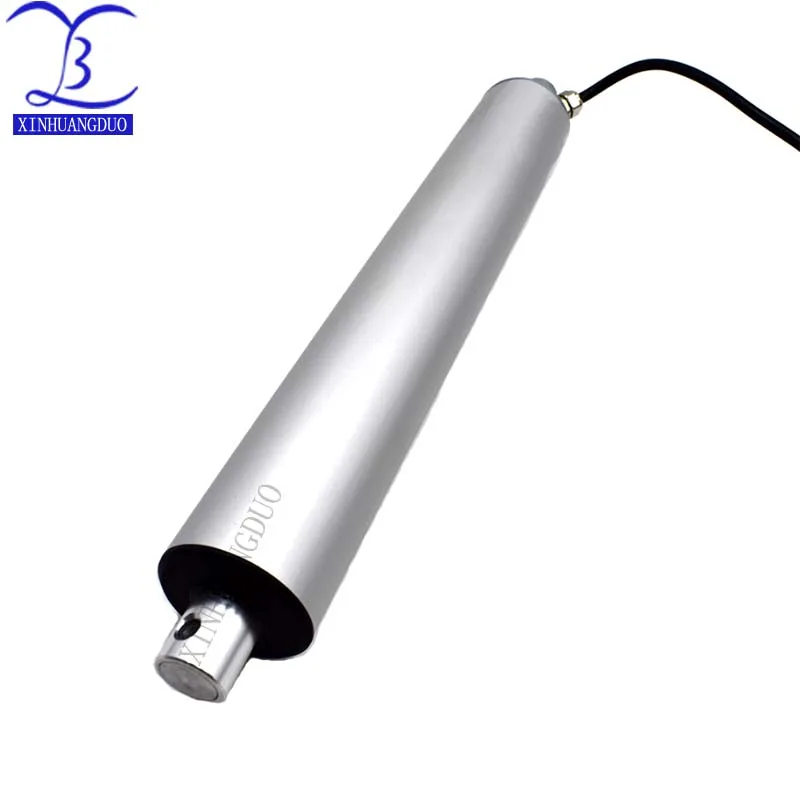

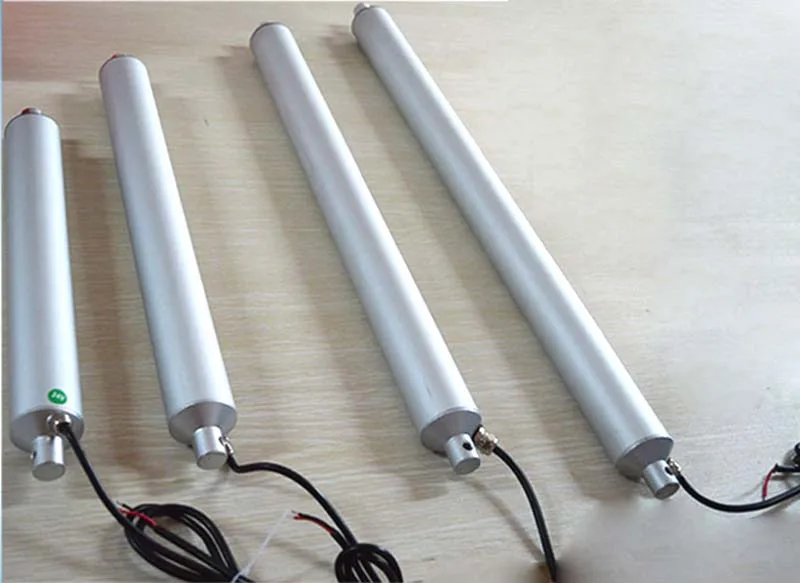

150mm Stroke 12V/24V 1500N 150KG Load Customized Speed 6 inch mini electric linear actuator Tubular Motor Electric putter | Обустройство

---



Dear customer: If you have any question please contact us thanks !                       Qty:1pcs linear actuator   Technical parameters of permanent magnet DC electric push rod   Voltage: DC 12V24 V   Rated load factor: 5mm / s (1500N)            10mm / s (1000N)                               15mm / s (750N)              20mm / s (600N)                               25mm / s (450N)              30mm / s (250N) Mechanical characteristics     Operating Temperature: -26 ° C ~ +65 ° C     Aluminum alloy shell and aluminum alloy telescopic pole    12 or 24 VDC     High speed motor       Built-in limit switch     No-load rate:  Strength Data       Maximum thrust :1500N     Operating frequency 20%     Maximum self-locking force 2000N   Max Load: 1500N=150KG    5mm/s (1500 N) ~30mm/s(250N)   Limited switch: yes   Working duty: 25%, 10% for high speed   Housing & Inner tube material: Aluminum Alloy   IP Class: IP54/65   Max self-lock power: 3000N   Limited switch: Yes





The linear actuator is auxiliary driving device, widely used in medical, Medical bed, massage chair,   electric foot sofa,  fitness equipment,  care bed, window open, ELECTRIC furniture,household, machinery, metallurgy, mine, petroleum, chemical industry, transportation, lifting, transportation, construction, food and feed processing industry. Widly application in line, massage armchair, automobile, the ventilation window open, military, stage, textile, sewage treatment and other industries equipment.

Attention:

  The following conditions can cause serious damage to the product: 1. Direct connect with AC power 2. Use in the above standard voltage environment 3. Push/Pull exceed the maximum value of the product show 4. The stroke did not finish, still with power, forced to cease   The following conditions may shorten the product life: 1. High frequency operation 2. The high temperature
