8"/8.4" VGA/TV/AV/HDMI/USB Interface Non-Touch Industrial Control LCD Monitor/Display Metal Shell Buckle Card Installation 4:3 |

Panel size                                 8.4 inch TFT-LCD

Visual size                              160*130mm

Standard Resolution               800*600

Scale                                          4:3

Number of Colors                   16.2M

Brightness                                LED panel:300cd/m2

View angle                               Horizontal:160°  Vertical:130°

Contrast ratio                           400/1

Video input format                   (analog) RGB

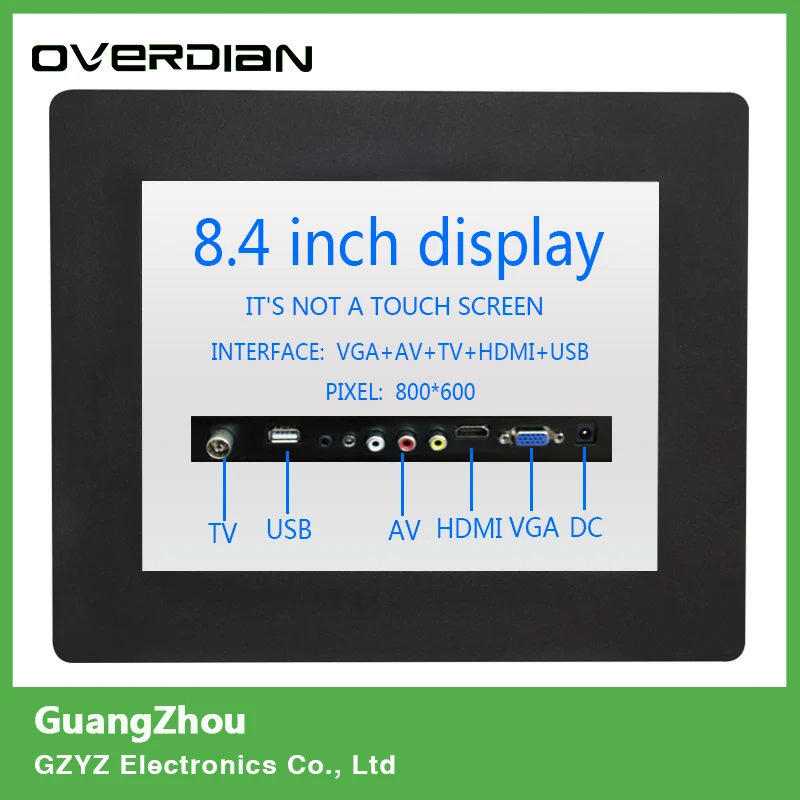

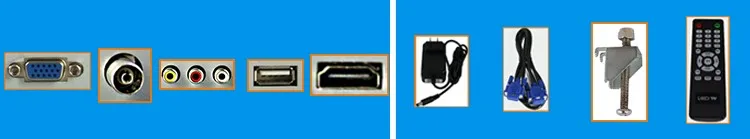

Interface                                    VGA+TV+AV+HDMI+USB

Frequency                                 0~80KHz/60~75Hz

Power supply                            External Power Supply:100 to 240V AC  (DC 12V)

Operation Environment          Workable Temperature:-10 to 60°C

                                                    Storage temperature:-20 to 70°C

                                                    Operate relative humidity:20% to 80%

                                                    Storage relative humidity:10% to 90%

Net weight                                 2.5 Kg/pcs

Gross weight                            3.0 Kg/pcs

Power consumption               Max 18W

Setup (optional)                    1) provide wall brackets for wall-mounting, VESA 75mm

                                                 2) provide base to support the monitor

OSD  control                          AUTO,+,POWER,-,MENU

                                                 brightness,contrastratio,autoadjustment,phase position,clock,Languages,function,Install,reset

each minit box size               345*135*255MM

package size                          5PCS in a carton

Features                                 simple, speedy,flexible ,artistic appearance and low radiation

Warranty                                1 year
