Free Shipping 4 Channel H.264 1080P AHD 256GB SD Car DVR Mobile Video Recorder Side Rear View Duty Camera for Truck Van Bus | Автомобили и

---

4 Channel 1080P AHD Vehicle Digital Video Recorder

Supports Up To 128GB per SD Card, Dual SD Card



Main Features

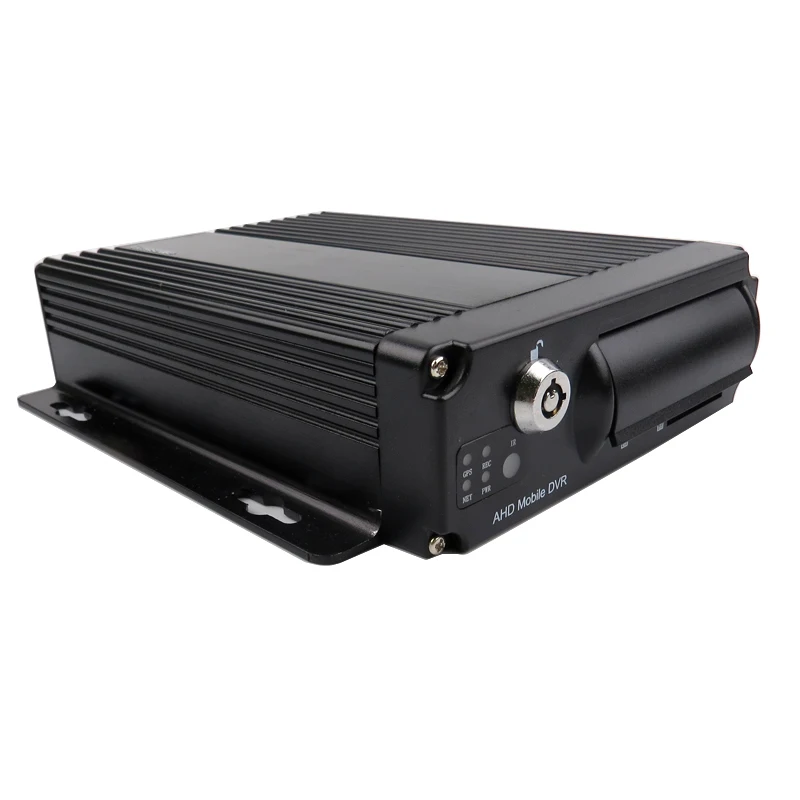

Car DVR



• H.264 video compression.
• 4CH 1080P HD AHD MDVR, It works with all AHD cameras, More Clearer.
• 4 Channel 1080P AHD real-time recording (1080N/720P /960H/D1/CIF for selection)
• Support video searching function so that we can easily get files of a certain period.
• Support realtime playback, as well as review the video on computer
• Support remote control and mouse operation.
• Equipped with high-speed video recording at 30fps per channel.
• Recording video can be overlaid with date/ time, plate number etc..
• Optional file packing time to meet your real requirement.
• Support wide range of voltage input from 12V to 32V.
• Output 12VDC 3A for external devices.
• Support 2 SD card, and (128G*2)
• Support auto recordng , manually recording , alarm recording , fire off recording.
• Delayed video recording functions when vehicle is shut down (time settings can be up to 24 hours)
• Support 4CH alarming inputs and 1CH independent alarm output (open/close door, brake, back up, motion detection etc).
• Support upgrad via SD card.
• Support OSD menu
• Eight channel 4pin connector video and audio input, one channel AV connector video and audio output.
• SD card design for storage, more convenient and vibration-proof than hard disk version.

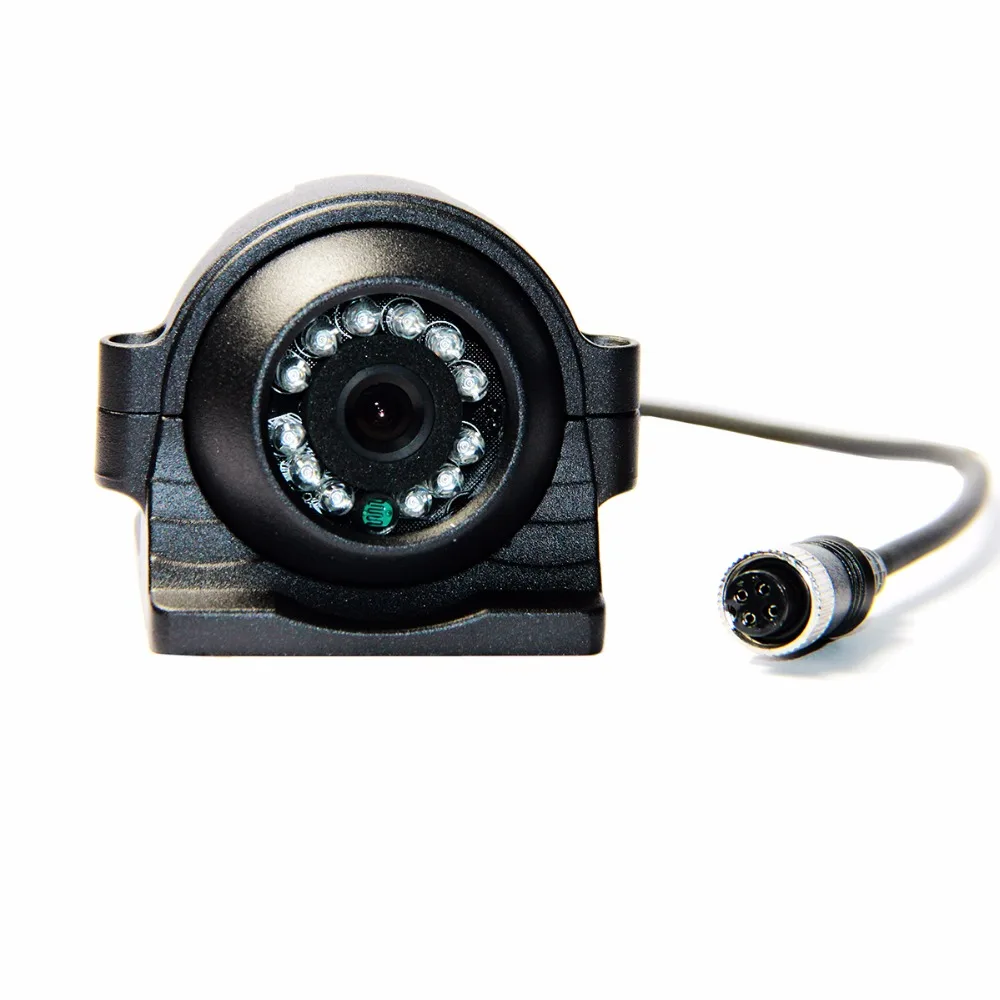

Car Camera

• Top quality camera. Easy and safe to mount.
• 4 Pin connectors for easy installation.
• 18 infrared LED for night vision
• AHD 1080P camera
• full metal case, IP56 rate waterproof
• high resolution, with infrared illumination at night.



Details













Software

More Products





Specification



Project	Specification	Feature
System	Lanuage	English
	Operate System	OSD menu
Video	Video Input	4 Channel Video Input ,1.0Vp-p,75
	Video Output	1 Channel RCA Video Output ,1.0Vp-p,75
	Video Display	1,4 channel display
	Compression	H.264 Main profile
	Video System	NTSC, PAL
Audio	Audio Input	4 Channel Audio Input
	Audio Output	1 Channel RCA Audio Output
	Record	sound and video synchronized recording
	Video resolution	1080N/720P /960H/D1/CIF
Expansion Interface	Storage	Support  SD Card up to 128G, support 2 SD cardsupport update via SD card and wireless network
	Alarm Input	4-level input<4V Low level alarm, >4V high level alarm
	Alarm output	2-level output, 5V and 12V output
	Serial interface	1 RS232 & 2 RS485
Software	PC playback	analyze the car information when the video playback on PC
I/O	0-4V	Low voltage alarm
	>4V	High voltage alarm
Key singal	>5V	key on
	<4V	key off
Power	Power input	DC12V ~ 36V
	Power Output	DC12V 3A
	Power consumption	about 20W
Common	Size	165x115x41mm
	Weight	1.3kg
	Operating Temperature	-25 degree~ +65 degree

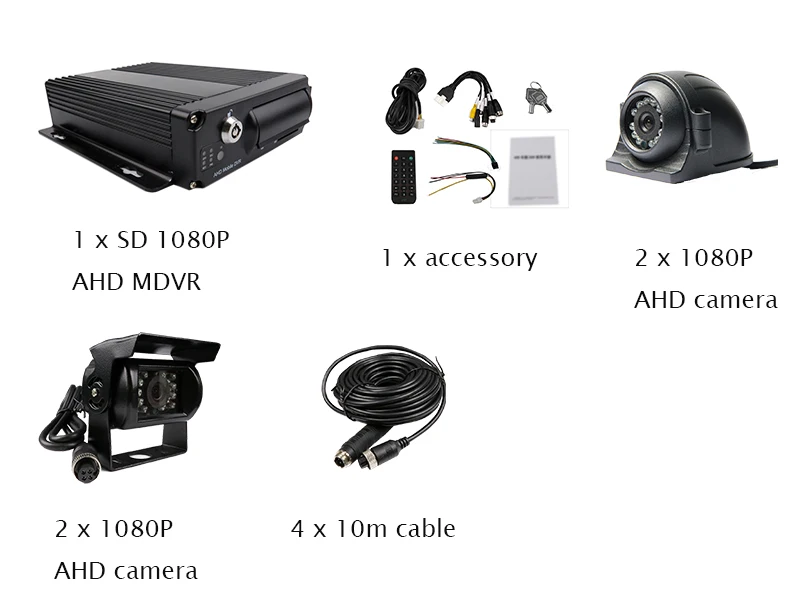

Package









---

---
