Blue Elephant 4 Axis Wood CNC Router ELE1325 VFD4.5KW with Japan Limit Switch 1325 | Инструменты

---

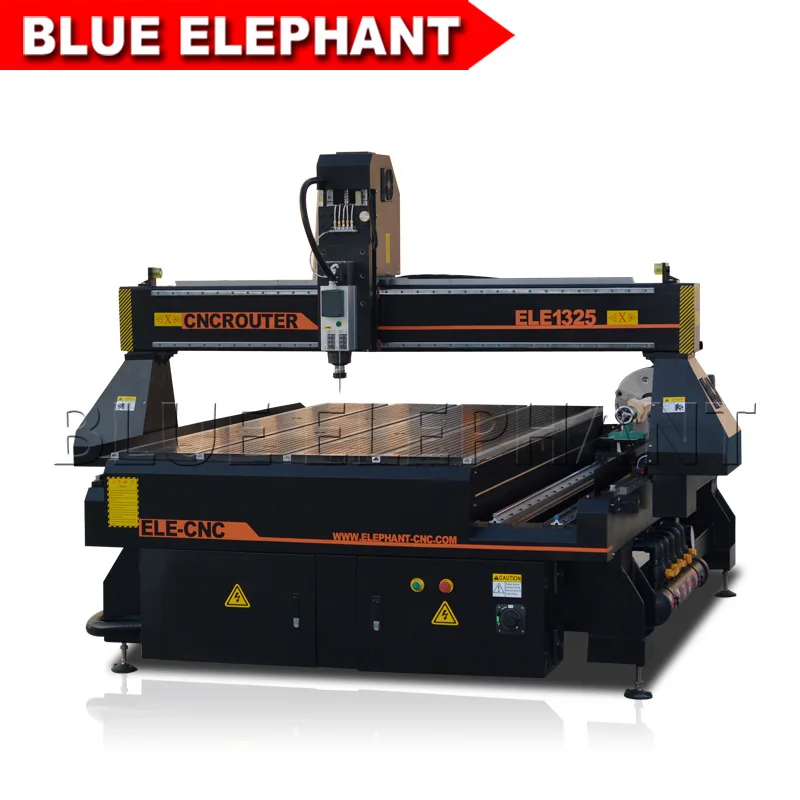

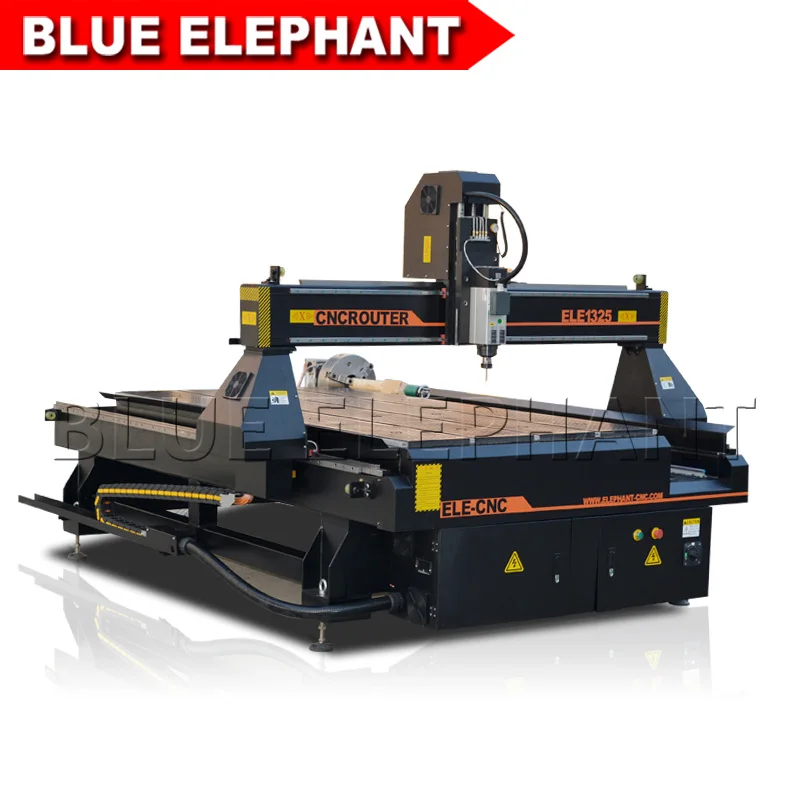

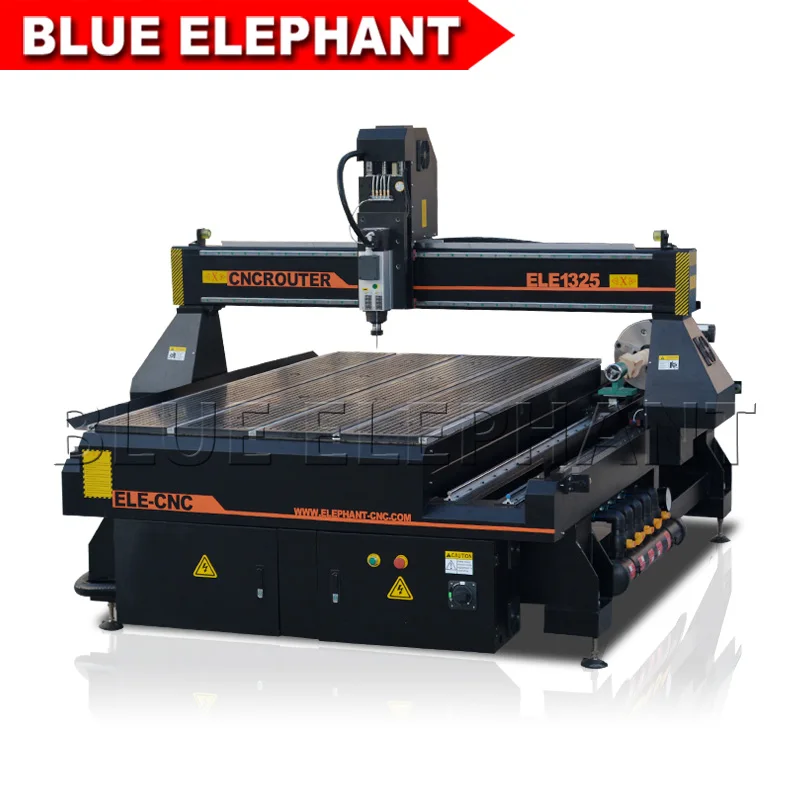

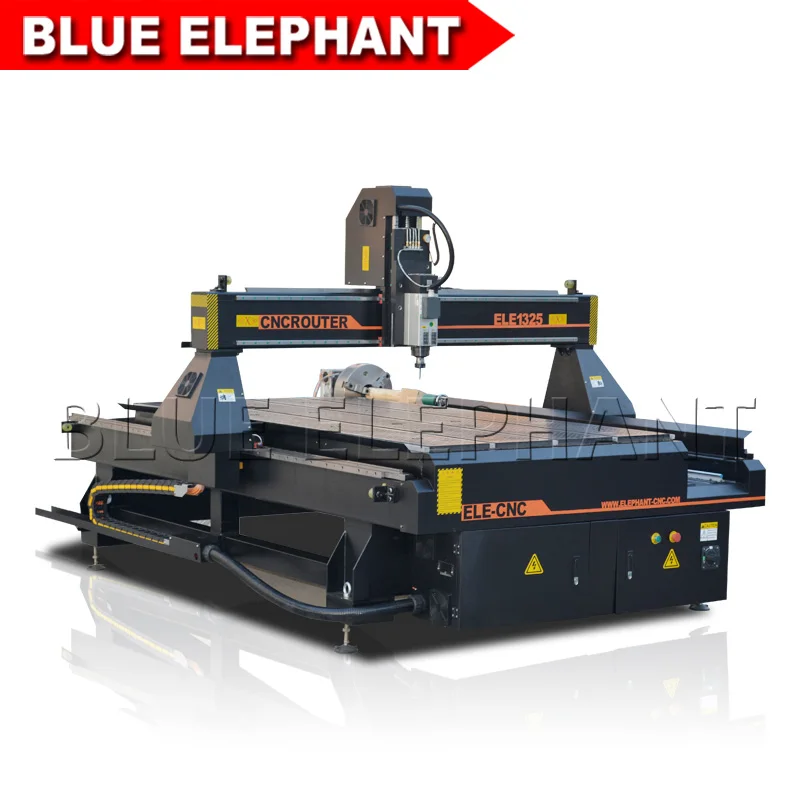

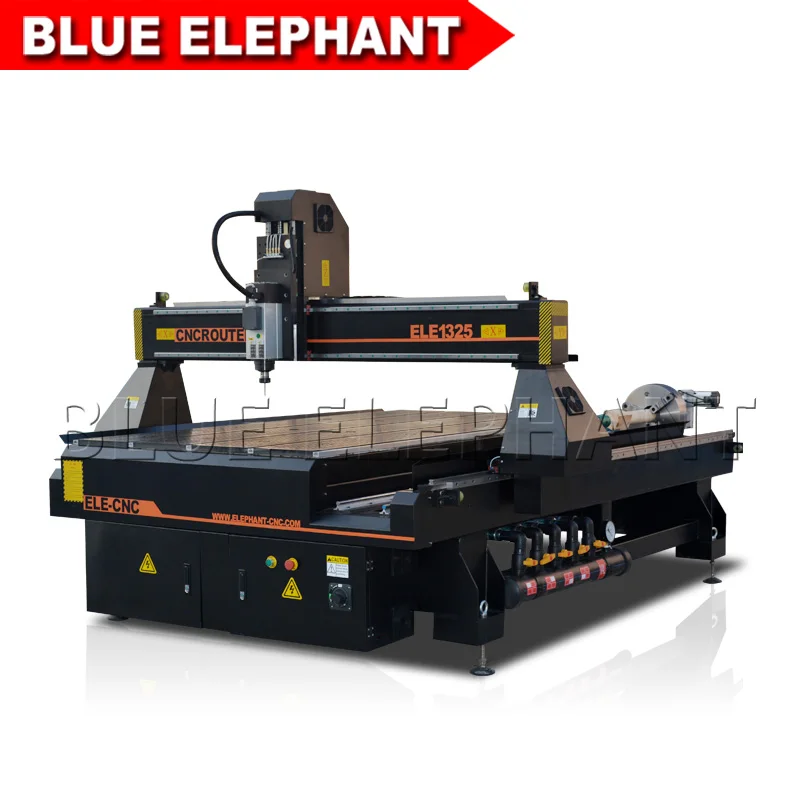

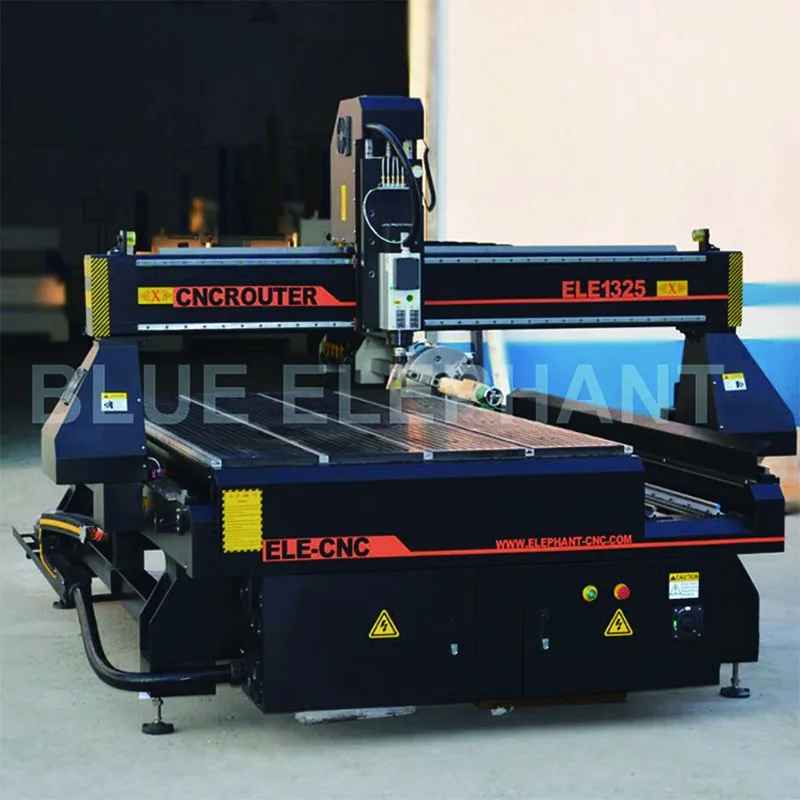

Blue Elephant 4 Axis Wood CNC Router ELE1325 VFD4.5KW with Japan Limit Switch CNC 1325

Manual tool change cnc router with rotary configuration

#  1300*2500*200mm working area

#  3kw Italy HSD air cooling spindle (18000RPM）

#   10~12mm Heavy duty Body

#   # 20 Sweden ABBA Square Rail on X, Y axis

#   Helical rack on X, Y axis and Germany Ball Screw on Z axis

#   Stepper motor FL118 and YAKO2811 big driver

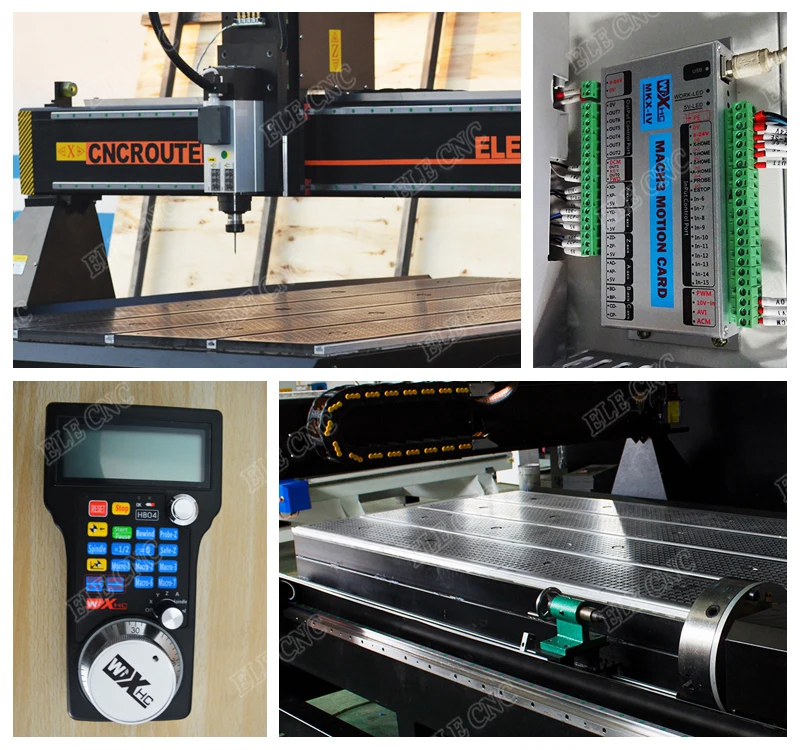

#   Mach3 control system for 4 axis

#   Manual Lubrication system

#   Japan Omron limisted switch

#   Franch SCHNERDER switch

#   High soft shield with copper wire to protect against static electricity

#   300mm diameter length rotary

What will our Routers cut?

MDF, plywood, hardwood, melamine laminate, Solid Surface materials, foam core, corrugated plastic, aluminium, di-bond and soft metals.

How thick can cut?

The thickness of the material is all down to the tooling. The machine has a gantry height of 200mm and we can produce different Z axis height according to your special request.

Warranty:

1. 12 months guarantee of the whole machine and all parts, we will provide the consumable parts at an agency price when you need replacement.

2, Lifetime tech support
