CE standard JNLINK laser cutter LXJ1530-H on sale

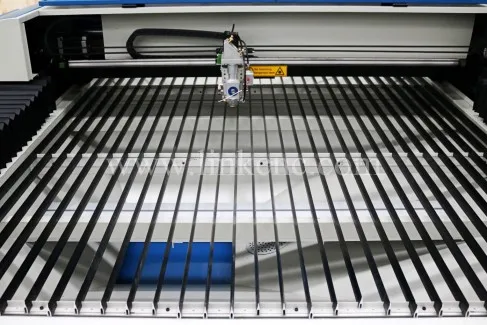

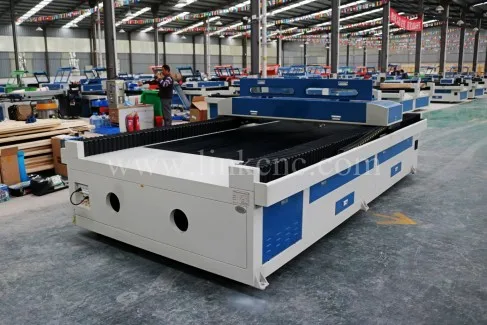

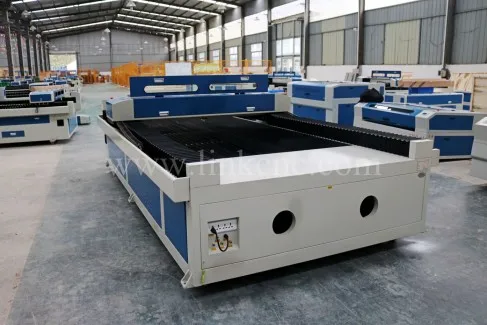

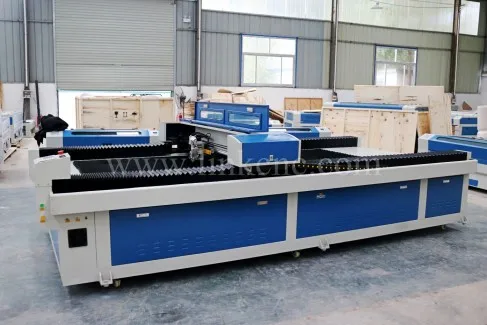

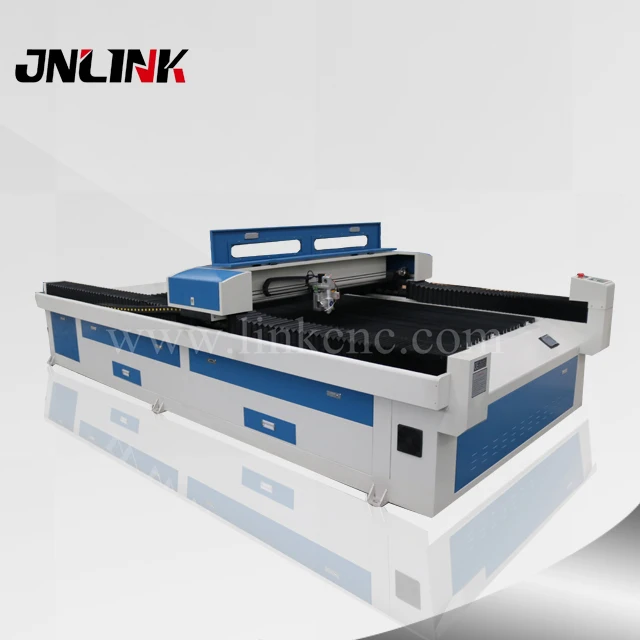

Laser machine shows







Product Description



Laser machine feature



 1.  It can cut metal about 0-3mm,and thicker nonmetal material. Extensive material processing, smooth

       cutting edge and burr-free, avoid polishing, Processing high speed, high precision,  less waste, high

       efficiency.

 2.  Suitable for large and medium-sized enterprises in the mass production, and also suitable for small

      enterprises and individual processing., High stability and precision.

 3.  With CE and ISO certificate,Adopt Beijing Reci laser tube,one of the best brand in china market

 4.  Own designe team to make special designe for your material,Operational speed, laser energy real-time

       tunable, and very easy for customers to operate




Laser machine parameter



Name:	LXJ1530-H
Processing area	1500mm*3000mm
Laser power	Beijing Reci  W6(130-160W)
Laser type:	Co2 laser tube
Software:	metal cut
Machine Dimension:	4150*2100*1080mm
Engraving speed	1000mm/s
Cutting speed	500mm/s
Cutting thickness	determined by materials
Position	4000DPI
Position system:	Red dot
Interface:	USB
Resolution Accuracy:	±0.1mm
Support graphic format	DST, PLT, BMP, DXF
Gross power	1000W
Driving mode:	DC0.8A 24V stepper motor
Cooling mode:	Circulation water cooling
Working voltage:	AC220V/50HZ or 110V/60HZ or depend on customer
Operating temperature	0-45C
Operating humidity:	5-95%
Packing:	wooden box
Guarantee time:	2 year
With:	Rotary attachment for column materials







Laser machine  application





 • Application materials   :Wood,bamboo,marble,acrylic,plastic,cloth,rubber,

                                            glass,paper,leather,ceramics,and other nonmetal material



• Application industries :  Advertising industry,gift,leather,toy,mold,computer,

                                            embroidery,construction industry,paper packing industry

                                            and so on.







Laser machine cutting thickness





Max cutting thickness/power	W6  (130-160W)	W8  (150-180W)	280W	300W
Acrylic	20mm	25mm	30mm	30mm
Plywood	15mm	20mm	20mm	20mm
MDF	13mm	20mm	20mm	20mm
Carton steel	1.8mm	2.5mm	3mm	3mm
Stainless steel	1.5mm	2mm	2.5mm	2.5mm







Laser machine parts

















Product advantages























Please attention : rotary,cranberry glass,up-down worktable and air cleaner are optional parts!









Samples show



Laser machine sample and feedback



sample: mental and nonmental













feedback: from the customers













Our Services





1. 2 years quality guaranty, the machine with main parts(excluding the consumables) shall be

    changed free of charge when if there is any problem during the warranty period.

2. Lifetime maintenance free of charge.

3. Free training course at our plant.

4. We will provide the consumable parts at an agency price when you need replacement.

5. 18 hours on line service each day, free technical support.

6. Machine has been adjusted before delivery , operation disk and manual was included. If there is

    also any questions, pls kindly tell me
