OriPure 4Ply SSH Loaded Prewired Guitar Pickguard Strat Brown Tortoise Set Alnico 5 Humbucker Pickups For Electric | Спорт и

Feature:

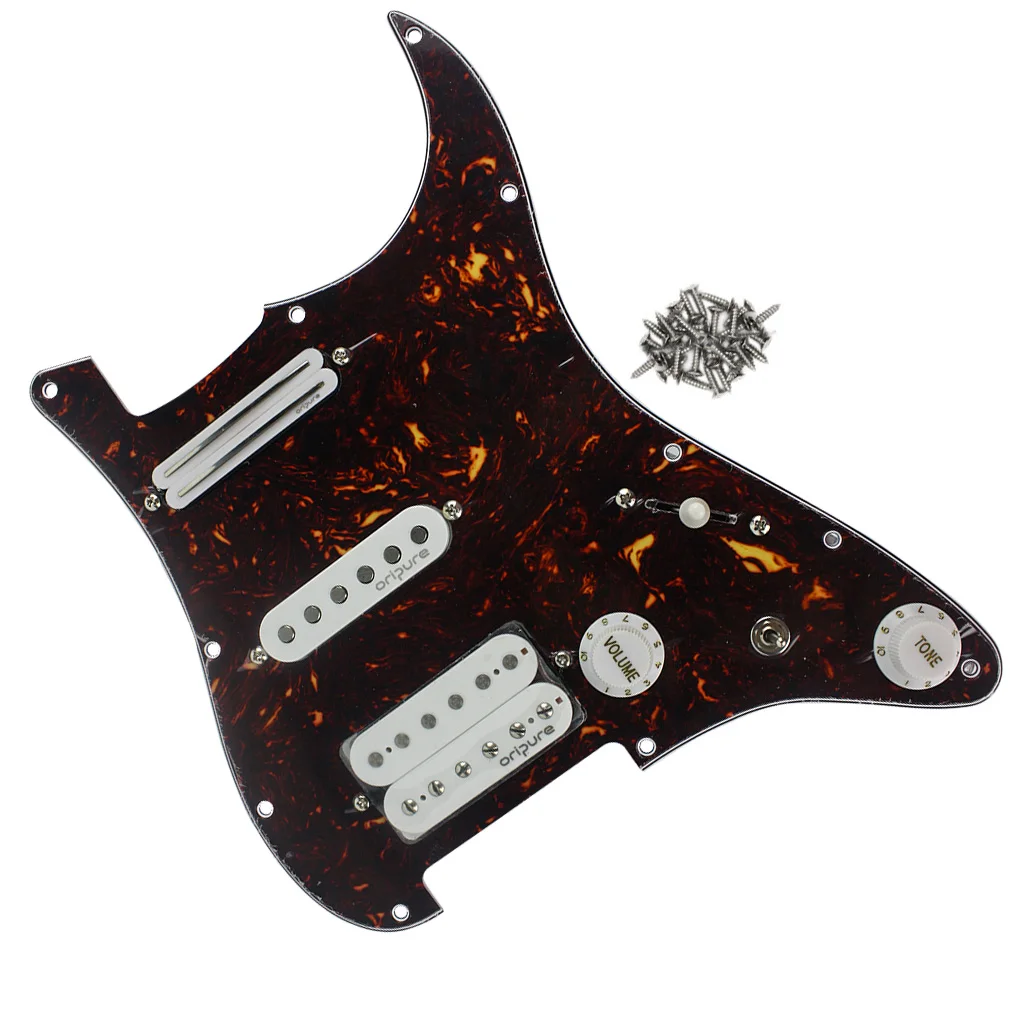

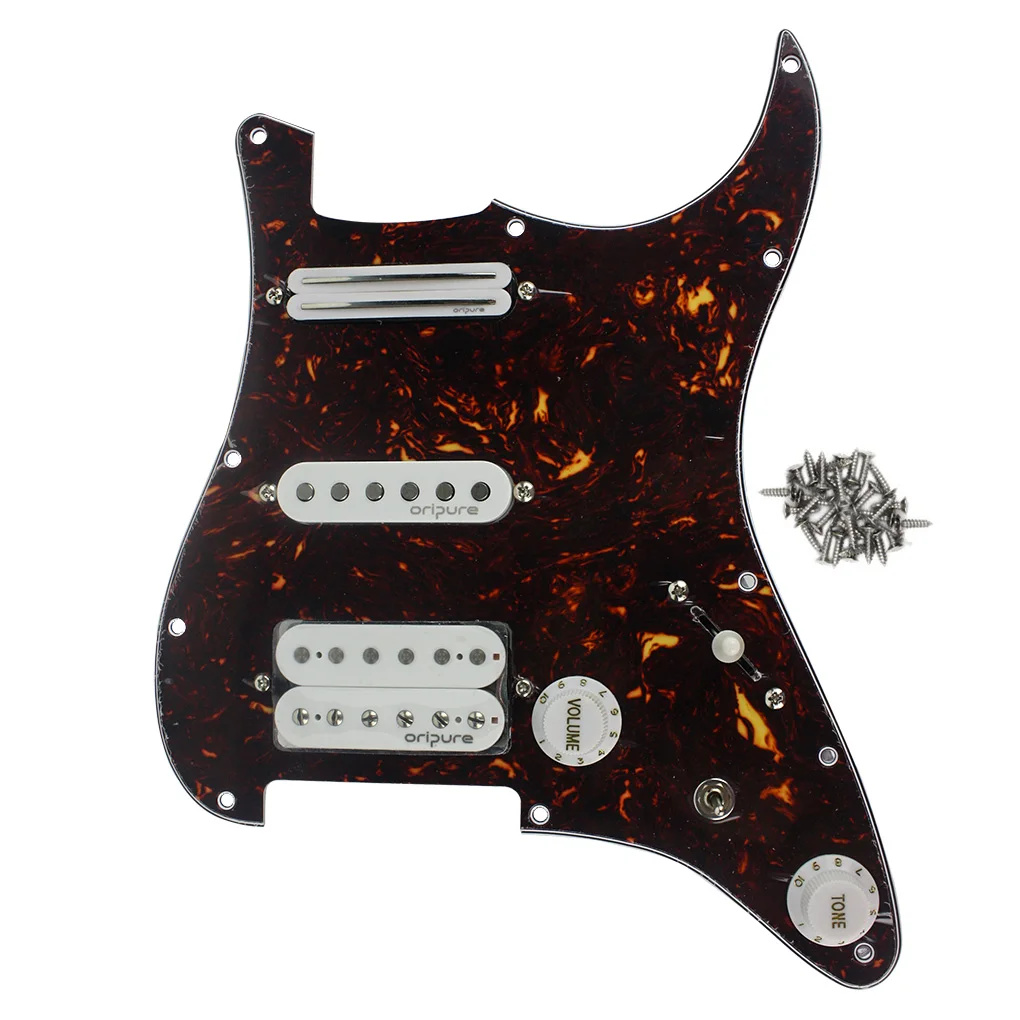

• Item: A Set Loaded Prewired SSH Guitar Pickguard & Screws.

• Fit for Amercian Standard FD Strat Style Guitar Parts Replacement.

• 11 holes SSH pickguard comes with full set of pickups,switch,knobs and prewired circuit.

• 3 White Color OriPure Alnico 5 pickups:Neck Dual Rail Humbucker Pickup/Middle Single Coil Pickup/ Bridge Double Coil Humbucker Pickup.

• Using Korean Alpha 500K big potentiometer,long life,reduce noise.

• 1 volume and 1 tone control knobs white with golden number.

• 5-way pickup selector toggle switch and 2-way mini switch can better be switched to single.

• Using Braided fiber cable connect,better reduce circuit noise.

• All you have to do is solder the input jack and your ready to play.

Specification:

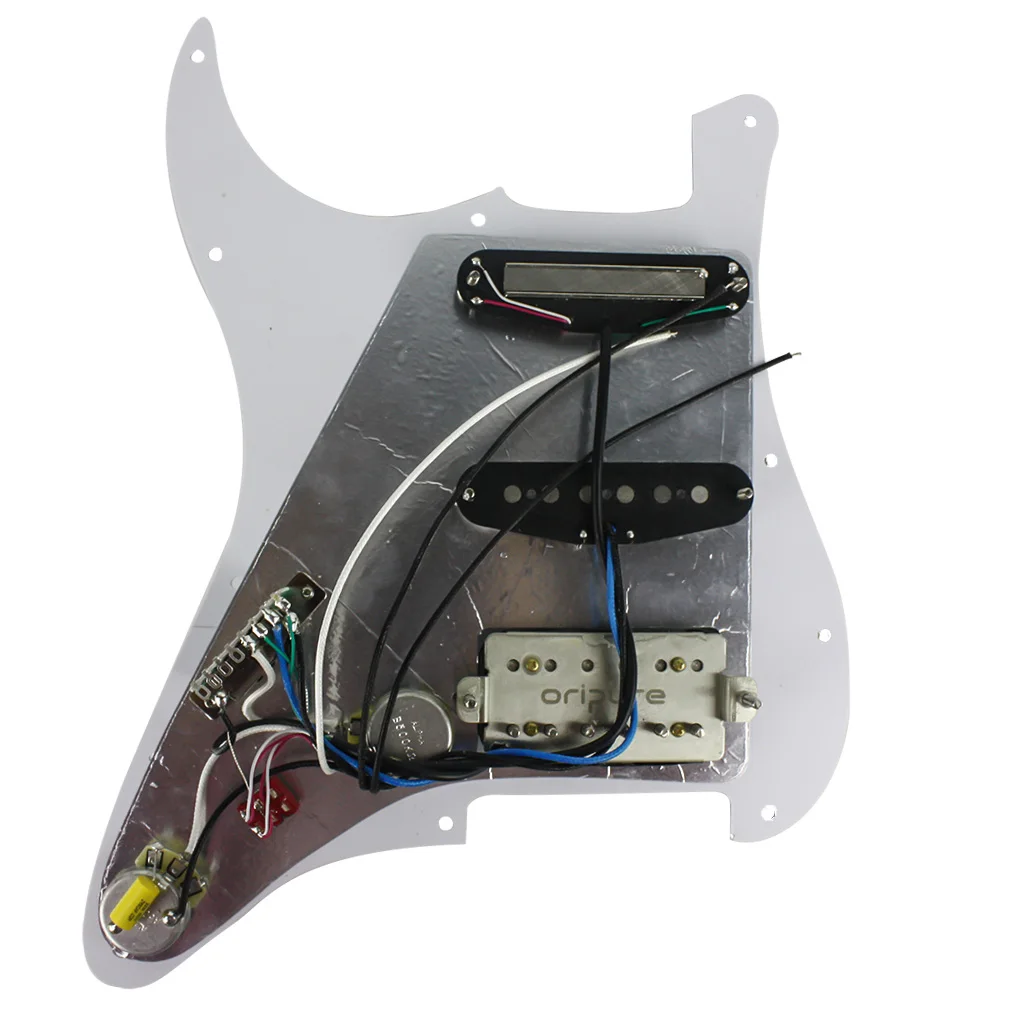

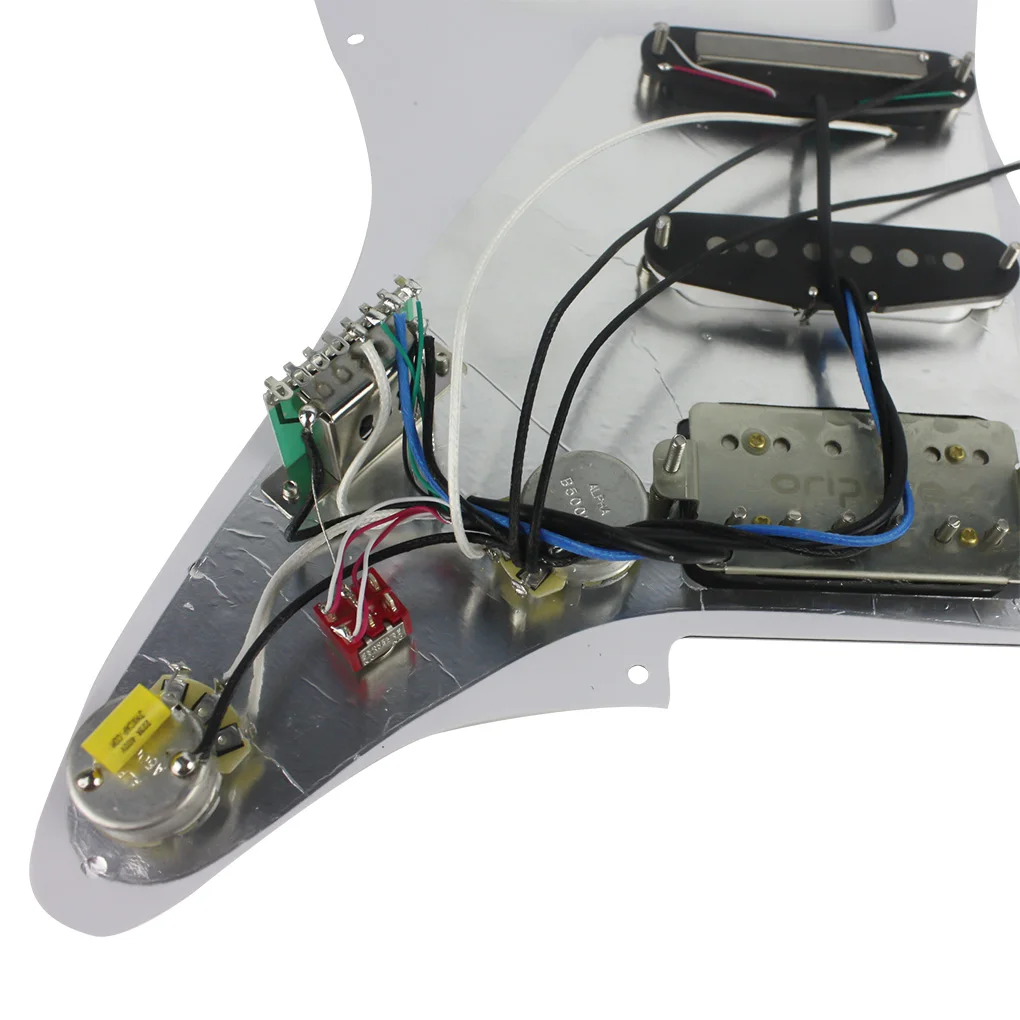

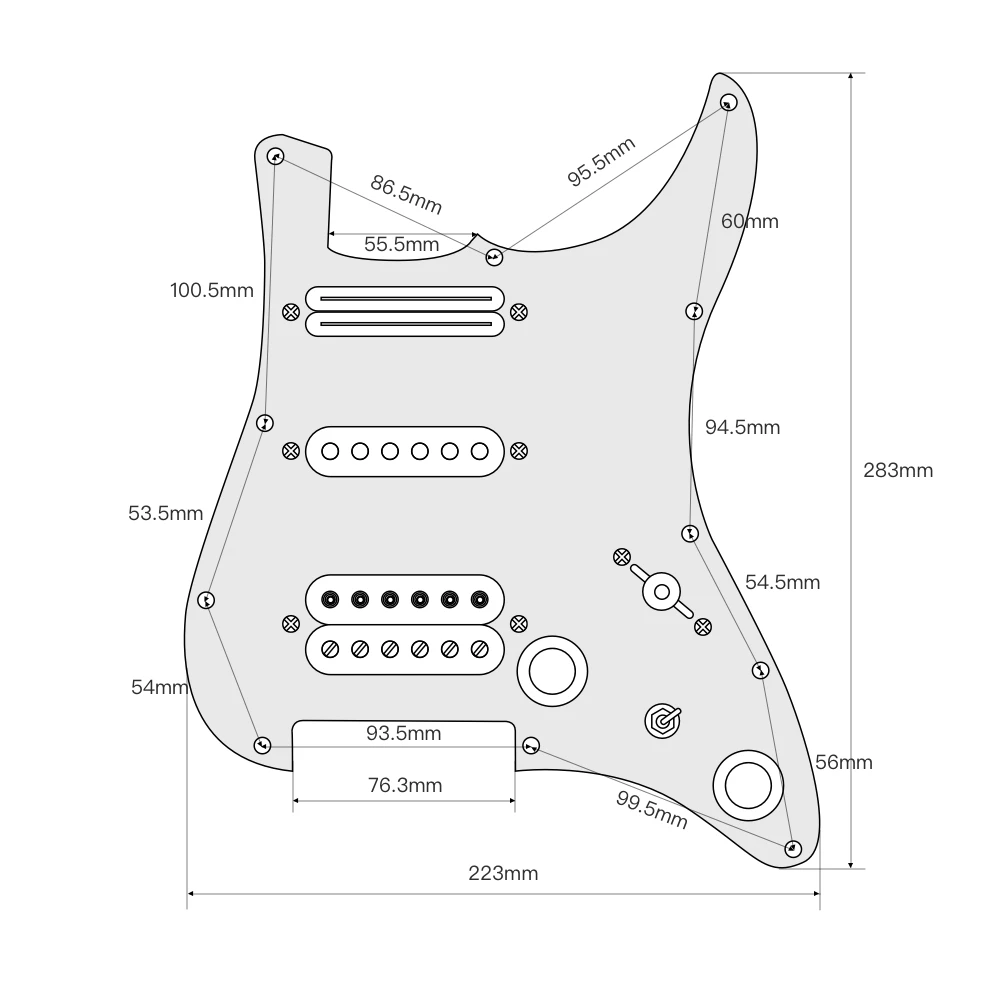

• Pickguard:4Ply Brown Tortoise,11 Holes SSH Guitar Pickguard,with pure aluminum foil shielded in the back side and protective film on the top.

• Neck Position:Dual Rail Pickup,Alnico 5 Magnet,Resistance:10-11k ohm.

• Middle Position:Single-Coil Pickup,Alnico 5 Magnet,Flat Fixed Pole Pieces,Pole Spacing 52mm,Resistance: 5.8k ohm.

• Bridge Position:Double Coil Humbucker Pickup,Alnico 5 Magnet,6 Fixed & 6 Adjust Pole Pieces,Pole Spacing 52mm,Resistance: 13.6-14k ohm .

• Knob&Pots: 1T1V Knobs,Korean Alpha Pots,A500k Pots for Tone,B500k Pot for Volume.

• 5-Way Pickup Selector Toggle Switch with White Cap.

• 2-Way Mini Switch on-on (2A 250V,5A 120V).

• Capacitor:223K 400V.

Note: The aluminum foil shield on backside is not flat; it is with some creases and patches caused during the processing.

Package Includes:

• 1 * Prewired Pickguard Set

• 1 * Screws Bag
