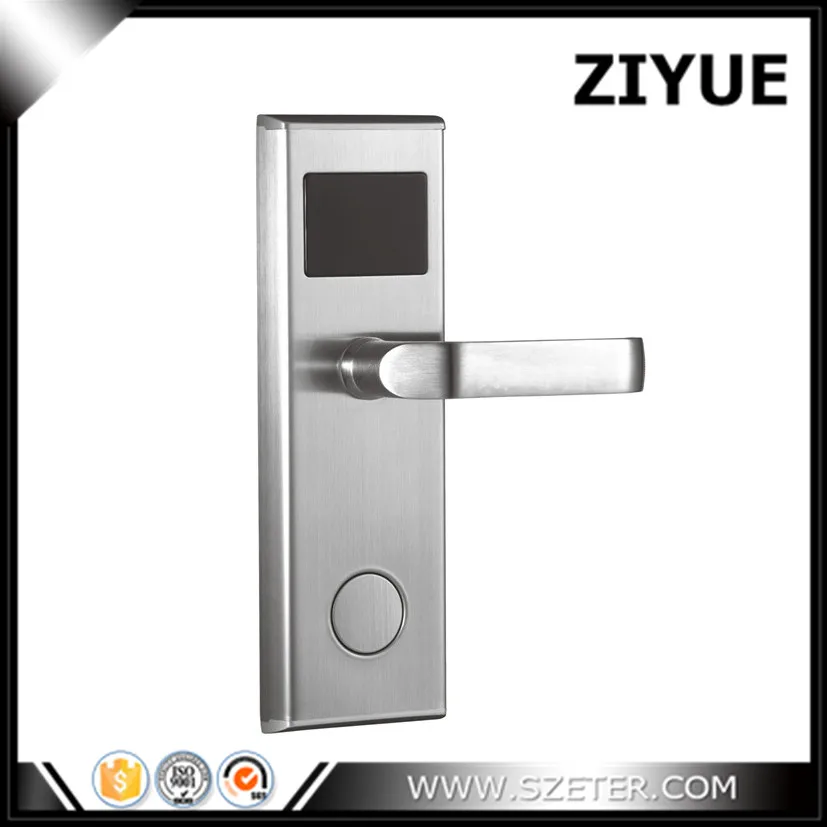

 Professional Digital Electronic Promotion  Electronic Hotel Card Reader Door Lock   ET100RF-G









 Specification

1. Induction operating frequency: 125 KHz or 13.56MHz options
2. Applicable card: T5557 or M1 Card(T5557 Card default)
3. Voltage: 4pcs, 1.5V alkaline batteries
4. Alarm Voltage: <4.8 V
5. Static power consumption: <10 microamps
6. Dynamic power consumption: <200 microamps
7. Temperature: -20 °C  to 60 °C
8. Humidity: <95 °C
9. Antistatic:> 15.000 V, it still ensures the information not lost and stable work under the condition of strong static interference
10.  Memory: 992 Transactions include Time/Date/Card ID/Card type/Room ID
11. 1 Gold/Silver Color

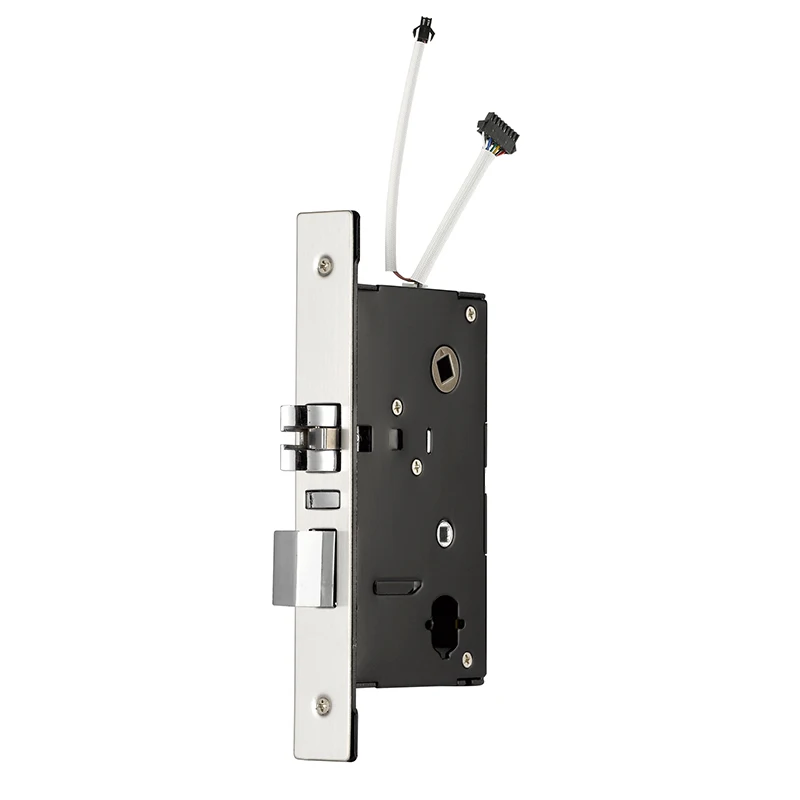

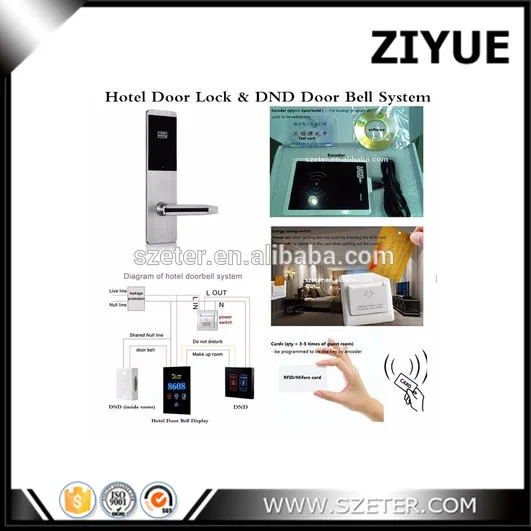

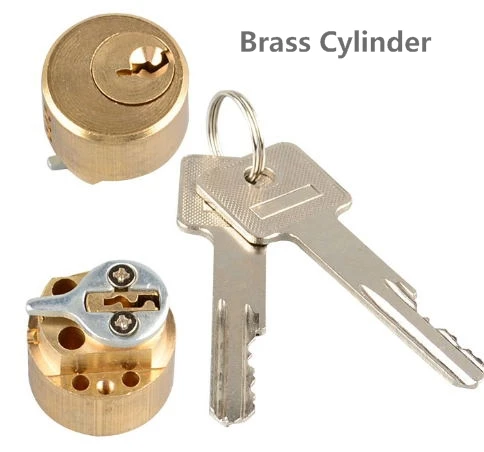

    Hotel Lock System Advantages: 1. Anti- rust and anti-corrosion(Stainless steel/Zina alloy/Brass material optional) 2. Famous brand chips--Atmel or Philips,sufficiently stable, lock can use for 20 years  3. ANSI standard 5 latches lock body ensure security, anti-strike 4. Data collector can download lock records, eg. when,who use which key open lock 5. 4pcs AA batteries can use about 10-12 months 6. Working clock is setted inside locks to control the effective time limit of card keys.  eg. if set check out time 11:00AM, pass 11:00AM, guest card can not open door lock 7.Two unlock ways: RFID card or mechanical key  (Master mechanical key optional)    CARD USEAGE  1. Guest card: Issued from reception to open its own room with expiring date 2. Master card: Hold by management or GM or manager to access all rooms of hotel with deadbolt opening 3. Floor card: Hold by clean staff to enter the rooms in one floor. 4. Building card: Hold by manager to enter the rooms in one building 5. Lost card: Used to suspend the lost guest card 6. Emergency card: Enter the all rooms when emergency     RFID Hotel Door Lock System Composition: 1.RF Door Lock (qty = guest room)---------installed in doors 2.Encoder (qty=1-2pcs/hotel ) --------------For issuing/ program all cards to be unlock key 3.Energy-saving Switch (qty = guest room)---To control power,saving power for you. 4.Cards (qty = 3-5 times of guest room)-----be programmed to be the key by encoder 5.Data collector  (1pc/hotel, Optional)------Download unlock records(Who/When open) from lock 6.Software,English language(free)----For control and management the whole system.SDK support (For other language sofware, you can translate it to be your language 7.Hotel DND Door bell System (Options), Logo or room number printing on panel is free for bulk order!       Door open direction needed when you place order:







---

---
