gigabit mini fiber switch FTTH fibra optica media converter SC optic to RJ45 UTP 3KM |

Наличие: На складе




Boliy Store

Информация о магазине

Стаж работы магазина Boliy Store можно посмотреть на странице заказа товара.

*Внимание! Точную цену на данный товар Вы можете узнать непосредственно у продавца! На 27.04.2026 стоимость указанная на данной странице уже могла измениться! * Узнать цену *


Please note:

1. Default without US Standard power adapter; UK, AU, EU, BR standards as request.

2. This item is for 3KM distance, we also have 20KM. If you need please click here

3.If you prefer other shipping methods, welcome to contact  by clicking here

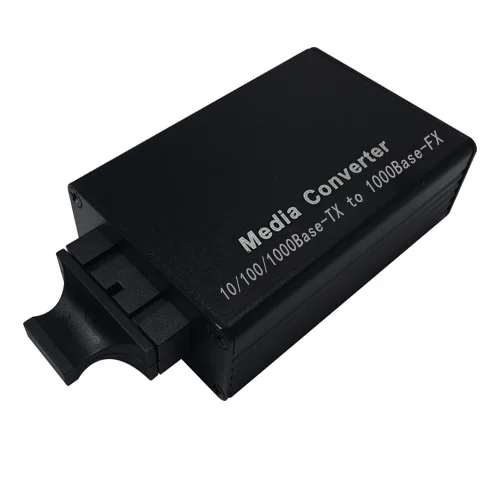

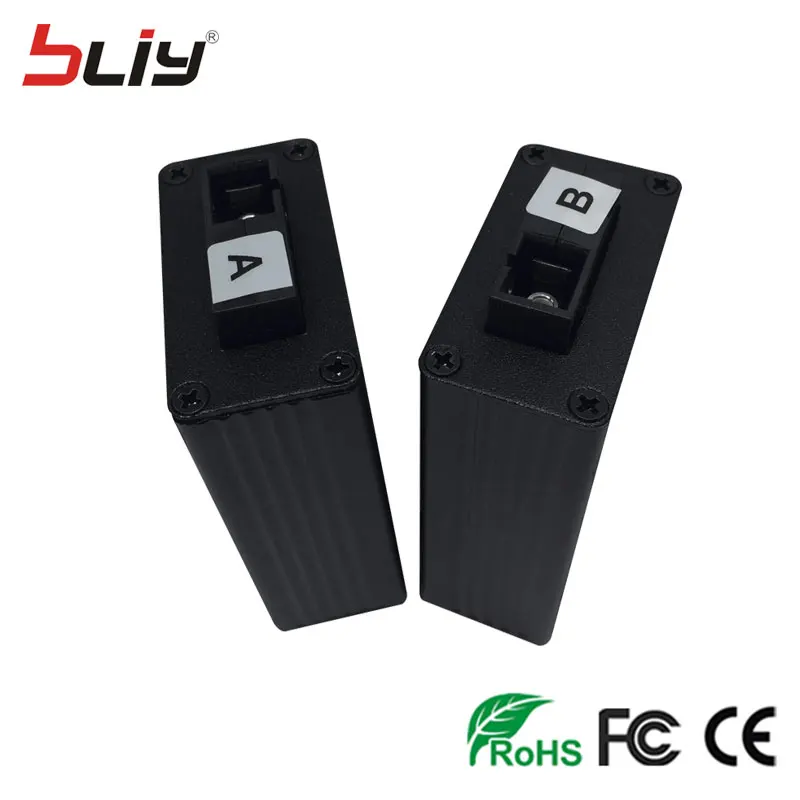

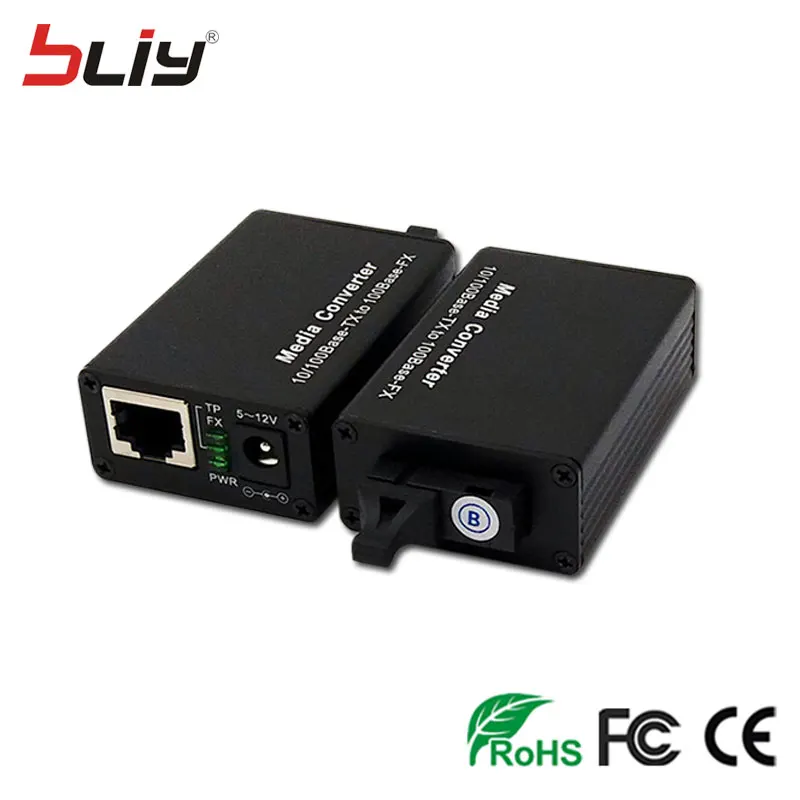

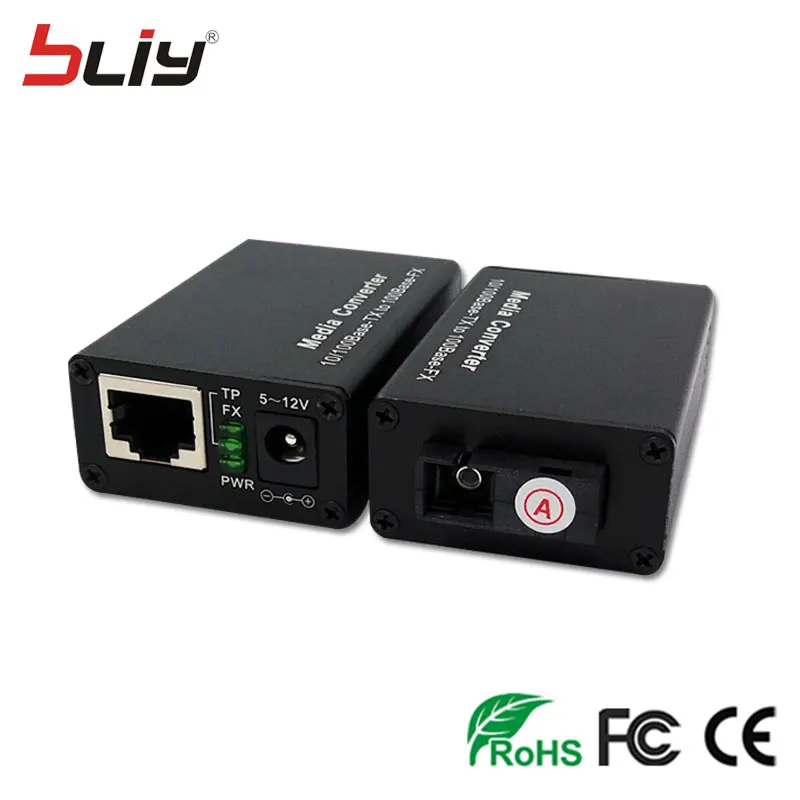

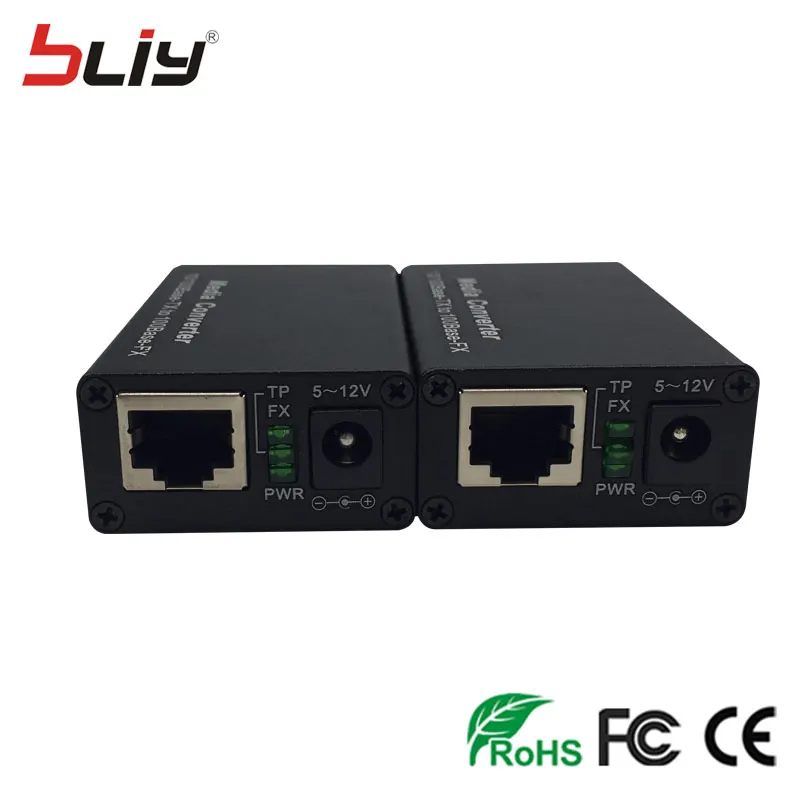

gigabit mini fiber switch FTTH fibra optica media converter SC fiber optic to RJ45 UTP switch fibra 3KM



The Media Converter is a 10/100/1000Mbps adaptive gigabit Ethernet Media Converter. It have one 10/100/1000Mbps UTP port and one 1.25Gbps fiber ports. It extends the transmission distance of a network from 100m via copper cables to 120km. It can extend the transmission distance, and also with many other advantages such as isolation protection, good data security, working stable and easy to maintain.

Specifications:

  Standards

IEEE802.3 10Base-T

IEEE802.3u 100Base-TX/FX

IEEE802.3ab 1000Base-T

IEEE802.3z 10GBase-SX/LX

IEEE802.3x Flow control

IEEE802.1q VLAN

IEEE802.1p QoS

IEEE802.1d Spanning Tree

Ethernet Port

Ø  Connector: RJ45

Ø  Data Rate: 10/100/1000M

Ø  Distance: 0~100m

Ø  UTP Type: UTP-5E or higher level

Fiber Port

Ø  Connector: SC slot

Ø  Data Rate: 1.25G

Ø  Optical Wavelength: 850nm/1310nm/1490nm/1550nm

Ø  Distance: 0m~3KM

Performance

Ø  Processing Type: Store and Forward

Ø  Maximum Packet Length: 9K bytes

Ø  MAC Table Size: 2K

Ø  Buffer Space: 1Mbit

Ø  Time Delay: <20μs

Power

Ø  Input Voltage: AC100V~240V  50/60Hz

Ø  Connector: DC Socket

Ø  Working Voltage: 5VDC

Ø  Power Consumption: 0.75W~3W

Environment

Ø  Storage Temperature: -40~70℃

Ø  Operating Temperature: -10~55℃

Ø  Relative Humidity: 5-95% ( no condensation)

Physical Characteristics

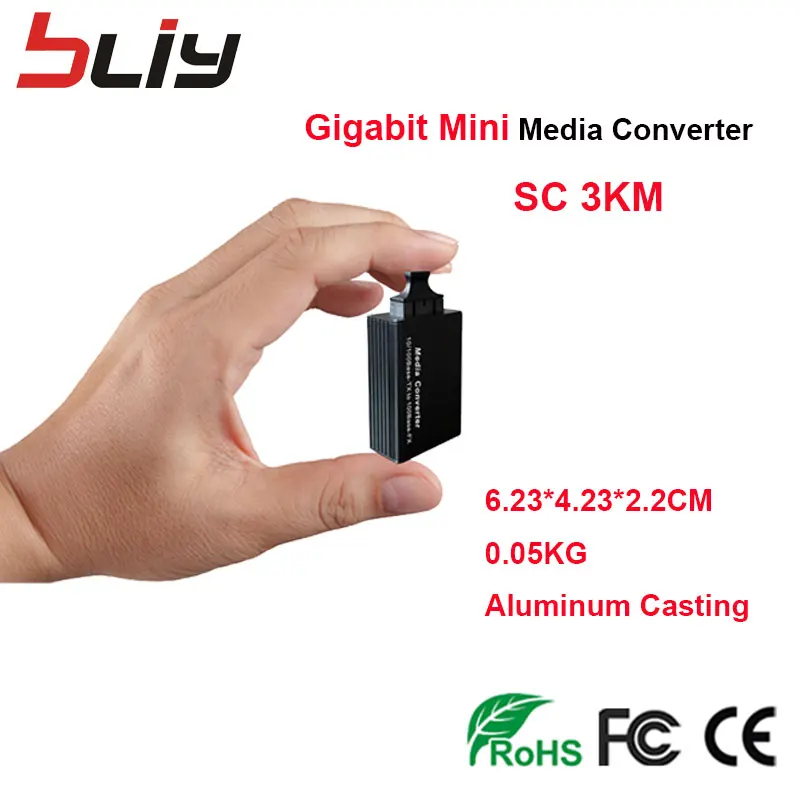

Ø  Dimension: 62.3×42.3×22mm

Ø  Weight: 0.1kg

Ø  Color: Metal, Black



Features:

1 )1×1000Base-SX to 1×10/100/1000Base-T Port

2 )RJ45 support auto MDI/MDI-X function

3 )Auto-negotiation speed, half/full-duplex

4 )Each port has the complete LED Indicator light

5 )Support IEEE802.1d Spanning Tree

6 ) Supports high performance QoS function on each port

7 ) Flow control fully supported

8 ) Support broadcast storm protection

9 ) Wide-range redundant power design ( 4.5~20VDC )

10 ) 1×9 fixed fiber module or SFP slot optional

11 ) Support max forwarding packet length 9K bytes option

12 ) Requires no configuration and will instantly operate as soon as you power it up

13 ) Small volume

14 ) Low power consumption

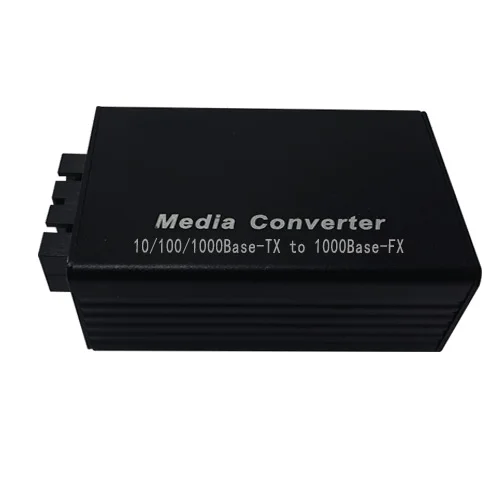

mini G



Dimension:



001



Application:



002

Related Products

Company Profile


Our Certificate


Product Process

_15.jpg All products are custom-made,tell us your custom requirements by CLICKING HERE!!!

shipping&payment

_16.jpg   Tell us your requirement about the Shipping by CLICKING HERE, so that we can provide solution to save your budget and meet your need!

FAQ

FAQ

Q1. Are you a factory or trading company?

We are a professional manufacturer since 2012. There are various mature products in our production line.

Q2. Can I get some samples to test the quality?

We welcome sample orders to test quality for new customers. Contact us to talk about details please.

Q3. What’s the Payment?

There are different payment methods to choose in trade assurance orders. We also accept PayPal. You can tell us what you prefer and we can arrange accordingly.

Q4. How do you control quality?

Quality is a priority. We test each product carefully before sending out. We have very strict quality control process to ensure good quality.

Q5. What about your after-sales service?

1-year warranty for commercial switches, and 5-years warranty for industrial switches. If there is any problem or question about your order, we will follow up and solve the problem promptly.

Q6. Can you do ODM and OEM?

Yes, we can support ODM and OEM projects. You can choose neutral products, products with BLIY brand or customize products with your own logo. Packing can be also customized when the MOQ is OK.
