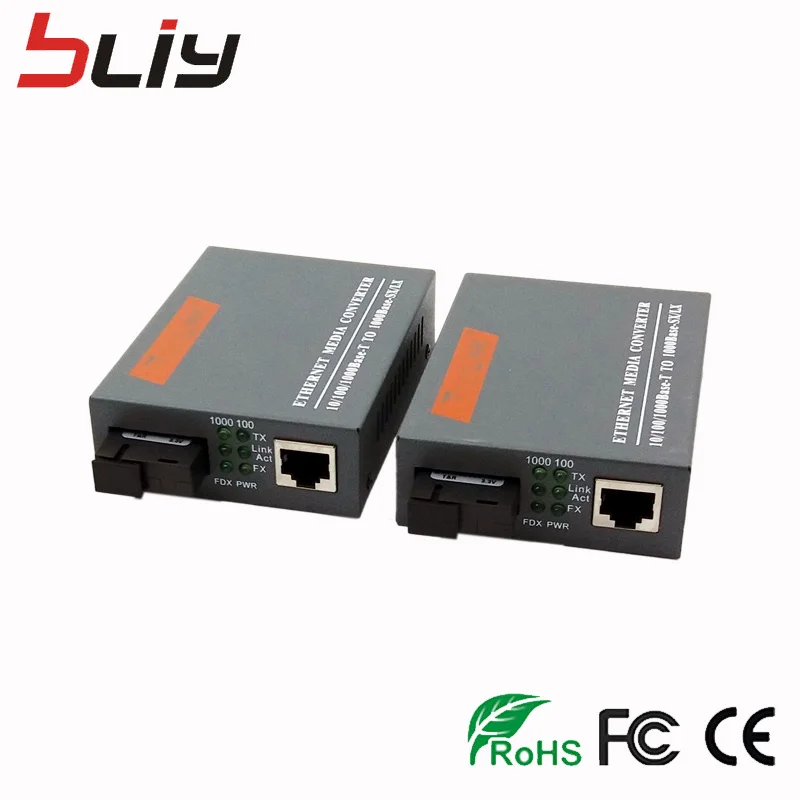

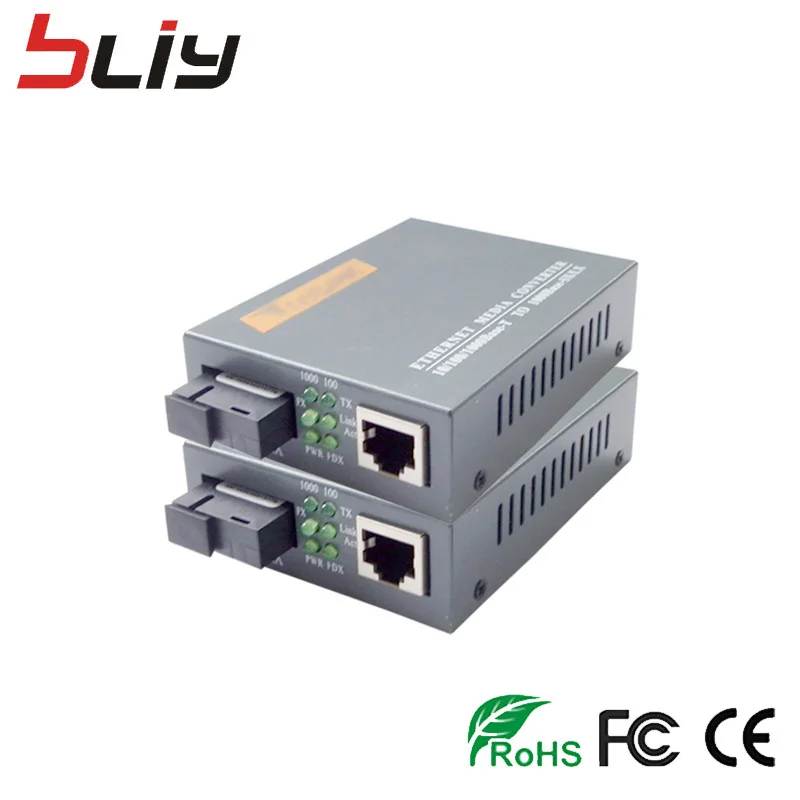

Free Shipping Fibra Optica Transceiver FTTH optic fiber Media converter 1000M Conversor de Fibra 1 pair



Please note: 1. Please leave us a message with your order about which power adapter you need. We have UK, US, AU, EU, BR standards for you to choose! Or you can contact us by  clicking here .  2. If you prefer other shipping methods, welcome to contact us by   clicking here .

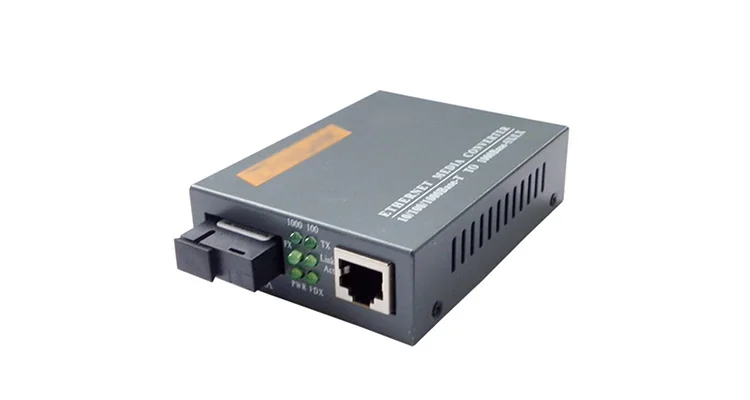

The BLY-1G1E is a 10/100/1000Mbps adaptive gigabit Ethernet Fiber Switch. It has one 10/100/1000Mbps Ethernet port and one 1.25Gbps fiber port. It extends the transmission distance from 100m to 120km via copper cables. There are also many other advantages such as isolation protection, good data security, working stability and easy maintenance.

 Specifications:

Standards	IEEE802.3 10Base-T IEEE802.3u 100Base-TX/FX IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-SX/LX	IEEE802.3x Flow control IEEE802.1p QoS IEEE802.1d Spanning Tree IEEE802.1q VLAN
Certifications	CCC, CE, FCC, RoHS
Ethernet Port	Ø  Connector: RJ45 Ø  Data Rate: 10/100/1000M Ø  Distance: 2km Ø  UTP Type: UTP-5E or higher level
Fiber Port	Ø  Connector: SC/FC/ST/SFP slot Ø  Data Rate: 1.25Gbps Ø  Distance: 3km
Performance	Ø  Processing Type: Store and Forward Ø  MAC Table Size: 2K Ø  Buffer Space: 1Mbit Ø  Maximum packet length: 9K Ø  Back bandwidth: 4G Ø  Time Delay: <20μs

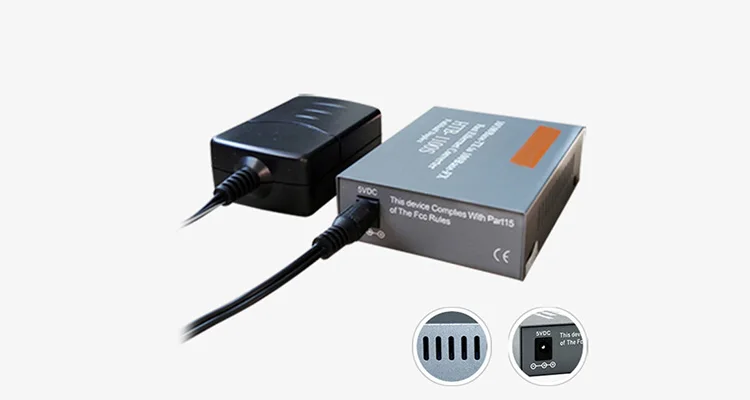

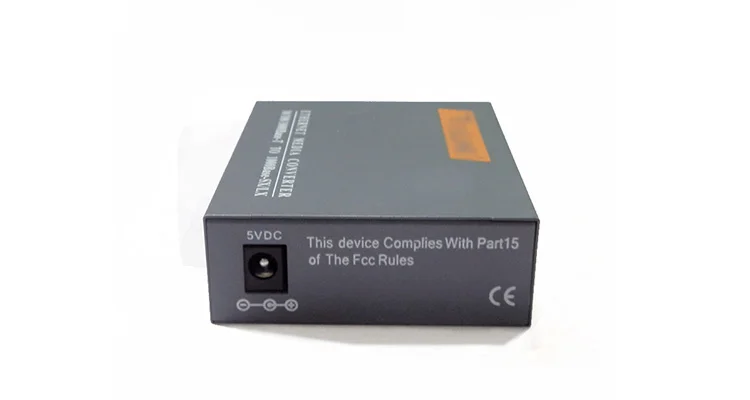

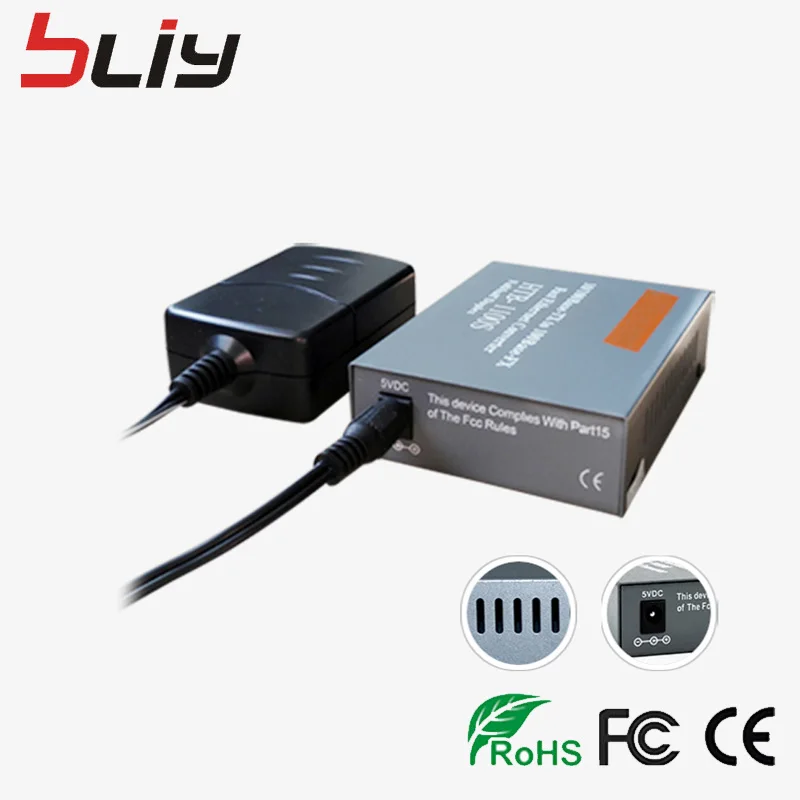

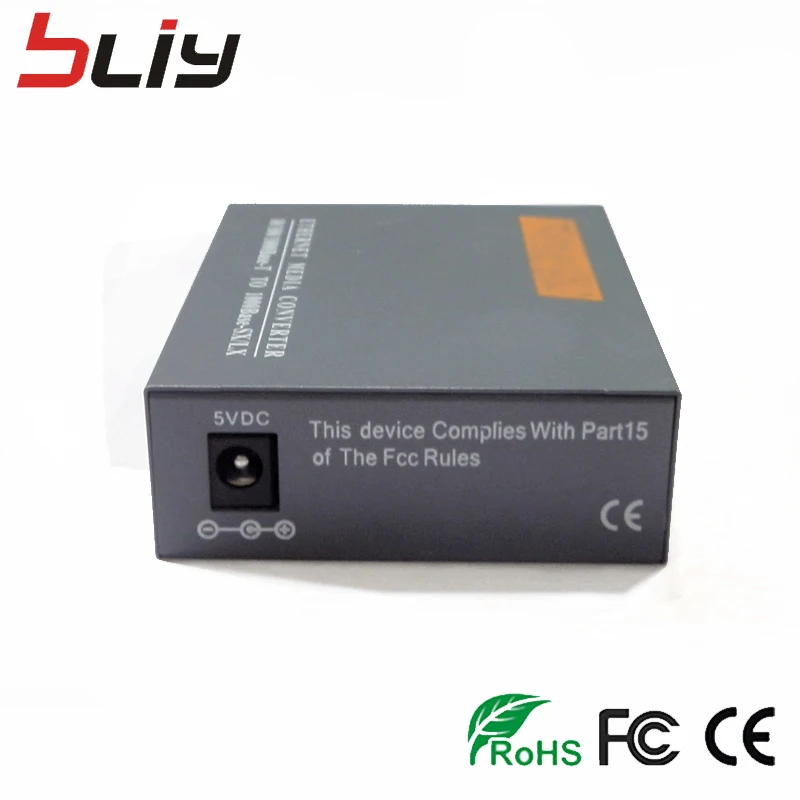

Power	Ø  Power type: external power supply Ø  Input Voltage: AC100V~240V  50/60Hz Ø  Connector: DC Socket Ø  Working Voltage: 5V Ø  Power Consumption: 0.75W~3W
Environment	Ø  Storage Temperature: -40~70℃ Ø  Operating Temperature: -10~55℃ Ø  Relative Humidity: 5-95% ( no condensation)
Warranty	1  year

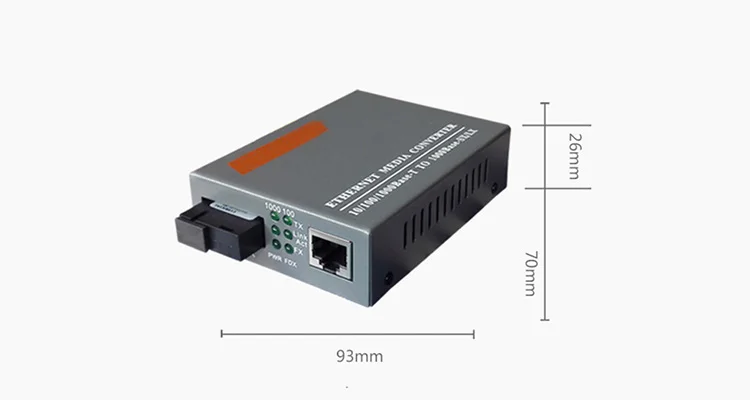

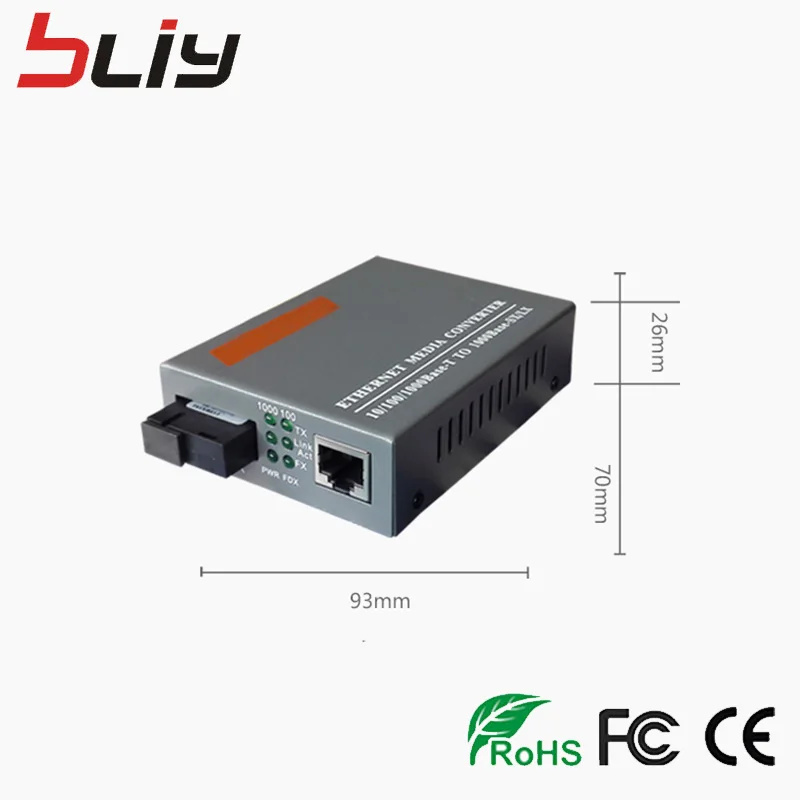

Physical Characteristics	Ø  Dimension: 93×70×26mm(external),140×110×29mm(internal) Ø  Weight: 0.35kg(internal),0.35kg(external) Ø  Color: Metal, Black



Features:

Ø  Support the switch between 10/100/1000Base-T and 1000Base-SX/LX

Ø  1*1.25Gbps full duplex fiber port, 1*10/100/1000M adaptive Ethernet port

Ø  Support 10/100/1000M rate, support MDI/MDI-X adaptive, support full/half duplex adaptive

Ø  Each port has the complete LED Indicator light

Ø  Support IEEE802.1d Spanning Tree

Ø  Support high performance QoS function on each port

Ø  1*9 fixed fiber module or SFP slot optional

Ø  Support 9K bytes Jumbo Packet

Ø  Low time delay, data isolation function

Ø  Require no configuration and will instantly operate as soon as you power it up

Ø  Small volume

Ø  Low power consumption chip with heat sink built in to ensure longtime efficient operation.
