PUZHIJIE HDMI fiber optic extender supports 1080P transmission distance upto 20KM

Description:

The HDMI Fiber optic extender provides extension of HDMI signals long distances over one fiber optic cable, it supports high resolution up to 1080P and IR transmission. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.



Feature:

1. HDMI 1.3 and HDCP 1.2 version;

2. Transmits HDMI video and audio signals up to 20km over singlemode fiber optic cable;

3.Support video resolution up to 1080P@60Hz;

4. Support IR signal transmission;

5. High compatibility, can auto-match source and display device;

6. Built-in automatic adjustment system, make the image smooth, clear and stable;

 7.Built-in ESD protection system.



Specification:

Parameter		Description
Video	Standards	HDMI 1.3; HDCP 1.2
	Maximum pixel clock	165MHz
	Maximum data rate	6.75Gbps
	Resolution range	Up to 1080P@60Hz
	Connector	Female HDMI type A
	Impedance	100Ω
Infrared	Interface	3.5mm earphone seat
	Signal type	Digital
	Transmission direction	Unidirectional
	Carrier frequency	38kHz
Optical fiber	Interface	FC/ SC connector
	Fiber type	Single Mode
	Wavelength	1310nm, 1510nm
	Interface bandwidth	6.25Gbps
	Transmission distance	Standard 20km, maximum 80km
Other	Power supply	The power adapter: DC 5V/2A
	Power dissipation	MAX 5W
	Temperature	Operating: -5℃ ~ +70℃
	Humidity	Operating: 5% ~ 90%
	Dimension	109*78*26mm
	The warranty	1 year free warranty

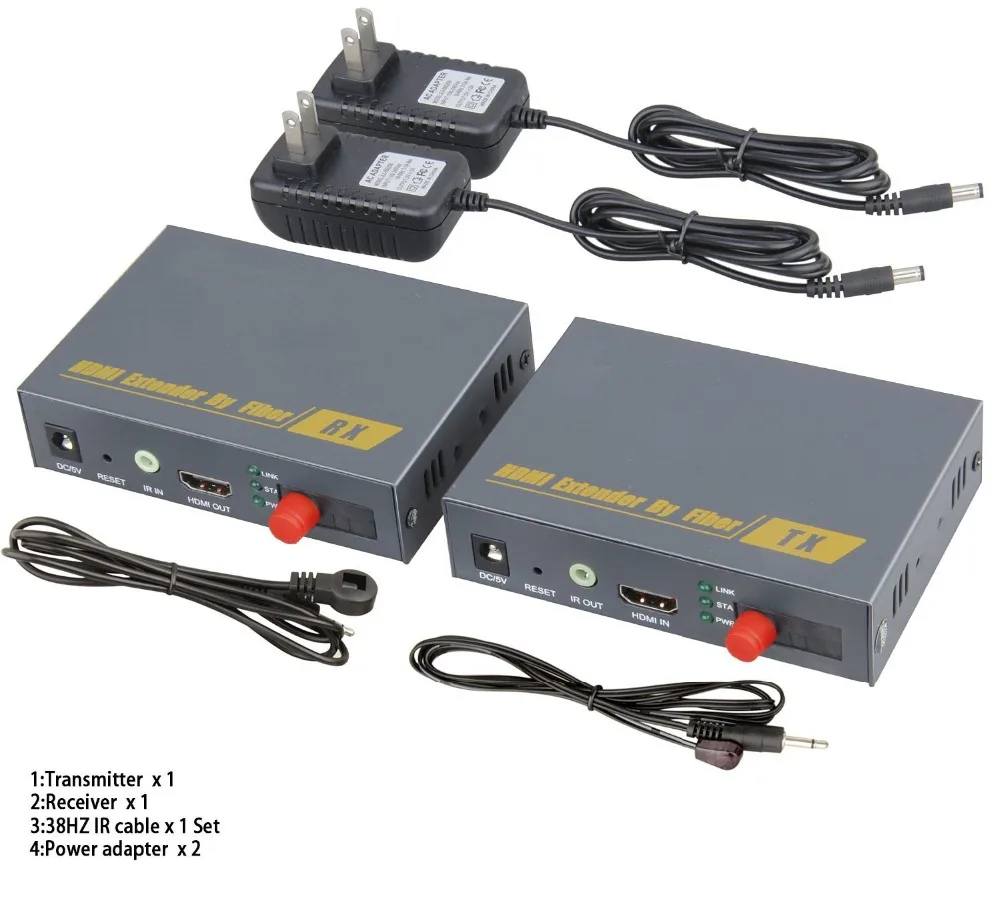

Package content:



HDMI fiber optic transmitter ……..…. 1 pcs

HDMI fiber optic receiver………….…... 1 pcs

TX/RX terminal……………………..…………1 set

Power adapter………………………………..2 pcs

User manual................................................1pcs

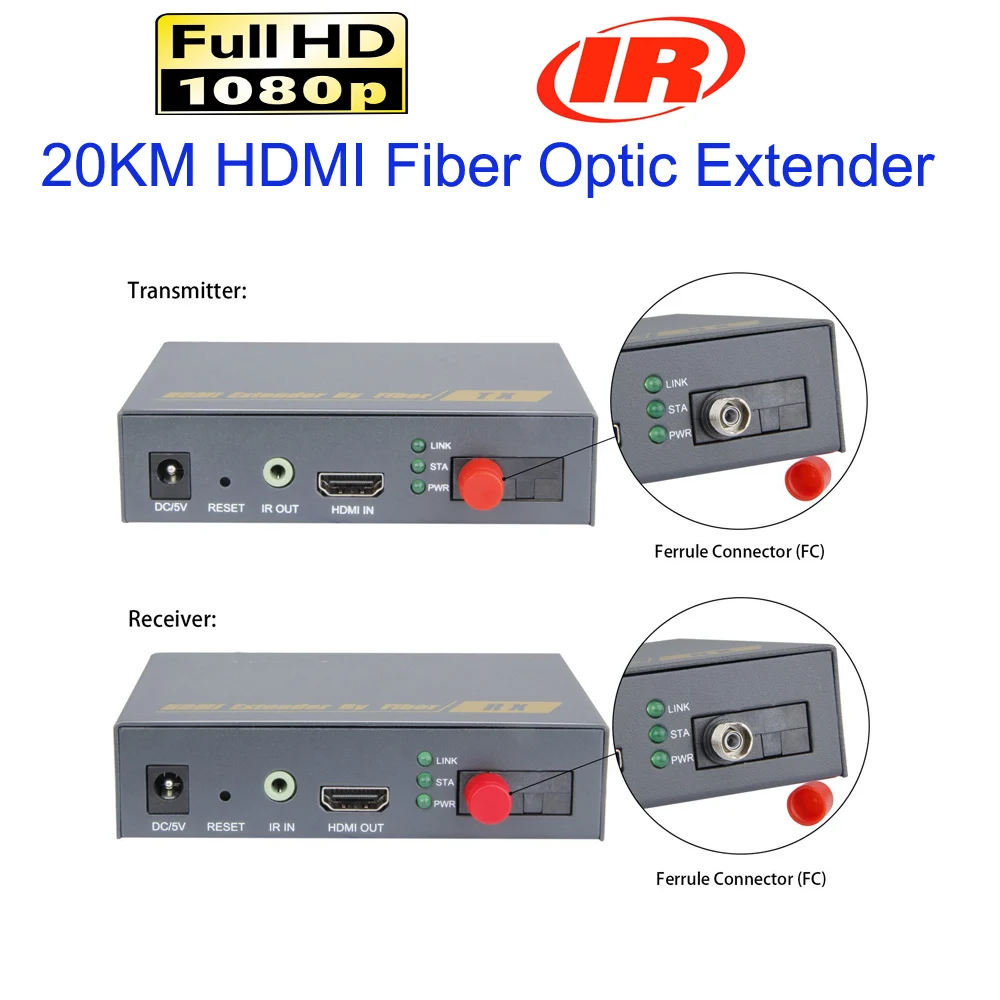

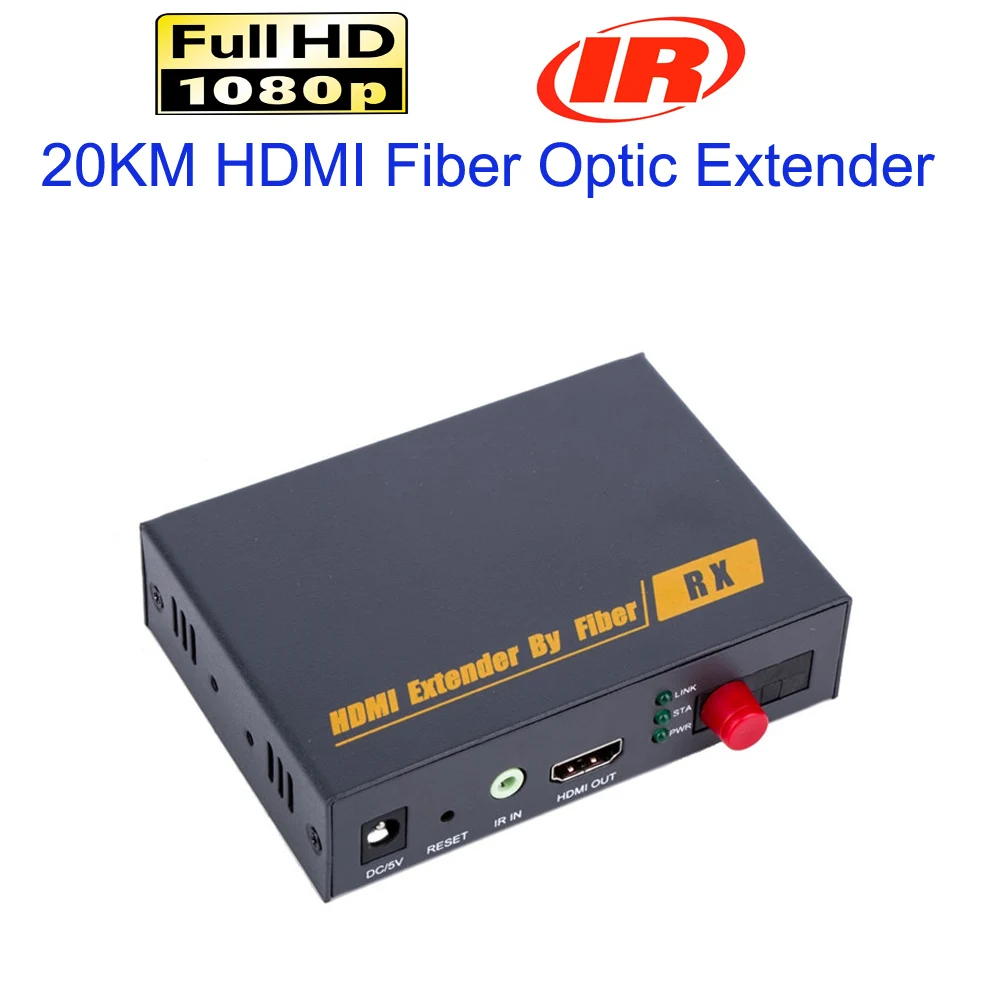

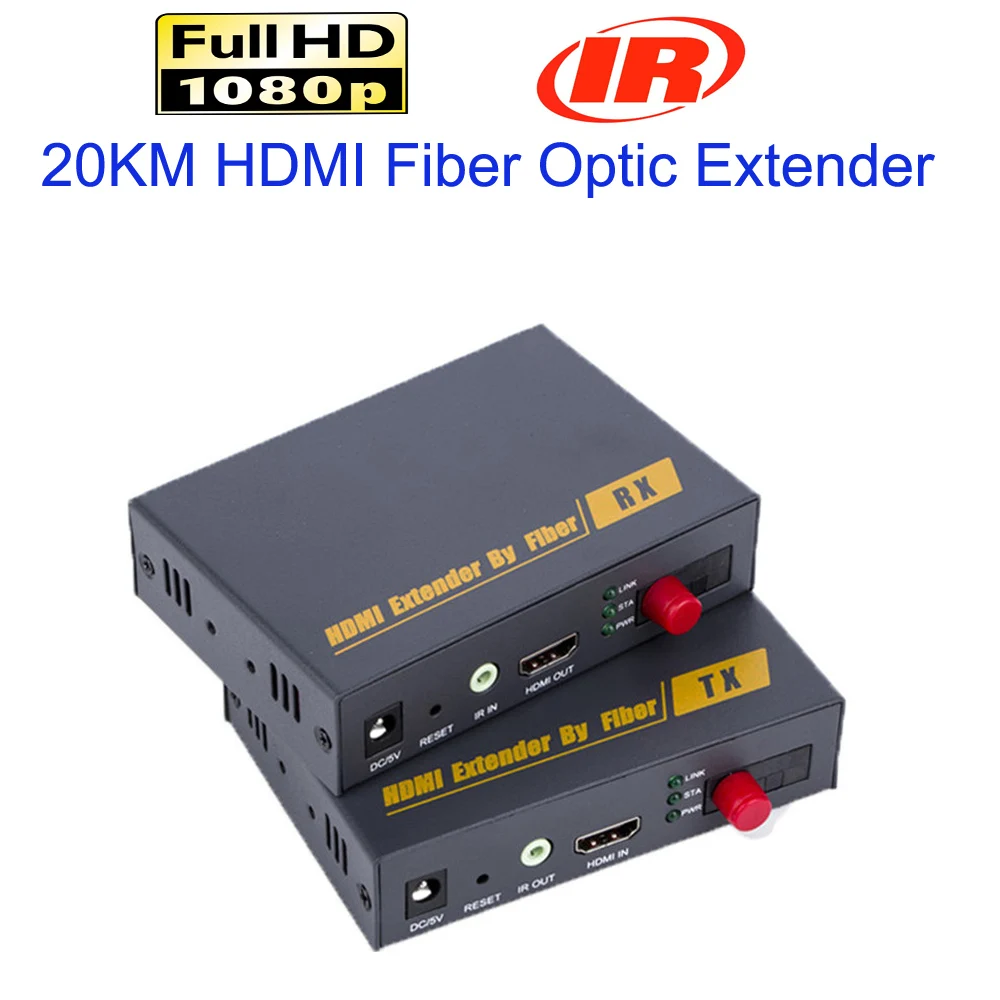

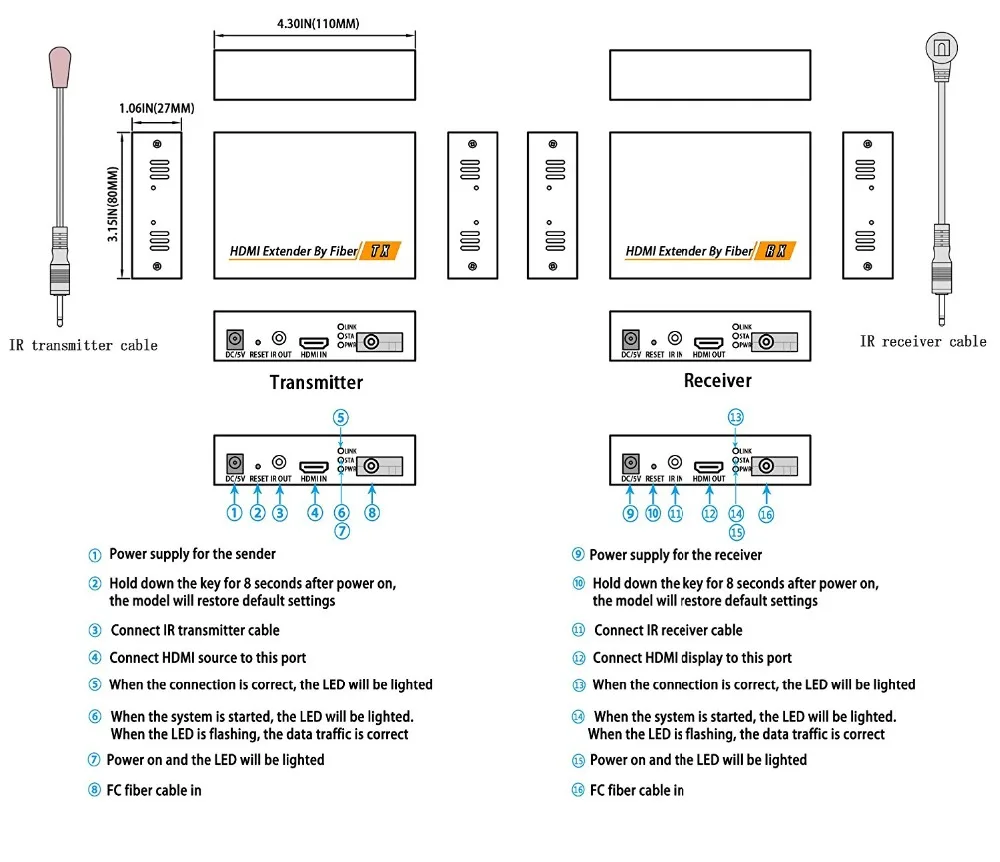

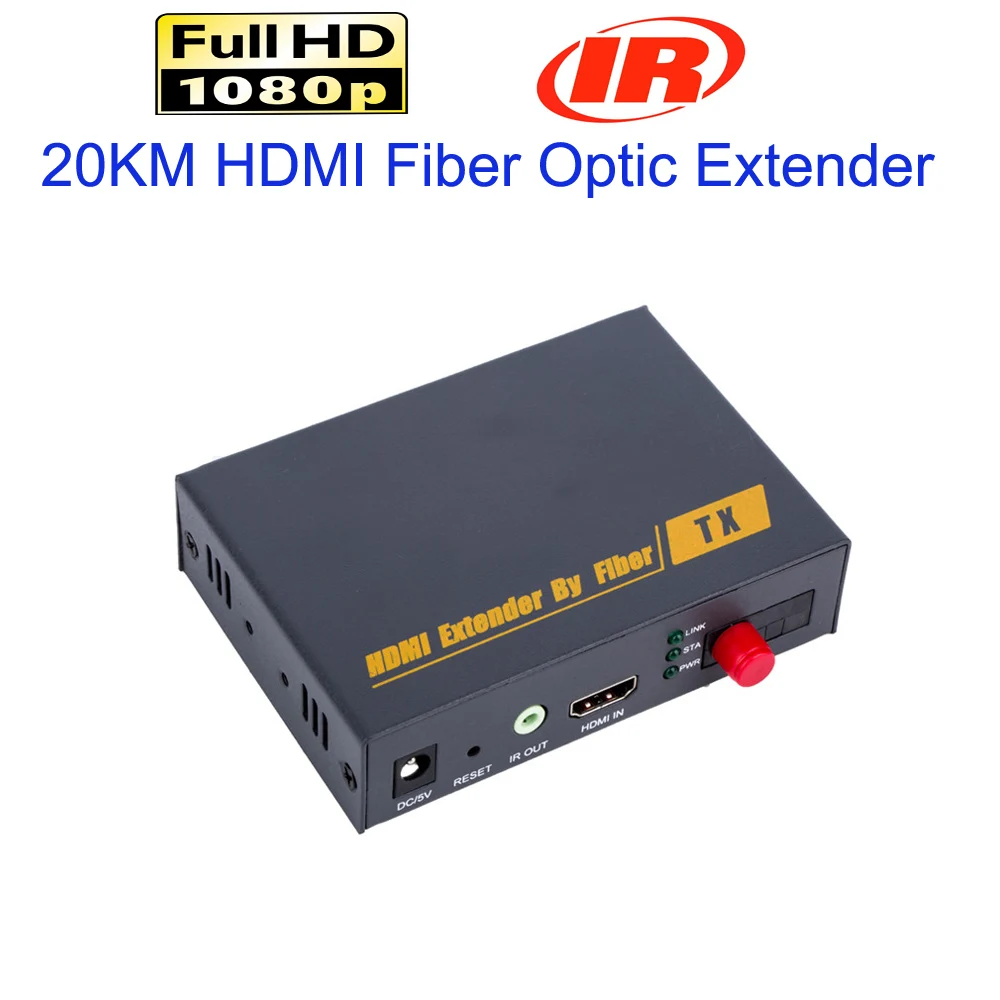

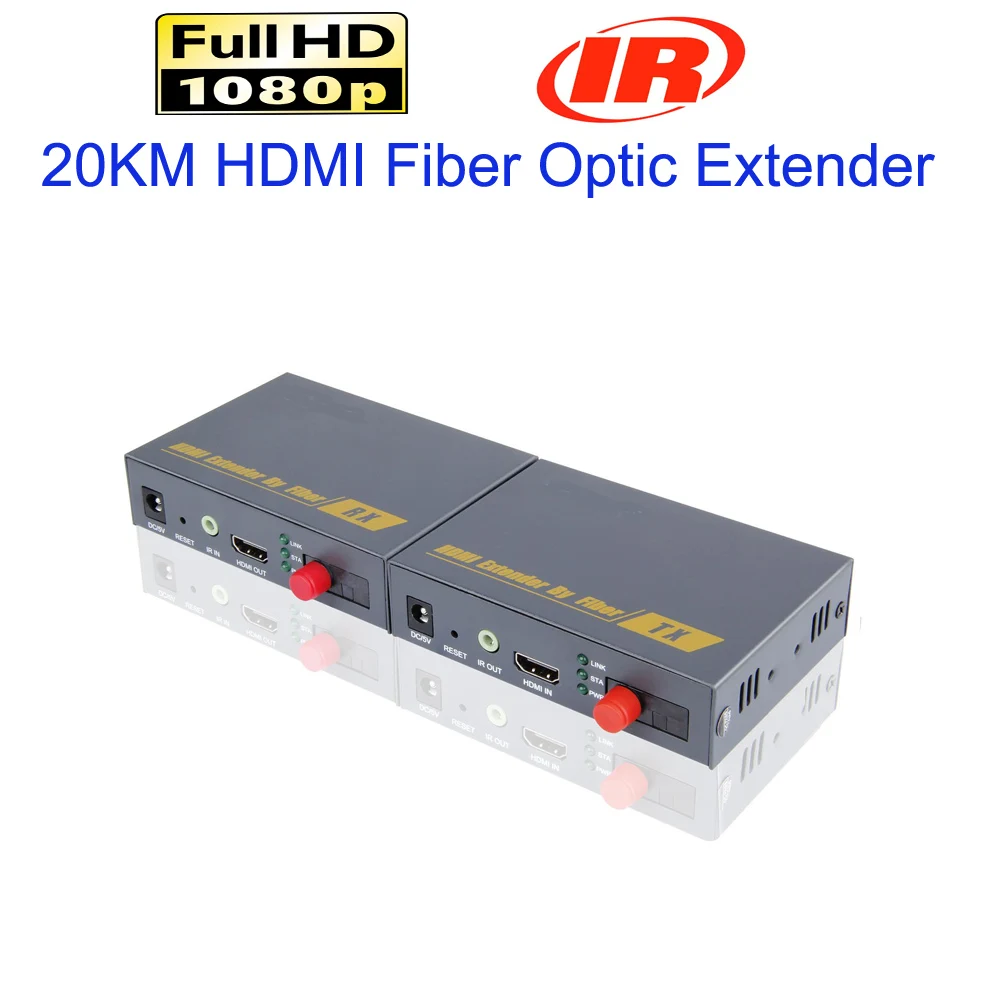

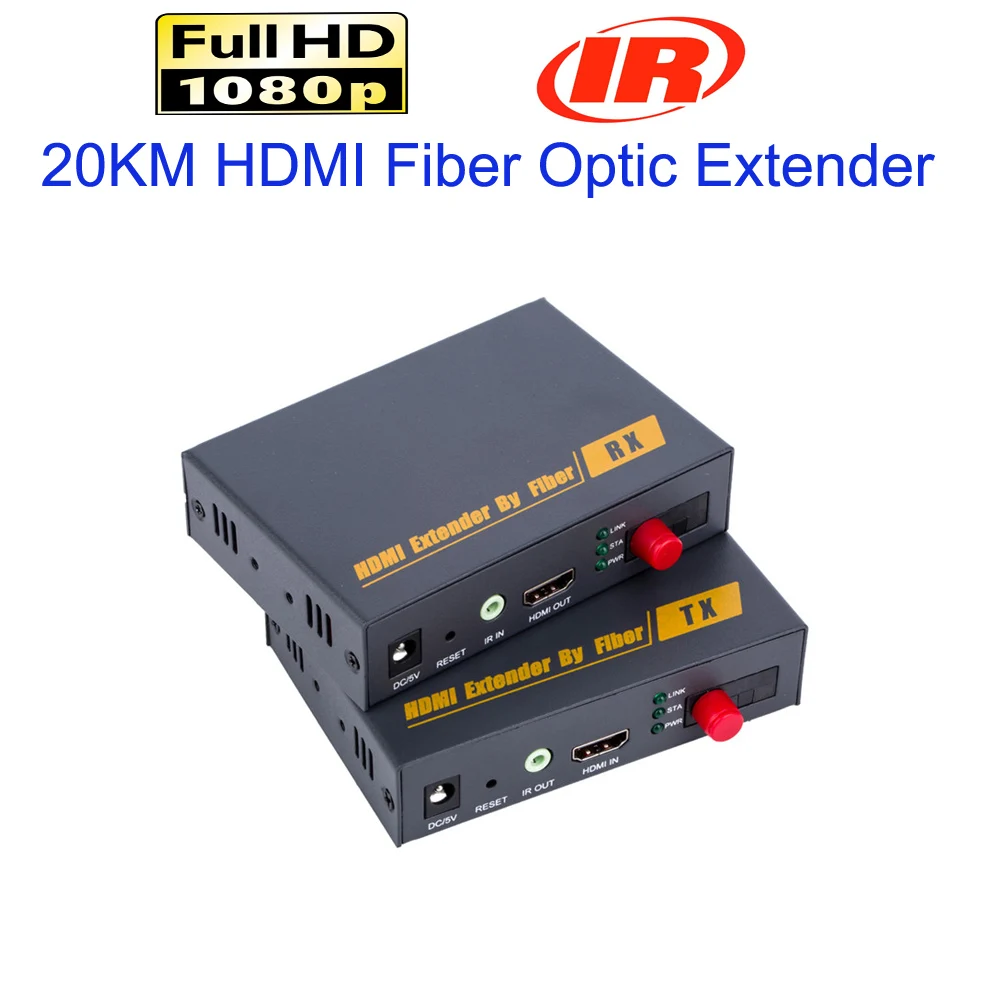

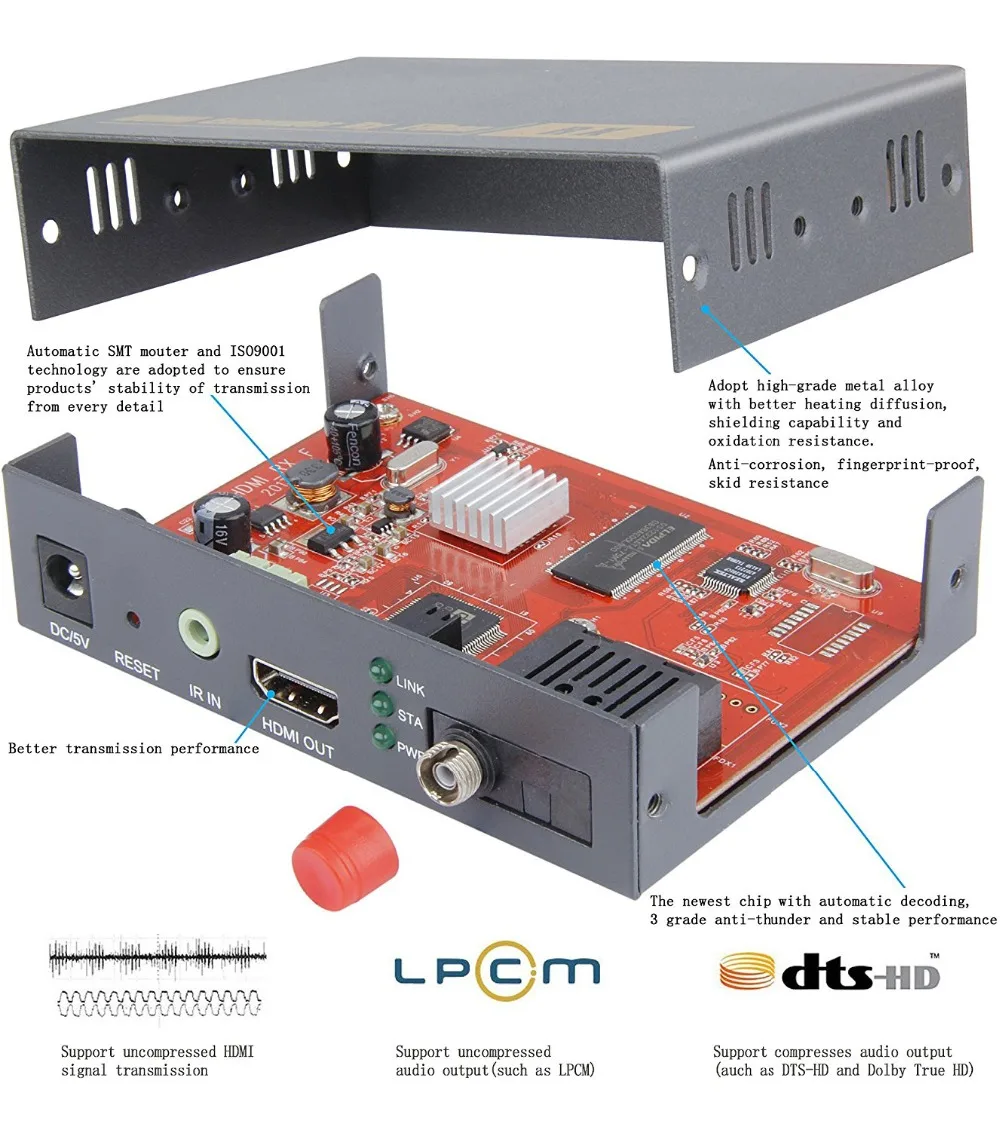

Product view:



---

---
