3 in 1 FTTH Tool Kits Includes High Precision Optical Fiber Cleaver CFS-2 Stripping Plier and Cable Sheath Stripper | Мобильные

---

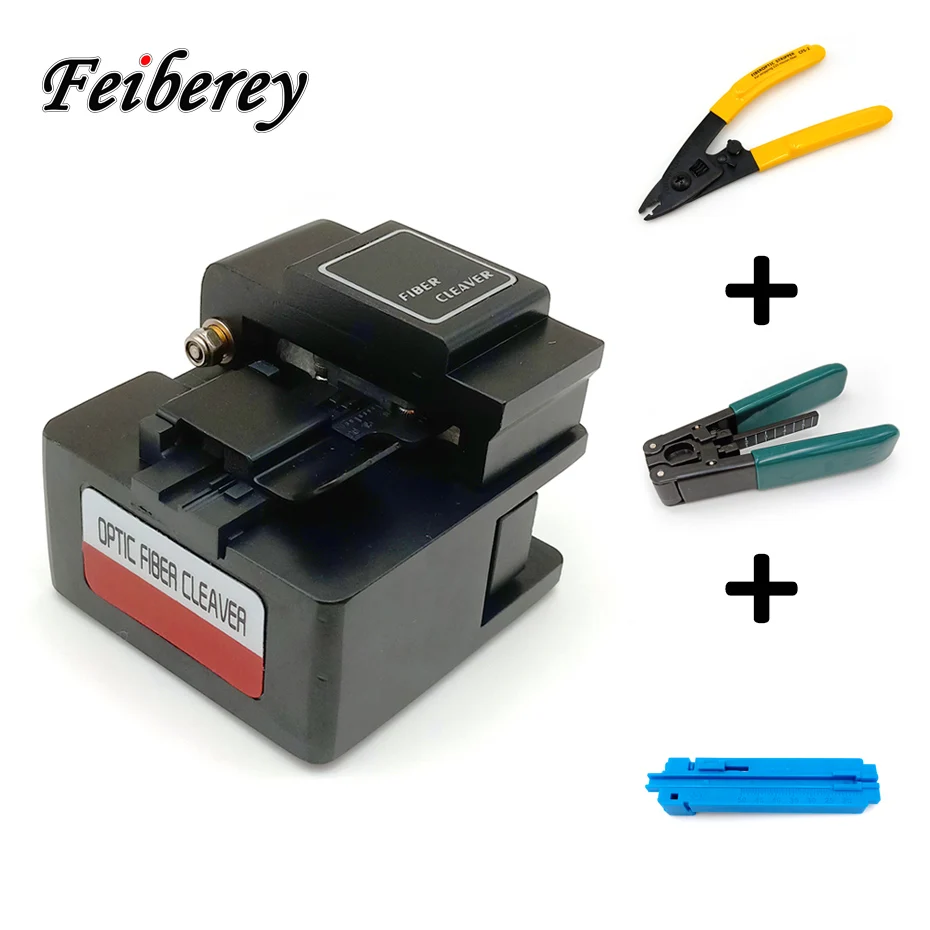

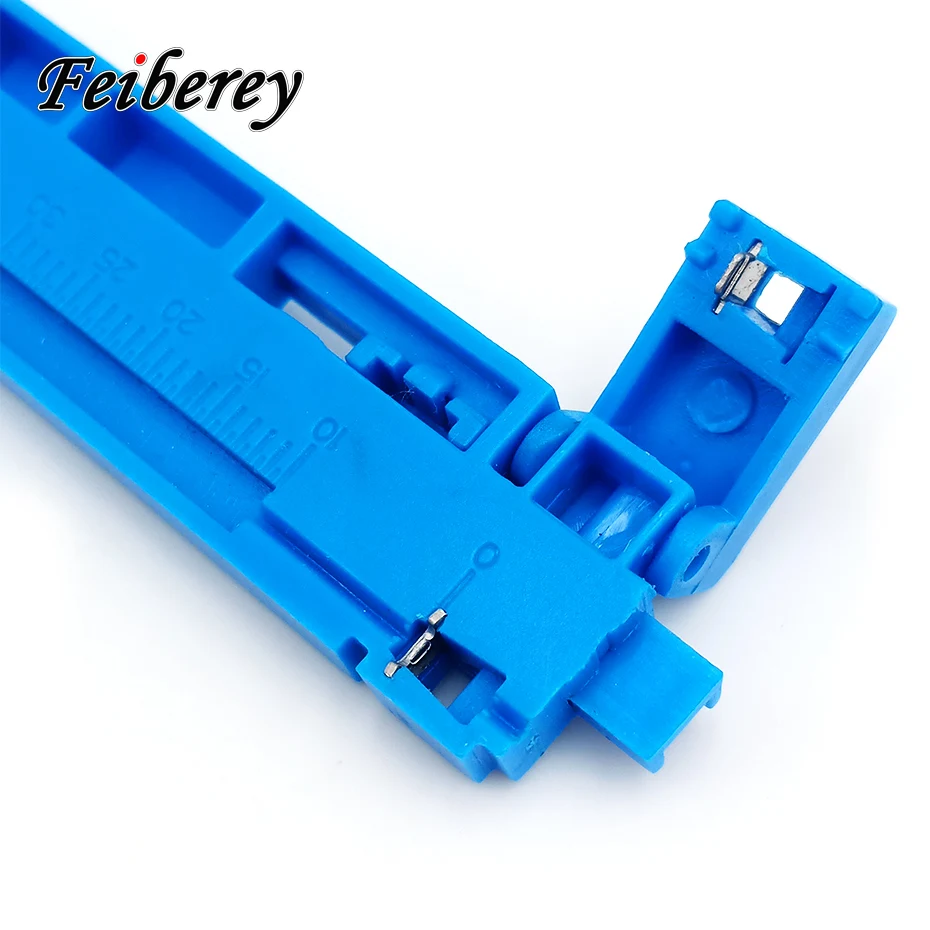

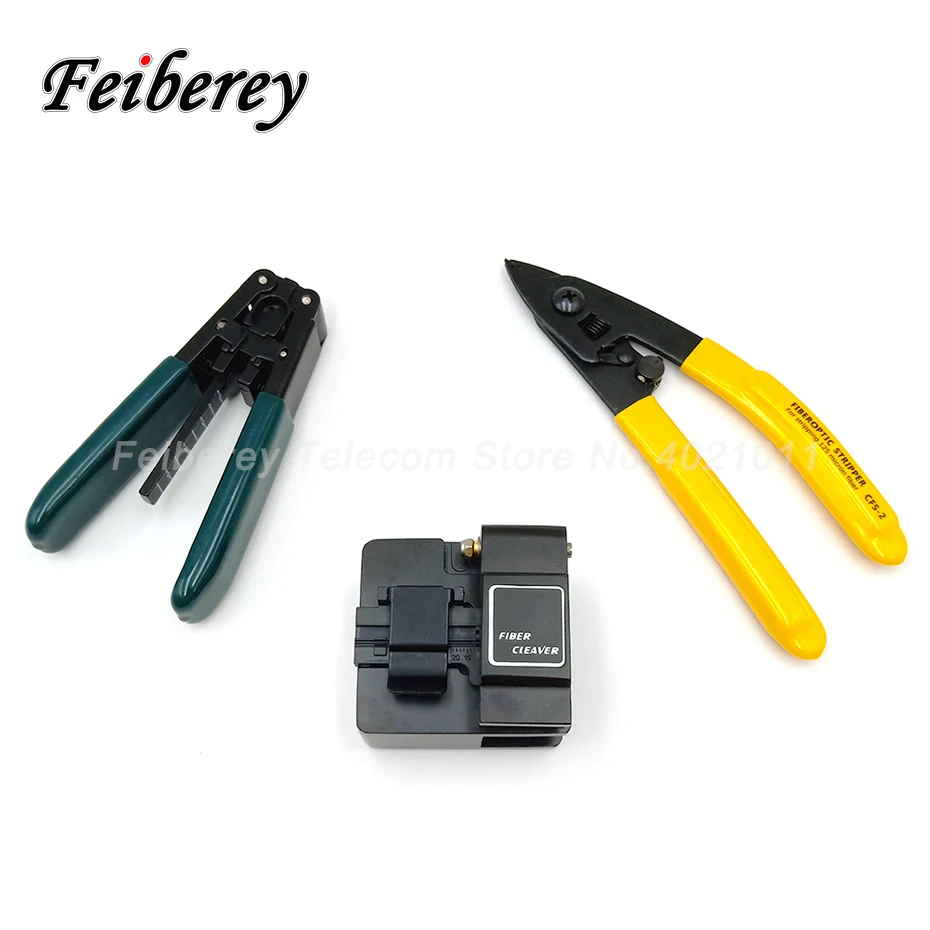

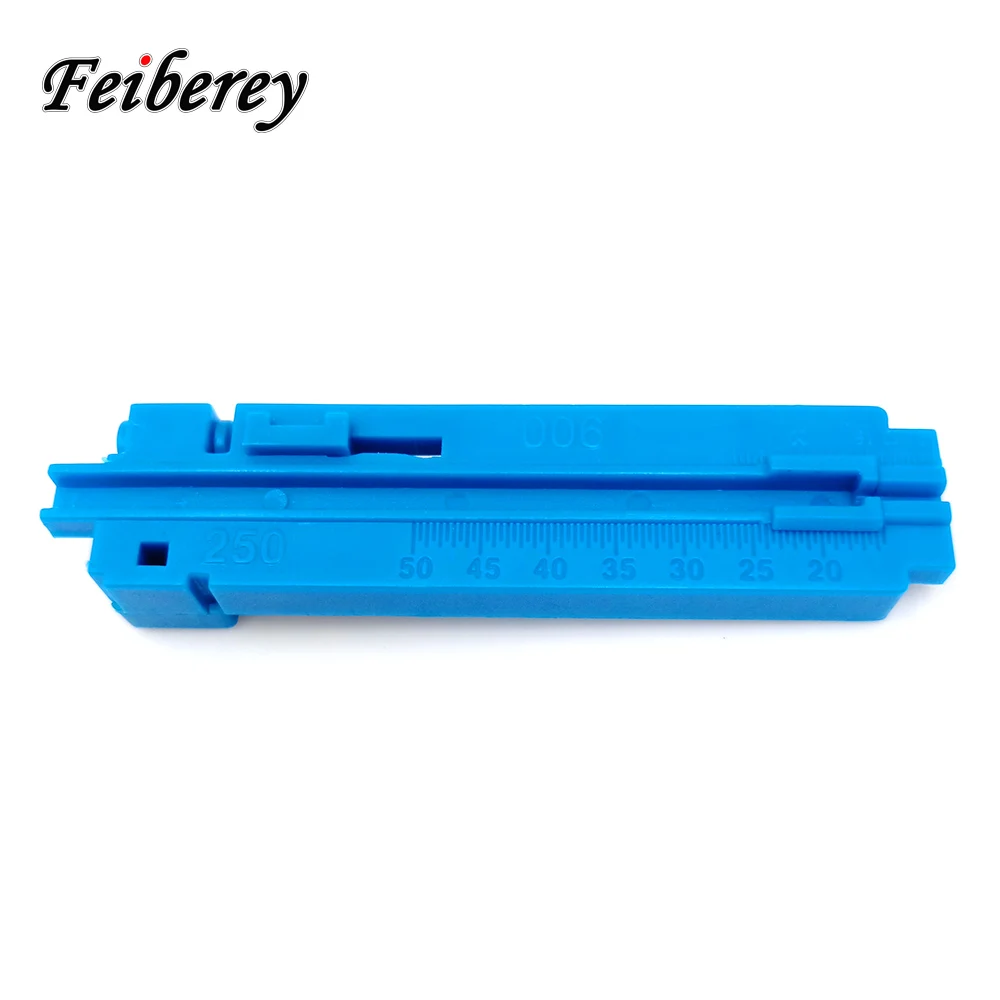

This 3 in 1 FTTH Tool Kits include 4 FTTH tools: F-160 Optical Fiber Cleaver, CFS-2 Stripping Plier, Cable Jacket Stripper and a fixed length cutting jig. They shall be an ideal combination for FTTH construction and maintenance. If you need CFS-3 Stripping plier instead of CFS-2, please contact us when you pay for the order.

Note:  According to Brazilian Local Customs Regulations, Any goods, Parcels, EMS, Express. You Have to pay Charge 15 BRL/ Per Tickets Before you receive.

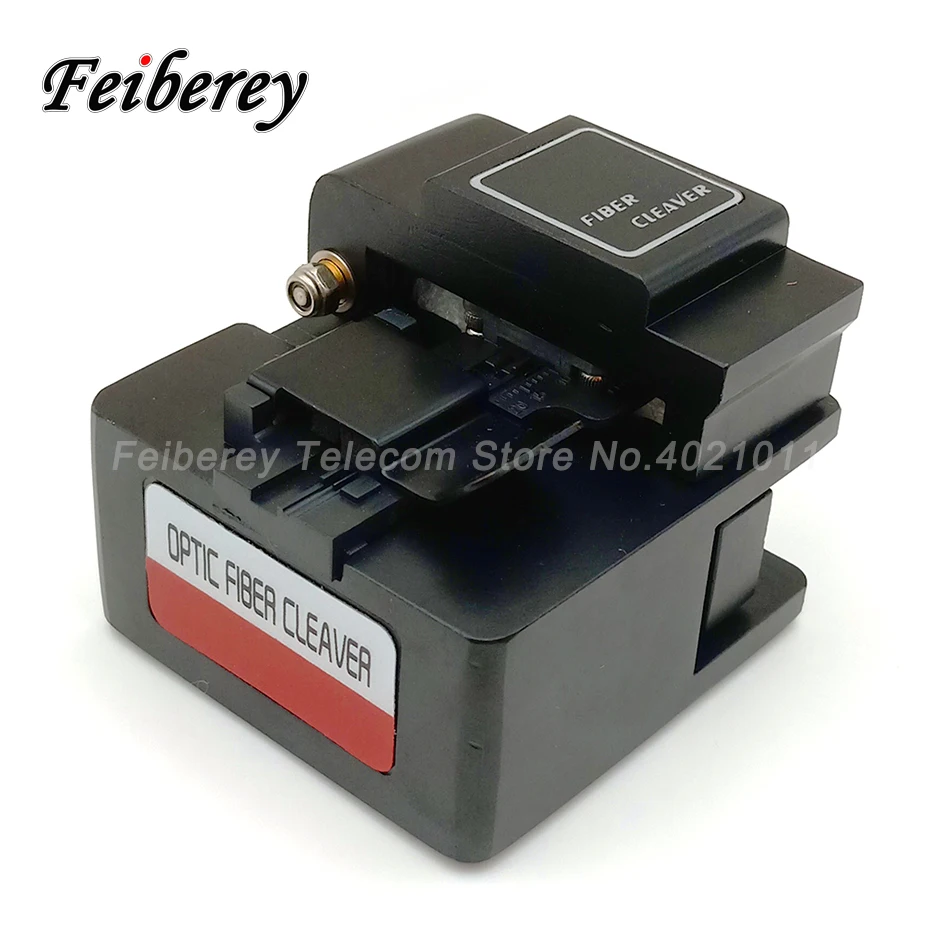

High precision optical fiber cleaver F-160 is used for precision cutting single core fiber tool, suitable for FTTH optical fiber to the home. Cutting angle is smaller and more precise ,easy to operate, do not need special skills. What's more, small size fiber cleave is easy to carry. Under the condition of guarantee stability at the same time , more important is relatively affordable price, optional fiber collector, convenient installation.

CFS-2 Fiber Optic Stripper is a reliable and economical FTTH plier tool for stripping 125um fiber, this Stripper has ergonomically designed “Super Comfort” grips, providing you with added comfort and control.The optical fiber cable jacket stripper is for stripping the jacket protector sheath of drop cable which is single core indoor or double core outdoor. It's equipped with 2 stright blades and one circle blade which make it suitable for fiber optic drop cable, network cable or CATV cable.

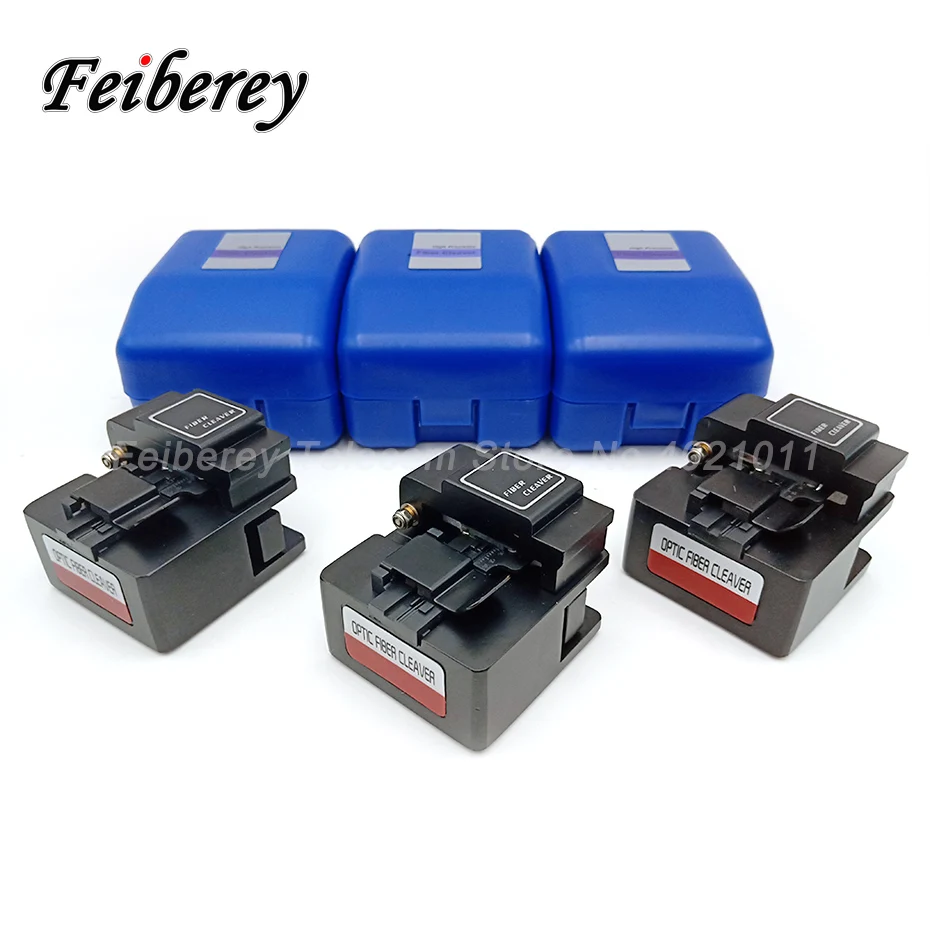

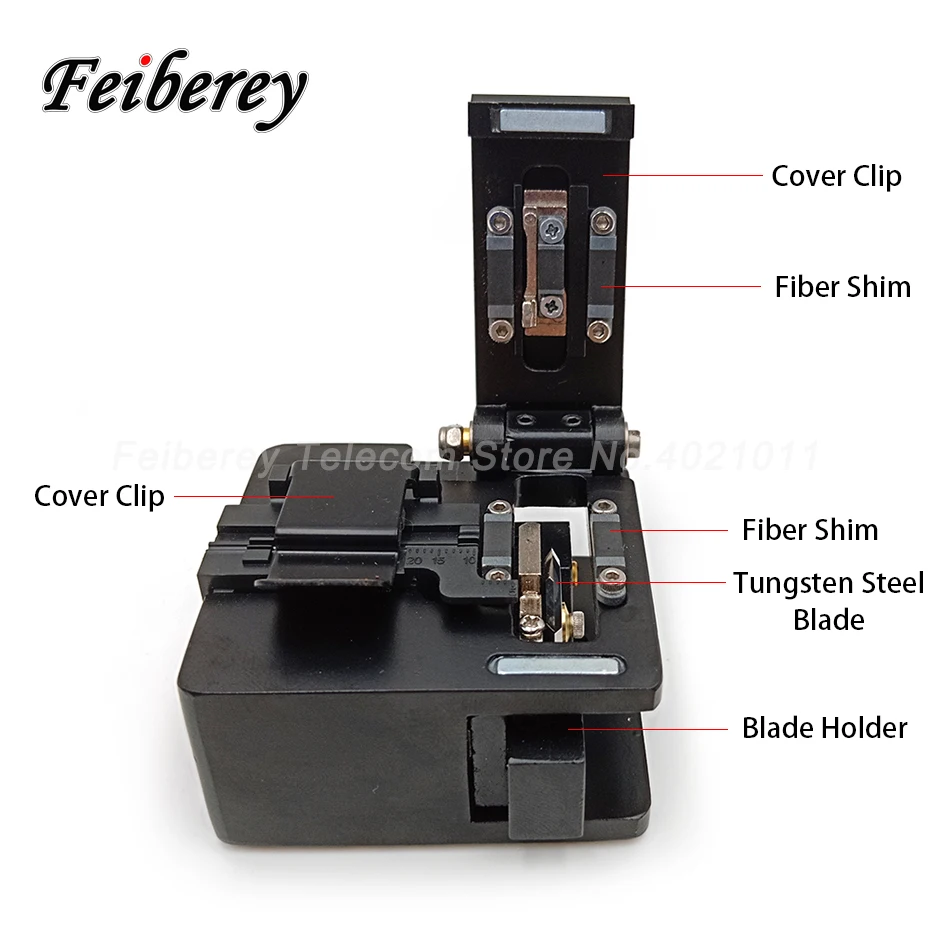

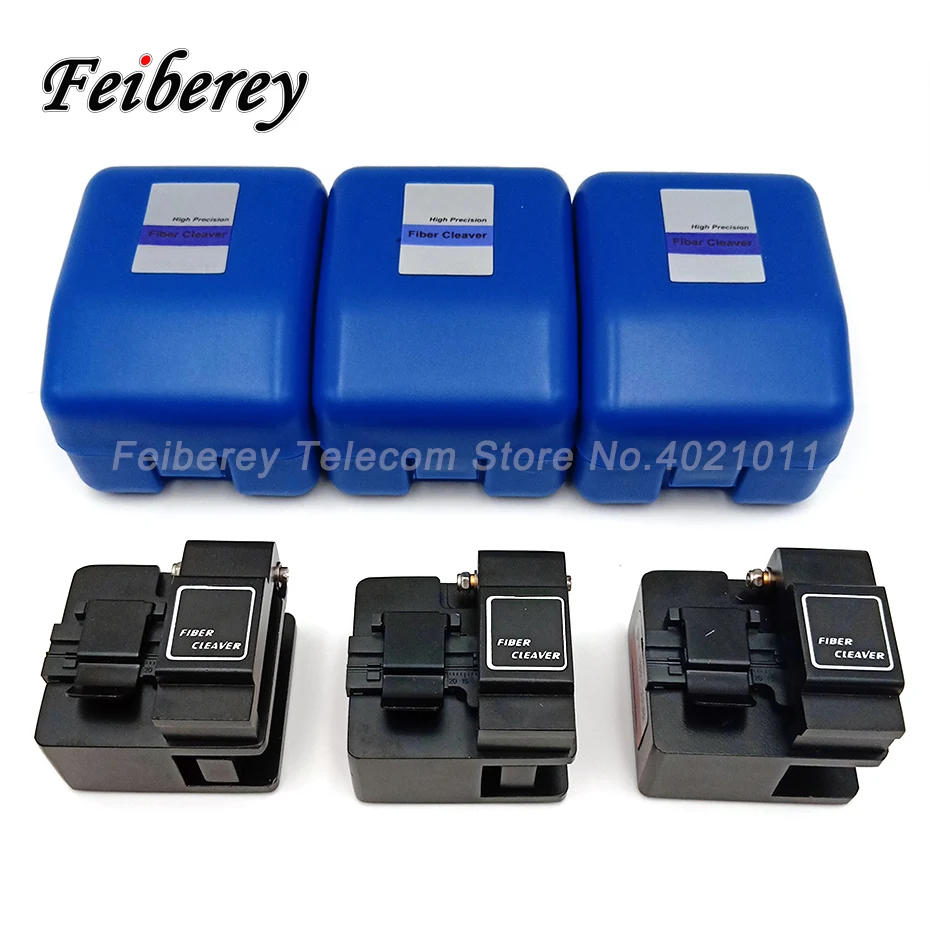

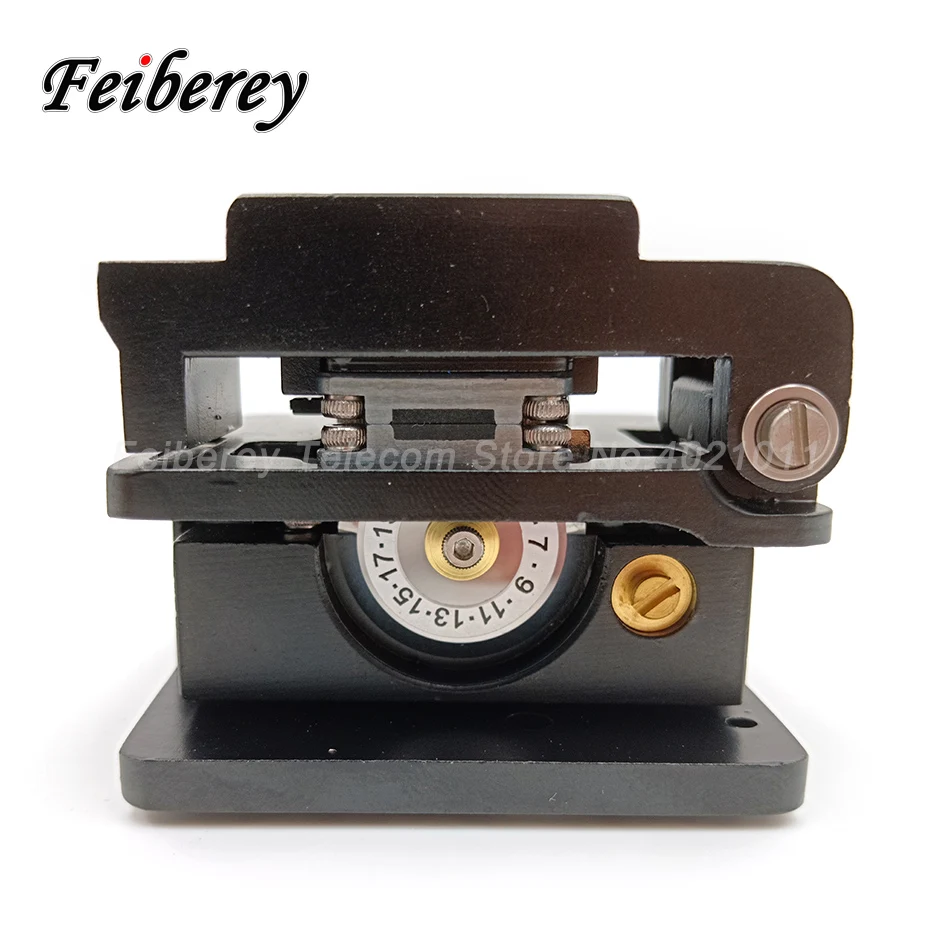

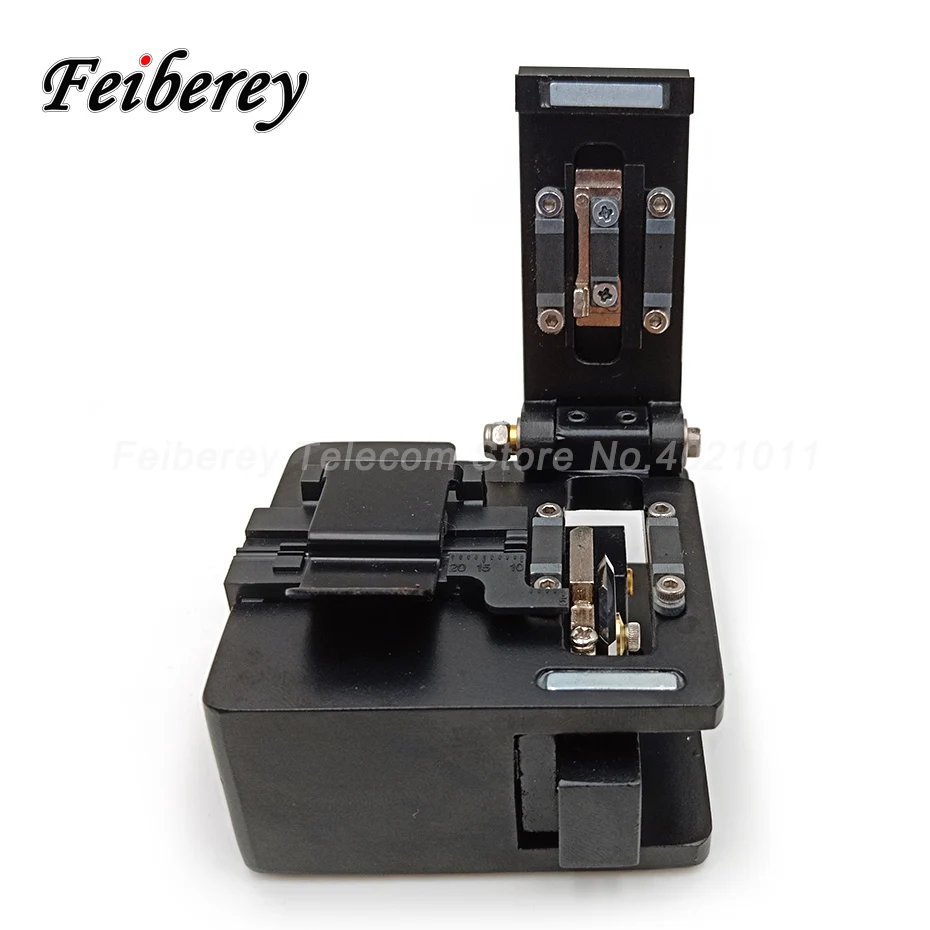

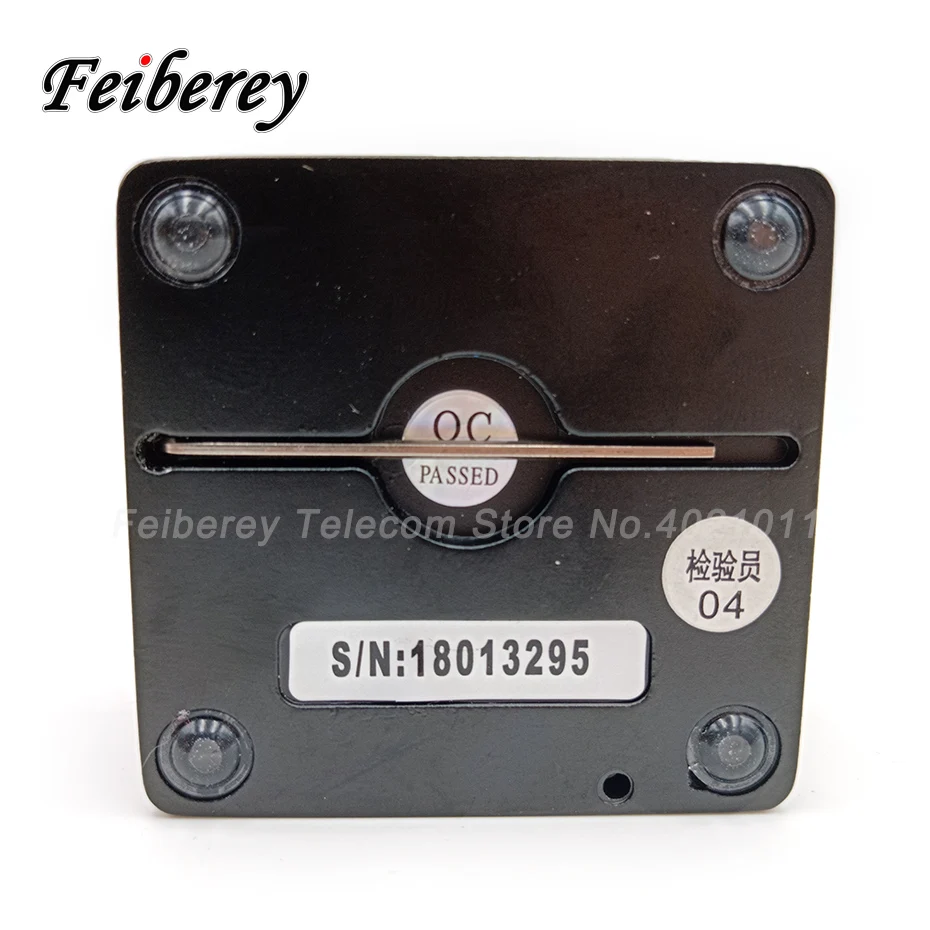

Fiber Cleaver:

• Imports of ultra-fine particles of tungsten steel.
• One end of the broken fiber neatly.
• Small size,light weight , easy disassembly.
• Can be continuously cut more than 40,000 times.
• Ultra-high level of imported blades, long life, stable quality of the imported slides.

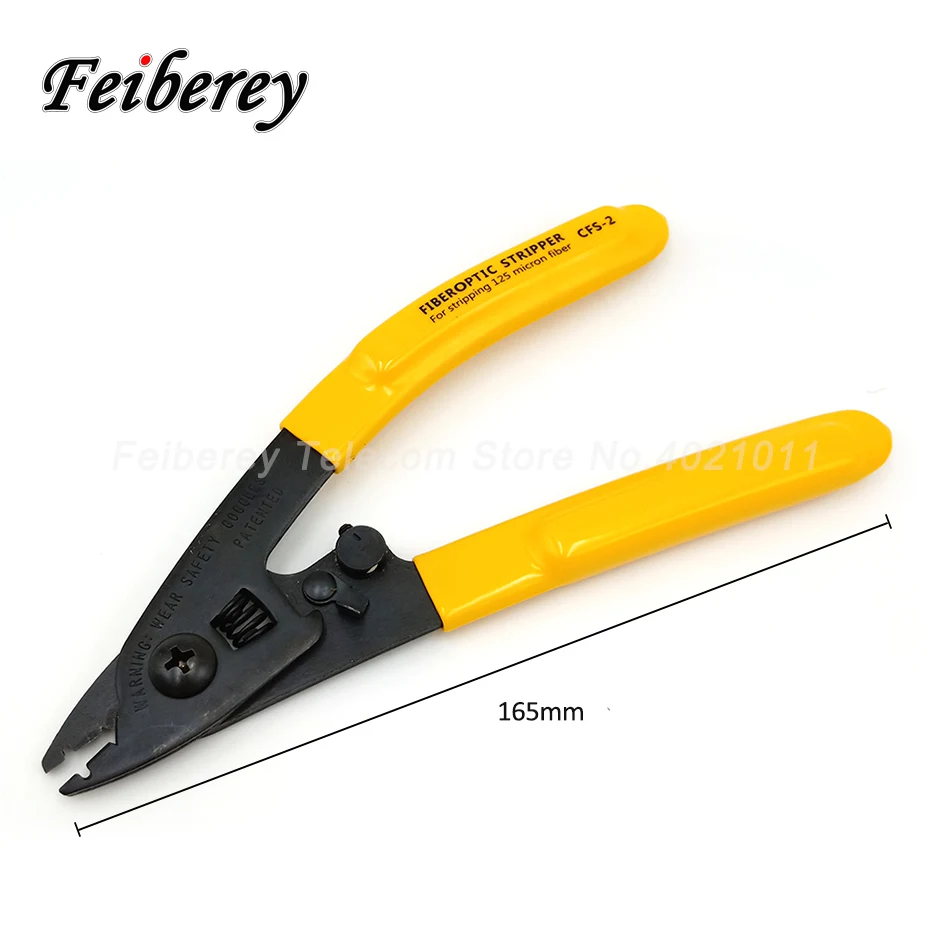

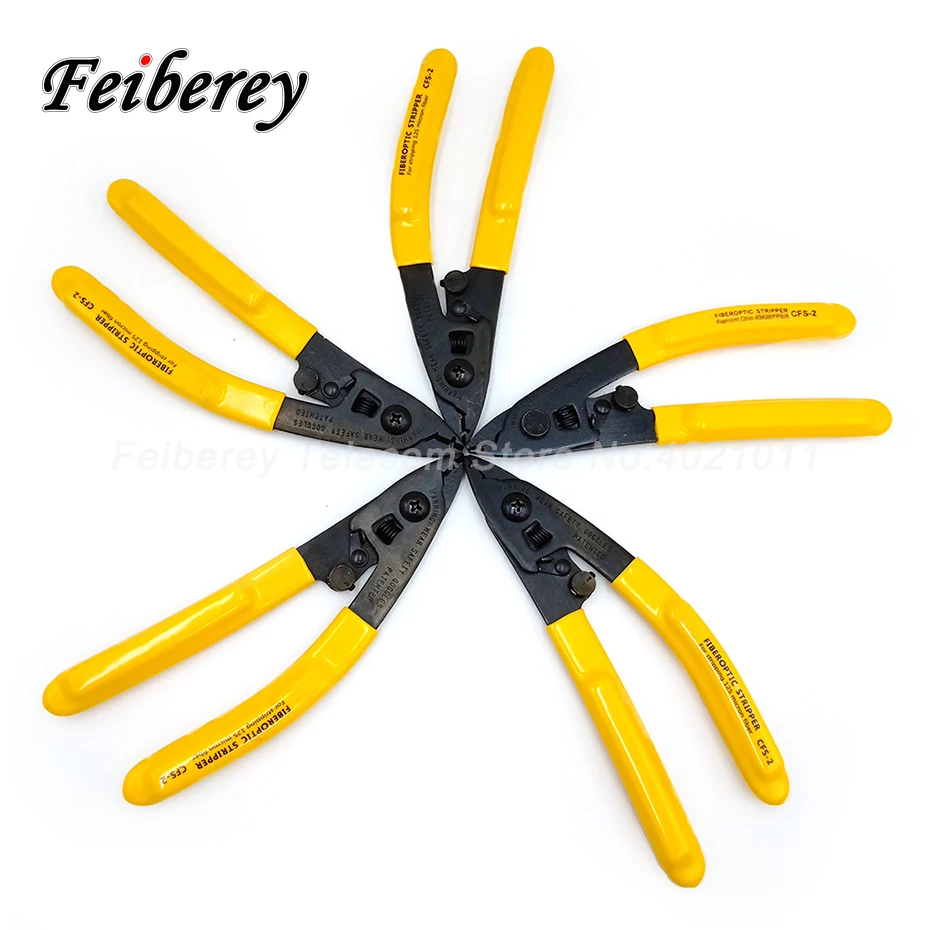

CFS-2 Stripping Plier:

       1:  Unique two fiber coating stripping forceps

      2: The V-shaped opening on the jaw blade and the opening of 140um is for peeling 250 μm coating of 125 μm fiber

      3: The 1.98mm opening at the top can be used to peel the outer sheath of the pigtail

      4: The factory default, not to be adjusted, will not damage the fiber

      5: All cut sections have precision mechanical tolerances to ensure clean, smooth operation

      6: According to ergonomic design of the handle, gripping comfort when not in use, the blade locks in the closed state

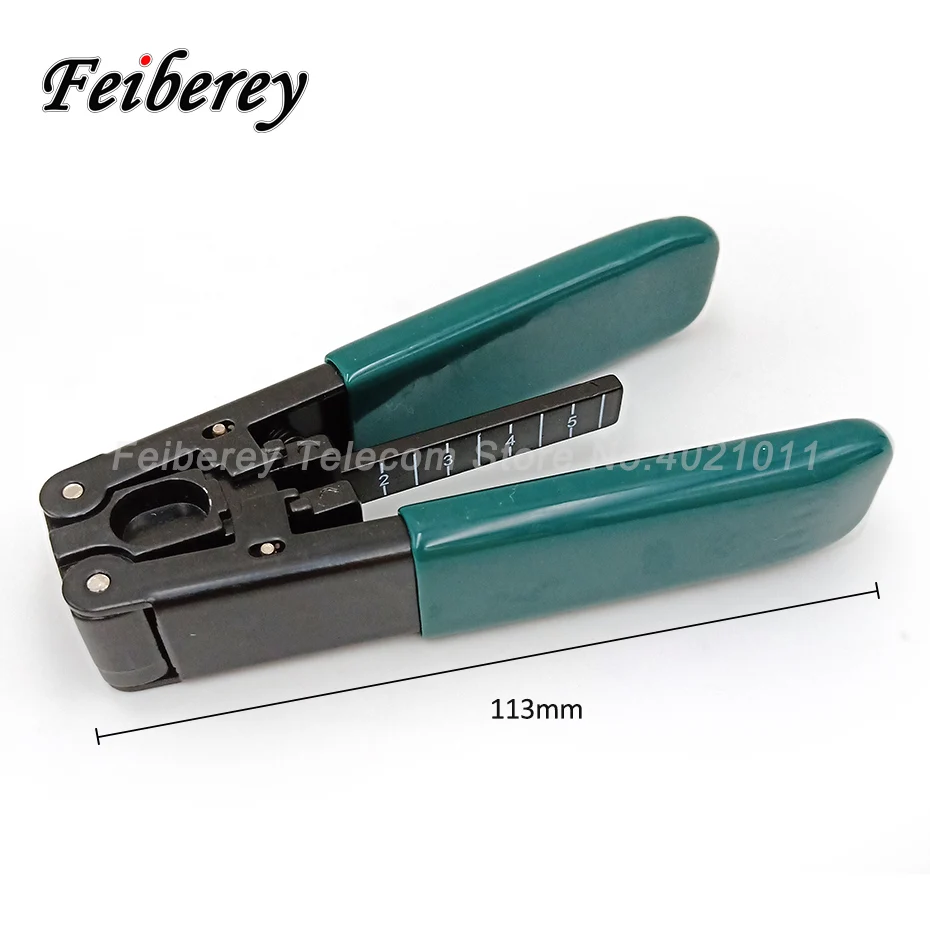

Cable Jacket Stripper:

      1. For stripping the jacket protector sheath of drop cable which is single core indoor or double core outdoor.

      2. Equipped with 2 stright blades and one circle blade which make it suitable for fiber optic drop cable, network cable or CATV cable.





---

---
