New Arrival Caddx Firefly 1/3" CMOS 1200TVL 2.1mm Lens 16:9/4:3 NTSC/PAL FPV Camera with VTX for RC Multirotor Racing Drone | Игрушки и

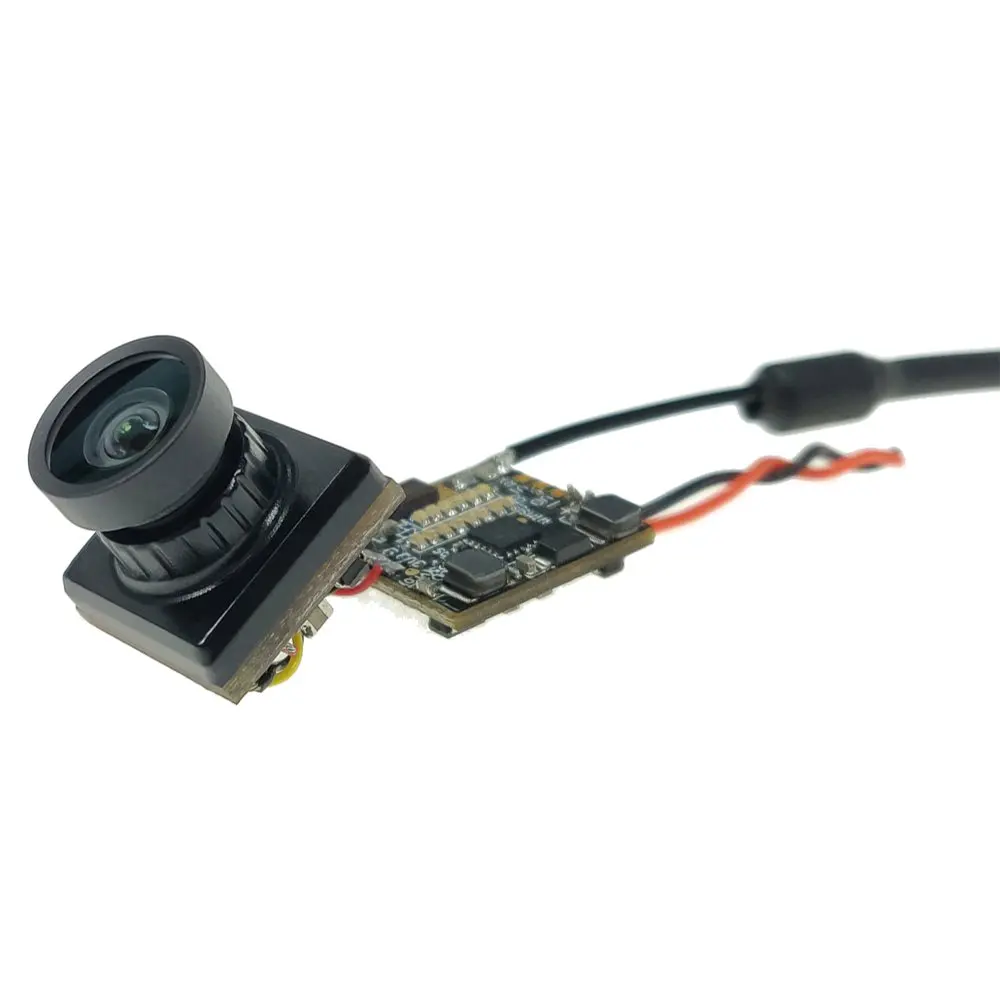

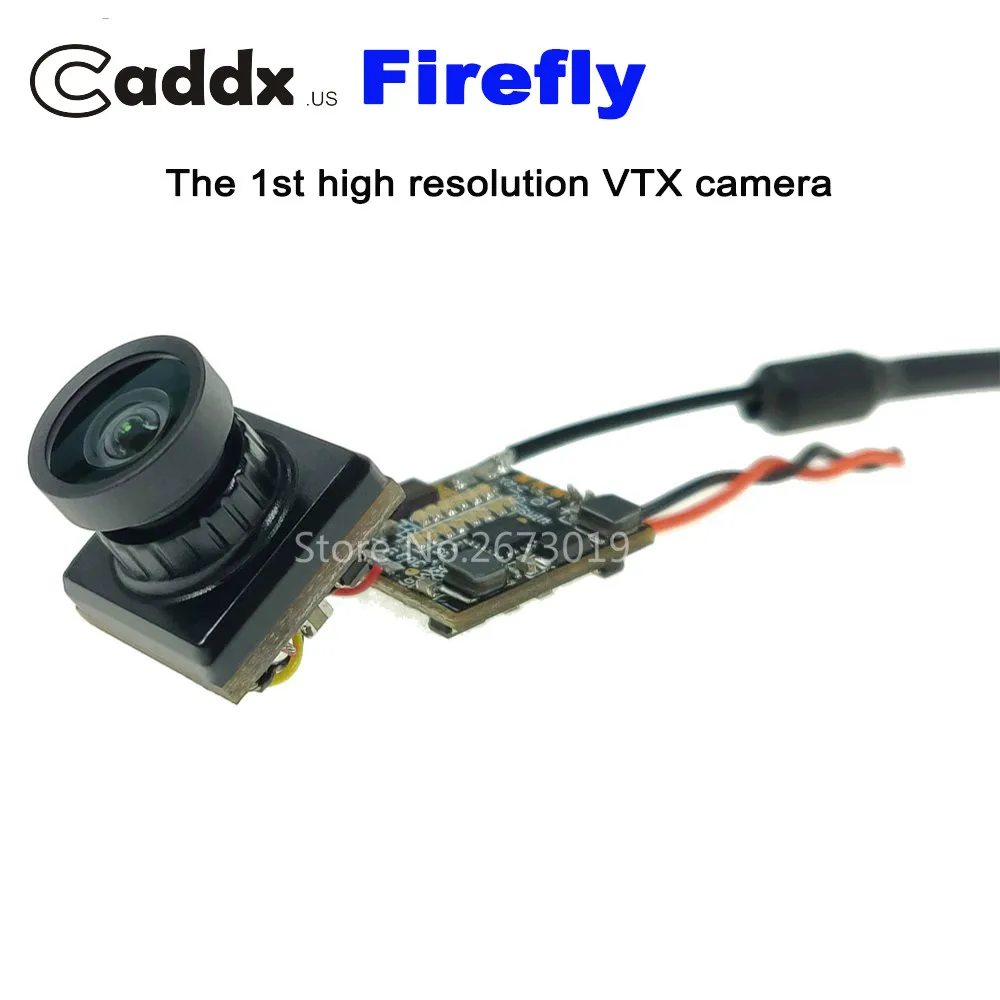

Caddx Firefly 1/3" CMOS 1200TVL 2.1mm Lens 16:9/4:3 NTSC/PAL FPV Camera with VTX for RC Multirotor Fpv Racing Drone

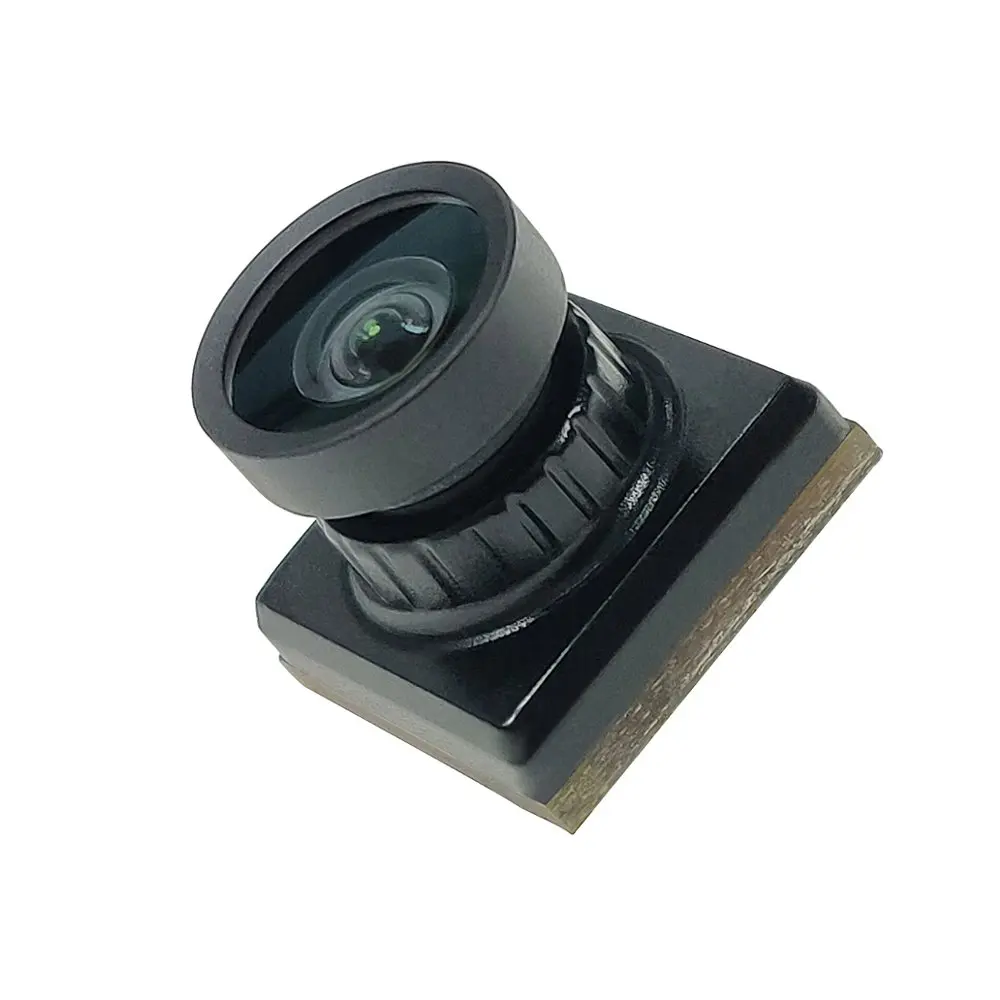

Specifications of Camera:
Brand Name: Caddx
Item Name: Firefly
Color: Black
Lens: 2.1mmImage Sensor: 1/3" CMOS Sensor Horizontal Resolution: 1200 TVLTV System: NTSC / PAL (optional)Image: 16:9 / 4:3 (optional)Synchronization: Internal Electronic Shutter PAL: 1/50~100,000; NTSC: 1/60~100,000S/N Ratio: >52dB (AGC OFF)Video Output: CVBSMin. Illumination: 0.001Lux F1.2Auto Gain Control: YESBLC: YESWDR: Global WDRDNR: 2 DNRDimensions: 14mm*14mm*16mmWide Power Input: DC 3.3-9VWork Temperature: -20℃~+60℃Work Humidity: 20%~80%Weight: 4.1g (Camera + VTX)

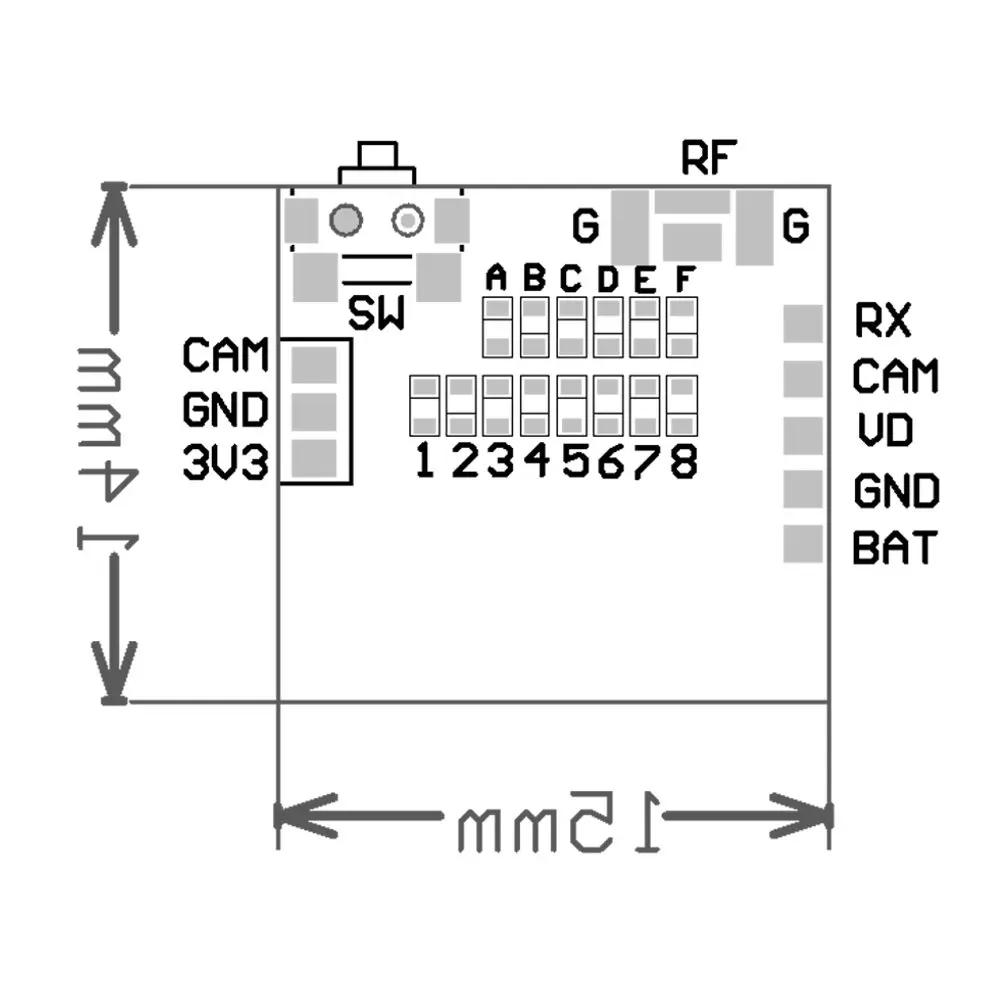

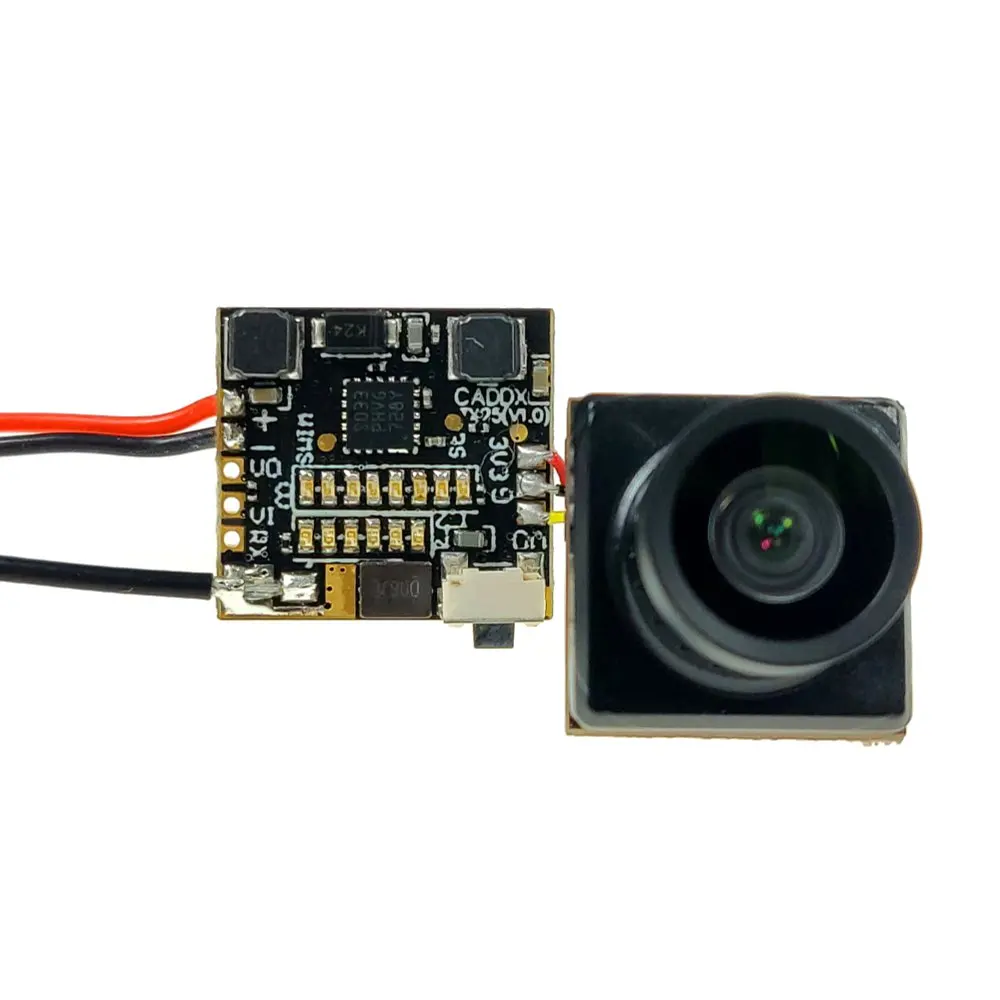

Specifications of VTX:Feature: TBS SMART OSDFrequency Band: 5362~5945MHzChannel Customer: 48Modulation Type: FMChannel SEL.: Touch SwitchChannel Indicate: CH1~CH8 Channel indication with 8LEDS and A~F frequency group Indicate with 6 LEDSTransmit Power: 13±1dBmFrequency Control: PLLAll Harmonic: Max -50dBmFrequency Stability: ±100KHz (Typ.)Frequency Precision: ±200KHz (Typ.)Channel Carrier Error: 1dBAntenna Port: 50 ΩPower Consumption: 140±20MA 5V DCINSupply Voltage: 2.9-5.5VOperating Temperature: -10℃~+60℃Profile Dimension: 15mmx14mm

Frequency Table:

Package Included:
1x Caddx Firefly 1/3" CMOS 1200TVL 2.1mm Lens FPV Camera With VTX
