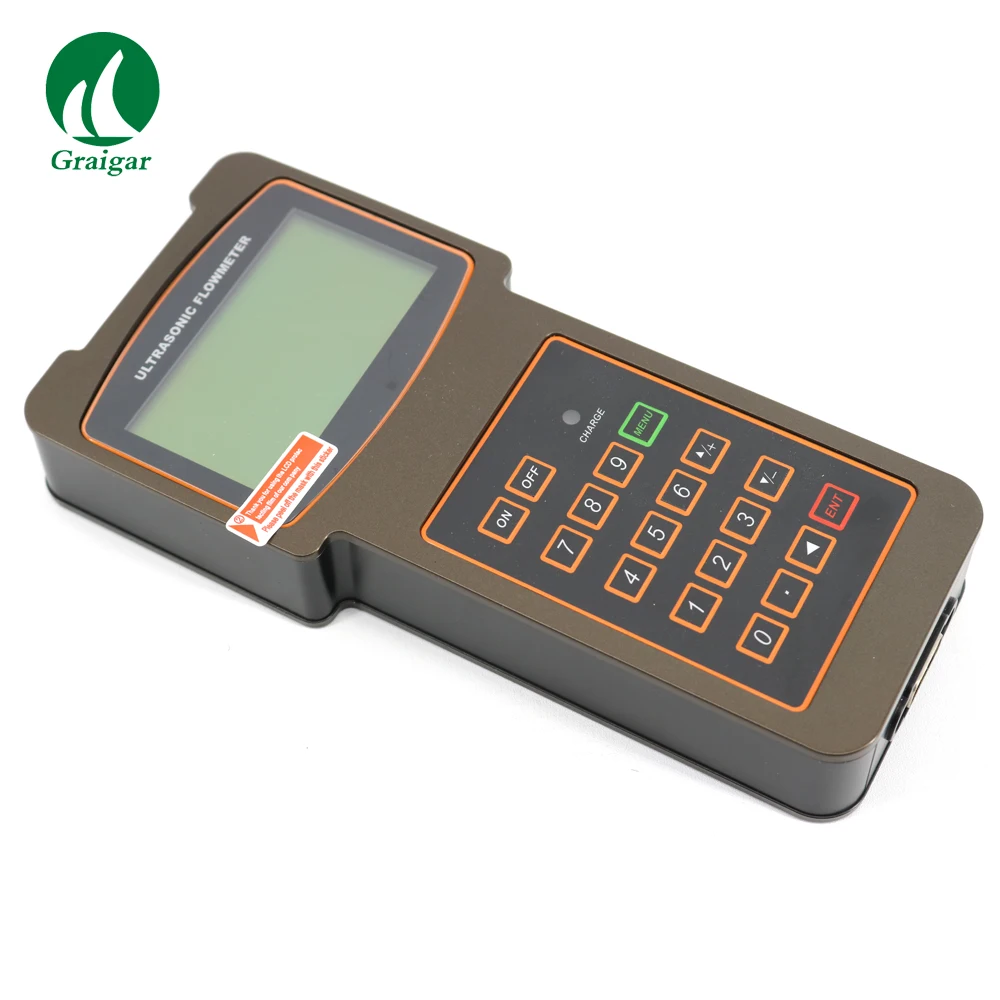

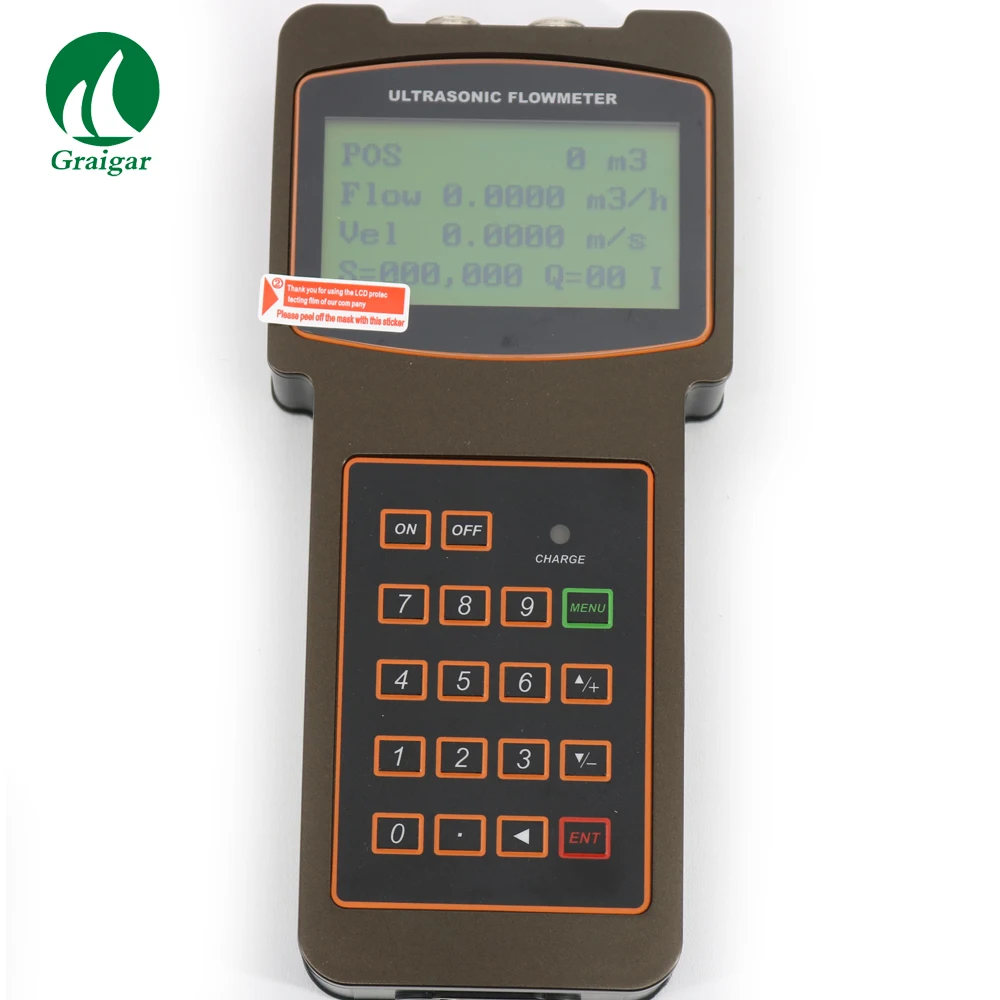

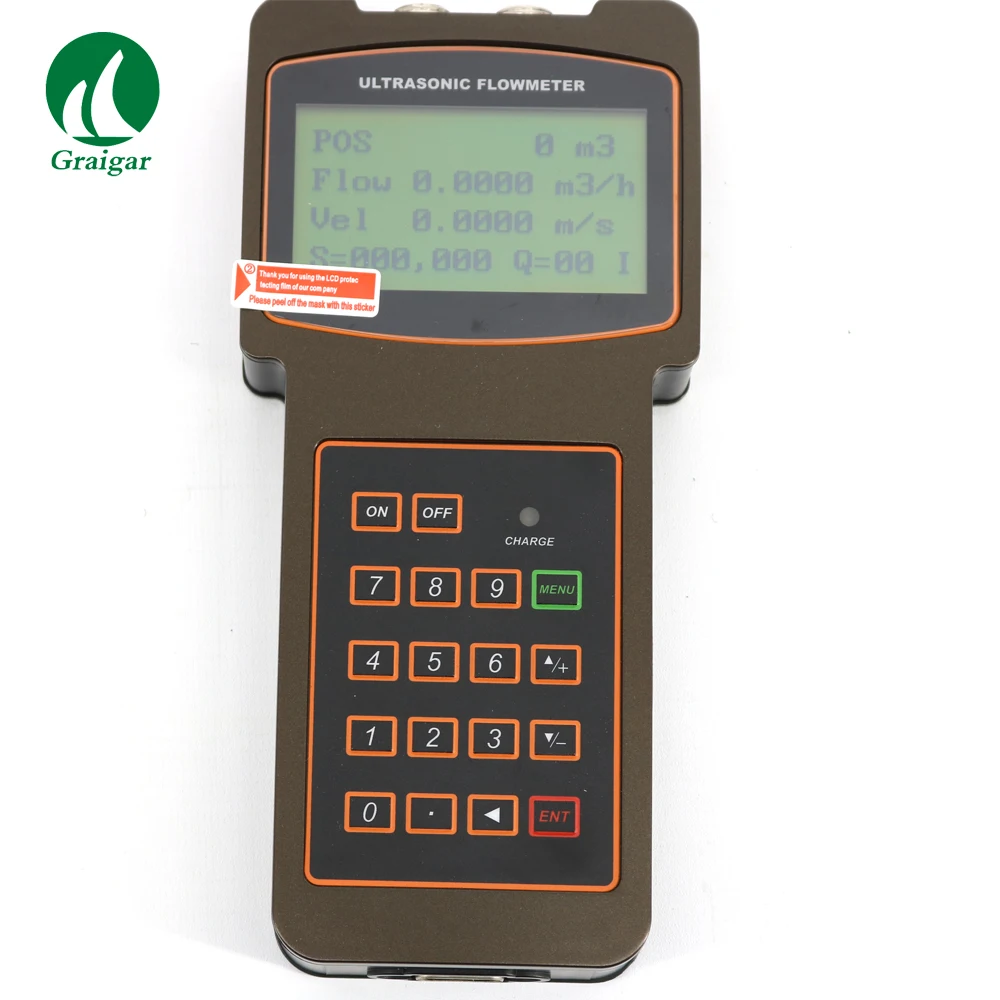

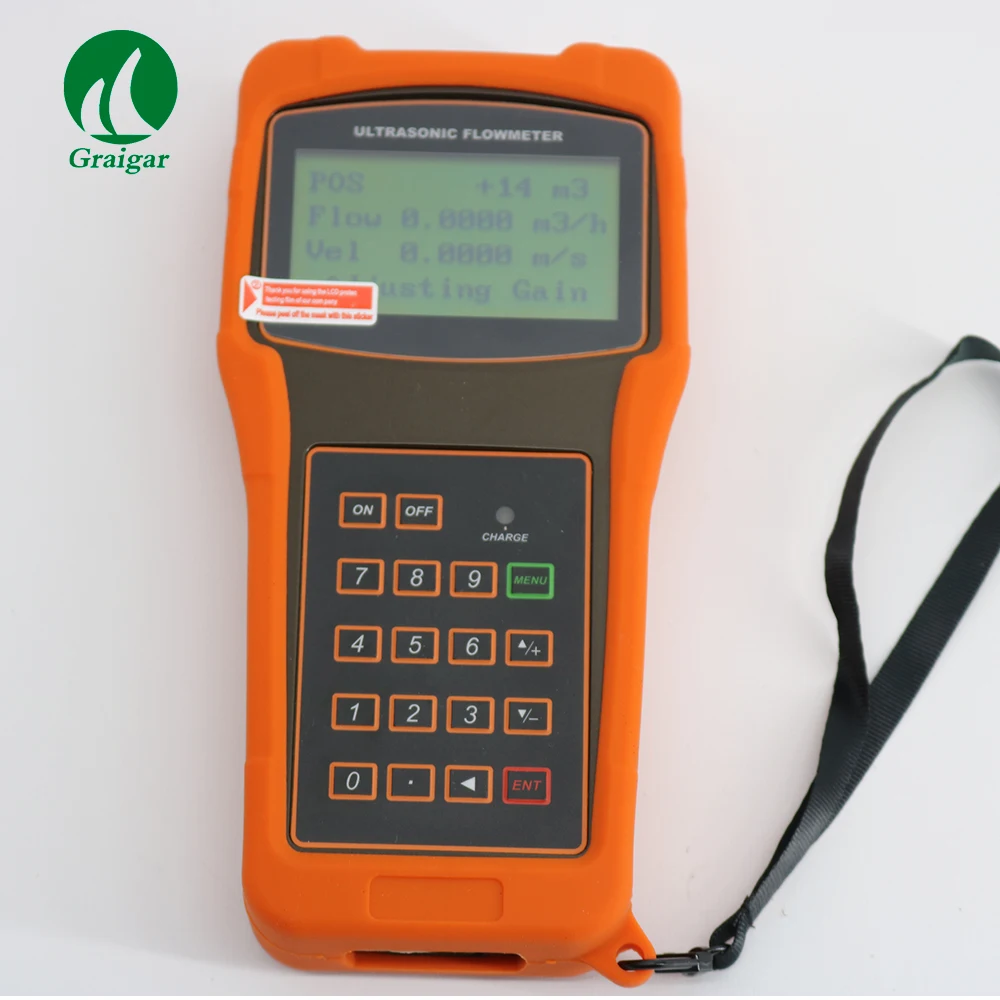

TUF-2000H Ultrasonic Flow Meter with TM-1-HT High Temperature Sensor DN50~700mm Temp -40~160C | Инструменты

Items

Performance & Parameter

   Meter

Principle

 Transit time ultrasonic flowmeter

Accuracy

± 1%

Display

4×16 character LCD with backlight, support the language

of Chinese, English and Italian

Signal Output

1 way OCT pulse output(Pulse width 6~1000ms, the default

value is 200ms)

Data Interface

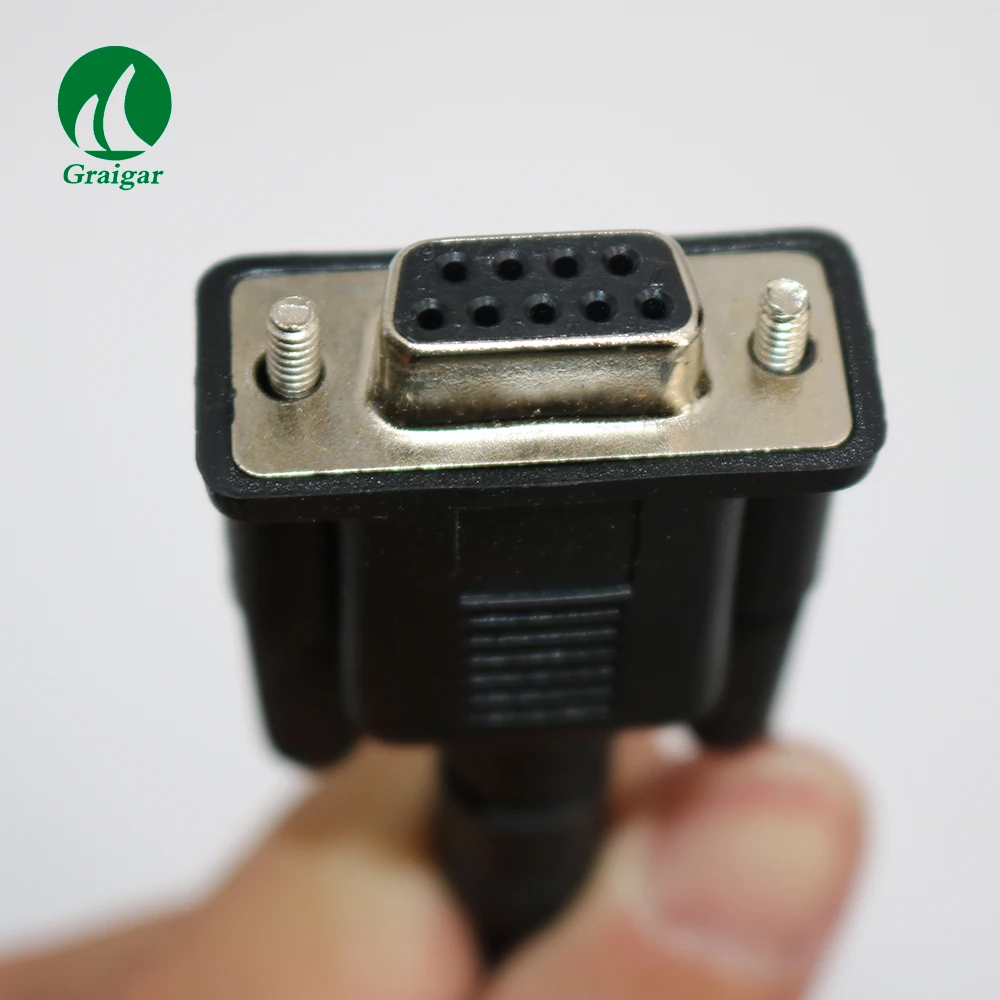

Insulate RS232 serial interface, upgrade the flowmeter

software by computer

Pipe Installation

Condition

Pipe Material

Steel, Stainless steel, Cast iron, Copper, Cement pipe, PVC,

Aluminum, Glass steel product, liner is allowed.

Pipe Diameter

15~6000mm

Straight Pipe

Transducer installation should be satisfied: upstream 10D,

downstream 5D, 30D from the pump.

Measuring

Medium

Type of Liquid

Single liquid can transmit sound wave, such as water, sewage,

oil, chemicals, plant effluent, beverage, ultra-pure liquids, etc.

Temperature

-30~160°c

Turbidity

Less than 10000ppm and little bubble

Flowrate

0 ~ ±7m/s

Working

Environment

Temperature

main unit: -20~60°c; Transducer: -30~160°c

Humidity

main unit: 85%RH; Transducer protection level: IP67

Power Supply

3 built-in Ni-MH batteries 1.2V(for over 12 hours of operation).

Achieve to continuous measurement by connecting AC 90V - 260V adapter.

Power Consumption

1.5W

Housing Material

Inflaming retarding ABS

Main unit Weight

390g

Types

Spec.

Model

Measure range(mm)

Temperature

Size

Clamp on

Small

TS-2

DN15~100

-30~90℃

42×25×32mm

Medium

TM-1

DN50~700

-30~90℃

69×39×44mm

Large

TL-1

DN300~6000

-30~90℃

97×54×53mm

High

temperature

clamp on

Small

TS-2-HT

DN15~100

-40~160℃

45×25×32mm

Medium

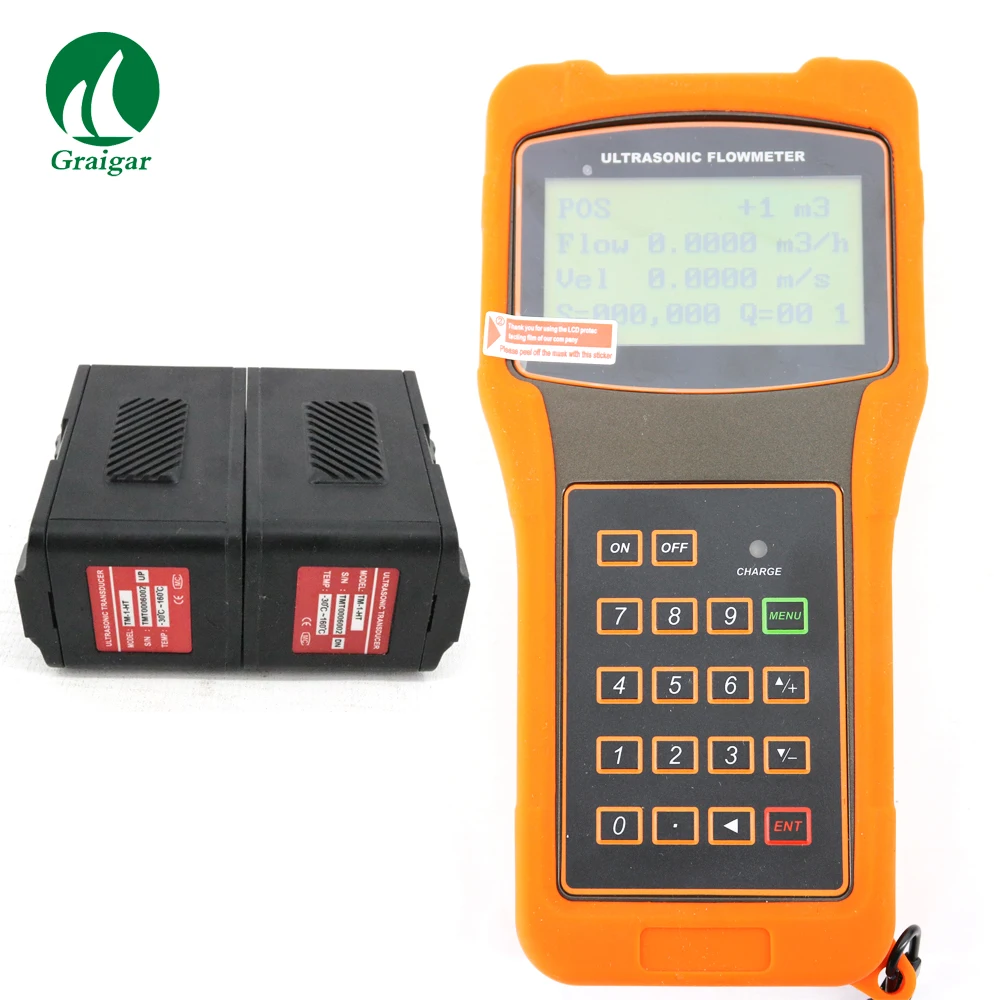

TM-1-HT

DN50~700

-40~160℃

64×39×44mm

Large

TL-1- HT

DN300~6000

-40~160℃

97×54×53mm

Mounting

bracket

clamp on

Small

HS

DN15~100

-30~90℃

318×59×85mm

Medium

HM

DN50~300

-30~90℃

568×59×85mm

Extended

EB-1

DN300~700

-30~90℃

188×59×49mm

High

temperature

mounting

bracket

clamp on

Small

HS-HT

DN15~100

-40~160℃

318×59×110mm

medium

HM-HT

DN50~300

-40~160℃

568×59×110mm

extended

EB-1-HT

DN300~700

-40~160℃

188×59×49mm
