4 Axis LY CNC 6040Z-VFD 2200KW with Water Tank Router Engraving Cutting Mini Metal | Инструменты

MODEL

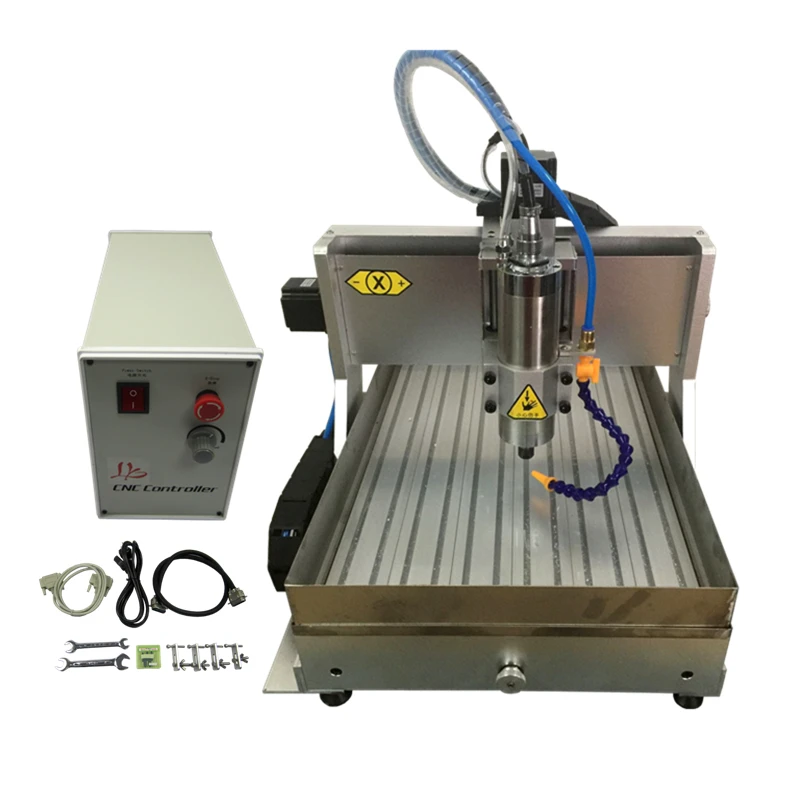

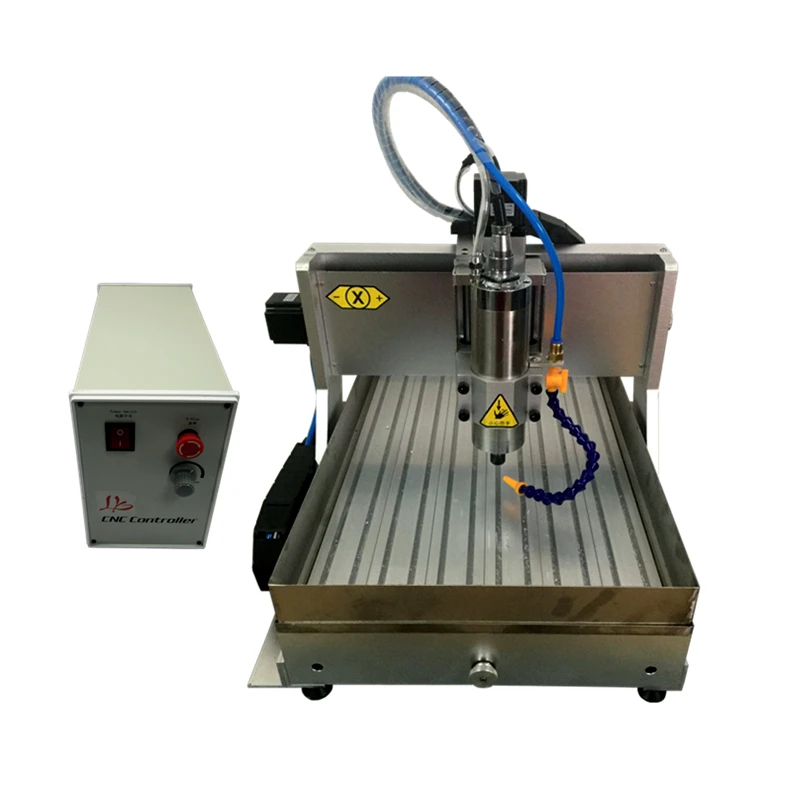

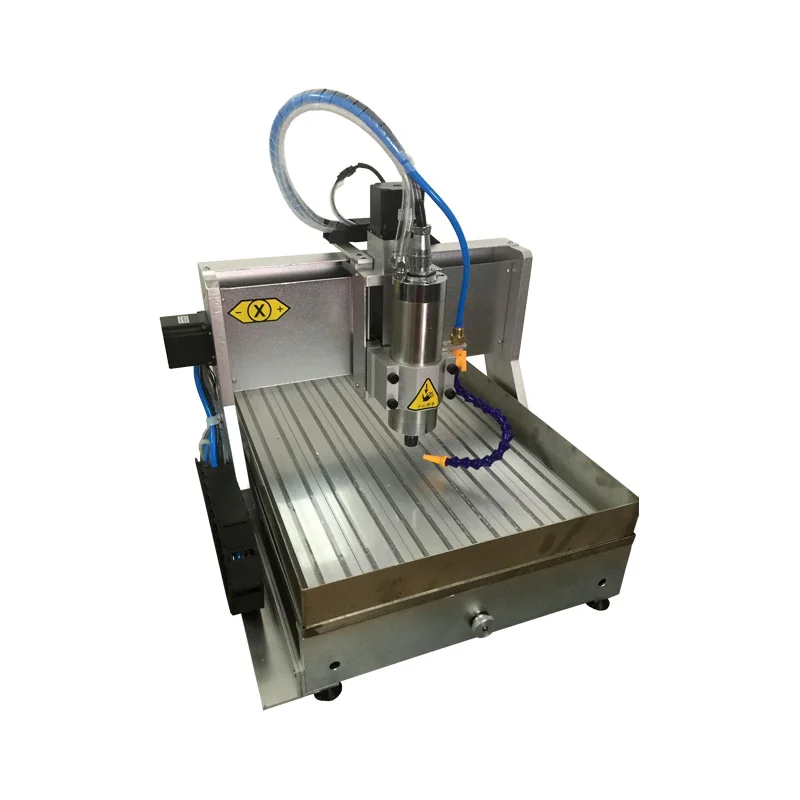

6040Z CNC Router with water tank

Attribute

4axis-LPT

4axis-USB

Axis

4axis

4axis

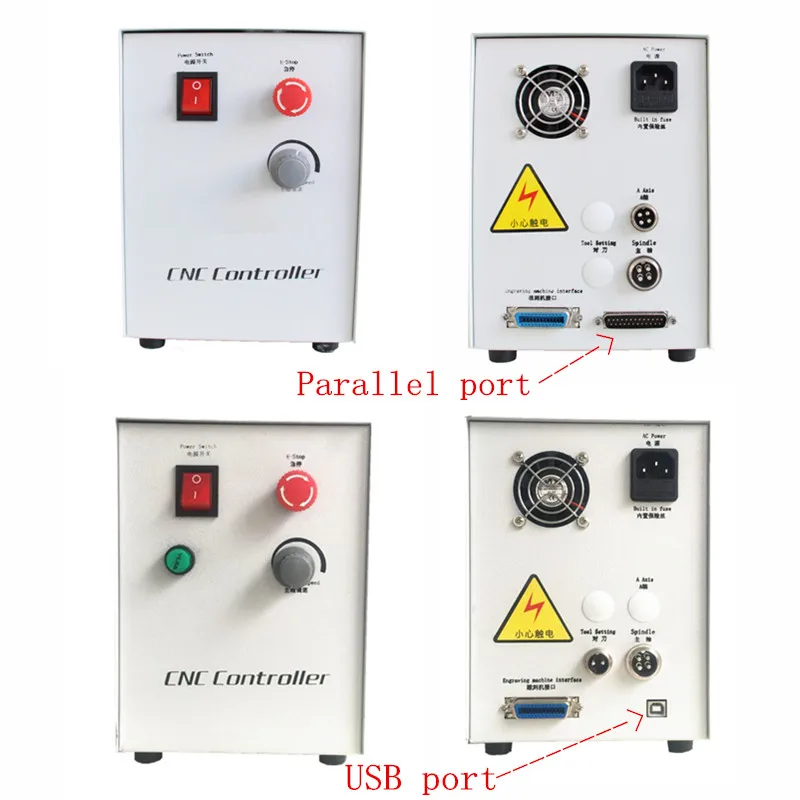

Interface

LPT port

USB port

Limit switch

Yes

Yes

Tool auto-checking

Yes

Yes

Spindle Motor:

2.2KW

2.2KW

Type of screw

Ball screw

Ball screw

Weigh

77

77

Machine Dimensions：

810X640X480mm

Rack material：

6061 and 6063 Hard aluminum alloy
(The unique and dedicated mold extrusion profiles, Let counterfeiters dwarfs.)

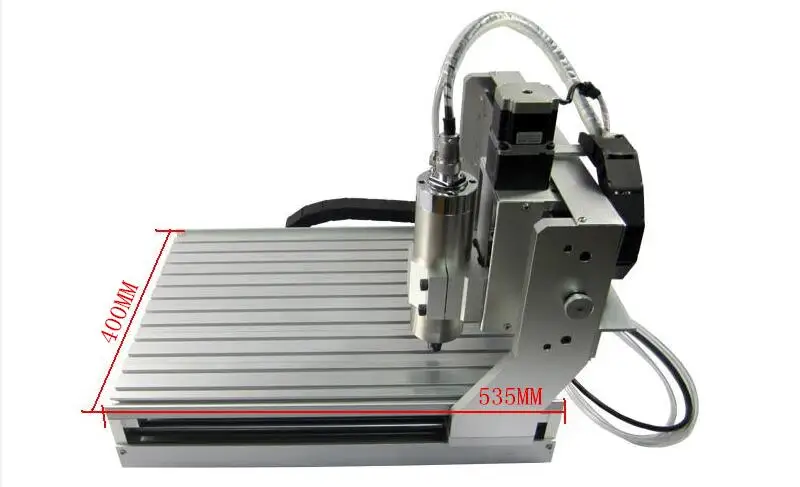

Engraving area：

600X400mm

Z-Axis Stroke：

80mm, Engraving depth depends on the length of the tool edge

Acceptable material thickness：

≤100mm

Rail type：

Chromeplate shaft + Linear Bearings, Surface hardening 61HRC

Type of screw：

Ball screw 1605, Pitch 4mm

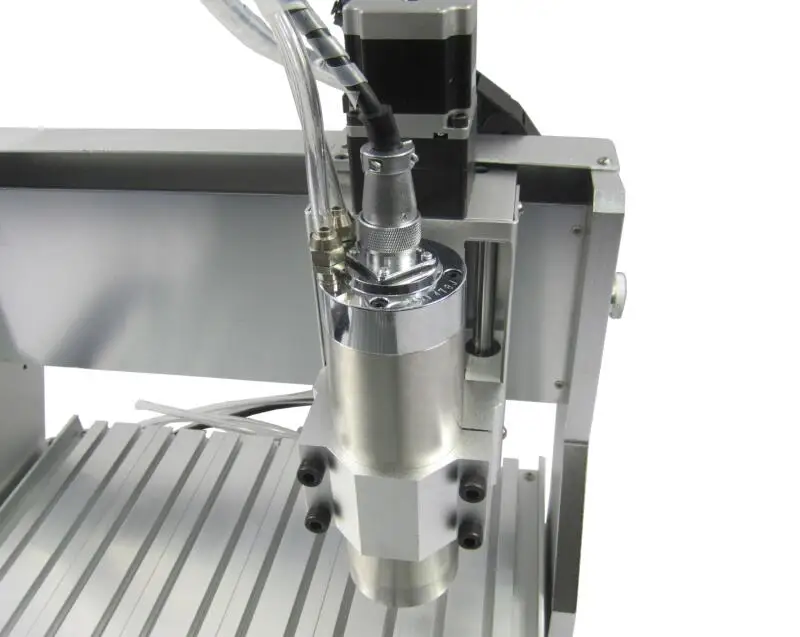

Spindle motor：

2.2KW VFD water cooling spindle , 0-24000r/min

Collet type：

ER20, 6mm Collet

Stepper motor and drive：

two-phase hybrid stepping motor 57BYGH56-4011YD, 8 segments drive.

Maximum operating speed：

4000mm/min (Engraving speed :　300-3000mm/min)

Repeat positioning Accuracy：

0.03mm

Software Compatability：

Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM, coppercam)

Command code：

G code/.nc/.ncc/.tab/.txt

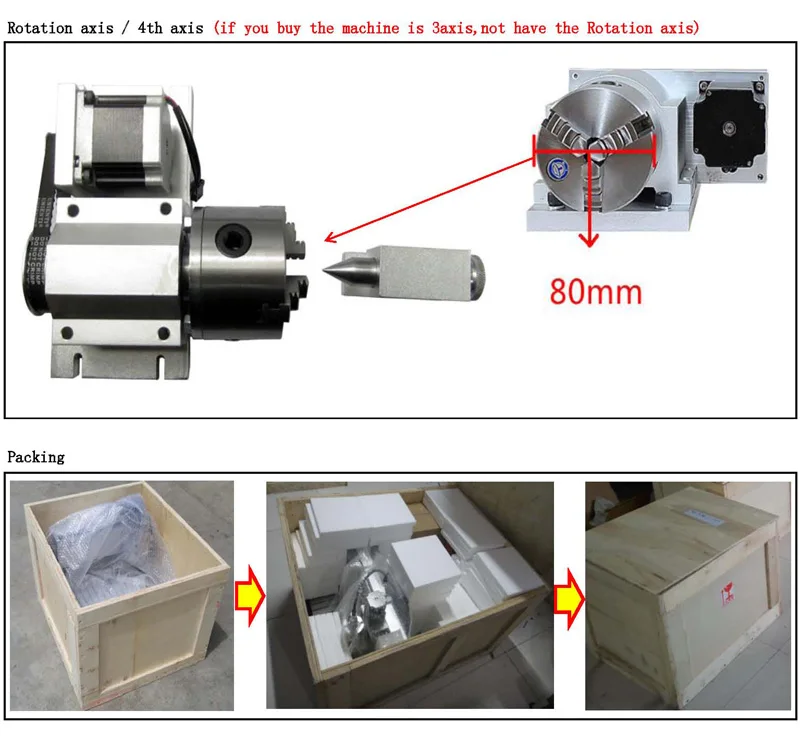

Rotation Axis (4^th Axis)

Description:

Chuck Size: 80mm self-centering chuck

Center height: H = 49mm

Clamping diameter: 80mm or less

Deceleration mode: synchronous wheel / belt

Deceleration ratio: 3:1

Stepper motor: 57 type  two phase 4 line

Positioning accuracy: 0.075 °

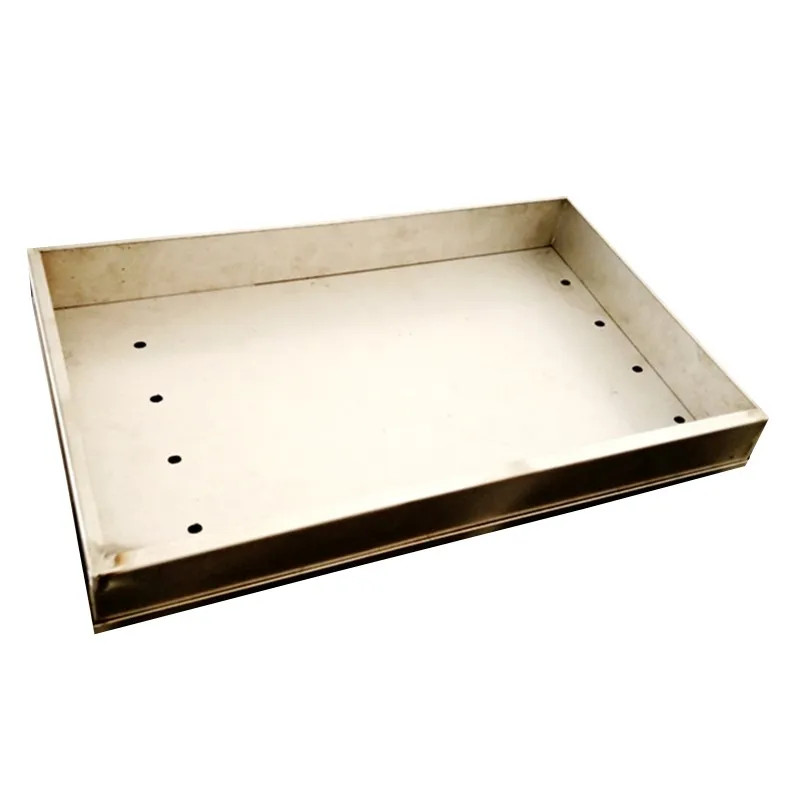

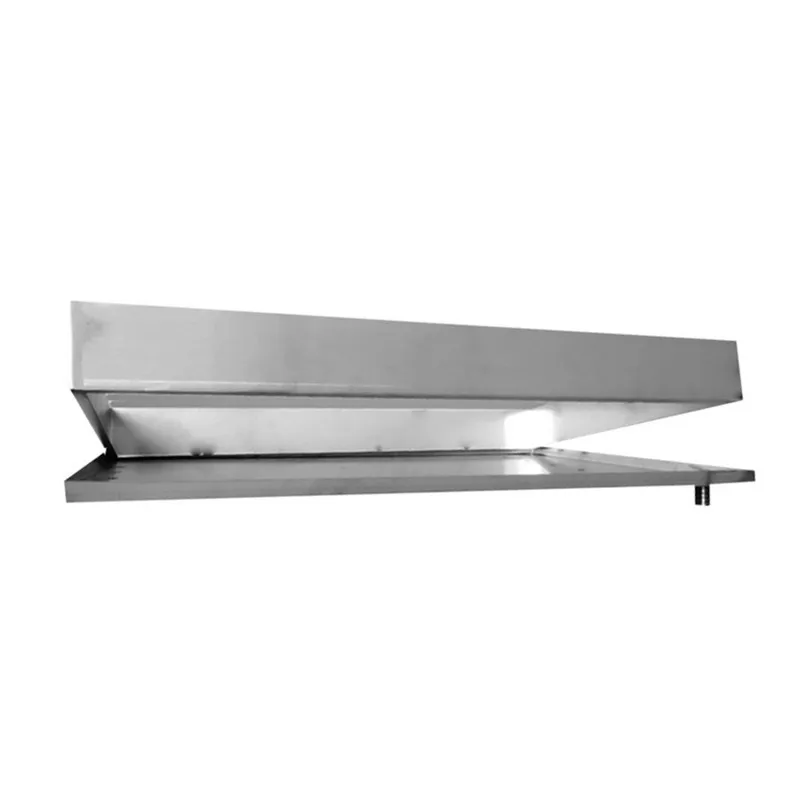

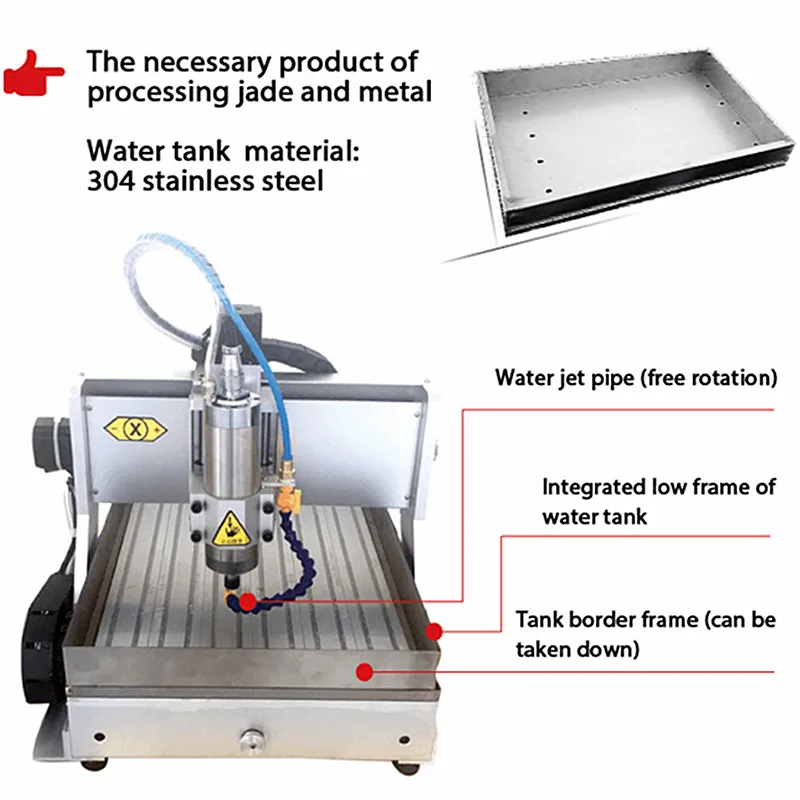

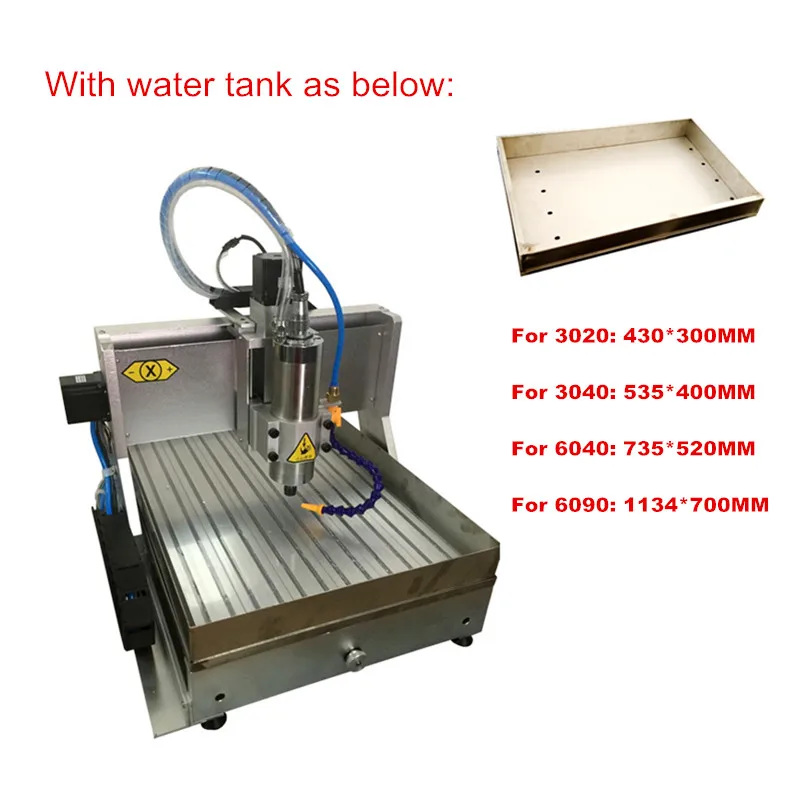

name

water tank

Attribute

For 3020

For 3040

For 6040

For 6090

Size

430*300mm

535*400mm

735*520mm

1134*700mm

Weigh

2.5

3.5

4.5

8.6
