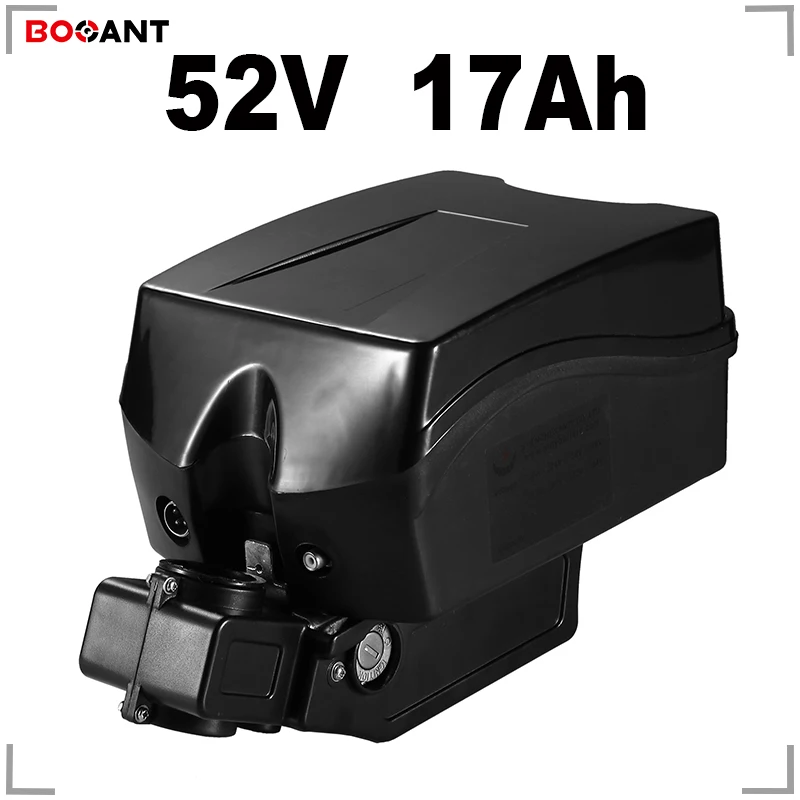

52V 17Ah 800W electric bike battery for original Panasonic 18650 cell 14S 51.8V E-bike lithium 48V 500W 1000W motor | Спорт и

---



52V 17Ah 800W electric bike battery for original Panasonic 18650

cell 14S 51.8V E-bike lithium battery for 48V 500W 1000W motor



15A BMS suitable motor：     52V     100W--600W

30A BMS suitable motor：     52V     100W--1200W

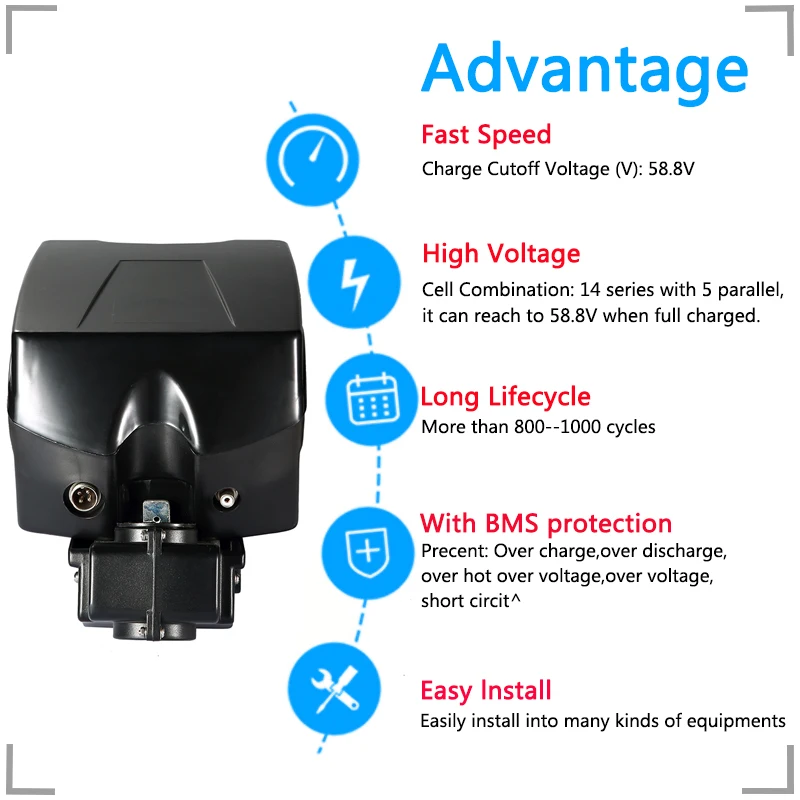

Battery Features:

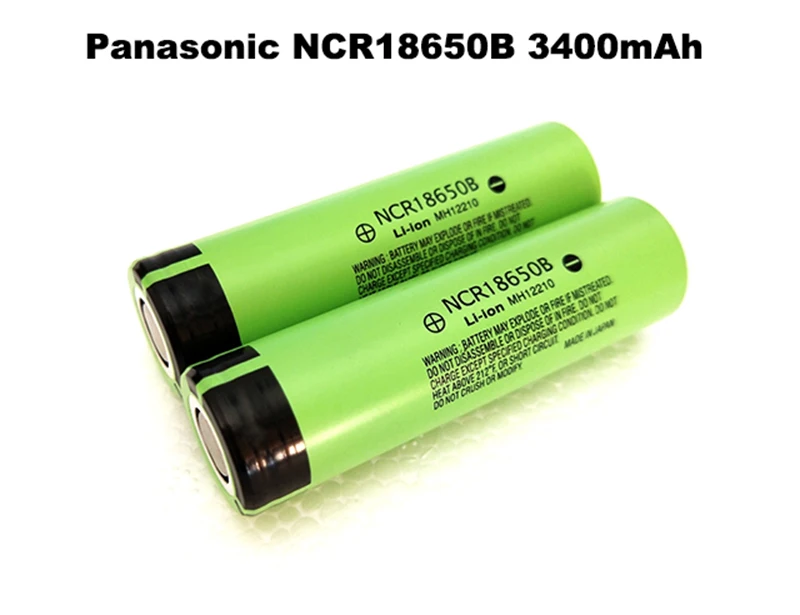

About Battery Cell：











                        Parameter Information List



Battery Model			52V 17Ah  1200W
Voltage			52V
Capacity			17Ah
Cell Type			For Original Panasonic NCR18650B 3400mAh 3.7V cell
BMS (Built-in)			30A
Charge	Way of charge		CC/CV
	Standard charge Current		2A
	Max charge current		5A
	Charge Cut-off Voltage		58.8V
	Cell Overcharge protection Voltage		4.2V/CELL
Discharge	Continuous Discharge Current		30Amp(Max)
	Peak Discharge Current		90Amp
	Cell Overdischarge Voltage		3.0V/cell
	Discharge Cut-off Voltage		42V
Cycle Life			More than 800--1000 times
Safety test			No fires ,No explosion
Over charge Safety Test
Crush Safety test
Needling safety test
130 C high Temperature safety test
Weight(Battery)		About 4.8 kg
Size		330mm*160mm*185mm(+/-5mm)
Fit motor power		100W--1200W(MAX)
Working Temperature		0C—45C
		-20C---65C
Retention of charge		>95%
Charging time		9--10 Hours
Application		E-Bike,E-motorcycle,E-scooter
Warranty		One year

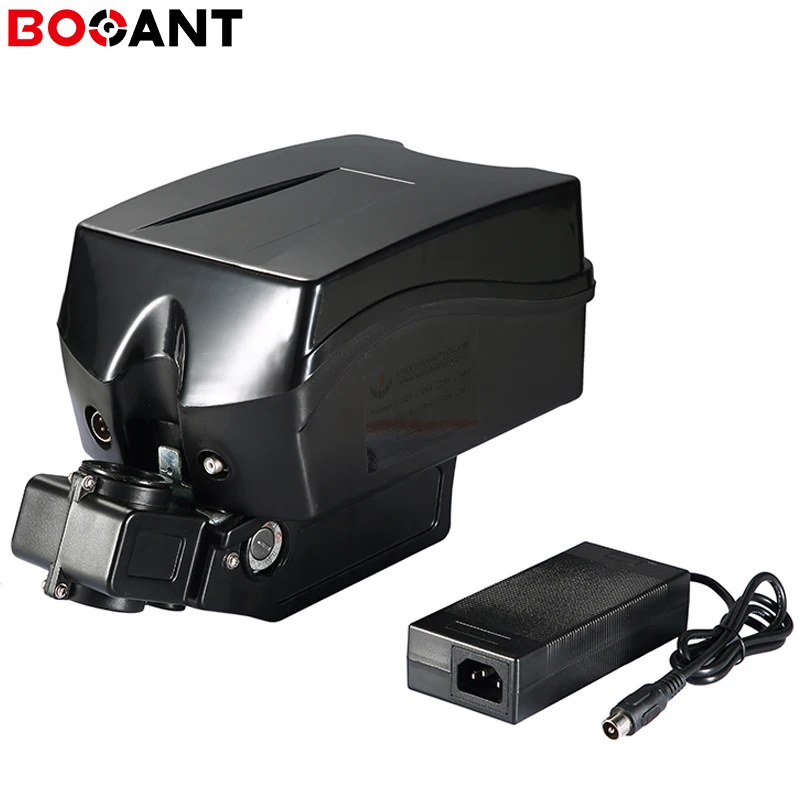

Product Package：



1. Lithium Battery packs with case

2. Built-in BMS (protection board)

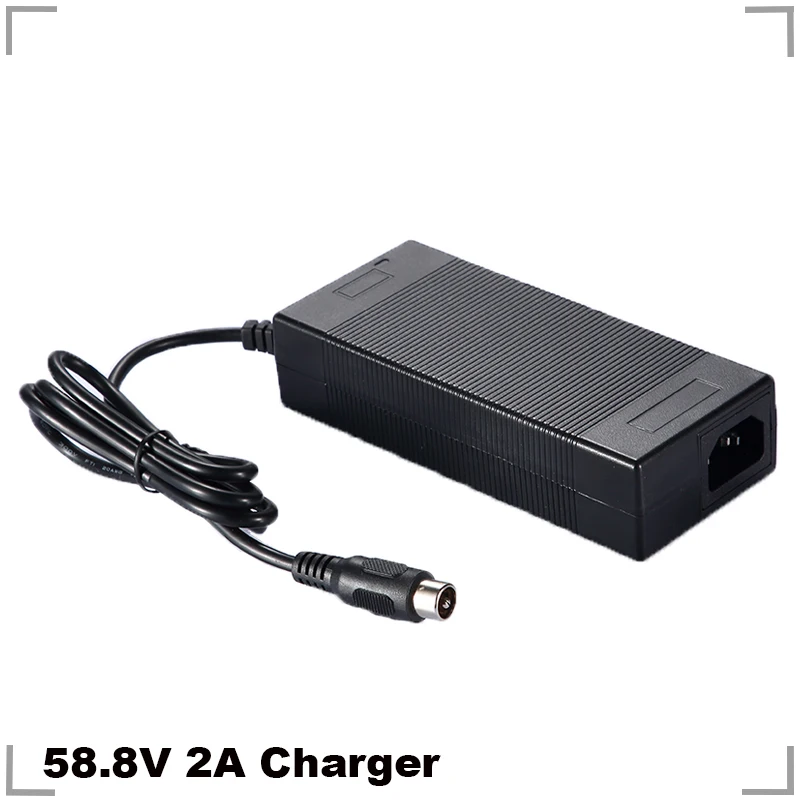

3. 58.8V 2A Charger

4. Power Cable (Supply EU/ UL /AUS/ BS Plug)

5. With a Discharge Extension Cable

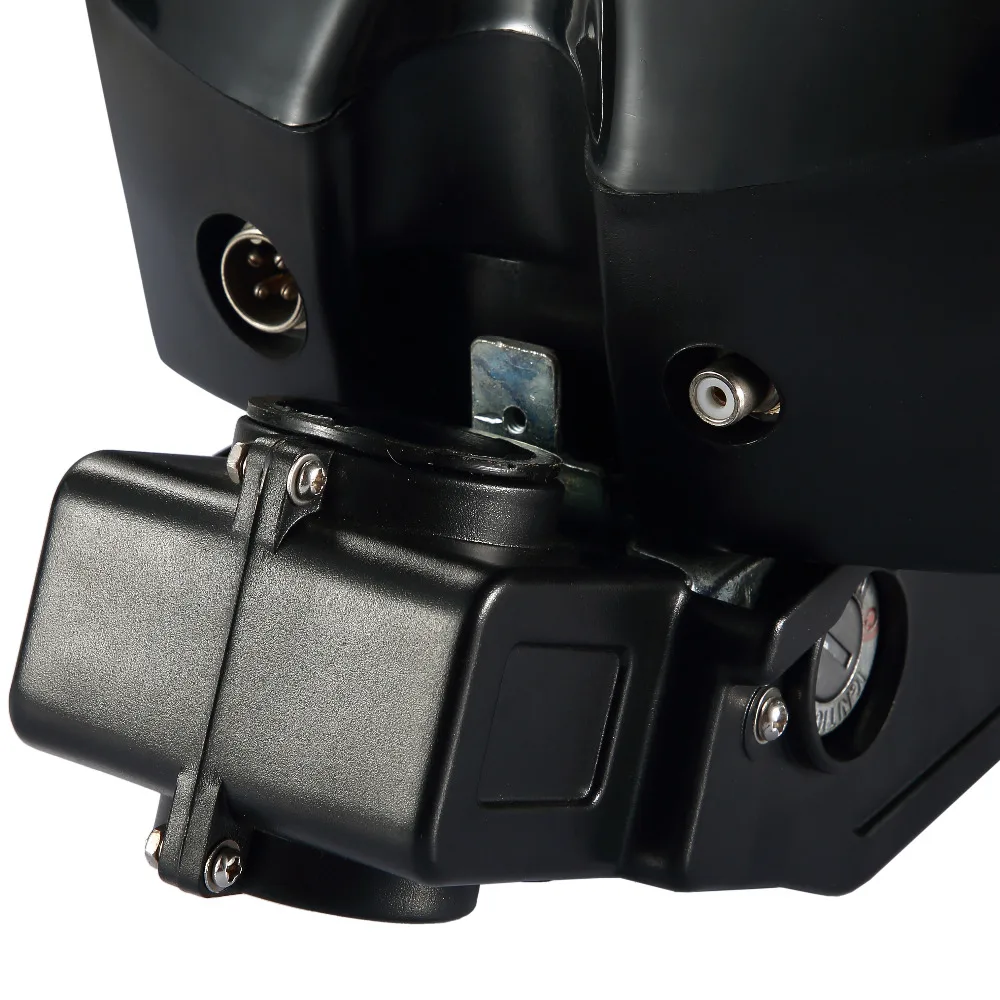

About Discharge port:                                                               Client: We offer these discharge connector as showed on picture. You can choose which one              you want, If you have not confirmed in time,we will send the product which our main                picture showed!







About the power cable：



Client: We offre these power cable as showed on picture,you can choose which one you

            Want,if you have not confirmed in time,we will send the power cable that commonly

            Used in your country.

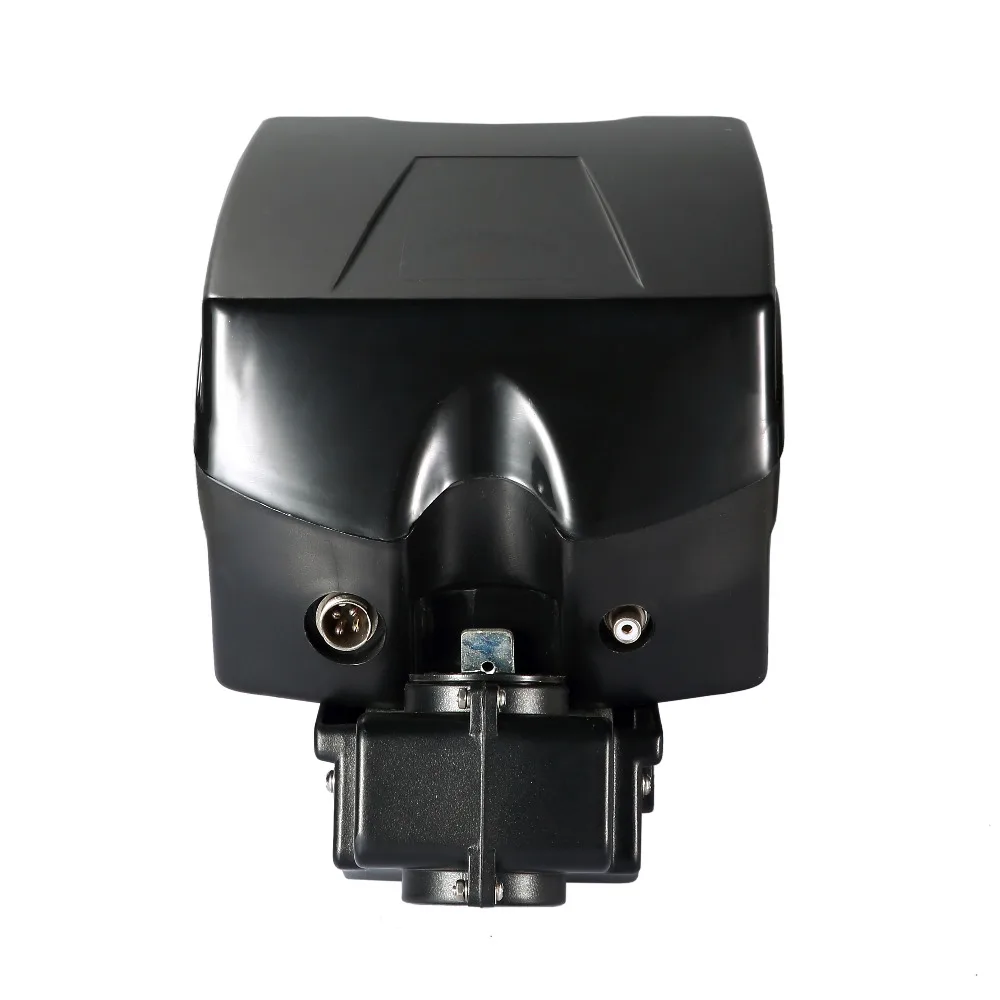

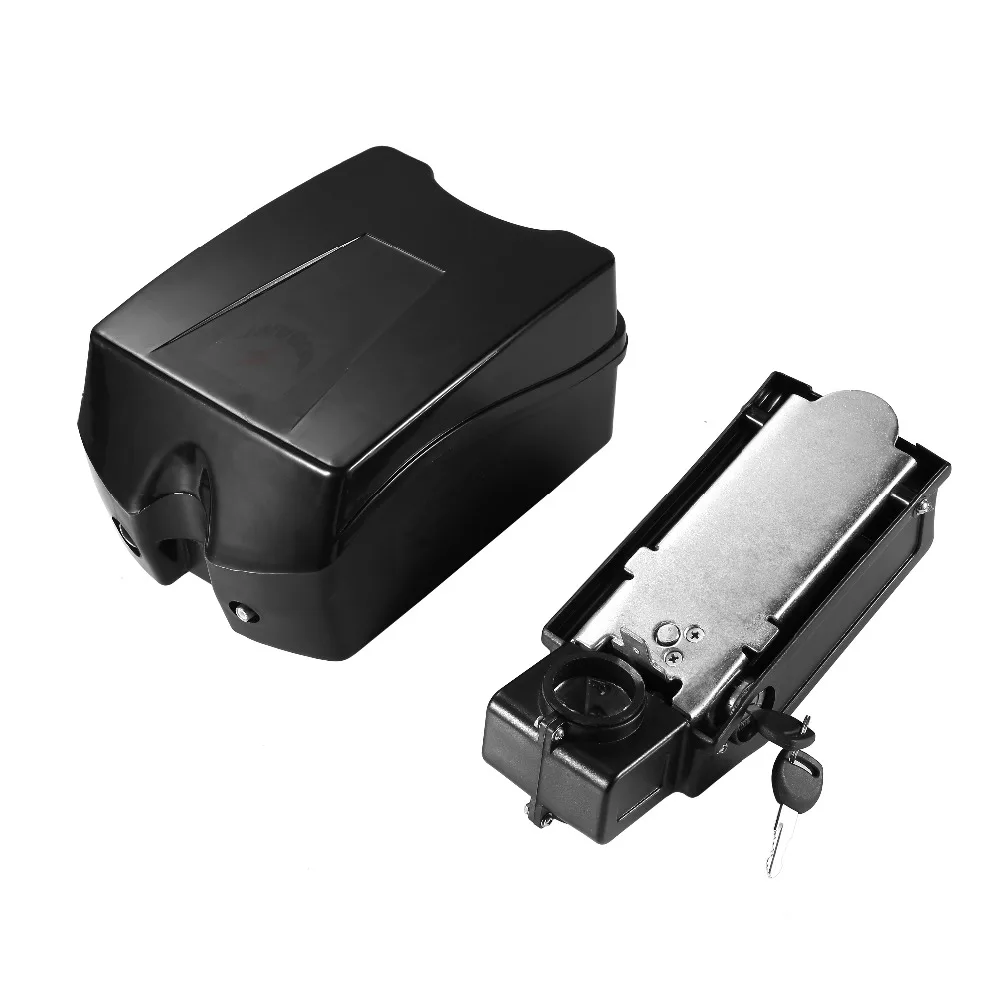

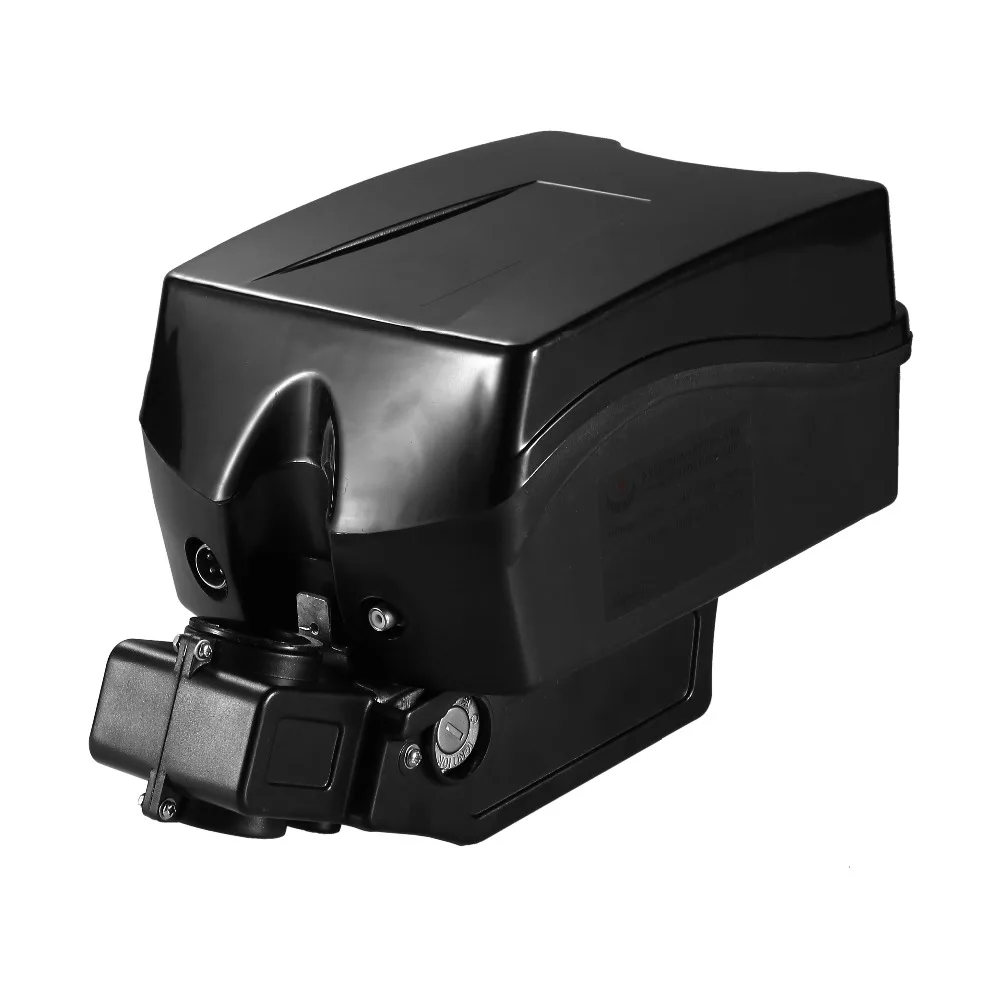

Product Show：

















































About BMS:





Best-Way BMS:















About our factory：





Warm Tips：





---

---
