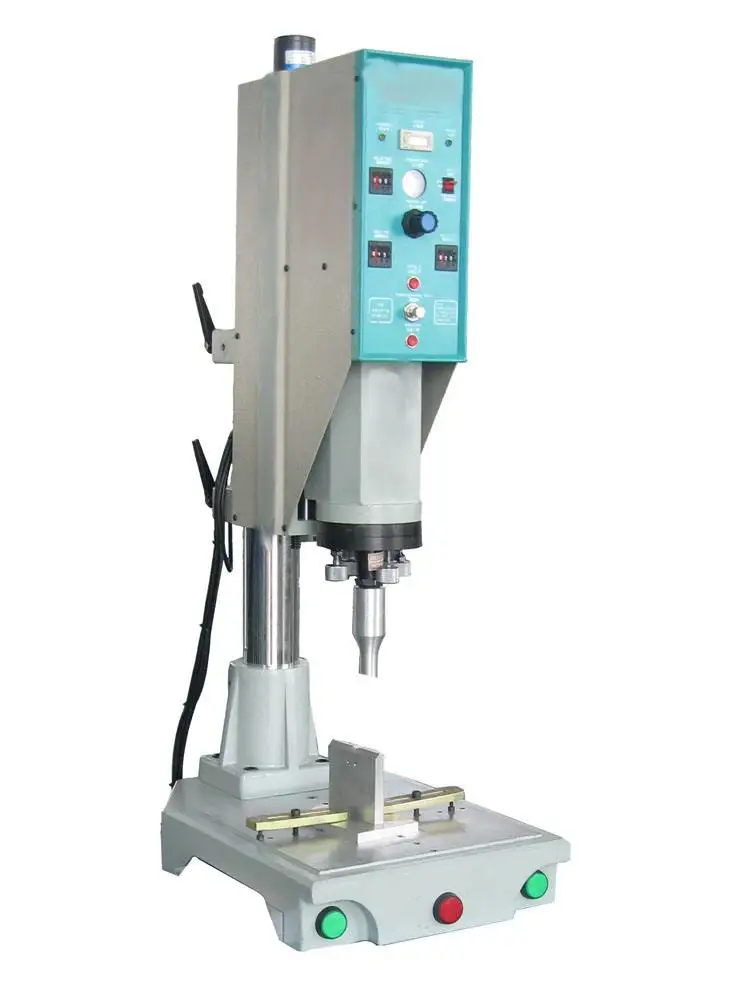

15Khz Ultrasonic Plastic Welding Machine for PP/ABS/Fabric/Acrylic

​

we can customize the welder for you with wholesale price , please contact us before purchasing .

skype :ryan1990427      /    whatsapp :+86 138 5232 7847



Product items :

1. Plastic ultrasonic welding machine

2. Ultrasonic metal spot welder

3. Ultrasonic Wire Splicer

4. Ultrasonic Tube-Terminator

5. Ultrasonic Welder for solar heat Collecting



ultrasonic welder Features



1. No flux and additional heat, no deformation due to heat, no residual stress, not only similar metals, but also dissimilar metals can be welded

2. Welding materials do not melt,will not fragile metal characteristics,it has good conductivity after welding, resistance coefficient is very low or near zero,low requirement for the surface of the welding metal, oxidation or electroplating all can be welded.

3. Welding time is short, no need any flux, gas, solder, welding no spark, environmental safety.

4. Unique structural design, easy to replace welding head, fast

5. Selection of international quality components to ensure the stable operation of equipment





Technical parameter

Model of equipment	BN-X2020A	BN-X2030A	BN-X2040A
Power	2000W	3000W	4000W
Welding area	0.5-16mm²	0.5-20mm²	1-30mm²
Working pressure	0.05-0.9MPa	0.05-0.9MPa	0.05-0.9MPa
Working frequency	20KHZ	20KHZ	20KHZ
Voltage	220V	220V	220V
Weight of handpiece	18KG	22KG	28KG
Size of handpiece	530*210*230mm	550*220*240mm	550*250*240mm
Size of electric box	540*380*150mm	540*380*150mm	540*380*150mm





Application of ultrasonic welder



1. Bonne series of ultrasonic wire beam welding machine can weld 0.5mm²-50mm² wiring harness Molding.

It mainly uses in the automobile wiring harness connection line lap welding, the wire head molding, the electric wire mutually welds, many wires and connects the butt welding into the line knot.





2. Bonne series of ultrasonic wire harness welding machine trial materials copper and aluminum wire harness, metal braid, metal stranded wire, wiring harness terminals, enameled wire, motor leads and wiring harness, such as copper wire, aluminum wire welding.

3. Bonne series of ultrasonic wire beam welding machine is widely used in automobiles, electrical and electronic appliances, electrical, communications equipment, machinery and equipment, instrumentation and other fields.





4.Bonne series of ultrasonic wire beam welding machine can weld 0.5mm²-50mm² wiring harness Molding.

It mainly uses in the automobile wiring harness connection line lap welding, the wire head molding, the electric wire mutually welds, many wires and connects the butt welding into the line knot.

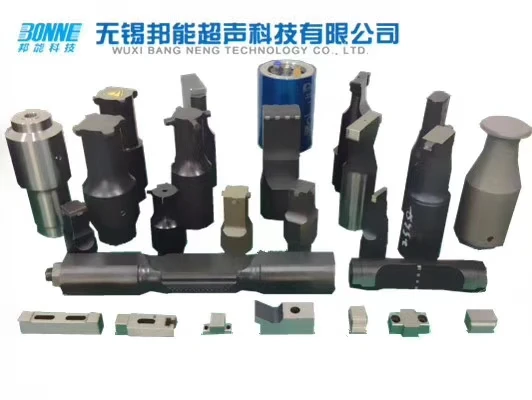

Welding head and accessories



Ultrasonic welding head is the generic term of all ultrasonic launch terminals, so the welding head must work in the resonant state

The waveform produced by each welding head passes through our internal rigorous calculation and final test.

Our production of welding experience, to ensure the quality of stability and delivery of our long-term with a number of high-quality materials suppliers, quality assurance, timely delivery, variety of goods

We use imported high quality alloy steel, ultrasonic welding head Precision High, the use of long durability







We use high-quality imported alloy steel, to create the world's top level of welding head (horn, Sonotrode), solder (tip) and Bottom anvil (anvil) Whether you are our customers, or Europe and the United States imported equipment users, we are able to provide quality, cost-effective accessories services





Ultrasonic Welding benefits

​

The welding material does not melt, does not destroy the metal characteristic

Conductive after welding, good thermal conductivity, very low resistance coefficient or near zero

Low requirements for welding metal surface, oxidation or electroplating layer can be welded

Short welding time without any flux, gas, solder

Easy to realize the connection and automatic control between dissimilar metals

Welding without spark, environmental safety





Comparison of Welding technology



Argon arc welding, resistance welding, current welding, intermediate frequency welding, high-frequency and other such welding is fusion welding, it is through high-temperature metal melting together, has changed the original characteristics of the material laser welding this principle and the same as above, is relying on high-temperature fusion welding, but can be precision welding, note that it is not the area can be welded

Ultrasonic welding principle is high-frequency friction welding, close to cold welding, it is currently the best electrical connection process welding, to the destructive of the base material, until now the international has not found a welding process can be compared with ultrasonic welding for specific industries, ultrasonic welding has no ratio of welding advantages Our independent development of high-quality control system, with welding energy, time, height of three basic control mode, a variety of quality control software to meet different needs.

Other domestic companies do not have the basic Welding Energy control mode, only a simple time control.





The above illustration is for reference only.the real situation depends on Experiment

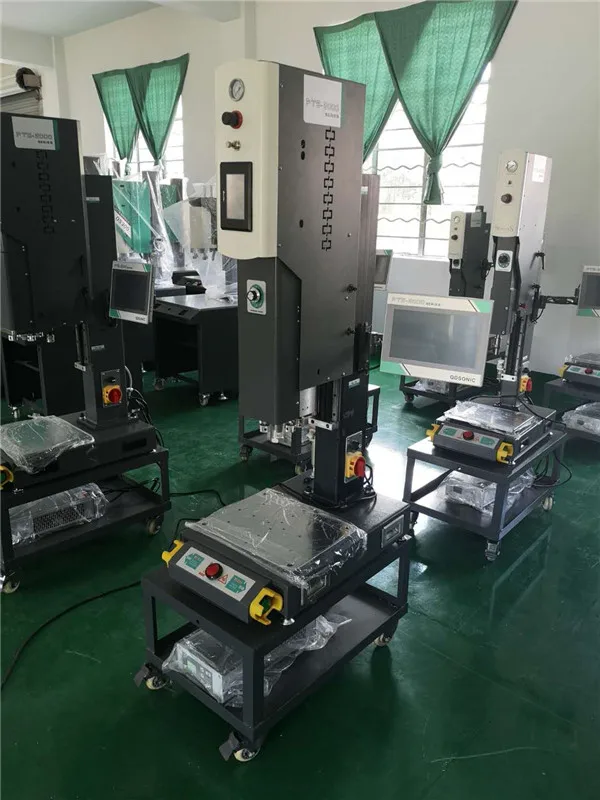

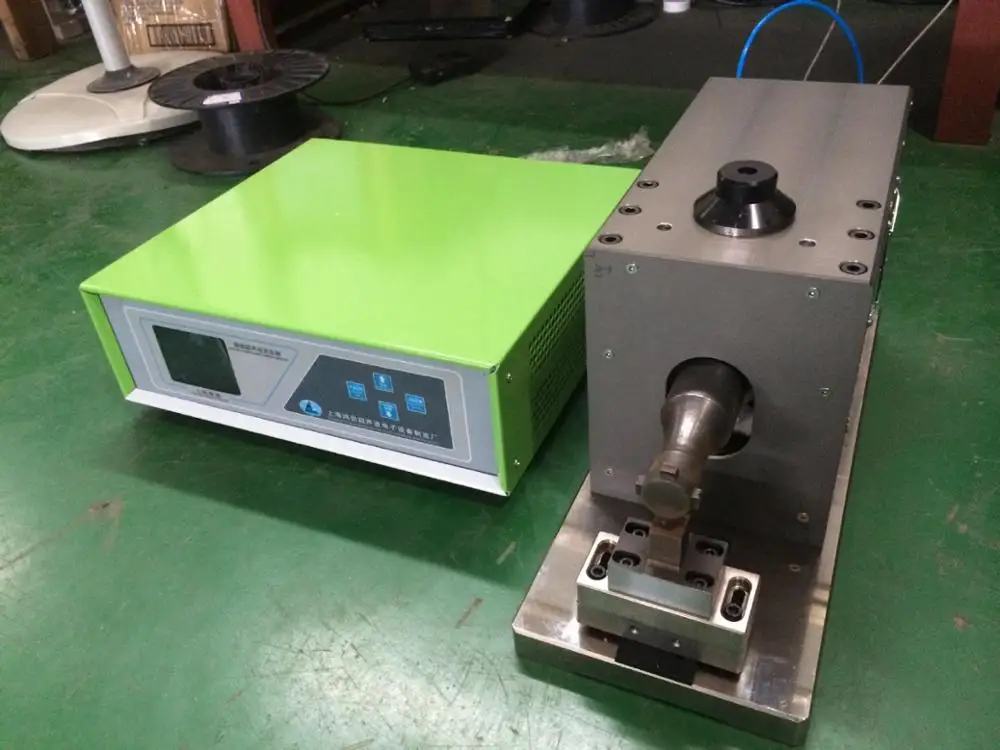

Ultrasonic welding products Display























Customers
