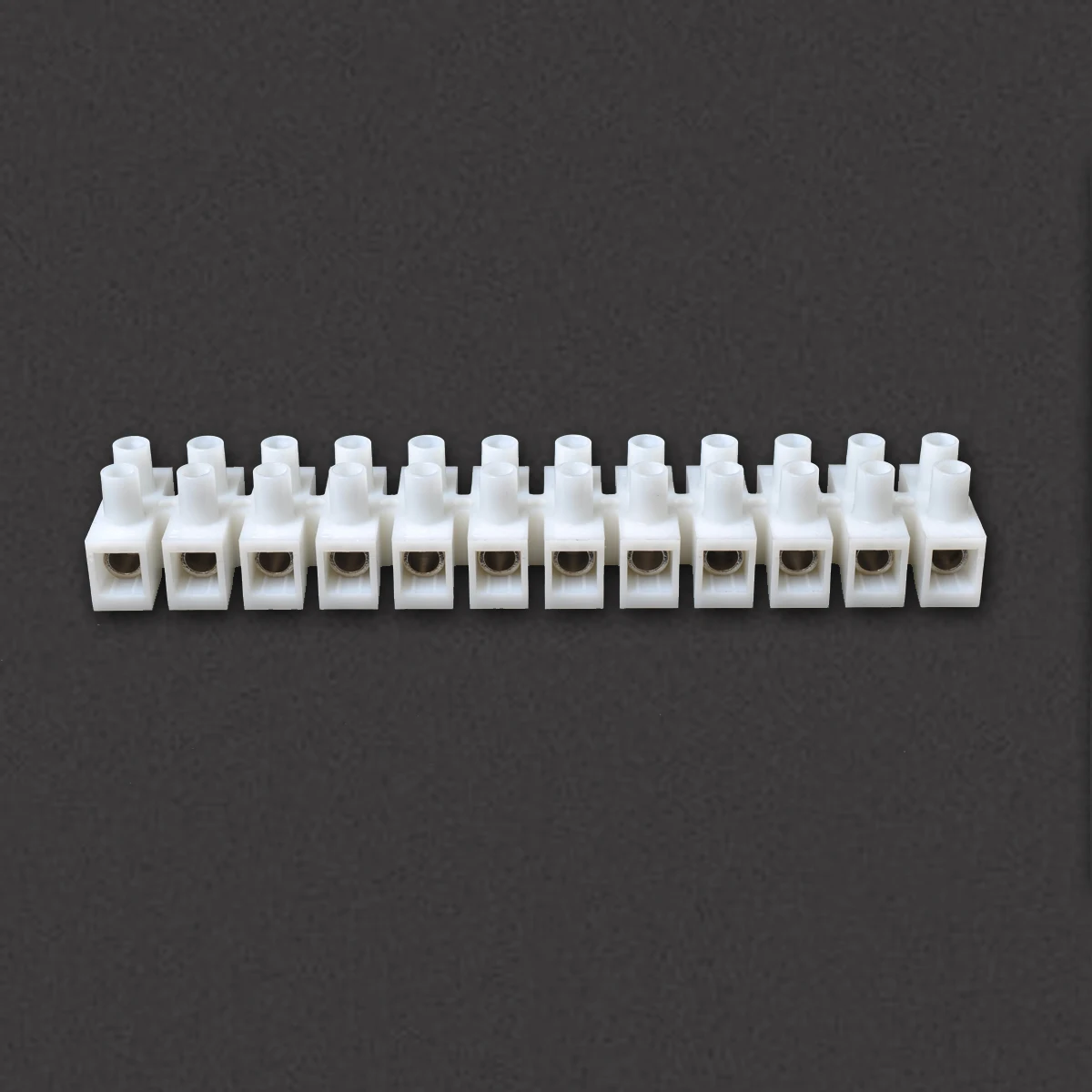

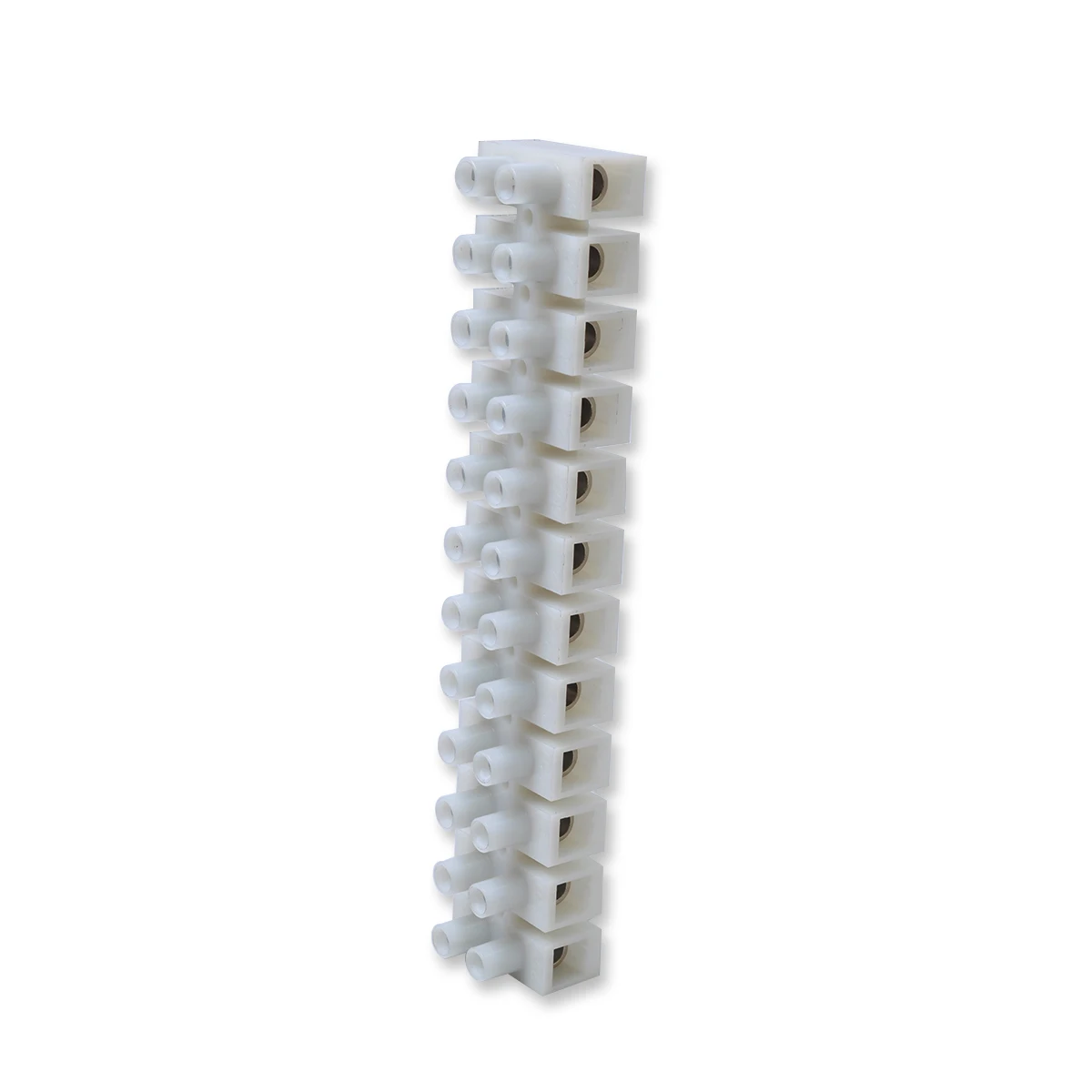

12 Position Barrier Screw Terminal Block Wire Dual Row Connector Strip 300V 80A with Screwdriver



Discriptions:

Each pair of terminals is insulated from the next, prevent circuit in disorder.

The set screws secure wires reliable contact and help prevent accidental contact with the terminals.

Used for wires connecting of Cars, Boats, RV, home appliances, electronic circuits, machines, etc.



Specification:

Terminal Blocks(Raised Base Type)

Item:PA18

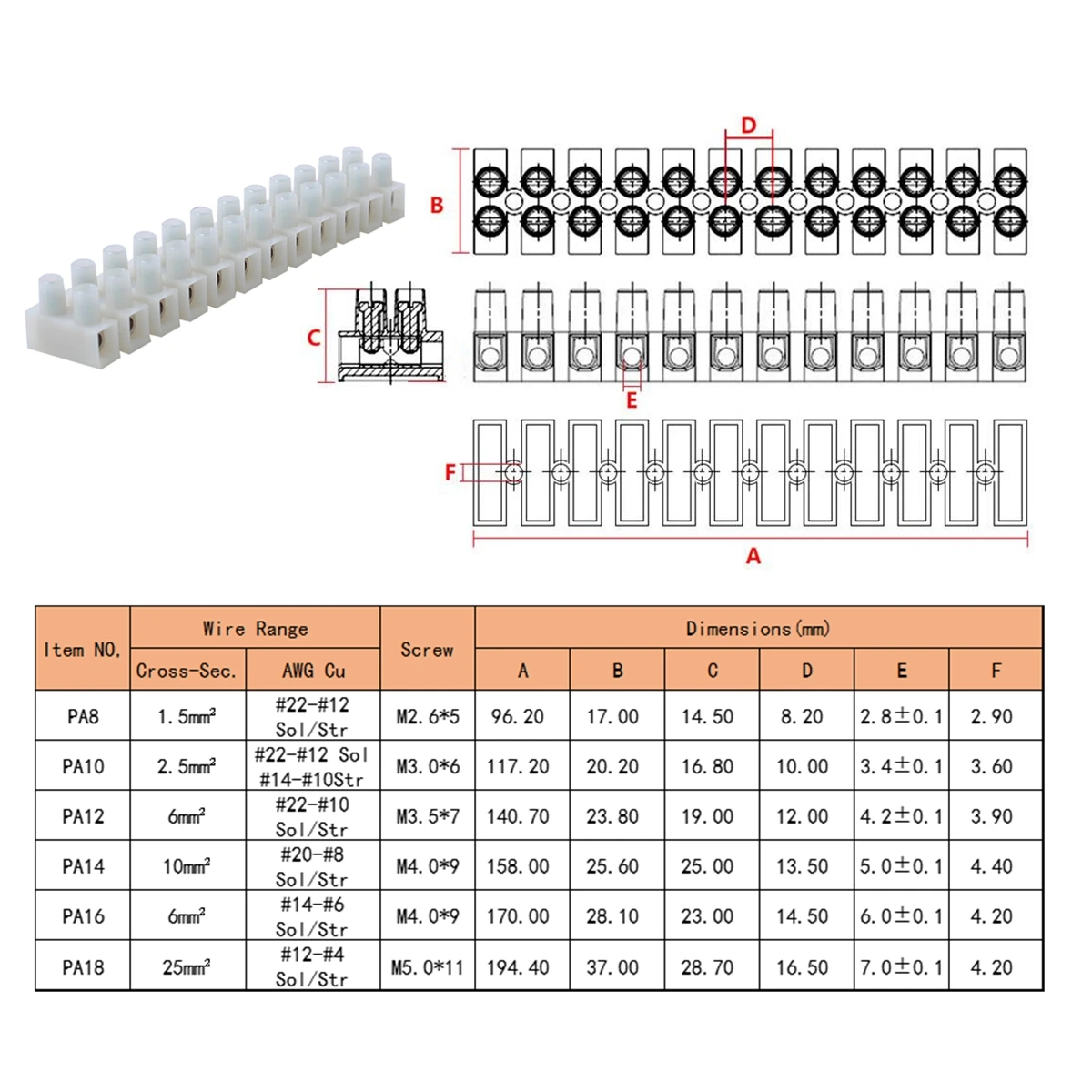

Size:194.4*37*28.7mm/7.6" x 1.45" x 1.13" (L*W*T)

Raised Hight:2.5mm

Poles12P

Housing:Nylon UL94-V0(2)

Terminal:Copper

Nickel plated

Ambient temperature: 105UL-30 to T110 T140 (IEC)

Screw:Copper zinc plated

Bare wirePA18 about 13.0mm/0.51in;

Wire Range:PA18  25mm;#12-#4 Sol/Str

Approvals & Ratings:PA18 500V 101A 25mm2;300V 87A #12-#4

Screw:PA18 M5.0*11



Screwdriver

Length:about 8.5cm/3.34"



Packaged:

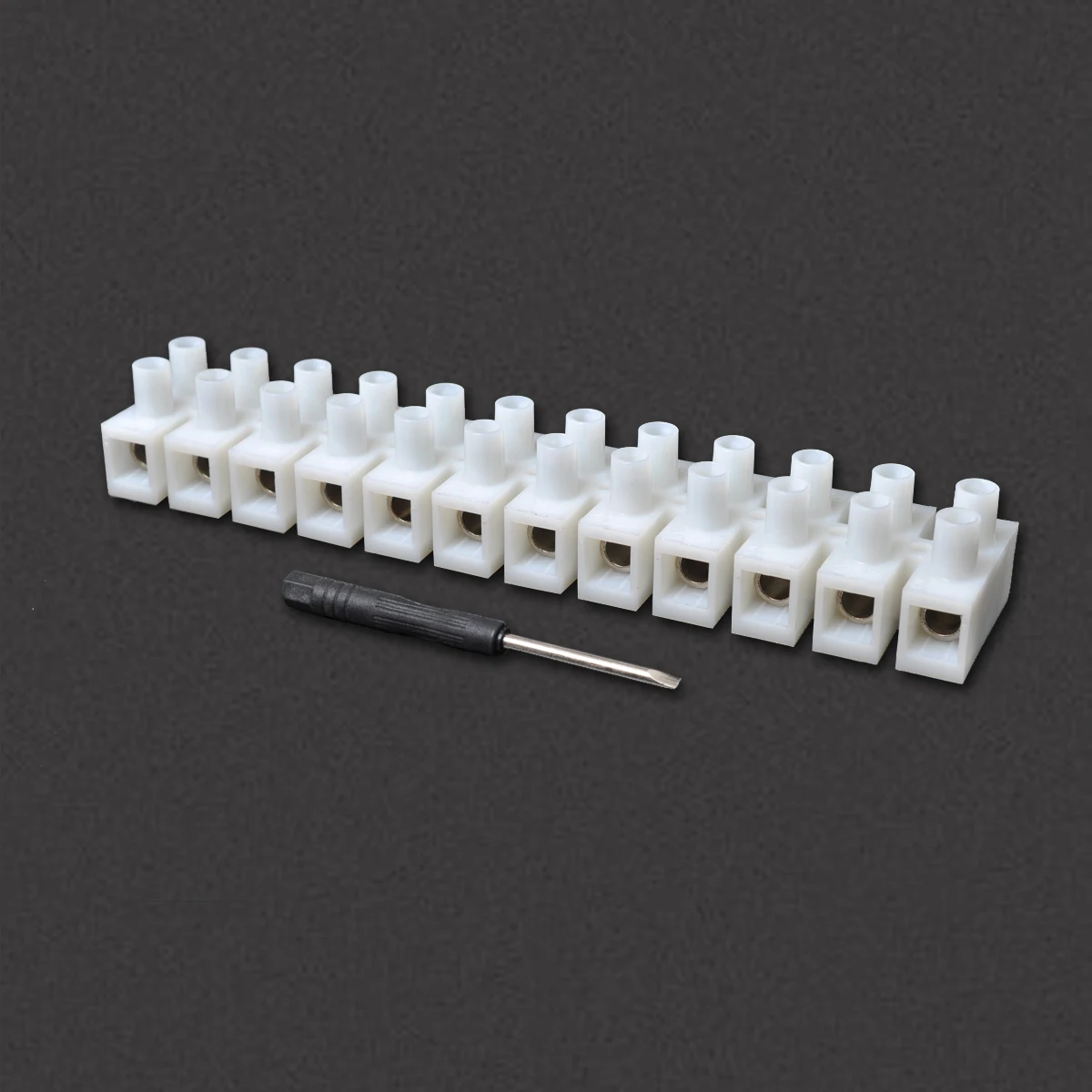

1 x PA18 Terminal Block

1 x Screwdriver
