Camecho 2Din Car Radio 7"HD Player MP5 Touch Screen Digital Display Bluetooth Multimedia USB 2din Autoradio Backup Monitor | Автомобили

---

Camecho 2 din Car Multimedia Player Audio Stereo radio 7" HD Touch Screen Digital Display Bluetooth USB FM Autoradio Car Rearview Monitor with Backup Camera 7018B





Description   Important notice before installation: Please read carefully!!! Yellow line (for memory wire) connected to the battery constant current positive, the machine will have memory function. Red line pick the key to the ACC line, this line is also positive, control power switch. Black wire connected to the negative power supply. Blue line connected lift the antenna or subwoofer REM control line, if not have do not connected, wrapped up with rubberized fabric. The remaining eight wires(gray white green purple) are speaker line, a group of colors corresponding to a pair of speaker lines (positive and negative). Please pay attention to check whether the original car speaker cable if contact iron (the original car speaker wire welding to the metal, or a speaker only a line thow out, called contact iron). contact iron will cause our high-power machine without sound, please test it with a multimeter before install, if contact iron, please disconnect and then install.   Features:

Bluetooth Specification: V2.0

Support Mobile phone interconnection:Mirror-Link allows to synchronize mobile phone screen in the car via connecting them with USB cable ( only supports for Android phone ).As it is very strict with the data cable.Please use the original phone USB cable.

Built-in Car DVR System: it will grasp the road condition accurately after connecting with a USB camera. The records will be saved in the media card automatically and can be played on this unit directly.

Supports advanced audio distribution profile

Off time display function

Digital high-quality FM stereo radio

Preset 18 stations ( frequency: 87.5-108 MHz )

Support USB / SD / MMC card reader

Support Audio: MP3 / WMA / APE / FLAC / WAV etc.

Support folder function

Support breakpoints and ID3 Play

Support remote control

Rotary volume control

MP3 randomized, 10 track up / down playback

Electronic control volume treble, bass, balance and fader

Multiple EQ scene selection: Jazz, rock, pop, classical, etc.

Mute and loud control

L / R RCA audio output jacks

4-channel high power output ( 4 loud speaker )

Support modes: BT / APE / WAV / WMA / MP3 / FM

The remote control battery (not included): CR2025 3V

Power Supply: 12V Machine(11 - 16V)

Languages menu:English Spanish German French Russian Portuguese Italian Chinese

It supports Remote Control also Steering wheel remote control,whatever you choose,it's more convenience to using.



Important notice before installation:



Yellow line (for memory wire) connected to the battery constant current positive, the machine will have memory function.

Red line pick the key to the ACC line, this line is also positive, control power switch. Black wire connected to the negative power supply.

Blue line connected lift the antenna or subwoofer REM control line, if not have do not connected, wrapped up with rubberized fabric.

The remaining eight wires(gray white green purple) are speaker line, a group of colors corresponding to a pair of speaker lines (positive and negative).

Please pay attention to check whether the original car speaker cable if contact iron (the original car speaker wire welding to the metal, or a speaker only a line thow out, called contact iron). contact iron will cause our high-power machine without sound, please test it with a multimeter before install, if contact iron, please disconnect and then install.



Friendly Reminder:



1. Can not use the original car plug directly connected to our new machine, do not match will lead to the machine burned, part of the machine can be shared please consult customer service.

2. If you buy a 12V voltage product do not install to 24V voltage models, otherwise it will cause the machine burned.

3. When wiring, speaker cable and power cord together, will cause a short circuit, lead the machine burned/unable to boot or machine without sound.

Note: This machine is 12V machine, not according to the 24V power supply

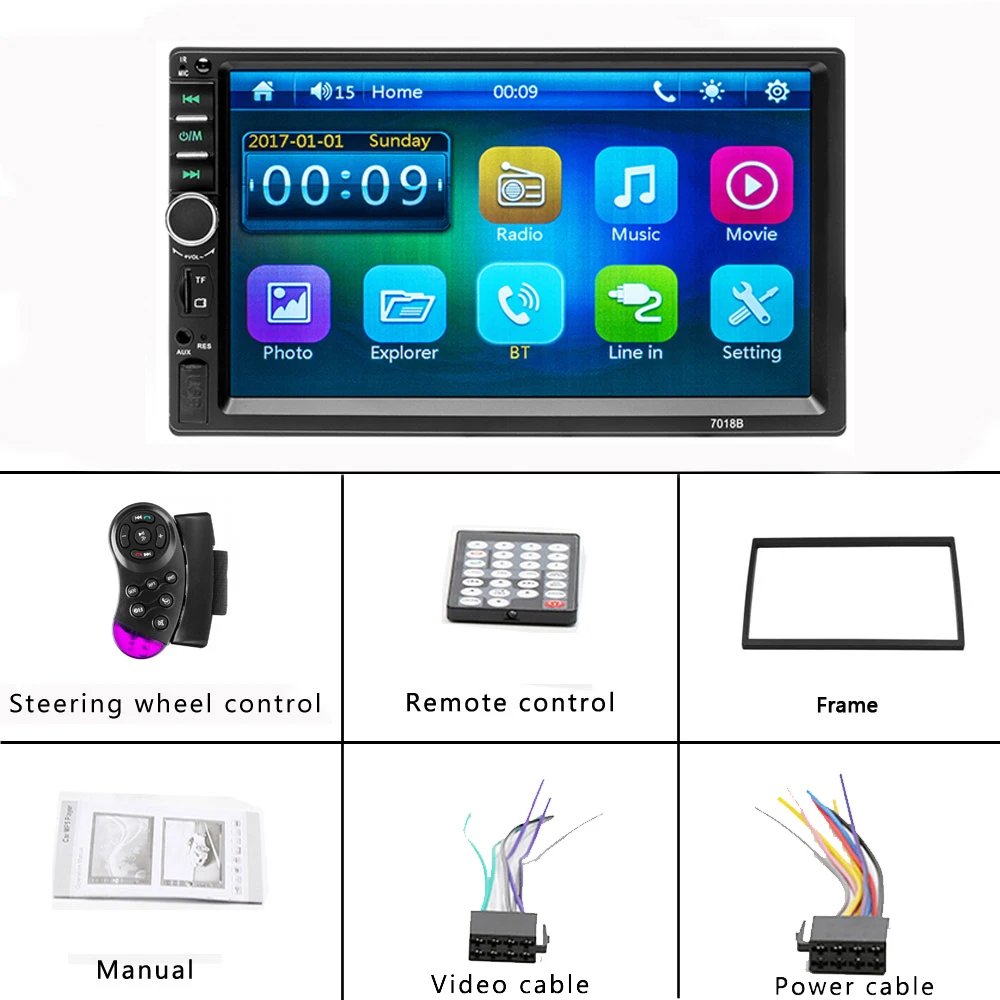

Package Included:



1 X Bluetooth Car Touch Screen Monitor with MP5 Player 1 x Remote Control 1 x Power Supply Wire 1 x User Manual   Or Package Two:   1 X Bluetooth Car Touch Screen Monitor with MP5 Player 1 X 4 LED Rear View Camera 1 x Remote Control 1 x Power Supply Wire 1 x User Manual



Or Package Three:



1 X Bluetooth Car Touch Screen Monitor with MP5 Player 1 X 8 IR Backup Camera 1 x Remote Control 1 x Power Supply Wire 1 x User Manual       FAQ:(  Car Radio )



Q1.Why the car radio can't turn on  ?

1>Please check the Voltage of car radio :DC 12V
2>When you test this car radio,you can combine the red and yellow wires and connect them to the positive side of the power supply.Black line to negative power supply.
3>Replace the same type of insurance to test the car radio.
Note:Please msut use our power cables to connect our car radio,it is not possible to insert the original car plug directly into our machine.

Q2.Why the car radio will show "No Signal" when we reversing?

>Please check if the camera's line is properly connected to the car radio.
>Note:The video port of rear camera must insert the "CAMIN" port of car radio.

Q3.Why does the camera display "!" and "Can't watch video while driving" when I use USB to watch videos?

> Please turn off the "Video Warning" function in the settings,then will be OK.

Q4.Why the car  radio will show time after we turn off this?

>That time clock is a function for the car radio ,that can't be removed.In fact that car radio had been turn off,it save the time are more convenience for people to see,

>If you didn't need this,you need to unplug the power positive and negative.

Q5.Why haven't sound in car radio when playing the music?

>1.When you are not using our original audio cable, please check if your audio cable is suitable for our camera.

>2.Please check if there is any collision between the lines.

>If the line is connected, there will be no sound when the speaker cable touches the speaker cable.There is also no sound when the power cord touches the speaker cable.

>If the problem still here,please  use a single speaker to connect a group of audio cables to test the car radio. The four speaker cables are connected separately to see if there is any sound.

Q6.Why can't search FM?

>1. No radio antenna inserted.

>2. Please check if the radio antenna is plugged in. Please insert more antennas several times to make it well contacted.

>3.The signal of your location is not good. Please go to a better place to test again.

>4.The radio antenna on the car is broken/no effect; please replace the radio antenna and test again;

Q7.Why can't connect the Bluetooth of car radio?

>1.Open the phone settings interface, open the Bluetooth in the Bluetooth function, search for Bluetooth devices, find the player's Bluetooth model to be paired; if you need a pairing code, enter 0000; if not, try 1234 or 123456.

>2.Please try to use another mobile phone to test this function.All methods are correct and still cannot use Bluetooth, Please unplug the plug on the back of the player and plug it in after 3 minutes.





---

---
