CHUX 350w 24v 11A UPS Charge function monitor Switching Power Supply input 110V 220v battery charger 27.6VDC Power Supply

100% Brand New in The Box

Item No.           SC-350W

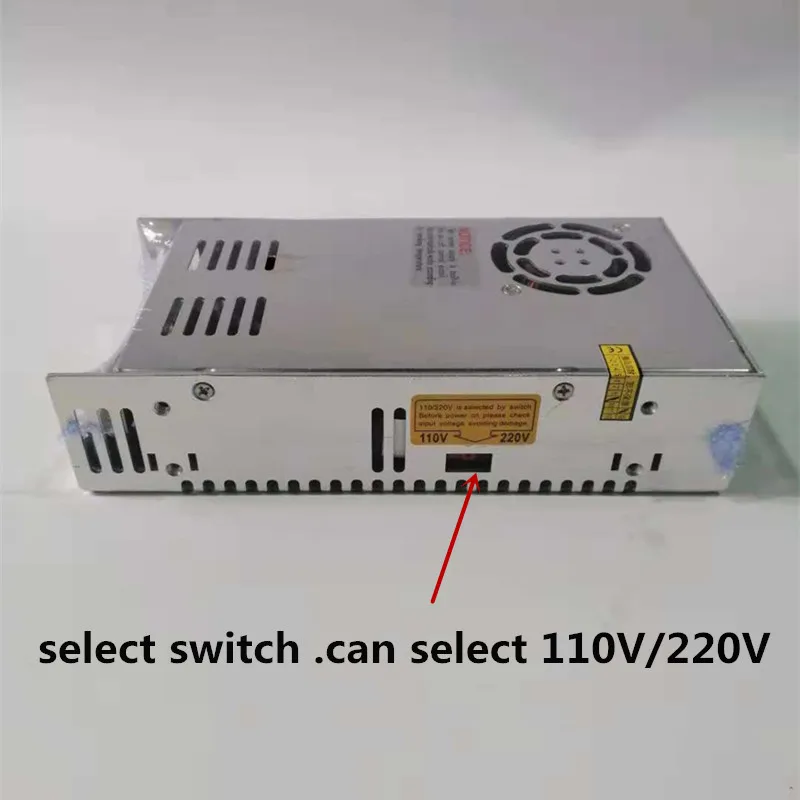

Features:·universal AC input

        ·Small volume,low weight,high efficiency

        ·Protections:short circuit/over load

        ·Indicator for power on/charge/normal(LED)

        ·100% full load burn-in test

        ·Battery protection at low voltage

        ·2 Year warranty



Notes:

1.Battery type is not required, lead, lithium and other batteries all can charge.

2.The power supply had no request for the battery "Amp", big battery capacity charge time long, small capacity charge fast.

3. For the Charge voltage, if you want test it, please connect with the battery first, then test it, if not there have no output voltage for the CH2 (charege side).

 with Battery charge and discharge management function



Power : 350w

Brand:  CHUX

item number: SC-350-24

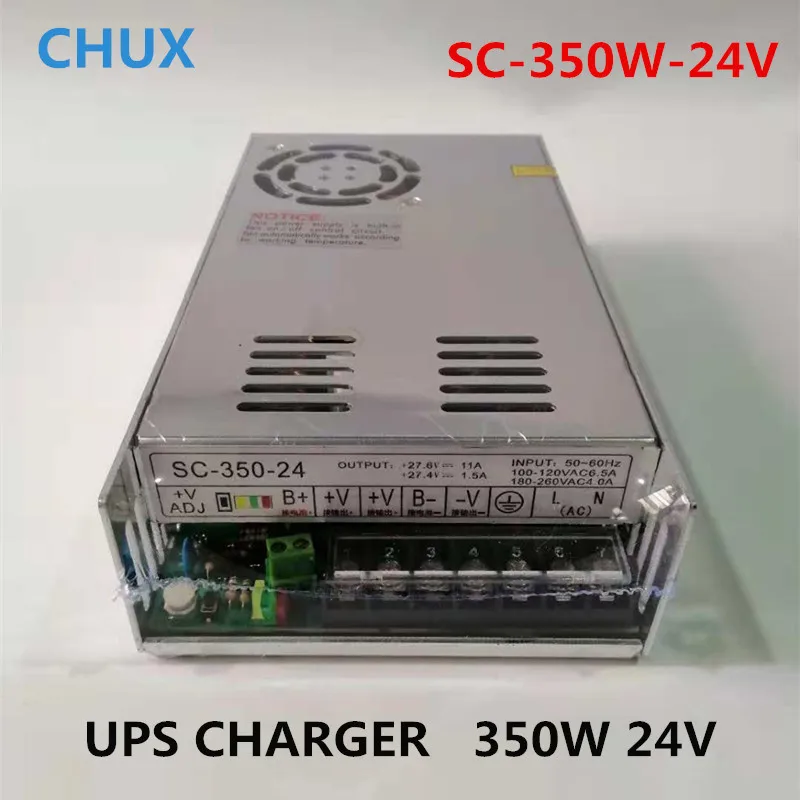

Output:   CH1: 27.6V,  11A

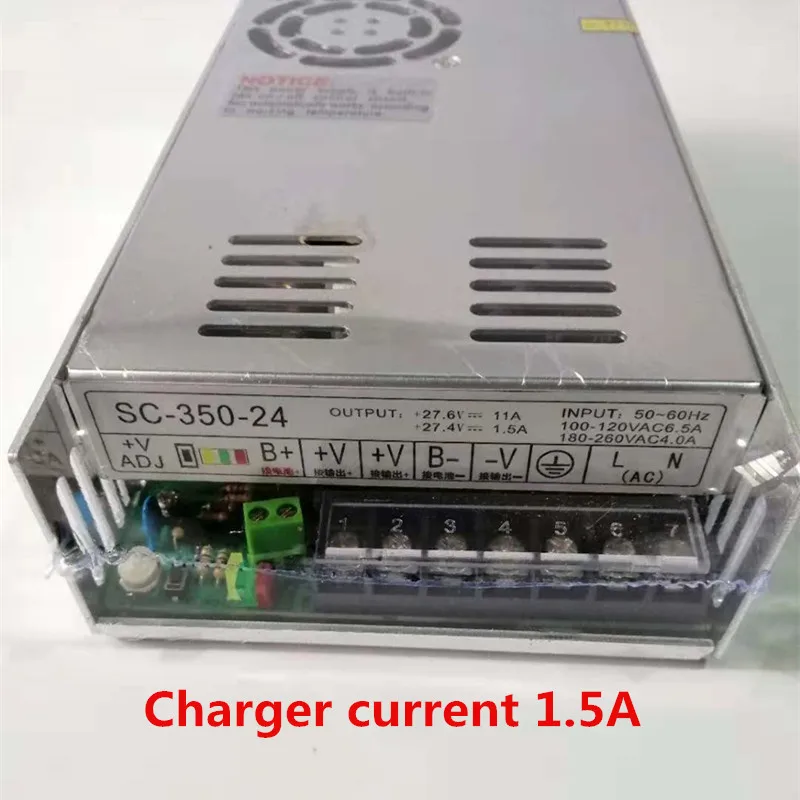

                CH2: 27.4V,  1.5A

led indicator:

RED LED: AC INPUT

GREEN LED: DC OUTPUT

YELLOW LED: battery charge

Size: 215*115*50mm (L*W*H)

      Automatic charge control, battery full automatic stop charging. AC power failure, the output voltage automatically switches to the battery voltage output, 24V uninterrupted power supply. Zero switching time, the device does not stop, do not restart. Battery voltage under voltage (less than 10.5V) automatically cut off the battery discharge output, under voltage protection to prevent battery over discharge  battery voltage differential automatic processing function, effectively protect the battery Automatic switching control without manual intervention   There are 4 working status indicator light: City electric work indicator light Backup power work indicator Battery under voltage protection indicator light Charging indicator light







---

---
